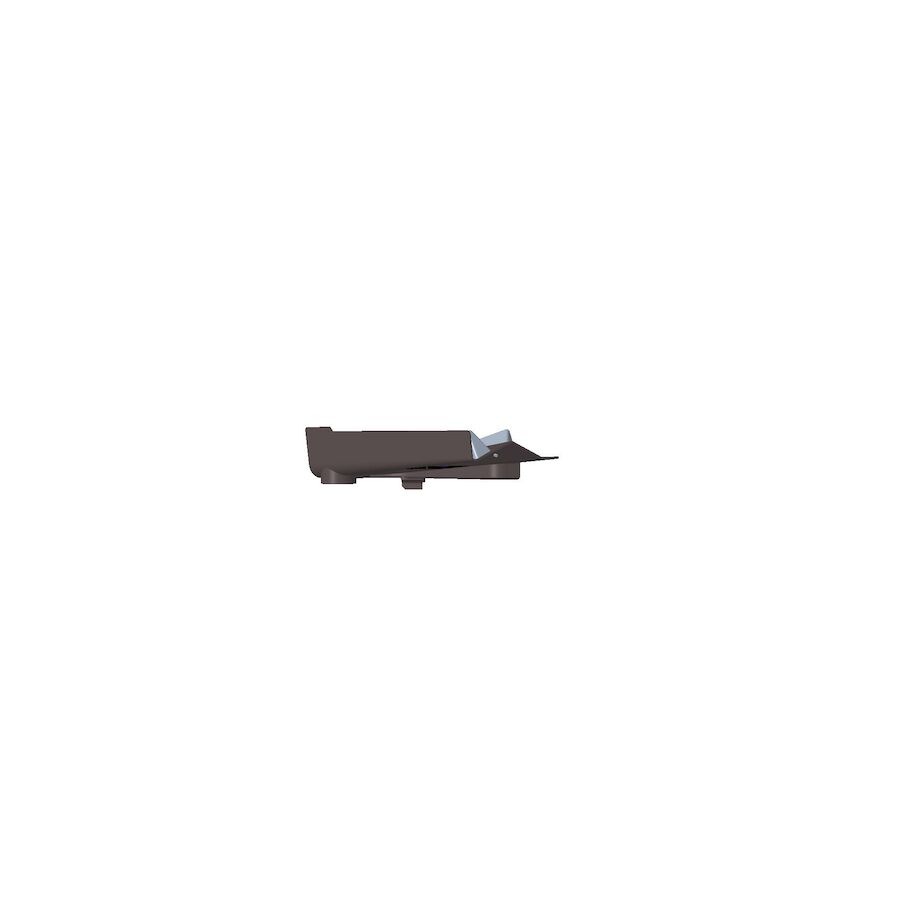

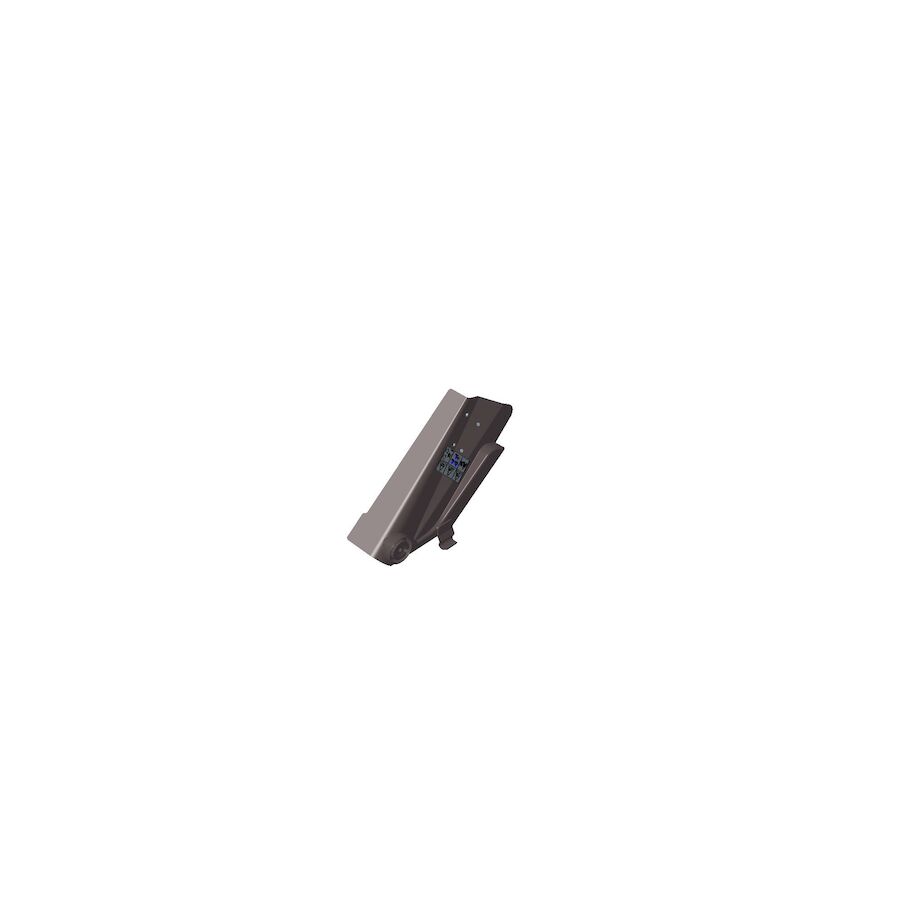

Toro OEM 120-2298 Discharge Chute Fits Late Toro 32" Timecutter Models.

Toro OEM 120 2298 Discharge Chute Is not only designed to keep your grass clipping from blowing all over you while mowing but also is designed to keep liabilities to a minimum. The Toro OEM 120 2298 Discharge Chute is designed to (keep safety first!) by helping to eliminating flying debris and possibly worse amputation. Toro OEM 120-2298 Discharge Chute is Designed to Fit Toro Late 32" Timecutter Models. Please Refer to the Images above, Model Fit Guide and Part Referencing Links below to ensure a proper fit. Click on the Part Numbers in the Part Referencing Links to be redirected.

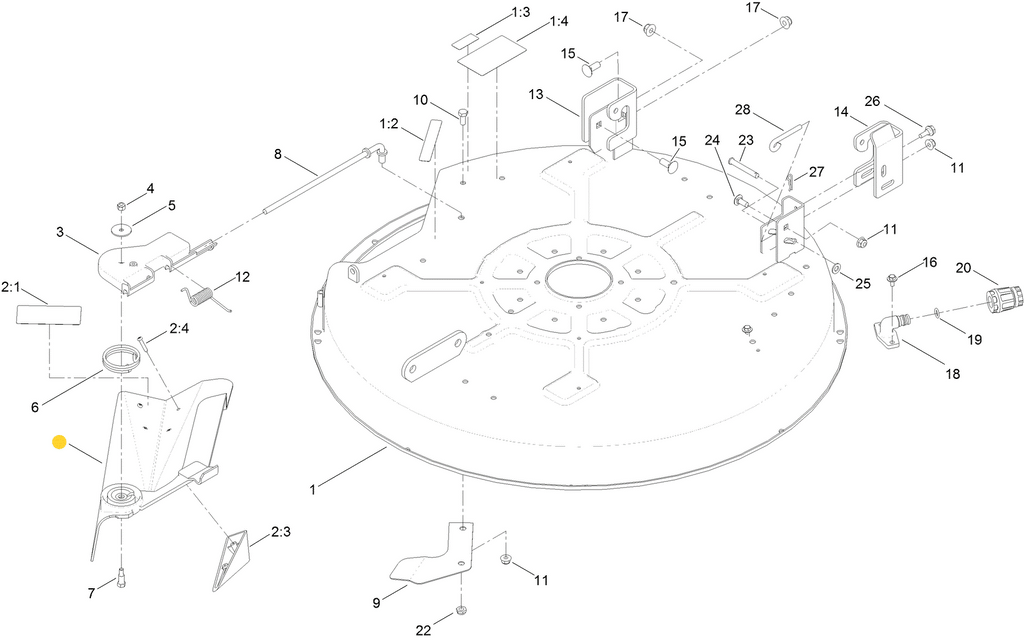

ASSOCIATED PARTS REFERENCES FOR PART NUMBER 120-2298 ONLY

CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED

NOTE: BUYING 120-2298 WILL COME WITH AN INSTALLED KICKER GUARD AND WARNING LABELS

1. 119-8858 - PIVOT PIN (Retains Discharge Chute Assembly)
2. 88-4540 - IMPACT TORSION SPRING COVER (Attaches over Pivot Rod)
3. 110-6691 - DISCHARGE CHUTE DANGER DECAL (Pastes to the Top of the Discharge Chute)
4. 88-6160 - IMPACT TORSION SPRING (Inserted into Discharge Chute Under Impact Torsion Spring Cover)
5. 3296-42 - IMPACT TORSION SPRING COVER NUT (Retains Torsion Spring Impact Cover)
6. 3256-55 - IMPACT TORSION SPRING COVER WASHER (Retains Torsion Spring Impact Cover)
7. 92-8916 - IMPACT TORSION SPRING COVER SHOULDER BOLT (Retains Torsion Spring Impact Cover)

8. 104-8300 - LOCKING NUT (Retains Pivot Pin Brackets)
9. 92-2493 - UP-DOWN TORSION SPRING (Attaches over Pivot Rod)
10. 93-0231 - DISCHARGE CHUTE KICKER GUARD FASTENER (Retains Kicker Guard)
11. 93-7696 - DISCHARGE CHUTE KICKER GUARD (Fastens to the Bottom Side of the Discharge Chute)

Specification

Model Fit:

74385, 74388, 74620, 74621, 74629, 74650, 74670, 74682, 74710, 74780, 74781
