Description

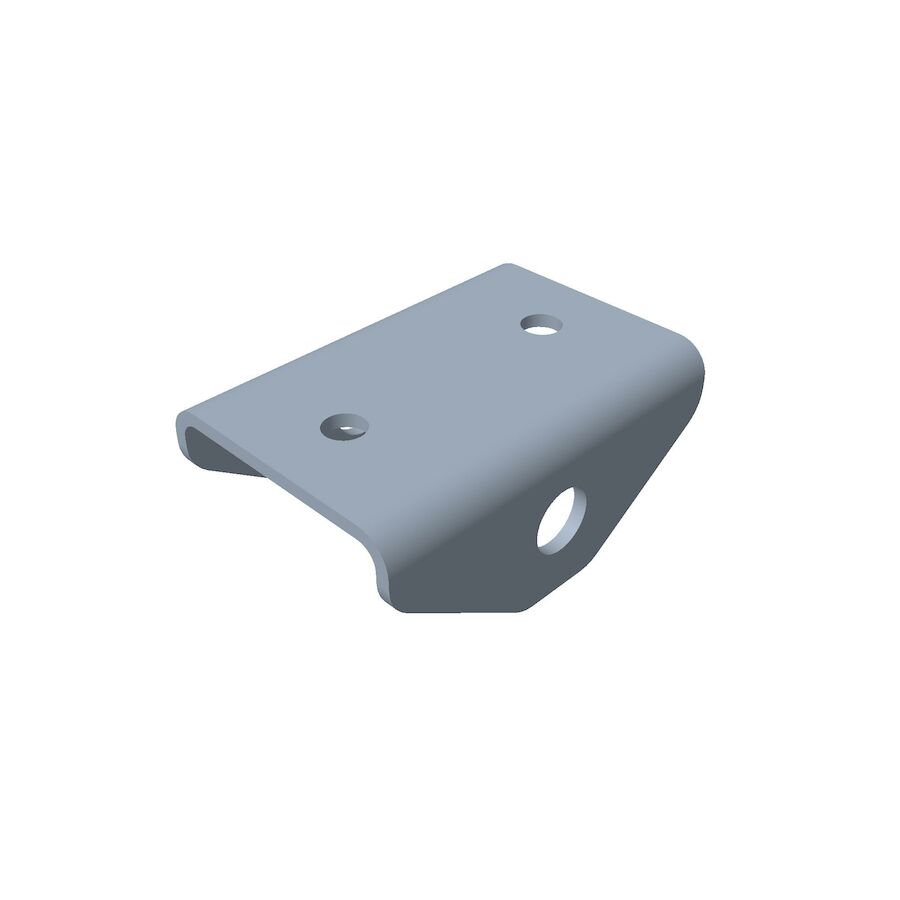

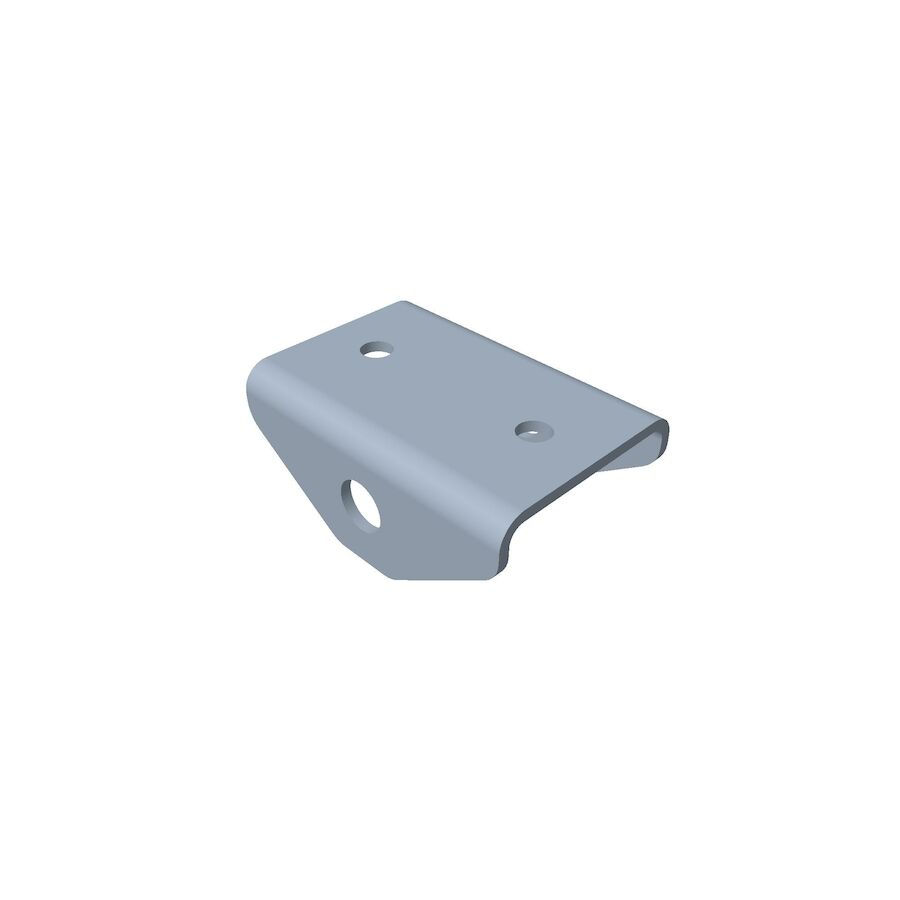

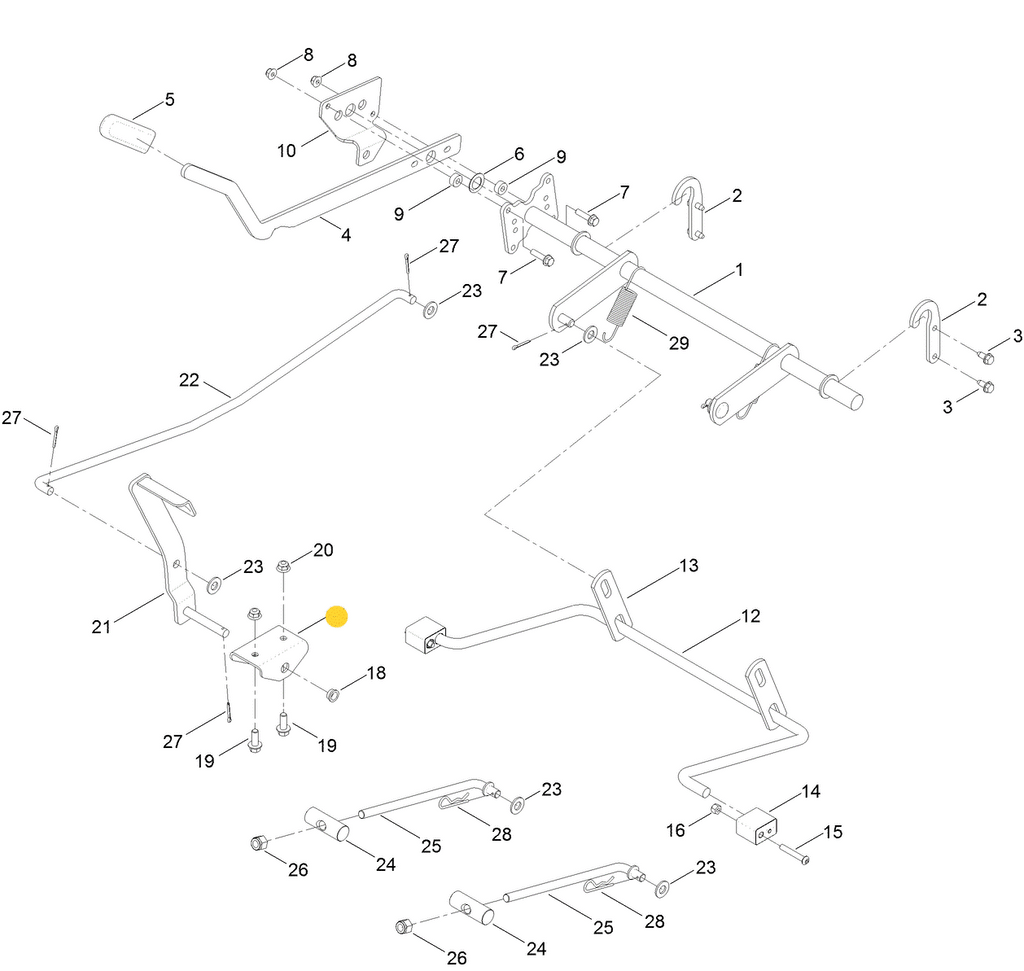

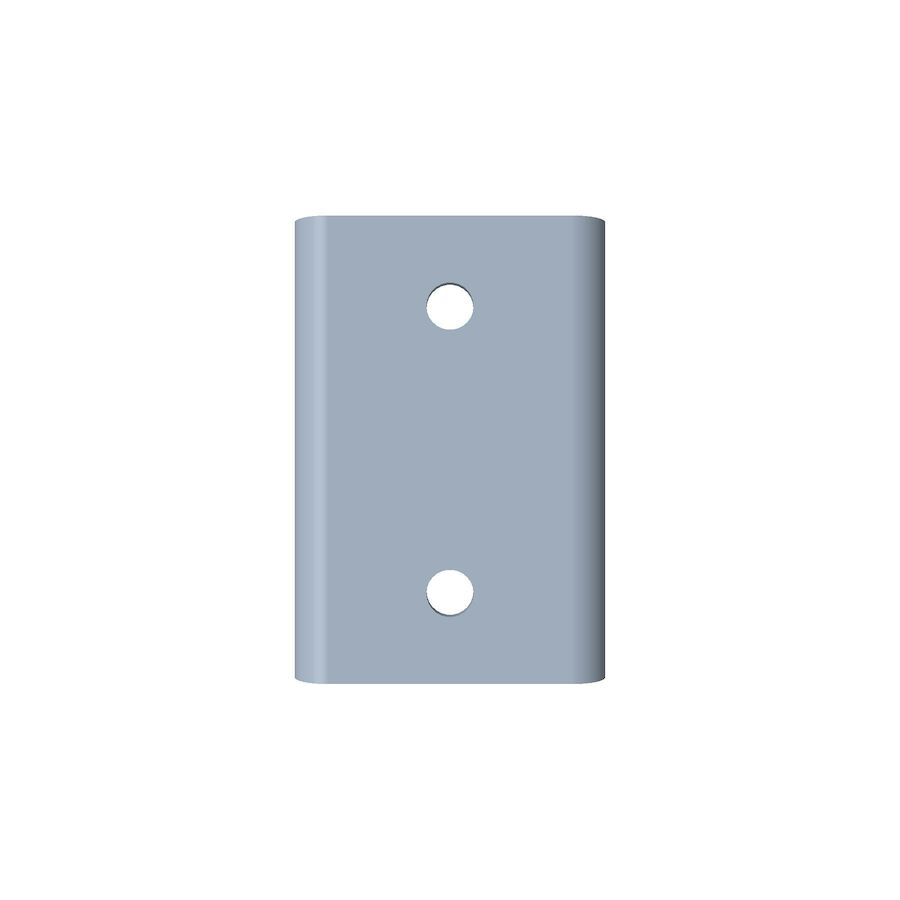

Toro OEM 120 2294 03 Foot Pedal Bracket is Designed for Toro Timecutter Early/Late 32" (SS, SW, ZS), 34" (MX), 42" (MX, SS, SW, ZS), 50" (MX, SS, SW, SWX, ZS), 54" (SS) and 60" (MX) Timecutter Models. Toro OEM 120 2294 03 is Made Specifically to be fastened directly to the mower frame on the Right-Hand Side as you sit on the Operator sit. 120-2294-03 is designed to Retain the Foot Assist Pedal. Toro Foot Assist Pedal can be added to Units Listed Bellow in the Model Fit Chart. In Order add it to Models That Did Not Come with it Factory Installed You Will Need to Order the Complete Parts List as Listed in the Part Reference Chart Below. For Factory Installed or For Individual Replacement Parts Refer to the Part Reference Chart Below as well for a Complete List of Individual Part. Please refer to the Images above; Product Specifications and the Model Fit guide below to ensure proper fit.
Specification
|
Product Number: |
120229403 |
|
Brand: |
Toro |
|
Length: |
NA |
|
Width: |
NA |
|
Height: |
NA |
|
Weight: |
0.655 LB (0.297 KG) |
Model Fit:
* Models that come with it Factory Installed:
74387, 74626, 74632, 79010, 74390, 74640, 74641, 74395, 74636, 74638, 74642, 74643, 74760, 74770, 74750, 74771, 74777, 74774
* Models Optional to Install:
TIMECUTTER 32” ZS Series – Model Numbers – 74682, 74385, 74388, 74650
TIMECUTTER 32” SS Series – Model Numbers – 74620, 74621, 74629, 74710
TIMECUTTER 32” SW Series – Model Numbers – 74670, 74780, 74781
TIMECUTTER 34” MX Series – Model Numbers – 74750
TIMECUTTER 42” MX Series – Model Numbers – 74640, 74642, 74760, 74765, 74766
TIMECUTTER 42” ZS Series – Model Numbers – 74386, 74389, 74390, 74655, 74656, 74657, 74665, 74667, 74684, 74686
TIMECUTTER 42” SS Series – Model Numbers – 74622, 74624, 74625, 74626, 74623, 74627, 74628, 74633, 74616, 74636, 74705, 74706, 74711, 74720, 74721, 74722, 74723, 74725, 74726
TIMECUTTER 42” SW Series – Model Numbers – 74675, 74676, 74784, 74785, 74788
TIMECUTTER 42” SWX Series – Model Numbers – 74787
TIMECUTTER 50” MX Series – Model Numbers – 74641, 74643, 74770, 74771, 74775, 74776, 74778, 74727, 74768, 74772, 74773, 74774, 74776
TIMECUTTER 50” ZS Series – Model Numbers – 74688, 74660, 74661, 74395, 74387
TIMECUTTER 50” SS Series – Model Numbers – 74630, 74632, 74631, 74635, 74637, 74638, 74730, 74731, 74732
TIMECUTTER 50” SW Series – Model Numbers – 74680, 74790
TIMECUTTER 50” SWX Series – Model Numbers – 74797, 74798, 74795
TIMECUTTER 54” SS Series – Model Numbers – 74740, 74741
TIMECUTTER 54” SW Series – Model Numbers – 74793
TIMECUTTER 60” MX Series – Model Numbers – 74777
