Hustler OEM 119748P Brake & Neutral Lock Yoke
Hustler OEM 119748P Neutral Lock Yoke Assembly Provides the Ability for the Brakes to Applied at the Same Point the Drive Linkage Establishes the Neutral Position. Hustler OEM 119748 Contains a Slotted Channel that Is Lined with a Replaceable UHMW Channel Clip that Allows the Operator Handle to Slide Right to Left and Enable it to Be Insert into the Lock and Unlock Position on the Operators Dash. Hustler OEM 119748P Also Enable a Series of Spacer and the Brake Linkage Rod to Move Up and Down When the Operator is Selecting the Park Position with the Operator Brake Handle this Enable the Yoke to Position the Spacer that Fasten on Either Side of the Brake Linkage Rod to Insert Into the Hydraulic Drive Bell Crank Slot as the Brake Pressure Is Being Applied Preventing the Operator From Being Able to Drive Forward or Backward Until the Brake is Disengaged. This Is Only Possible with Correct Adjustment of the Main Brake Adjustable Brake Rod and the Neutral Position Being adjusted Properly with the Hydraulic drive Adjuster Rods. Too Much Wear in the Brake Yoke Assembly May Inhibit the Brake Yoke Adjustability, Making Correct Contact with the Brake Plunger Switch and the Proper Working and Correlations of the Brake Linkages and other Mechanism. These Issues Could Relate to the Engine Shutting Off with Brake Engagement or Allow Coasting or Drifting with The Operator's Brake Handle Engaged
⚠️ Before You Order – Verify Fitment
Because Fitment may vary by Model Number and Year Verify Your Model is Listed in the Model Fit Chart Below Before Ordering.
Not sure? Contact us with your Hustler model and serial number and we’ll help verify fitment.

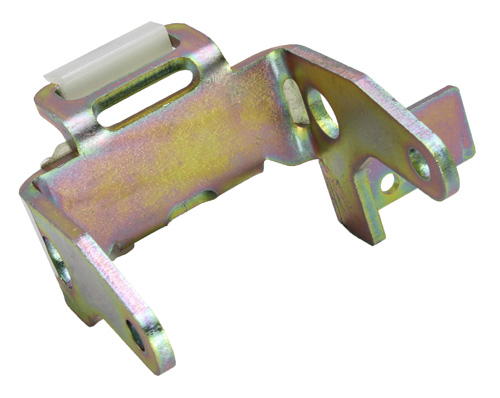

Sold As Pictured Does - Come with 604448 Replaceable UHMW Channel Only
What This Part Does
- Transfers Movement from the Brak Control Handle to the Other Parking Brake Linkage Components and Hydraulic Drive Linkage Components at the Same Time.
- Maintains Predictable Mower Brake and Neutral Position Lock.
- Replaces a Worn, Damaged, Loose, or Binding Brake Yoke Functions.
- Provides Genuine Hustler OEM Fit, Construction, and Mounting Configuration.
Associated Parts

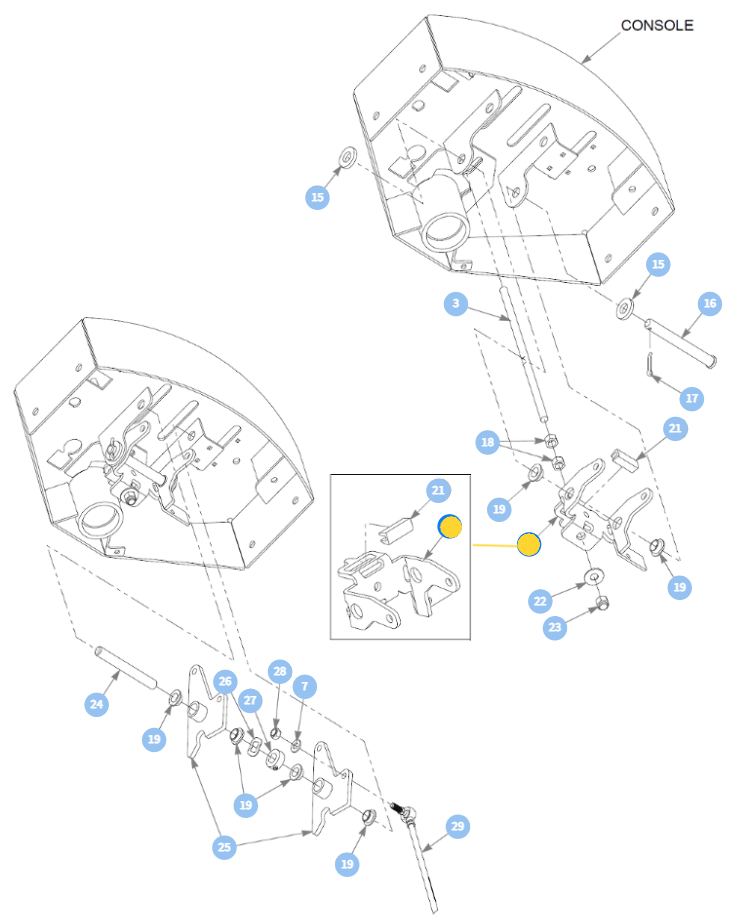

Refer to the Detail Parts Diagrams in the Images for Additional Parts Info.
Part Details
- Brand: Hustler Turf Equipment
- Part Number: 119748P
- Supersession: Part Numbers 110932 and 119748 Supersede to Part Number 119748P
- Part Name: Neutral & Brake Linkage Yoke
- Position: Centered - Under Operator Console
- Part Type: Genuine OEM Replacement Neutral & Brake Yoke
- Quantity: One Yoke Assembly
Model Fit Chart
Trimstar (All Models)
929240, 929265, 929273, 929232, 930388, 930388US, 930396, 930404, 930412, 939496, 939504, 939512, 939538, 942268, 942276
