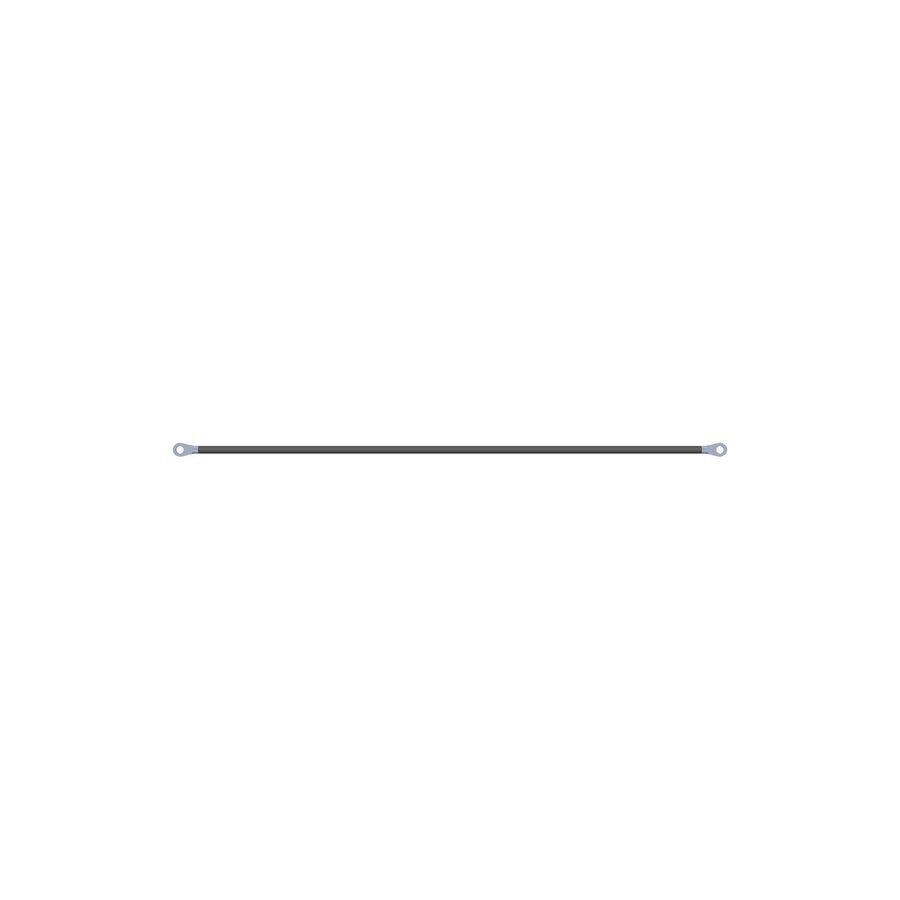

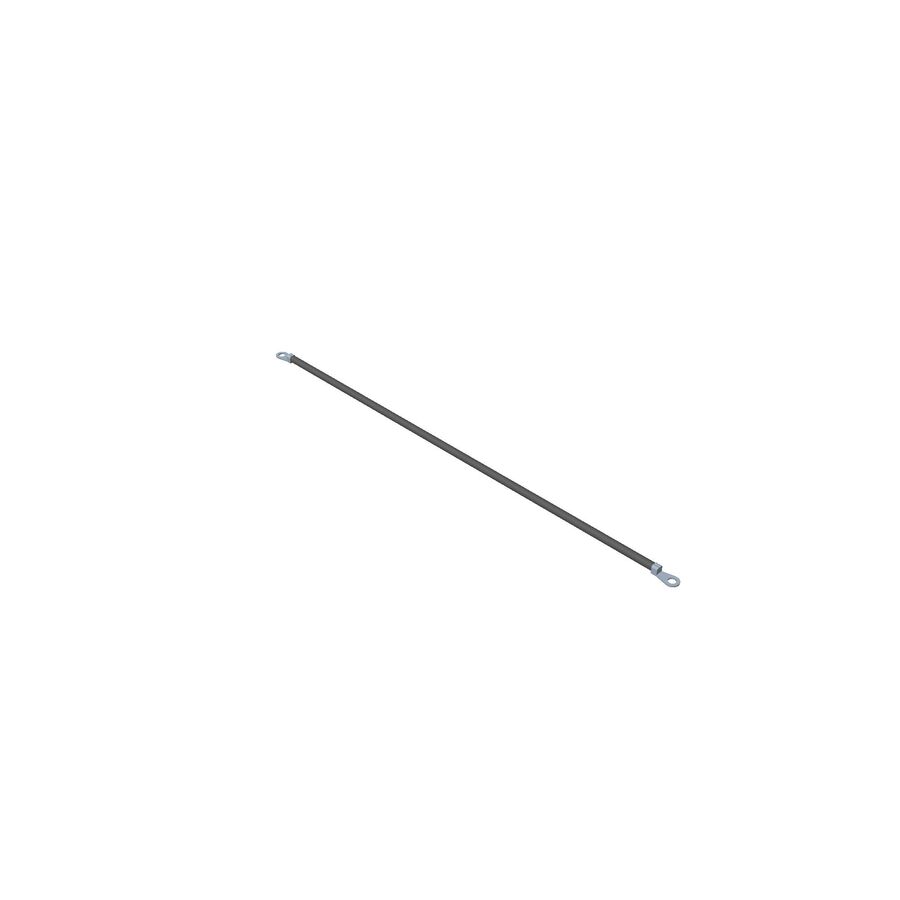

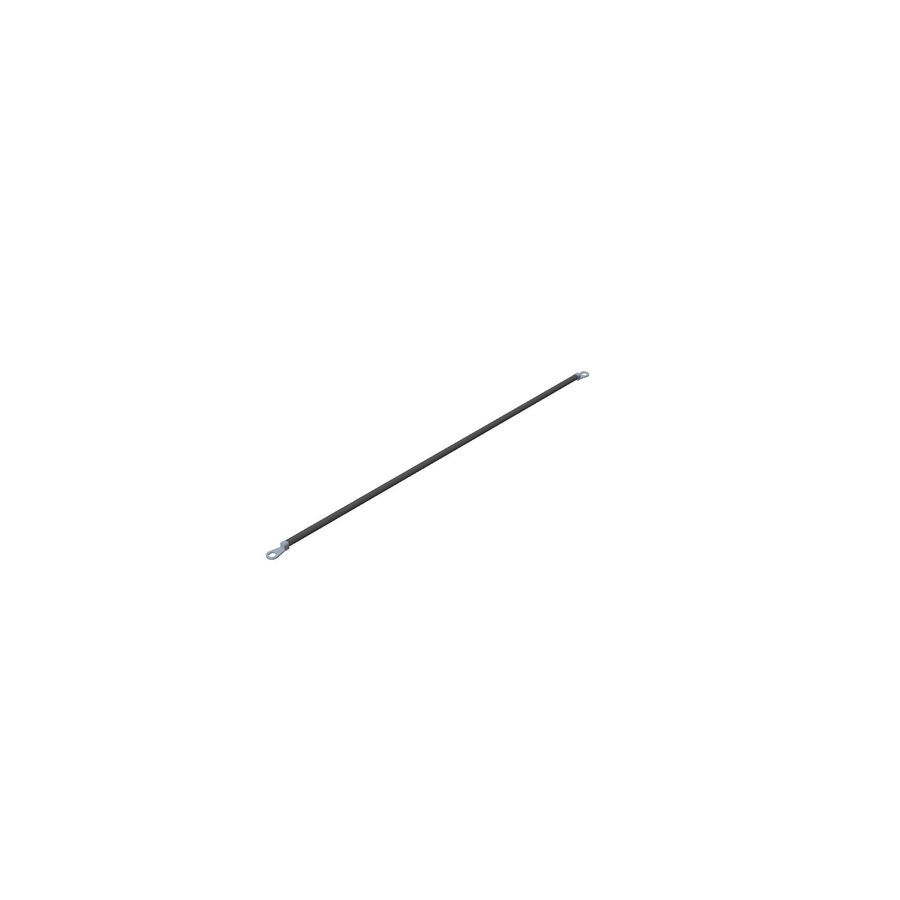

Toro OEM 119-8899 Black/Negative Battery Cable (8 Gauge Wire) Fits Current Timecutter Max and Select Late Timecutter Models - Current Titan and Titan MAX Models (I-Beam Framing).

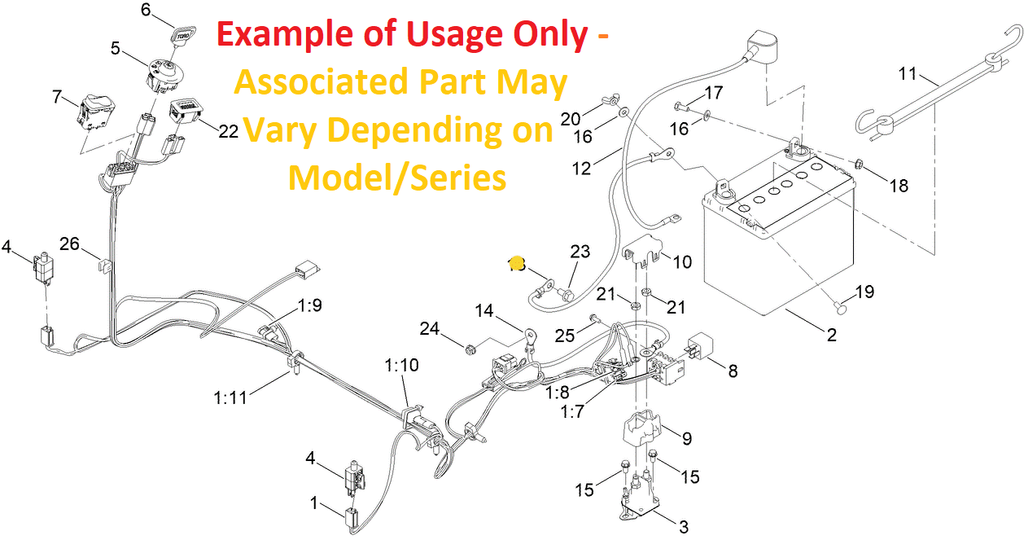

Due to Variation Within Model Numbers/Series, please refer to the Images above; Product Specifications and to the Model Fit Chart below to ensure a correct fit and for an Accurate Break down of Specific Model Number Usage.



• PRODUCT NUMBER AND VARIATIONS: 119-8899, 119 8899, 1198899
• PRODUCT TYPE: TORO OEM BLACK/NEGATIVE BATTERY CABLE
• NOTES & DETAILS: Toro OEM 119-8899 Black Negative Battery Cable is Primarily Used Between the Battery and the Engine (Most Commonly Fasten to the Engine Starter Mounting Bolt's) or Mower Framing. 119 8899 Serves the Purpose of Grounding the Engine and Other Mower Components to The Negative Battery Current Enabling the Closing and Opening of Electrical Circuits as Requested by the Ignition Switch, Electrical Solenoid and Other Components. 119 8899 Also Contains the Correct Size Battery Wire End Eyelets Needed for the Require Fasteners.
• SIZE: 23 in.
• COMMON SERIES APPLICATIONS: Current 42", 50", 54", 60" Timecutter MAX - Select Late Timecutter Models (Review the Model Fit Chart for More Details) - Current 48", 54", 60 Titan & 60" Titan Max Models (With I-Beam Framing).



• ASSOCIATED PARTS CHART:



BATTERY

* TORO Uses a Different Bolt System However We here @ Hilly Ridge Would Recommend the Following Hardware to Ensure a Stronger Grounding Connection and to Eliminate Potential Frustrations. Battery Fasteners Only List Due To Variation on Engine Options - Most Ground Source are Connected directly to the Engine Starter Assembly or The Engine Fastner Bolts to Find Starter Assembly Fastners Look Under the Engine Individual Engine Make and Model.



1. 137-3041 - HEX HEAD BOLT (Retains Battery Cable End or Eyelet to the Battery Post) x1 Per Positive Battery Eyelet or Post
2. 119-8952 - FLAT WASHER (Eliminates the Head of the Hex Head Bolt from being drawn in to the softer Battery Post and Supports the Battery Post Bolt) x1 Per Positive Battery Post Bolt
3. 139-2575 - FLANGE NUT (Retains Battery Cable End or Eyelet to the Battery Post) x1 Per Positive Battery Post





• MODEL FIT CHART:



TIMECUTTER



TIMECUTTER 32” SS Series – Model Numbers – 74620, 74621, 74629, 74710,

TIMECUTTER 32” SW Series – Model Numbers – 74670, 74780, 74781,

TIMECUTTER 32” ZS Series – Model Numbers – 74385, 74388, 74650, 74682



TIMECUTTER 34” MX Series – Model Numbers – 74750



TIMECUTTER 42” SS Series – Model Numbers – 74622, 74623, 74624, 74625, 74626, 74628, 74616, 74705, 74706, 74711, 74720, 74722, 74723, 74725, 74726

TIMECUTTER 42” SW Series – Model Numbers – 74675, 74676, 74784, 74788

TIMECUTTER 42” SWX Series – Model Numbers – 74787

TIMECUTTER 42” ZS Series – Model Numbers – 74386, 74389, 74390, 74655, 74656, 74657, 74665, 74667, 74684, 74686

TIMECUTTER 42” MX Series – Model Numbers – 74640, 74760, 74765, 74766

TIMECUTTER MAX 42” (STANDARD) Series – Model Numbers – 77402

TIMECUTTER MAX 42” (My-Ride) Series – Model Numbers – 77403



TIMECUTTER 50” ZS Series – Model Numbers – 74387, 74395, 74660, 74661, 74688

TIMECUTTER 50” MX Series – Model Numbers – 74641, 74643, 74771, 74775, 74776, 74778, 74727, 74768, 74772, 74774

TIMECUTTER 50” SS Series – Model Numbers – 74630, 74631, 74632, 74635, 74638, 74730, 74731

TIMECUTTER 50” SW Series – Model Numbers – 74793, 74680, 74790

TIMECUTTER 50” SWX Series – Model Numbers – 74797, 74795

TIMECUTTER MAX 50” (STANDARD) Series – Model Numbers – 77501, 77505

TIMECUTTER MAX  50” (My-Ride) Series – Model Numbers – 77502



TIMECUTTER 54” SS Series – Model Numbers – 74741

TIMECUTTER 54” SW Series – Model Numbers – 74793

TIMECUTTER MAX 54” (STANDARD) Series – Model Numbers – 77504, 77506

TIMECUTTER MAX  54” (My-Ride) Series – Model Numbers – 77503, 77507



TIMECUTTER 60” MX Series – Model Numbers – 74777

TIMECUTTER 60” (STANDARD) Series – Model Numbers – 75760, 75762

TIMECUTTER 60” (My-Ride) Series – Model Numbers – 75763

TIMECUTTER MAX 60” (STANDARD) Series – Model Numbers – 77601, 77604

TIMECUTTER MAX  60” (My-Ride) Series – Model Numbers – 77602, 77603



TITAN



48” TITAN Standard, My-Ride (48” Newer/Current Models I-Beam Frame) – 48” Current Models - (* Model Numbers 76401, 76411, 76420, 76425, 76448)

54” TITAN Standard, My-Ride (54” Newer/Current Models I-Beam Frame) – 54” Late/Current Models Only - (* Model Numbers 76501, 76511, 76530, 76554)

60” TITAN, TITAN My-Ride, Titan ZXM 6075 (60” Newer/Current Models I-Beam Frame) – 60” Current Models - (* Model Numbers 76604, 76605, 76614, 76635, 76660)



60” TITAN MAX (60” Newer/Current Models I-Beam Frame) – 60” Current Models - (* Model Numbers 76606, 76607, 76608, 76609, 76610)
