Description
Please refer to the Images above; Product Specifications and the Model Fit Guide below to Ensure a proper fit.
- PRODUCT NUMBER AND VARIATIONS: 119-8898, 119 8898, 1198898

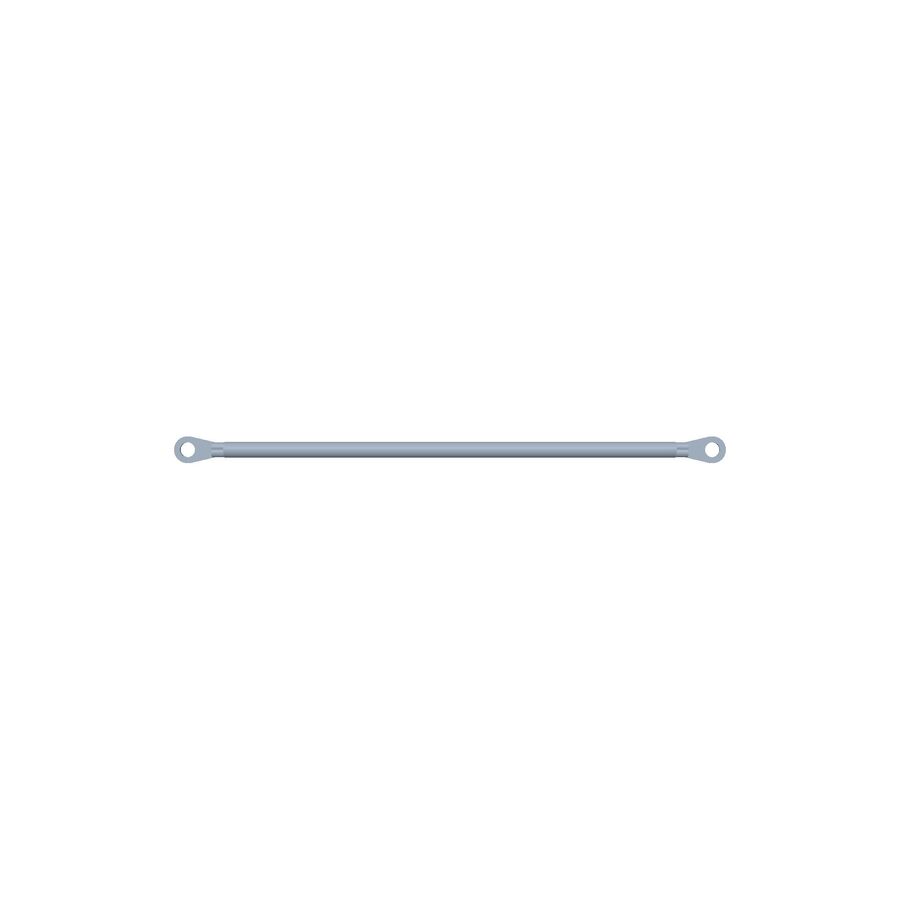

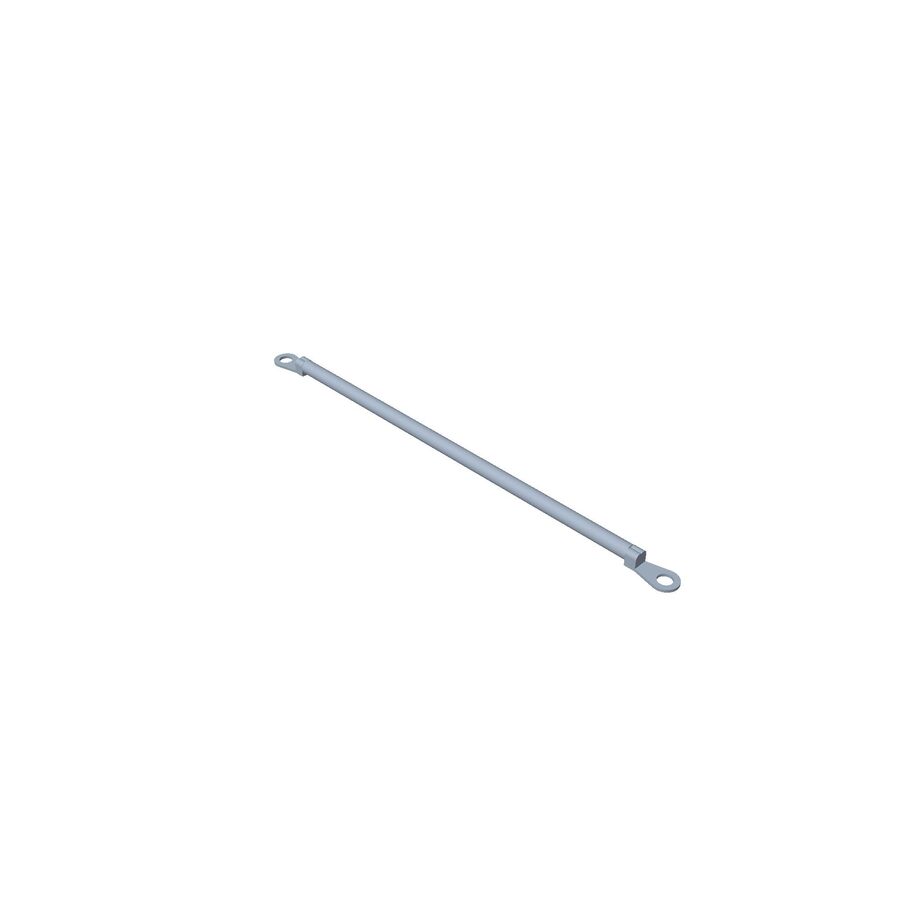

- PRODUCT TYPE: TORO OEM RED/POSITIVE BATTERY CABLE

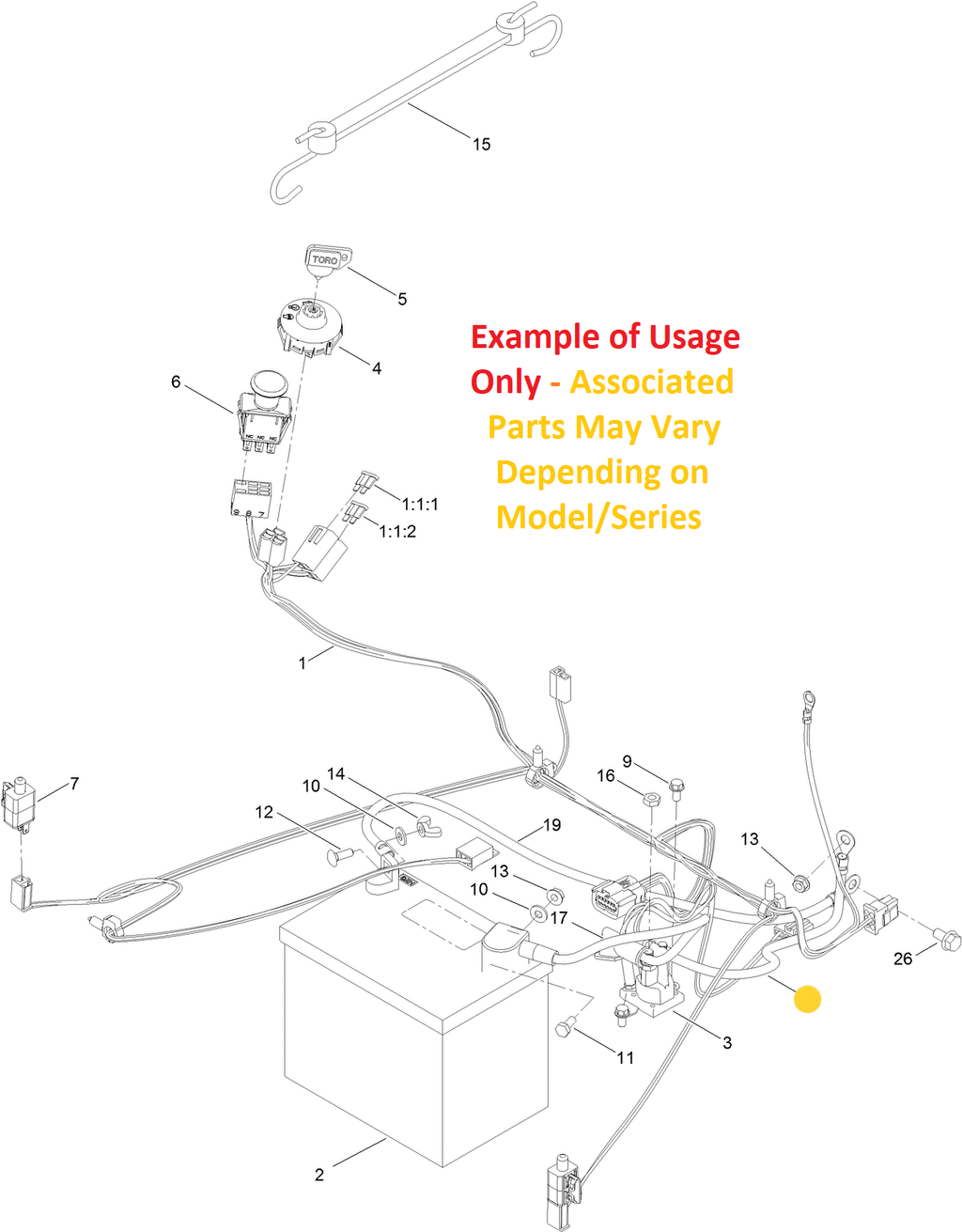

- NOTES & DETAILS: Toro OEM 119-8898 Red Positive Battery Cable is Primarily Used Between the Electrical Solenoid and the Engine's Starter Assembly. 119 8898 Main Purpose is Service by Transferring Electrical Current from the Solenoid to the Engine's Electric Starter under the Direction and Functions of the Ignition Switch and Electric Solenoid. 119 8898 Also Contains the Correct Size Battery Wire End Eyelets Needed for the Require Fasteners.
- SIZE: -- in.
- COMMON SERIES APPLICATIONS: Select 32" Timecutter ZS & SS Models - Select 42 & 50" Timecutter ZS, SS & MX Models.
- ASSOCIATED PARTS CHART:
STARTER ASSEMBLY
- 32128-33 - FLANGE NUT (Retains Battery Cable End or Eyelet to the Engine Starter Assembly) x1 Per Engine Starter Assembly
SOLENOID
- 117-1197 - SOLENOID (Retains the One End of the Battery Wire and Transfers Battery Current with the Different Functions of the Ignition Switch and Individual Safety Switch Circuits) x1 Per Unit
- 139-2580 - FLANGE NUT (Retains Solenoid Cable End or Eyelet to the Solenoid Post) x1 Per Positive Solenoid
- MODEL FIT CHART:
TIMECUTTER
TIMECUTTER 32” SS Series – Model Numbers – 74620
TIMECUTTER 32” ZS Series – Model Numbers – 74385
TIMECUTTER 42” SS Series – Model Numbers – 74622, 74624, 74625, 74626, 74623, 74706, 74722
TIMECUTTER 42” ZS Series – Model Numbers – 74386, 74389, 74390, 74656
TIMECUTTER 42” MX Series – Model Numbers – 74640
TIMECUTTER 50” ZS Series – Model Numbers – 74387, 74660, 74395
TIMECUTTER 50” MX Series – Model Numbers – 74641, 74643, 74776, 74727, 74772
TIMECUTTER 50” SS Series – Model Numbers – 74630, 74632, 74631, 74635, 74638, 74730
