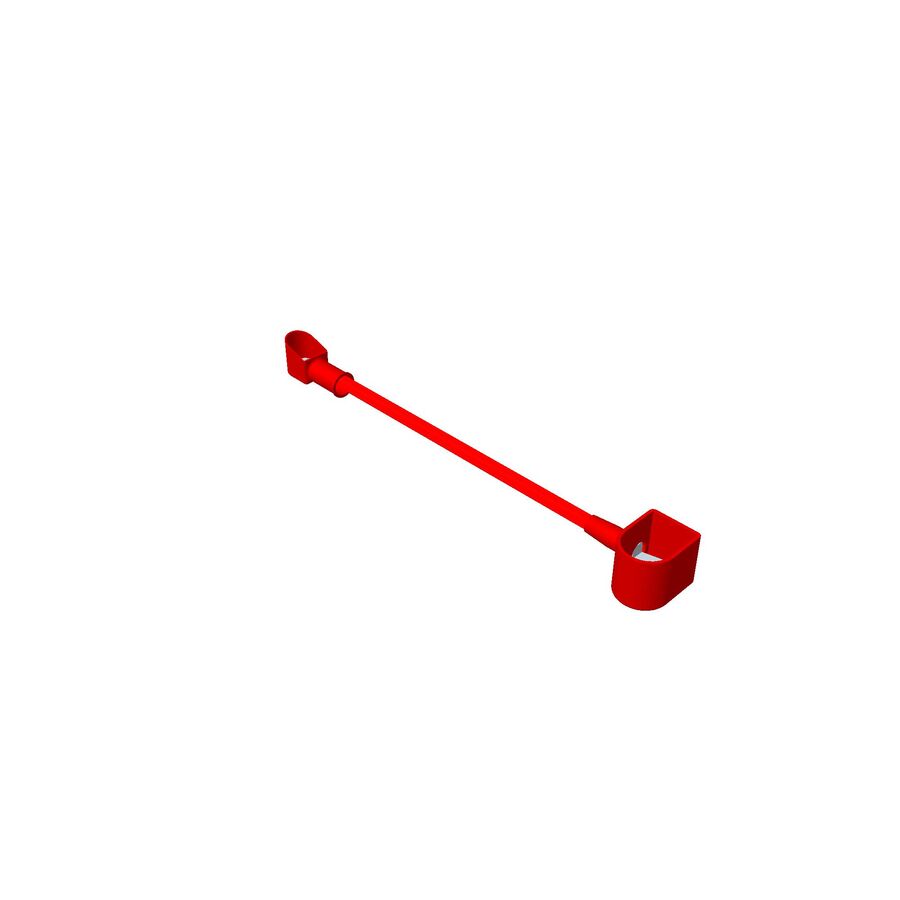

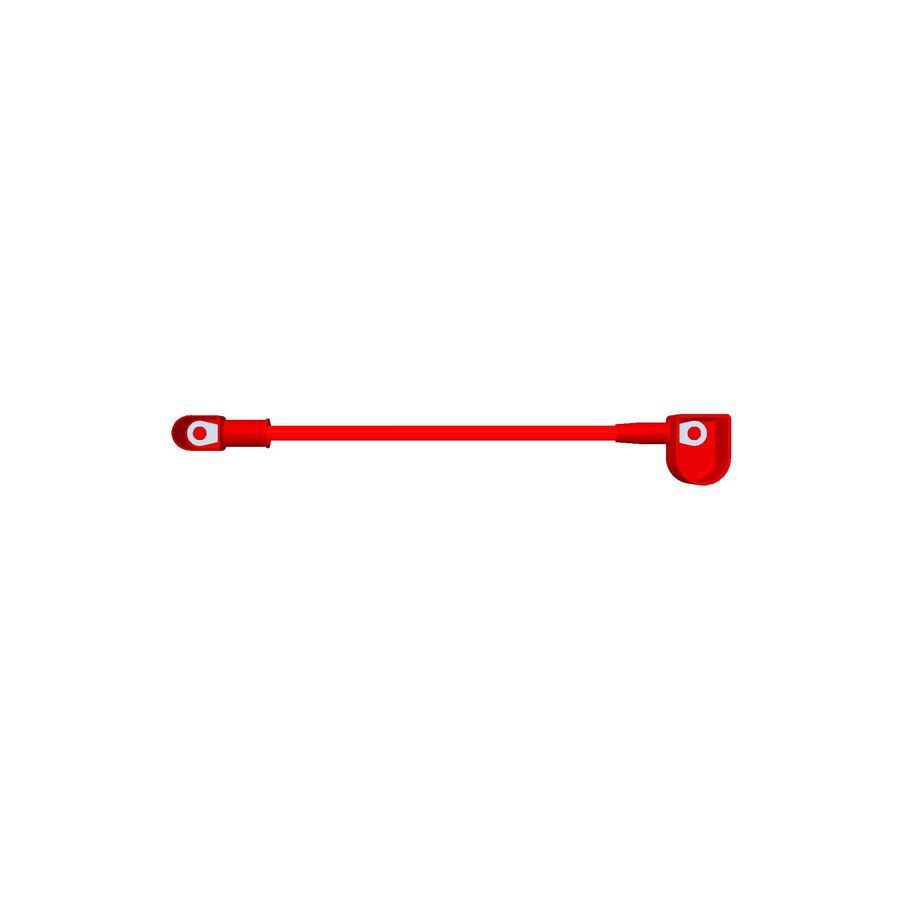

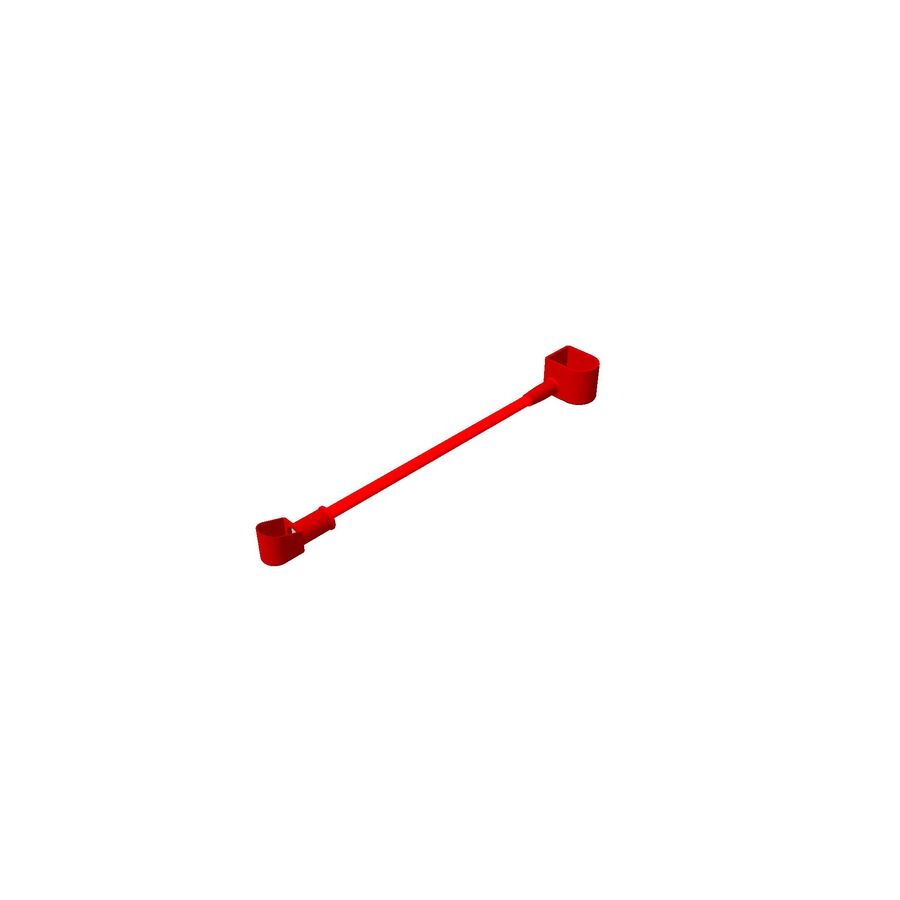

Toro OEM 119-8897 Red/Positive Battery Cable (8 Gauge Wire - 5/16" Eyelet/Bolt Whole - 1/4" Eyelet/Bolt Whole - Battery Post Cover) Fits Select Late Timecutter Models.

Due to Variation Within Model Numbers/Series, please refer to the Images above; Product Specifications and to the Model Fit Chart below to ensure a correct fit and for an Accurate Break down of Specific Model Number Usage.





• PRODUCT NUMBER AND VARIATIONS: 119-8897, 119 8897, 1198897
• PRODUCT TYPE: TORO OEM RED/POSITIVE BATTERY CABLE
• NOTES & DETAILS: Toro OEM 119-8897 Red Positive Battery Cable is Primarily Used Between the Battery and the Electrical Solenoid. 119 8897 Contains a Protective Boot for Positive Battery Post Eliminating the Possibilities of accidentally Creating a short Across the Battery Post which could Result in Injury, Fire & Damage as well as Protecting the Post from less Moisture Accumilation which can Encourage Corrosion Build-Up. 119 8897 Also Contains the Correct Size Battery Wire End Eyelets Needed for the Require Fasteners.
• SIZE: 11 in.
• COMMON SERIES APPLICATIONS: Select Late 42", 50", 54", 60" Timecutter Models.

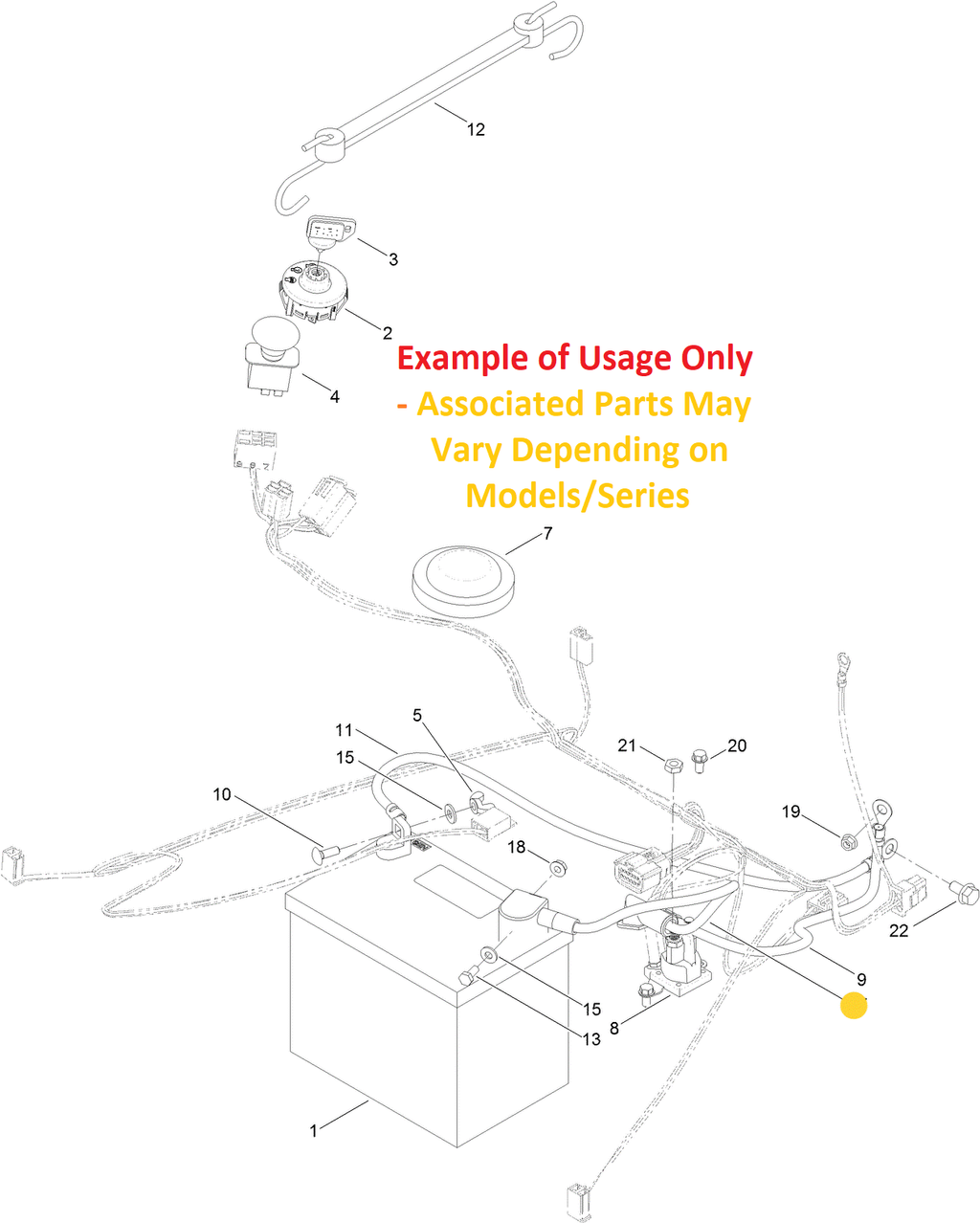

• ASSOCIATED PARTS CHART:



BATTERY



1. 137-3041 - HEX HEAD BOLT (Retains Battery Cable End or Eyelet to the Battery Post) x1 Per Positive Battery Eyelet or Post
2. 119-8952 - FLAT WASHER (Eliminates the Head of the Hex Head Bolt from being drawn in to the softer Battery Post and Supports the Battery Post Bolt) x1 Per Positive Battery Post Bolt
3. 139-2575 - FLANGE NUT (Retains Battery Cable End or Eyelet to the Battery Post) x1 Per Positive Battery Post



SOLENOID



1. 117-1197 - SOLENOID (Retains the One End of the Battery Wire and Transfers Battery Current with the Different Functions of the Ignition Switch and Individual Safety Switch Circuits) x1 Per Unit
2. 3220-2 - NUT (Retains Solenoid Cable End or Eyelet to the Solenoid Post) x1 Per Solenoid Post



• MODEL FIT CHART:



TIMECUTTER



TIMECUTTER 32” SS Series – Model Numbers – 74620, 74621, 74629, 74710,

TIMECUTTER 32” SW Series – Model Numbers – 74670, 74780, 74781

TIMECUTTER 32” ZS Series – Model Numbers – 74385, 74388, 74650, 74682



TIMECUTTER 34” MX Series – Model Numbers – 74750



TIMECUTTER 42” SS Series – Model Numbers – 74616, 74622, 74623, 74624, 74625, 74626, 74627, 74628, 74633, 74636, 74705, 74706, 74711, 74720, 74721, 74722, 74723, 74725, 74726

TIMECUTTER 42” SW Series – Model Numbers – 74675, 74676, 74784, 74785, 74788

TIMECUTTER 42” SWX Series – Model Numbers – 74787

TIMECUTTER 42” ZS Series – Model Numbers – 74386, 74389, 74390, 74655, 74656, 74657, 74665, 74667, 74684, 74686

TIMECUTTER 42” MX Series – Model Numbers – 74640, 74642, 74711, 74760, 74765, 74766



TIMECUTTER 50” SS Series – Model Numbers – 74630, 74631, 74632, 74635, 74637, 74638, 74730, 74731, 74732

TIMECUTTER 50” SW Series – Model Numbers – 74680, 74790, 74793

TIMECUTTER 50” SWX Series – Model Numbers – 74797, 74798, 74795

TIMECUTTER 50” ZS Series – Model Numbers – 74387, 74660, 74395, 74661, 74688

TIMECUTTER 50” MX Series – Model Numbers – 74641, 74643, 74776, 74727, 74768, 74770, 74771, 74772, 74773, 74774, 74775, 74778



TIMECUTTER 54” SS Series – Model Numbers – 74740, 74741

TIMECUTTER 54” SW Series – Model Numbers – 74793



TIMECUTTER 60” MX Series – Model Numbers – 74777
