Toro OEM 119-8822 Hydraulic Drive V-Idler Fits Early/Late 32", 34", 42", 48", 50", 54", 60" Timecutter HD, MX, SS, SW, SWX, ZS - Late TITAN X, XS, 4800, 5400, 6000, Standard, My-Ride - 48", 54", 60" PROLINE - 28", 32" POWER TRX SnowBlower Models.

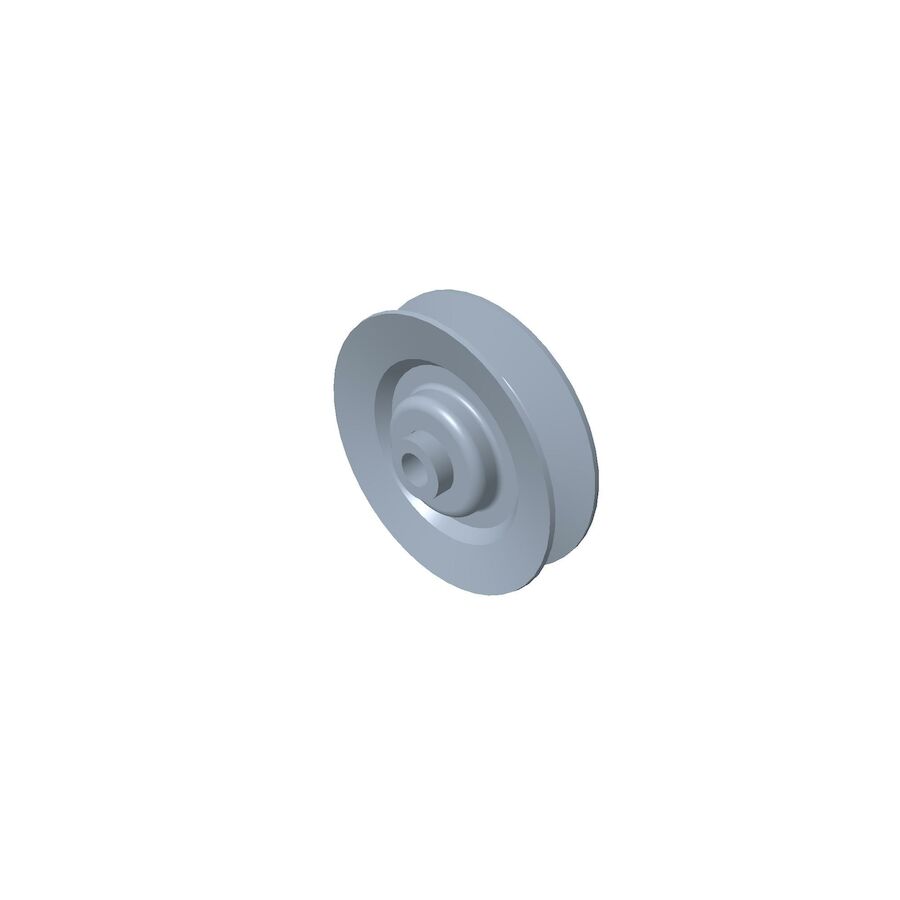

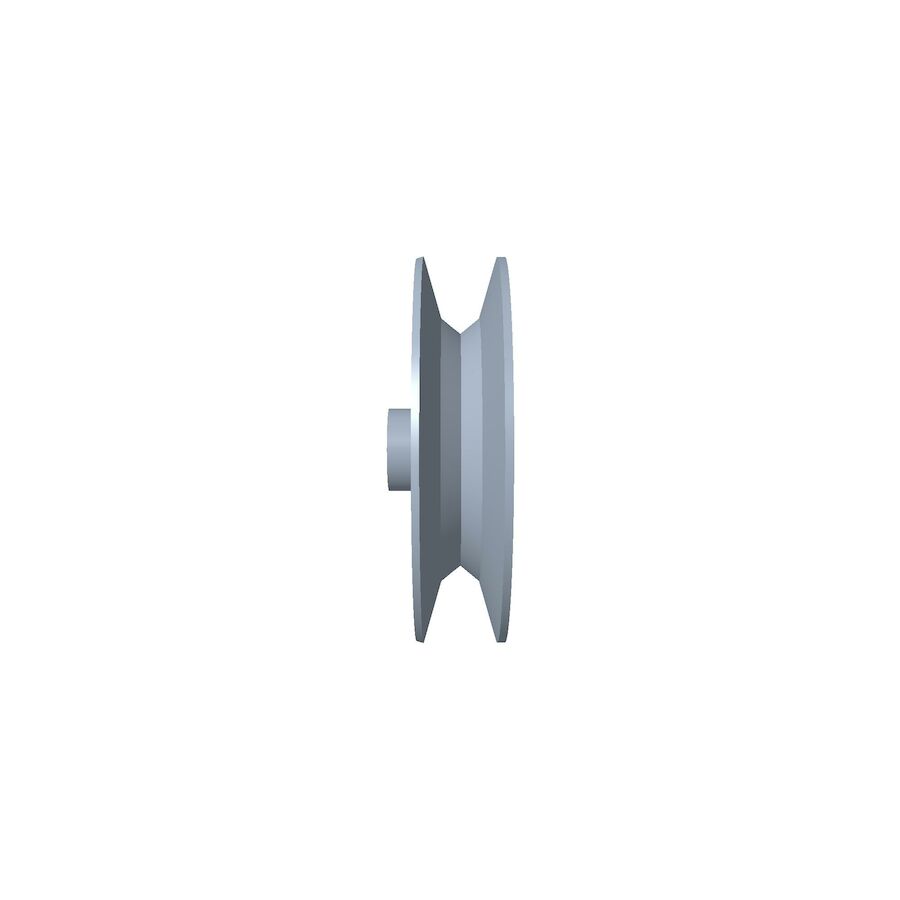

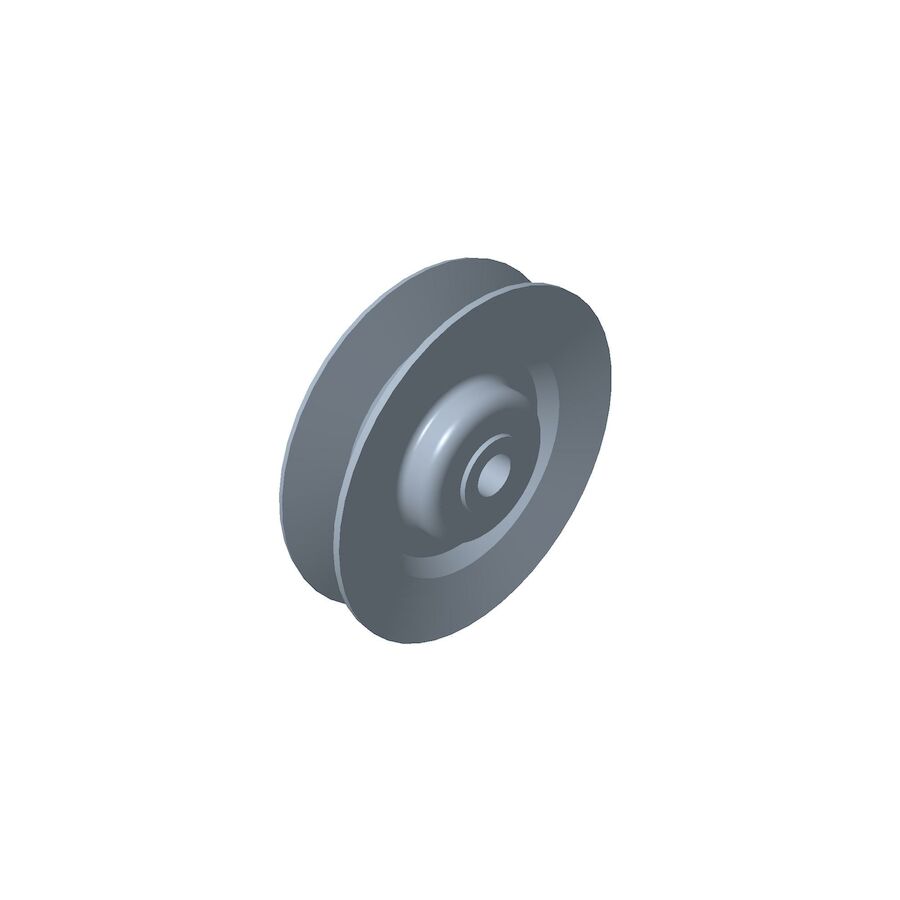

The Toro OEM 119 8822 Hydraulic Drive V-Idler is manufactured with strong steel alloy and high-quality ball bearings to ensure dependable operation in harsh, wet, hot, and dirty conditions. Built to original specifications, this V-Idler is designed to maintain correct tension on Hydraulic and/or Traction Drive Belts. 119 8822 OEM V-Idler is compatible with a variety of Toro models, including the 32", 34", 42", 48", 50", 54",60", Timecutter HD, MX, SS, SW, SWX, ZS Models - 48", 54", 60" TITAN X, XS, 4800, 5400, 6000, Standard, My-Ride - 48", 54", 60" PROLINE - 28", 32" POWER TRX Snow-Blower Models. Due to Variation Within Model Numbers/Series, please refer to the Images above; Product Specifications and to the Model Fit Chart below for an Accurate Break down of Specific Model Number Usage. For Additional Fastner & Associated Part references for Idler Pulley 119-8822 review the Associated Parts Link Below the Model Fit Chart. If You are Having Trouble Finding the Correct Hydraulic Idler Pulley Combination for Your Model, there is also a Chart with Detailed Break Down with Common Family and Model Numbers with the Correct Idler Pulley Part Number Combination Above in the Images as well as Below the Model Fit Guide and The Associated Part References. If this still doesn't prove helpful feel free to contact us with your questions.







NOTE: Due to Serial Number and/or Model Design changes it is always Beneficial to Eliminate Confusion by Searching your Part Type and Model Number at the Top of our Website Page in the Search Tab. That in return will search the Model Fit Chart at the Bottom of the Page to Find the correct Model/Pulley Part Number Combo.







Specification

Product Number:	1198822
Brand:	Toro
Length:	2.500 IN (6.350 CM)
Width:	2.500 IN (6.350 CM)
Height:	0.700 IN (1.778 CM)
Weight:	0.218 LB (0.099 KG)





Model Fit:





32”, 34”, 42”, 48”, 50”, 54”, 60” Timecutter – 119-8822 MODEL/SERIES USAGE



32” TIMECUTTER ZS Series – Model Numbers – (* Model Numbers 74385, 74388, 74650, 74682)

32” TIMECUTTER SS Series – Model Numbers – (* Model Numbers 74620, 74621, 74629, 74710)

32” TIMECUTTER SW Series – Model Numbers – (* Model Numbers 74670, 74780, 74781)



34” TIMECUTTER MX Series – Model Numbers – (* Model Numbers 74750)



42” TIMECUTTER ZS Series – Model Numbers – (* Model Numbers 74386, 74389, 74390, 74655, 74656, 74657, 74665, 74667, 74684, 74686)

42” TIMECUTTER MX Series – Model Numbers – (* Model Numbers 74640, 74642, 74760, 74765, 74766)

42” TIMECUTTER SS Series – Model Numbers – (* Model Numbers 74622, 74624, 74625, 74626, 74623, 74627, 74628, 74633, 74616, 74636, 74705, 74706, 74711, 74720, 74721, 74722, 74723, 74725, 74726)

42” TIMECUTTER SW Series – Model Numbers – (* Model Numbers 74675, 74676, 74784, 74785, 74788)

42” TIMECUTTER SWX Series – Model Numbers – (* Model Numbers 74787)



48” TIMECUTTER HD Series – Model Numbers – (* Model Numbers 74864, 74866, 74874, 74886, 75201, 75210, 75211)



50” TIMECUTTER ZS Series – Model Numbers – (* Model Numbers 74387, 74660, 74661, 74395, 74688)

50” TIMECUTTER MX Series – Model Numbers – (* Model Numbers 74641, 74643, 74770, 74771, 74775, 74776, 74778, 74727, 74768, 74772, 74773, 74774)

50” TIMECUTTER SS Series – Model Numbers – (* Model Numbers 74630, 74632, 74631, 74635, 74637, 74638, 74730, 74731, 74732)

50” TIMECUTTER SW Series – Model Numbers – (* Model Numbers 74793, 74680, 74790, 74795)

50” TIMECUTTER SWX Series – Model Numbers – (* Model Numbers 74797, 74798, 74795)



54” TIMECUTTER SS Series – Model Numbers – (* Model Numbers 74740, 74741)

54” TIMECUTTER SW Series – Model Numbers – (* Model Numbers 74793)

54” TIMECUTTER HD Series – Model Numbers – (* Model Numbers 74865, 74867, 74876, 74888, 75202, 75212)



60” TIMECUTTER MX Series – Model Numbers – (* Model Numbers 74777)

60” TIMECUTTER HD Series – Model Numbers – (* Model Numbers 75213)



48”, 54”, 60” TITAN - 119-8822 MODEL/SERIES USAGE



48” Titan X, XS Series (PRE - Current IBEAM – Framing – Tube Framing Models Only) – 48” Early Models - (* Model Numbers 74874, 74875, 74887, 74890)

48” TITAN 4800, TITAN Standard, TITAN My-Ride (PRE - Current IBEAM – Framing – Tube Framing Models Only) – 48” Early / Late Models Only - (* Model Numbers 75301, 75311, 75314, 75304)



54” Titan X, XS Series (PRE - Current IBEAM – Framing – Tube Framing Models Only) – 54” Early Models Only - (* Model Numbers 74877, 74889, 74898)

54” TITAN 5400, TITAN Standard, TITAN My-Ride (PRE - Current IBEAM – Framing – Tube Framing Models Only) – 54” Early / Late Models Only - (* Model Numbers 75302, 75305, 75310, 75312, 75315)



60” TITAN 6000, TITAN Standard, TITAN My-Ride (PRE - Current IBEAM – Framing – Tube Framing Models Only) – 60” Late Models - (* Model Numbers 75303, 75313, 75306, 75316)



48”, 54”, 60” PROLINE - 119-8822 MODEL/SERIES USAGE



48” Proline Series – 48” Current Models Only - (* Model Numbers 44423, 44424, 44448)



54” Proline Series – 54” Current Models Only - (* Model Numbers 44427, 44454)



60” Proline Series – 60” Current Models Only - (* Model Numbers 44430, 44460)



28”, 32” POWER TRX SNOW BLOWER - 119-8822 MODEL/SERIES USAGE



28” & 32” Power TRX & Power TRX Heavy-Duty (Traction/Drive Belt) – Model Numbers – (* Model Numbers 38870, 38875, 38890, 38891)



GROUNDMASTER - 119-8822 MODEL/SERIES USAGE



GROUNDMASTER (AC/COMPRESSOR BELT PULLEY) – Model Numbers – (* Model Number 31202)









ASSOCIATED PARTS REFERENCES FOR PART NUMBER 119-8822 ONLY

CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECT

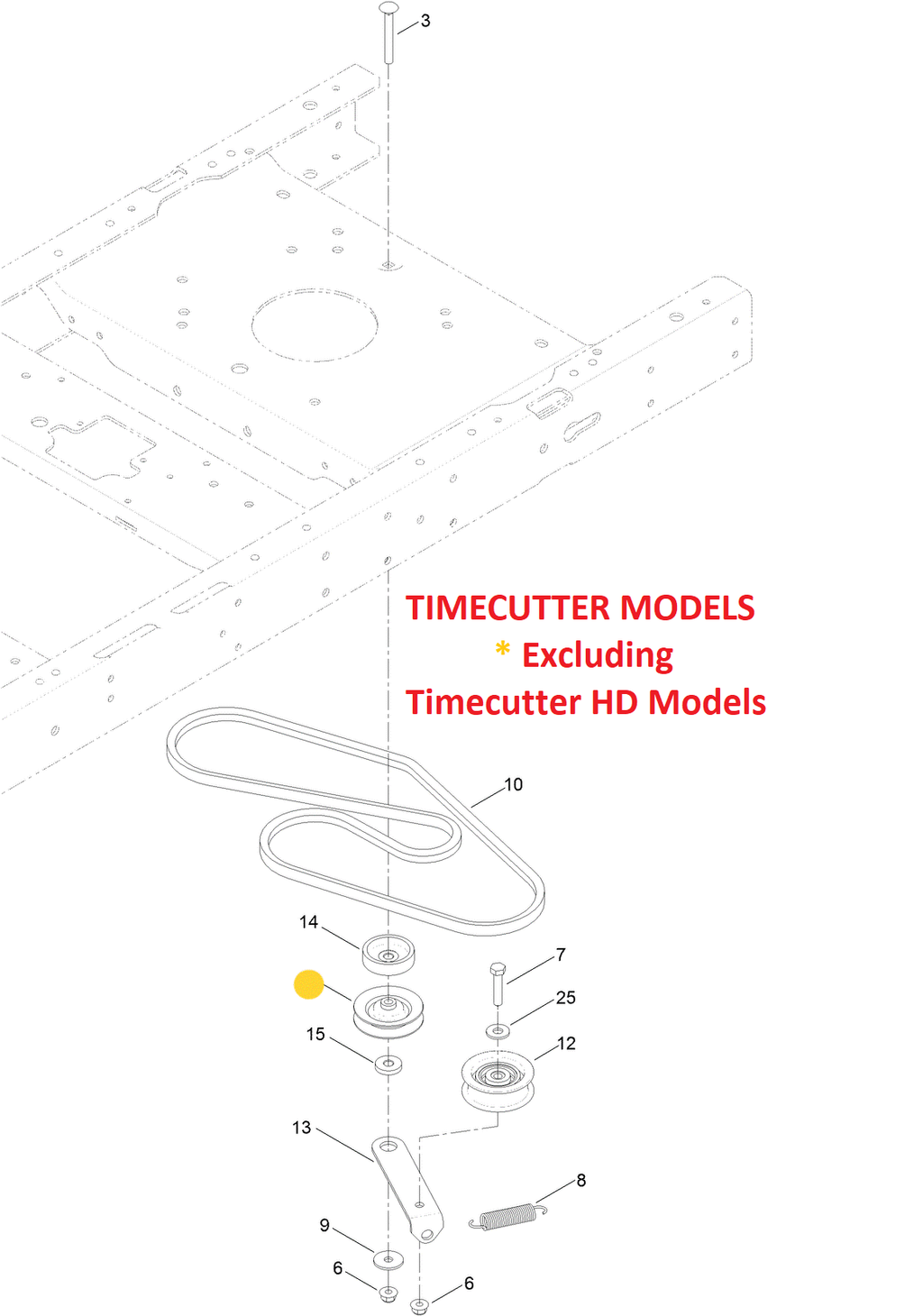

TIMECUTTER MODELS ONLY (* Excludes Timecutter HD Models)



1. 3230-8 - IDLER PULLEY BOLT - (Retains V-Idler) x1 Per V-Idler Pulley
2. 119-3353 - IDLER PULLEY SPACER - (Enables Hydraulic V-Idler to be Tightened Within Correct Spacing from Mower Frame/Engine Platform) x1 Per Pulley Fastened to The Mower Frame/Engine Platform
3. 119-3327 - IDLER ARM SPACER - (Inserts into Idler Pulley Arm and Spaces V-Idler Pulley to Correct Height Above the Ilder Pulley Arm as Well as Enabling Idler Pivot Arm to Pivot After It’s Tightened) x1 Per Idler Pulley Tensioner Arm
4. 5-4460 - IDLER PIVOT WASHER - (Tightens Against the Flange of the Idler Arm Spacer and Supports the Idler Arm on the Bottom Side) x1 Per Idler Pulley Tensioner Arm
5. 104-8300 - IDLER PULLEY NUT - (Retains V-Idler) x1 Per V-Idler Pulley

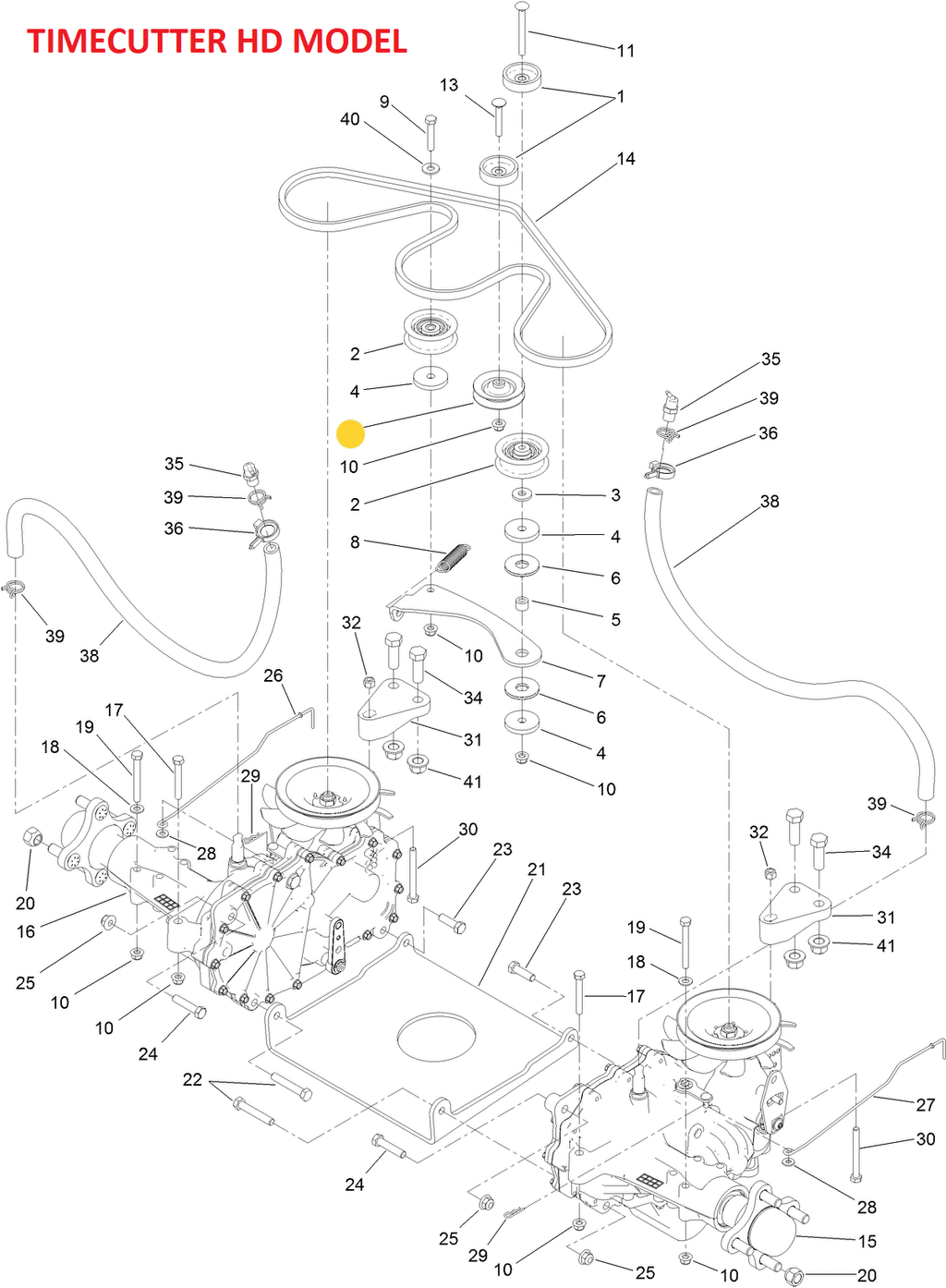

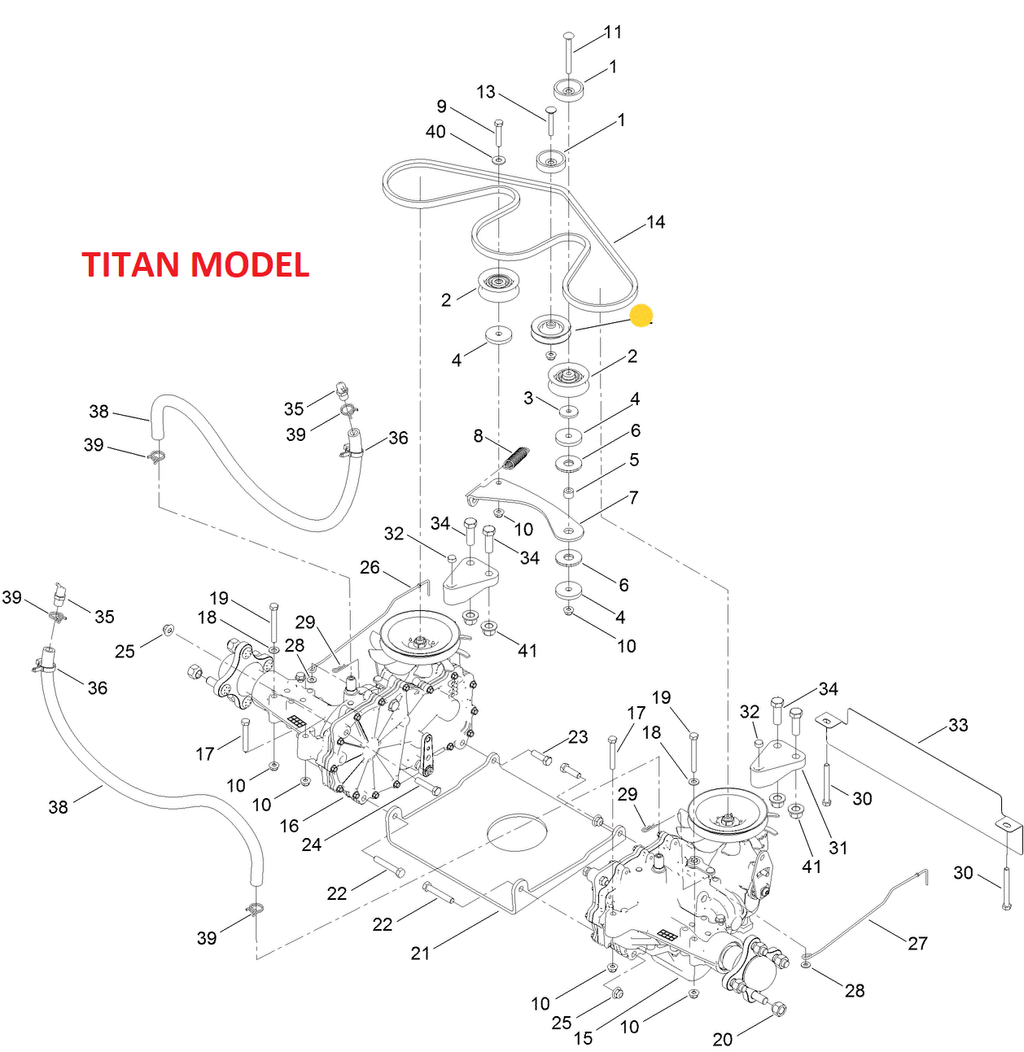

TITAN & TIMECUTTER HD MODELS ONLY



6. 119-9784 - IDLER PULLEY BOLT - (Retains V-Idler) x1 Per V-Idler Pulley
7. 119-3353 - IDLER PULLEY SPACER - (Enables Hydraulic V-Idler to be Tightened Within Correct Spacing from Mower Frame/Engine Platform) x1 Per Pulley Fastened to The Mower Frame/Engine Platform
8. 104-8300 - IDLER PULLEY NUT - (Retains V-Idler) x1 Per V-Idler Pulley

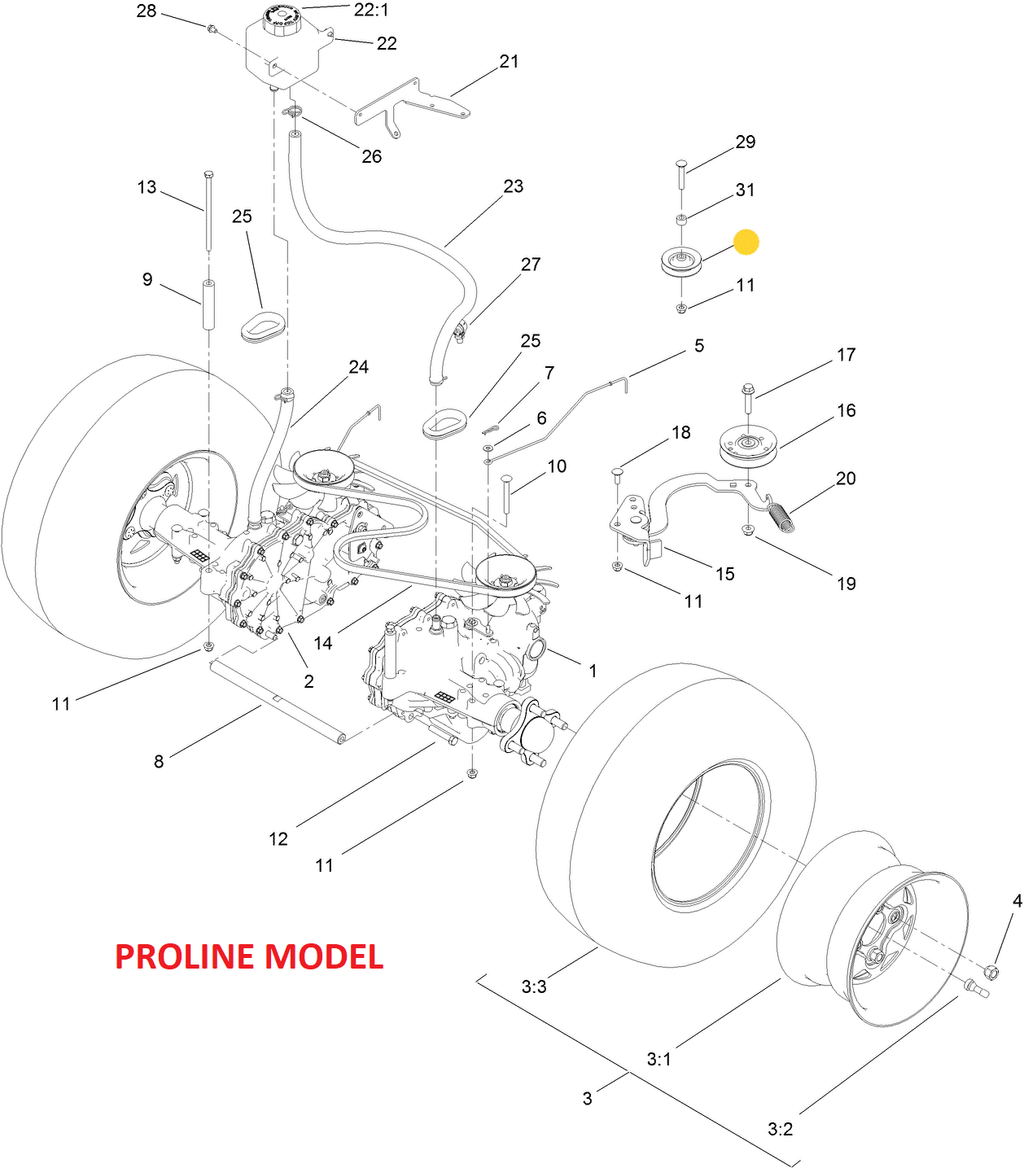

PROLINE MODELS ONLY



1. 3230-6 - IDLER PULLEY BOLT - (Retains V-Idler) x1 Per V-Idler Pulley
2. 98-4695 - IDLER PULLEY SPACER - (Enables Hydraulic V-Idler to be Tightened Within Correct Spacing from Mower Frame/Engine Platform) x1 Per Pulley Fastened to The Mower Frame/Engine Platform
3. 104-8300 - IDLER PULLEY NUT - (Retains V-Idler) x1 Per V-Idler Pulley





POWER TRX SNOWBLOWER ONLY



1. 140-5024 - IDLER PULLEY BOLT - (Retains V-Idler) x1 Per V-Idler Pulley
2. 144-2892 - IDLER PULLEY BELT GUARD - (Retains Traction Drive Belt from Falling Off the V-Idler Pulley) x1 Per V-Idler Pulley
3. 145-1652 – TENSIONER/TRACTIONER ARM - (Arm to Which V-Idler Remains Fastened to and Enable Traction Drive when Tension is Applied the Traction Belt) x1 Per Unit
4. 137-3089 - IDLER PULLEY NUT - (Retains V-Idler) x1 Per V-Idler Pulley

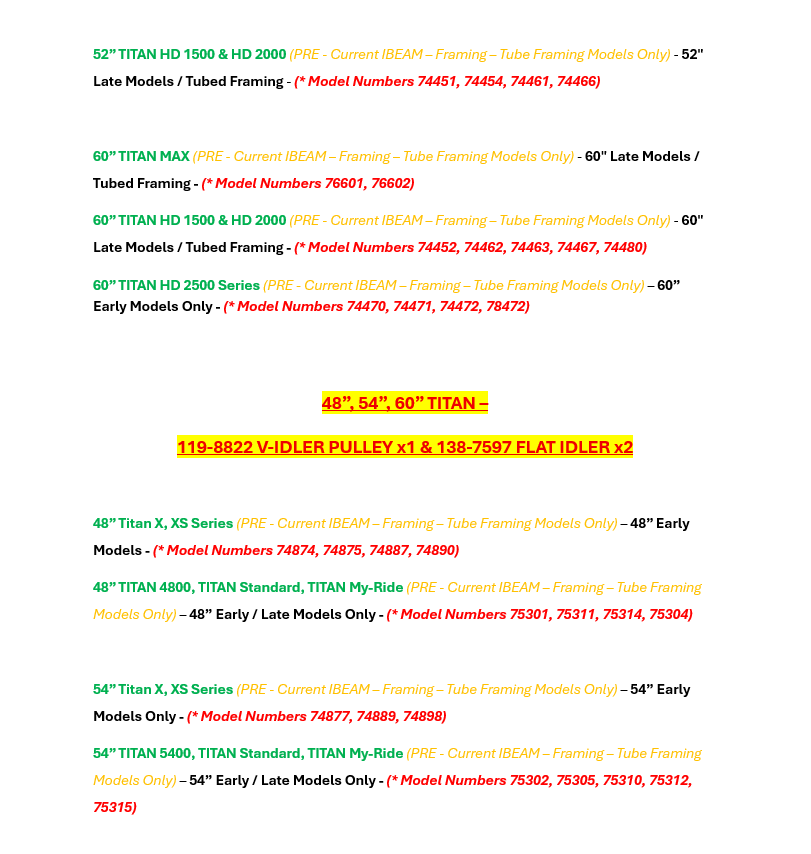

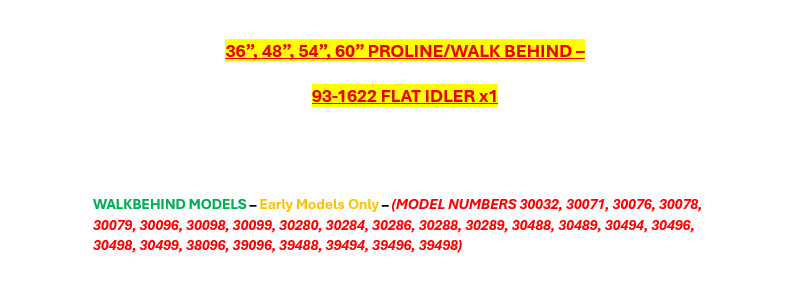

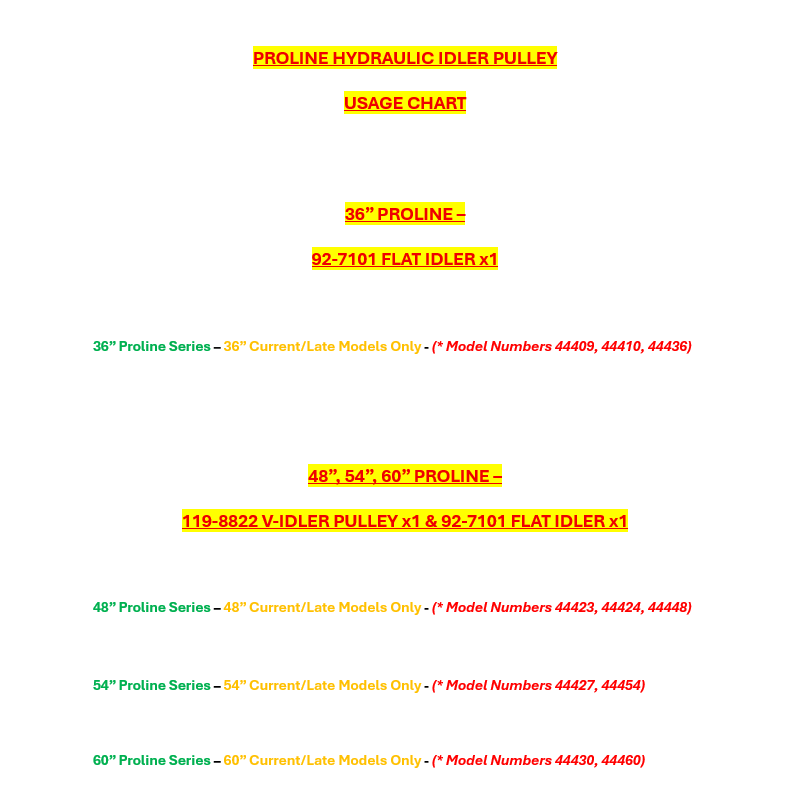

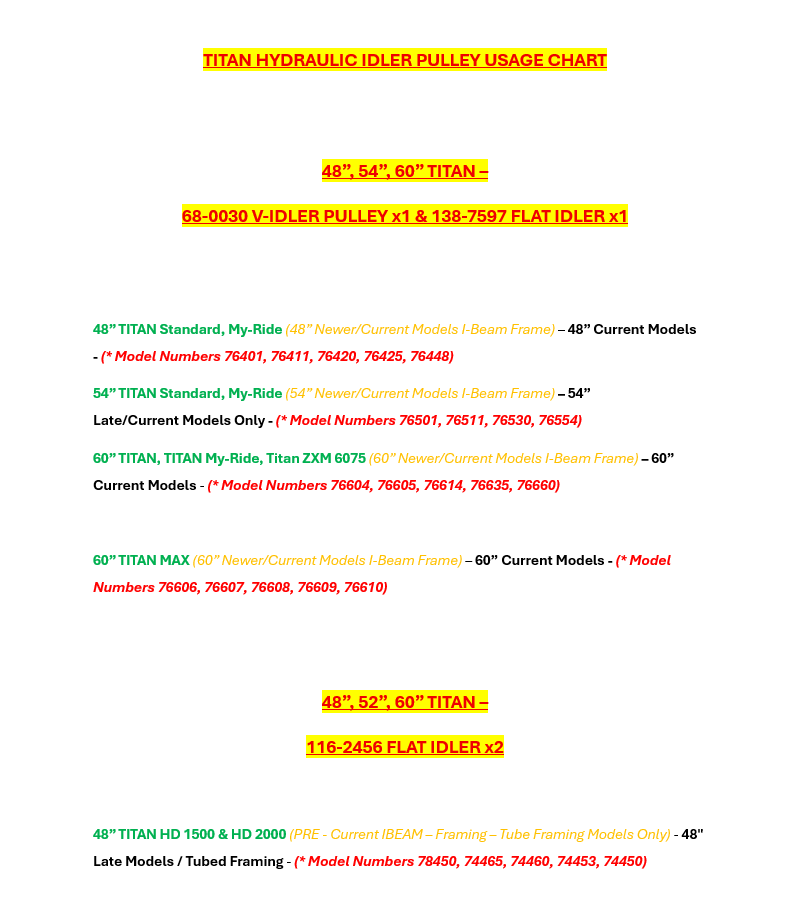

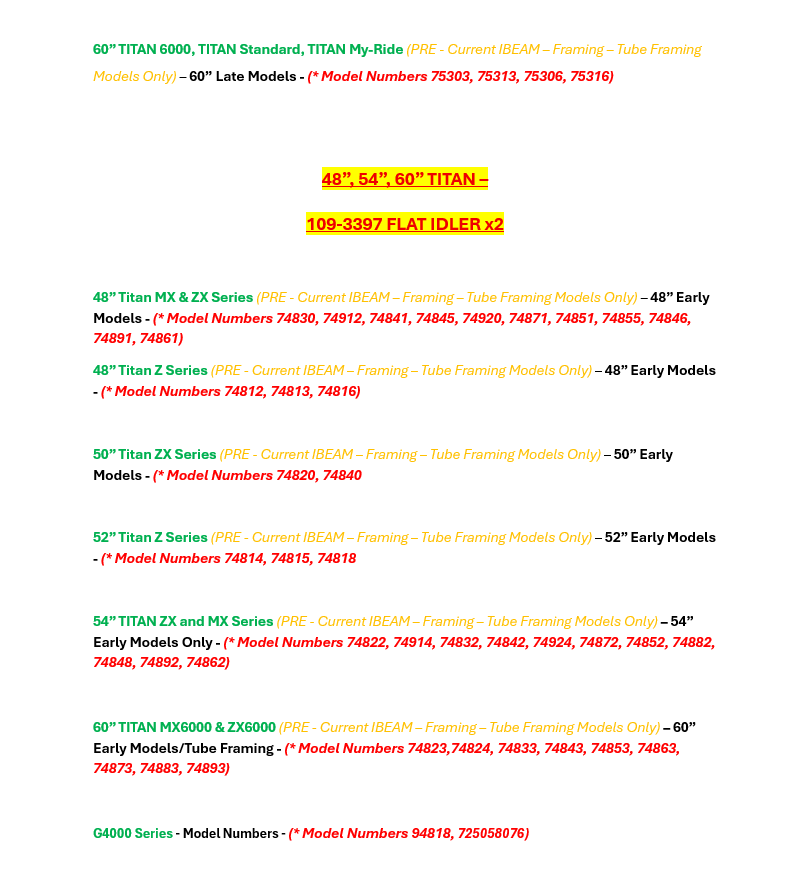

ASSOCIATED IDLER PULLEY CHARTS
