Toro OEM 119-8810 Mower Deck Pivot Pin/Triunion Fits Toro Timecutter 32" SS, SW, ZS - 34" Standard, MX - 42" Standard, My-Ride, MX, SS, SW, ZS - 50" Standard, My-Ride, MX, SS, SW, SWX, ZS - 54" My-Ride, SW, SS - 60" MX Models.

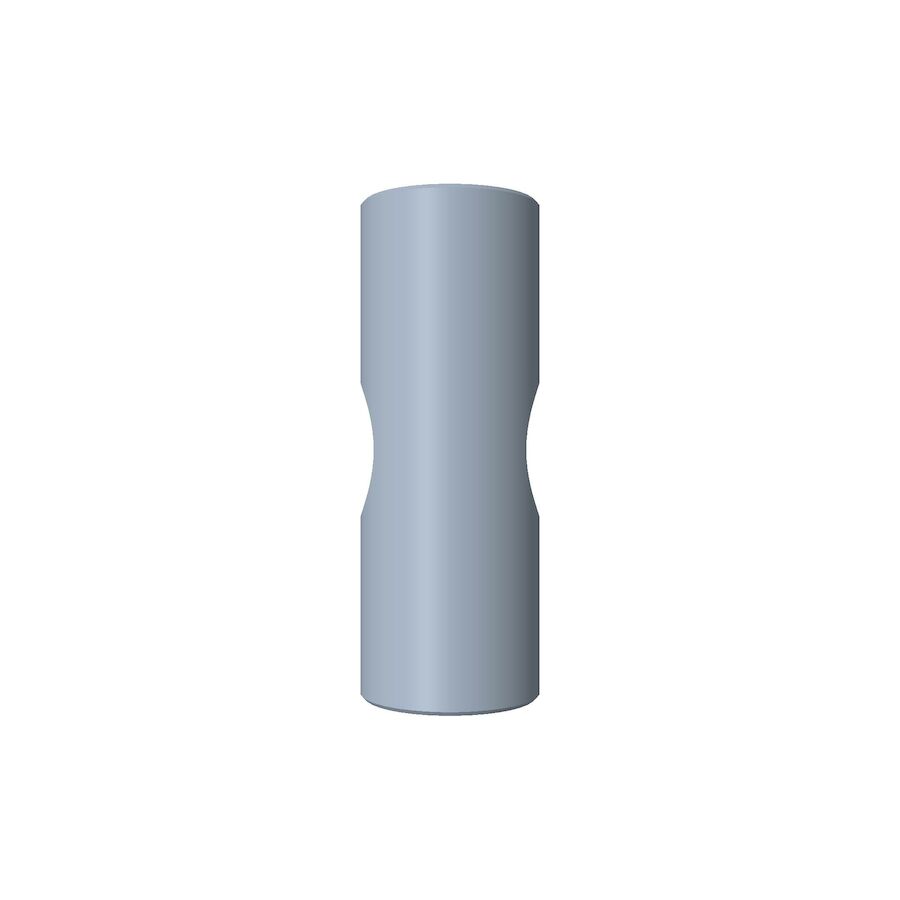

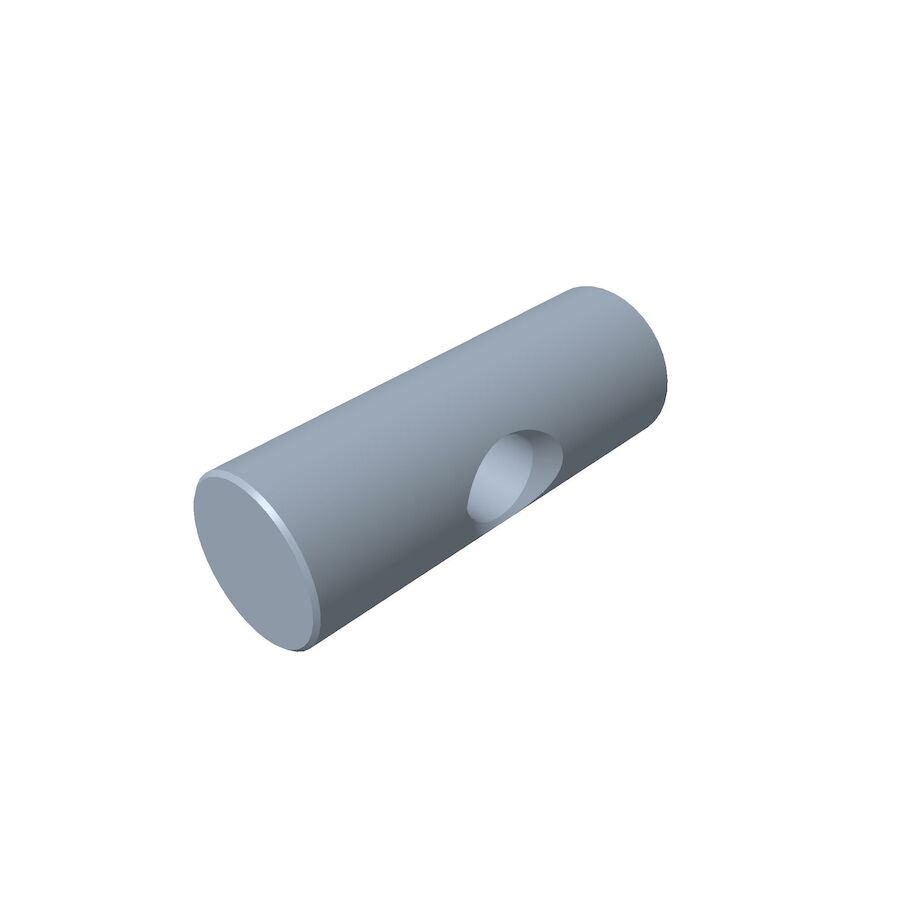

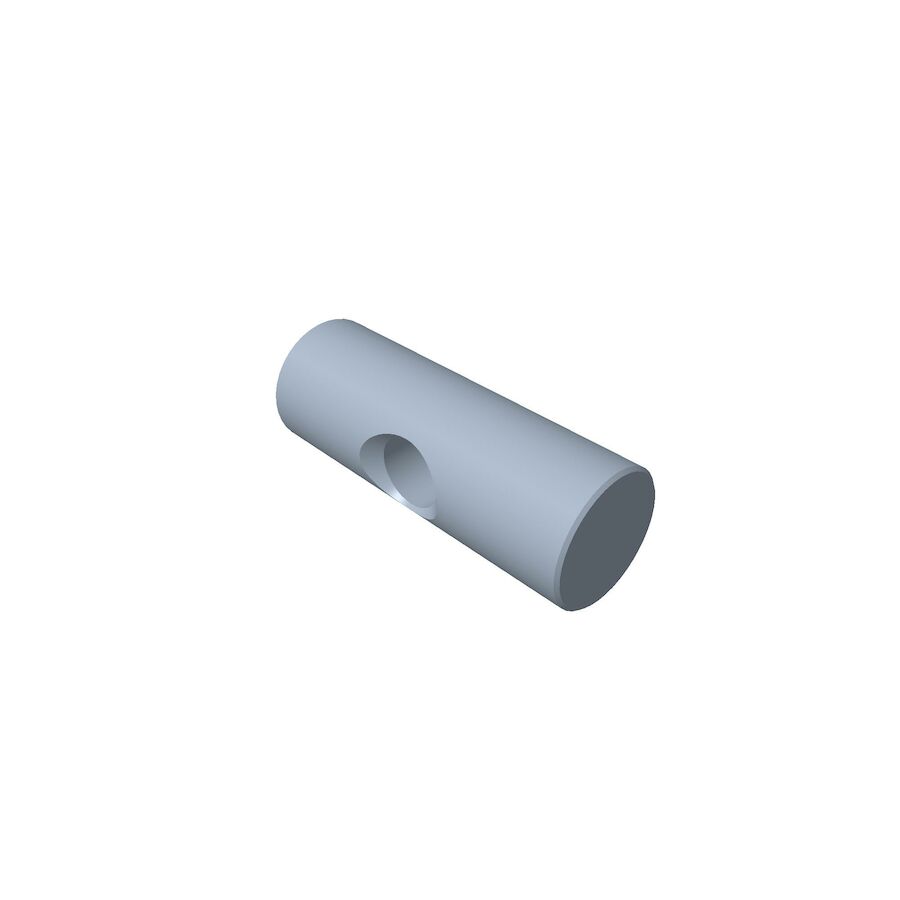

Toro OEM 119 8810 Pivot Pin or Triunion Allows for the Mower Deck Front Adjustable Mounting Rod to be Fasten through Frame of the Mower Securing the Front of the Mower Deck. Toro OEM 119 8810 Pivot Pin is Insert through a welded tab on the Mower Frame and allows the Front Mower Deck Rod to be insert into it Creating A T-Bar Affect. This keeps both the Mower Deck Front Adjustable Rods and the Pivot Pin Both in Place and Allow the Front Mower Deck to Freely Slide Up and Down when Adjusting the Pitch of the Mower Deck or in the case that you may need Some Forgiveness with Rough Terrain. Mower Deck Pivot Pin/Triunion is Designed to Fit Toro Early/Late/Current 32" (SS, SW, ZS), 34" (Standard, MX), 42" (Standard, My-Ride, 4200, MX, SS, SW, ZS), 50" (Standard, My-Ride, 5000, MX, SS, SW, SWX, ZS), 54" (My-Ride, SW, SS) and 60" (MX) Timecutter Models. Most Timecutter Model will use 119-8810 Including Models with Replaceable Cast Aluminum Axles But Excluding Timecutter HD and Current Timecutter MAX Models. However, Due to Variation Within Model Numbers/Series, for an Accurate Break down of Usage Refer to the Model Fit Chart. Please refer to the Images above; Product Specifications and the Model Fit guide below to ensure proper fit.







ASSOCIATED PARTS REFERENCES FOR PART NUMBER 119-8810 ONLY

CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED





1. 131-3945 - MOWER DECK FRONT MOUNTING RODS - (Retains Mower Deck to the Frame and Enables it to Pivot with the Use of the Mower Deck Pivot Pin 119-8810 - Refer to the Individual Part Numbers Model Fit Chart for Differences in Usages within Model and Series) x1 Per Mower Deck Mounting Rod

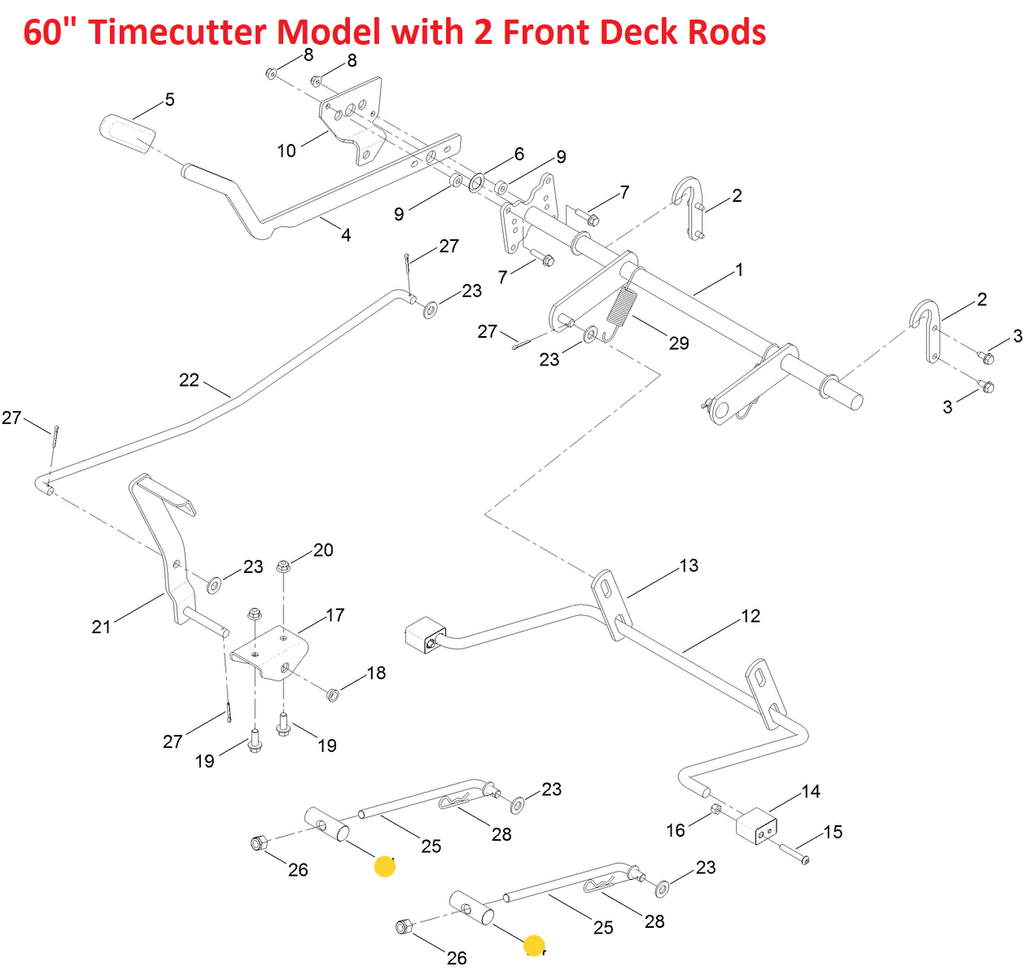

2. 133-4319 - MOWER DECK FRONT MOUNTING RODS - (Retains Mower Deck to the Frame and Enables it to Pivot with the Use of the Mower Deck Pivot Pin 119-8810 - Refer to the Individual Part Numbers Model Fit Chart for Differences in Usages within Model and Series) x1 Per Mower Deck EXCEPT 60" Models x2 Per Mower Deck
3. 138-6050 - MOWER DECK FRONT MOUNTING RODS - (Retains Mower Deck to the Frame and Enables it to Pivot with the Use of the Mower Deck Pivot Pin 119-8810 - Refer to the Individual Part Numbers Model Fit Chart for Differences in Usages within Model and Series) x1 Per Mower Deck - Models with Cast Aluminum Axles
4. 3296-19 - Lock Nut - (Retains Mower Deck Front Mounting Rod to the Pivot Pin) x1 Per Mower Deck Mounting Rod







Specification

Product Number:	1198810
Brand:	Toro
Length:	2.600 IN (6.604 CM)
Width:	1.000 IN (2.540 CM)
Height:	1.000 IN (2.540 CM)
Weight:	0.550 LB (0.249 KG)





Model Fit:





TIMECUTTER 32” ZS Series – Model Numbers – 74682, 74385, 74388, 74650



TIMECUTTER 32” SS Series – Model Numbers – 74620, 74621, 74629, 74710



TIMECUTTER 32” SW Series – Model Numbers – 74670, 74780, 74781





TIMECUTTER 34” MX Series – Model Numbers – 74750



TIMECUTTER 34” (STANDARD) Series – Model Numbers – 75734, 77301





TIMECUTTER 42” SS Series – Model Numbers – 74622, 74624, 74625, 74626, 74623, 74627, 74628, 74633, 74616, 74636, 74705, 74706, 74711, 74720, 74721, 74722, 74723, 74725, 74726



TIMECUTTER 42” SW Series – Model Numbers – 74675, 74676, 74784, 74788



TIMECUTTER 42” SWX Series – Model Numbers – 74787



TIMECUTTER 42” ZS Series – Model Numbers – 74386, 74389, 74390, 74655, 74656, 74657, 74665, 74667, 74677, 74683, 74684, 74685, 74686, 74687



TIMECUTTER 42” MX Series – Model Numbers – 74640, 74642, 74760, 74765, 74766, 74690, 74691



TIMECUTTER 42” 4200 & ZR 4200 Series – Model Numbers – 74679, 75740



TIMECUTTER 42” (STANDARD) Series – Model Numbers – 75741, 75742, 75744, 75746, 75748, 75749, 77401, 77404



TIMECUTTER 42” (My-Ride) Series – Model Numbers – 74692, 75743, 75745, 75747





TIMECUTTER 42” (Standard & My-Ride - Battery) Series – Model Numbers – 75841, 75642





TIMECUTTER 50” ZS Series – Model Numbers – 74387, 74660, 74661, 74395, 74688



TIMECUTTER 50” MX Series – Model Numbers – 74641, 74643, 74694, 74695, 74770, 74771, 74775, 74776, 74778, 74727, 74768, 74772, 74773, 74774



TIMECUTTER 50” SS Series – Model Numbers – 74630, 74632, 74631, 74635, 74637, 74638, 74730, 74731, 74732



TIMECUTTER 50” SW Series – Model Numbers – 74793, 74680, 74790



TIMECUTTER 50” SWX Series – Model Numbers – 74797, 74798, 74795



TIMECUTTER 50” 5000 Series – Model Numbers – 75751



TIMECUTTER 50” (STANDARD) Series – Model Numbers – 75750, 75753



TIMECUTTER 50” (My-Ride) Series – Model Numbers – 74696, 75755, 75759





TIMECUTTER 54” SS Series – Model Numbers – 74740, 74741



TIMECUTTER 54” SW Series – Model Numbers – 74793



TIMECUTTER 54” (My-Ride) Series – Model Numbers – 75754, 75756, 75757



TIMECUTTER 54” (My-Ride - Battery) Series – Model Numbers – 75851





TIMECUTTER 60” MX Series – Model Numbers – 74777





XLS Riding Tractor Series (MOWER DECK) – Model Numbers 71254, 71255
