Description

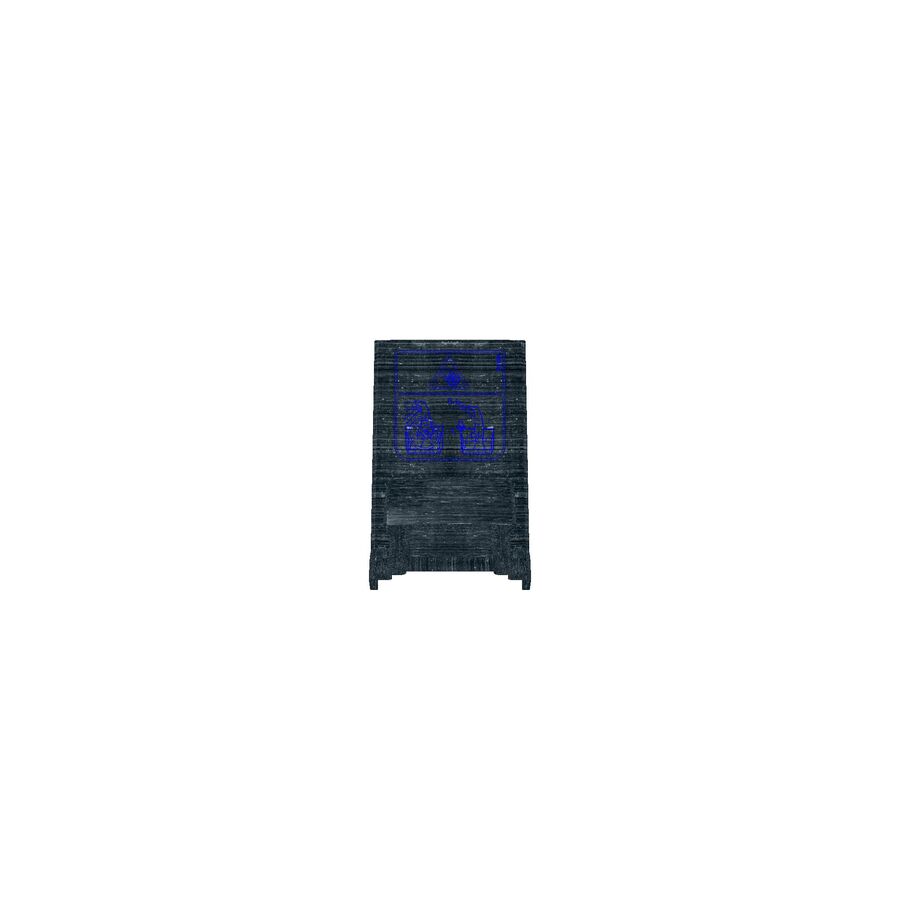

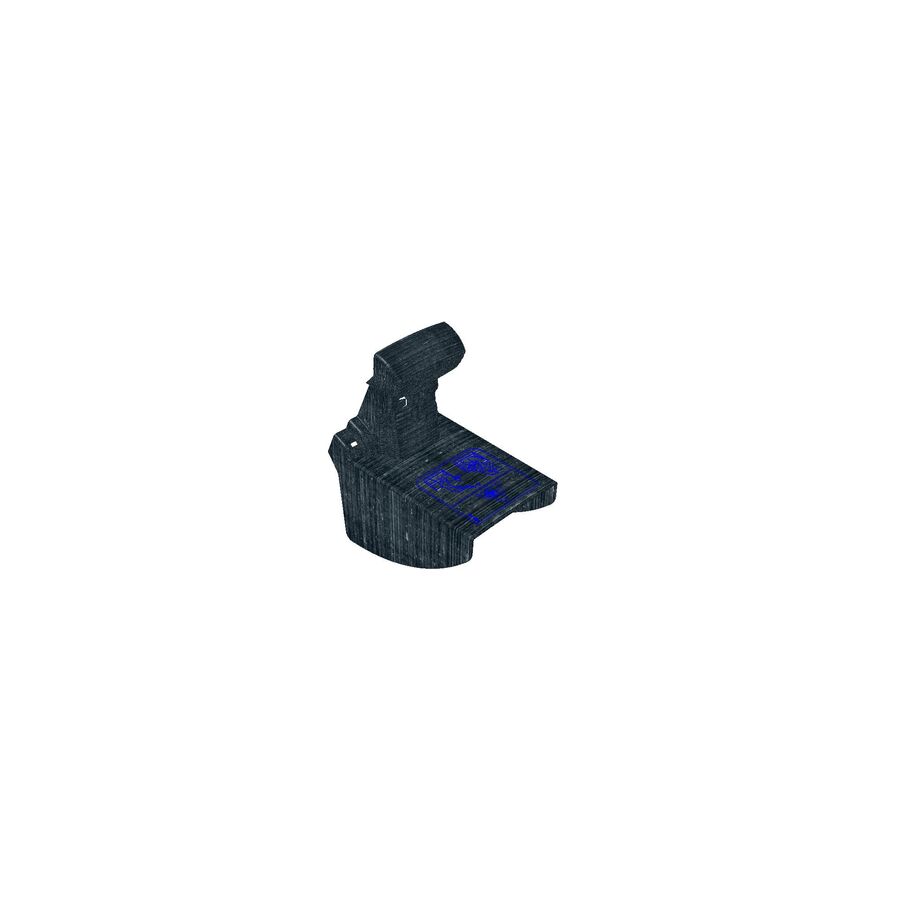

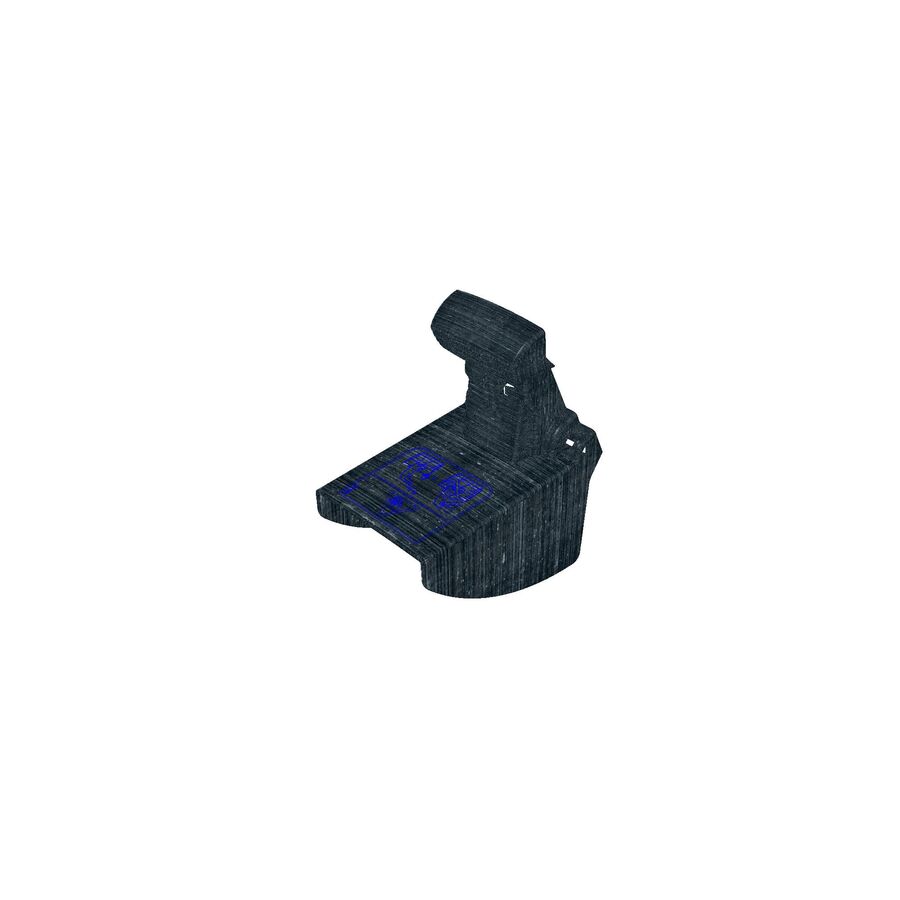

Toro OEM 119-7629 Chute Deflector
Restore proper snow-throwing control with this genuine Toro chute deflector assembly. The deflector mounts to the top of the discharge chute and adjusts the discharge height/trajectory helping you keep snow where you want it.
- OEM Part Number: 119-7629, 119 7629, 1197629
- Part Name: DEFLECTOR-CHUTE
- Application: Chute assembly (top deflector / throw angle control)
- Genuine OEM: Correct fit and function for listed Toro Power Max Snowthrower Models
Fits These Toro Models (By Family)
POWER MAX Series – Model Numbers – (* Model Numbers 37770, 38810, 38811)
Misc. Lawn Boy Models – Model Numbers – (* Model Numbers 17740)

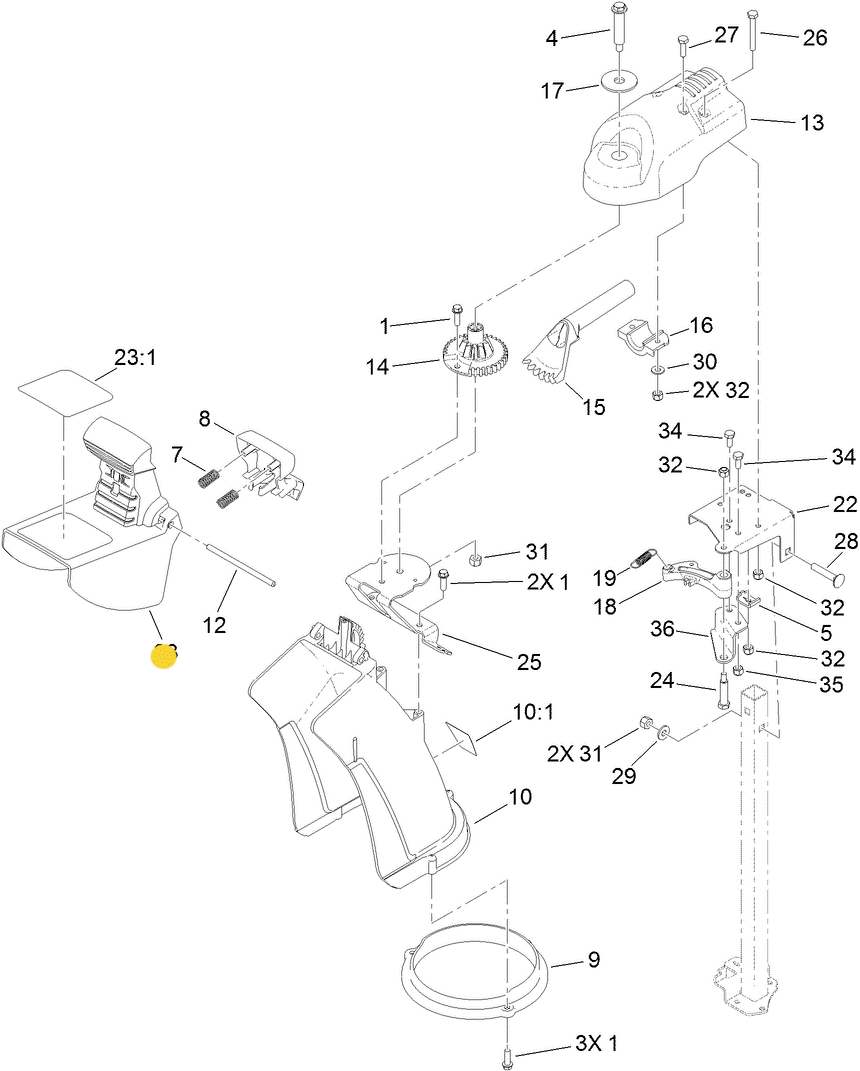

Associated Parts (Common “Replace With” Items)
These are in the same chute/deflector control area and are smart “finish-the-repair” items if worn, missing, or damaged:
- 117-2314 – Trigger-Deflector
- 136-7136 – Spring-Compression (deflector/trigger feel & return)
- 136-8672 – Hinge Pin-Deflector
- 133-5590 – Discharge Chute (Replace if Screw Hole is Damaged or Chute is Crack or Broken)
Installation Tips (Chute Deflector Replacement)
- Safety first: Engine OFF, key removed and disconnect the spark plug wire before working near the chute/impeller area.
- Visual Documentation: Raise the deflector and note the spring orientation before disassembly (a quick phone photo helps).
- Remove: The pins/springs/trigger parts to the new deflector as needed - All Components are Clip Together (common: 136-8672 hinge pin, 136-7136 compression spring, 117-2314 trigger).
- Transfer or Assemble: The pins/springs/trigger parts to the new deflector as needed - All Components are Clip Together (common: 136-8672 hinge pin, 136-7136 compression spring, 117-2314 trigger).
- Test Cycle the Deflector Chute full up/down: Operate the Deflector Chute Trigger and Rotate Deflector Chute Up and Down confirming it holds position and does not bind.
Need Help Verifying Fit?
Send us your Toro model number and serial number and we’ll confirm the correct part before you order.
