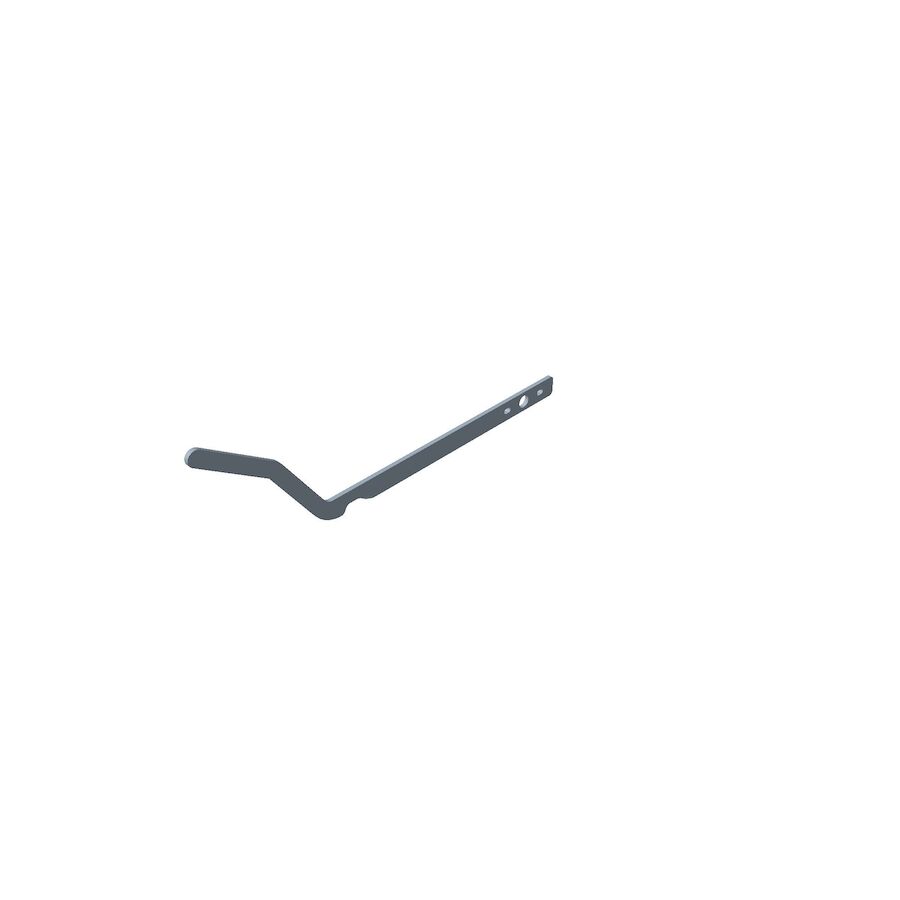

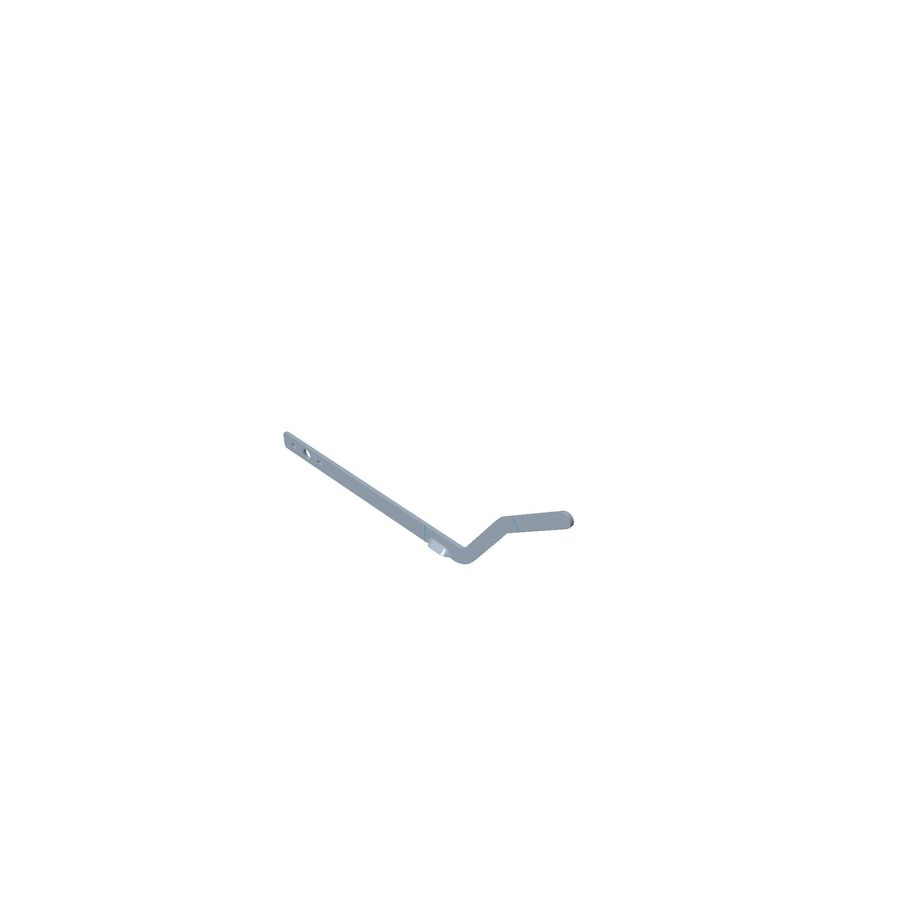

Toro OEM 119-3427-03 Mower Deck Lift Lever Fits Toro Timecutter 32" SS, SW, ZS - 34" MX - 42" MX, SS, SW, ZS - 50" MX, SS, SW, SWX, ZS - 54" SS - 60" MX Models.

Toro OEM 119 3427 03 Mower Deck Lift Lever Allows for the operator to Raise and Lower Their Mower Deck, Cutting their Grass at their desired height. Toro OEM is Designed to Fit Toro Early/Late 32" (SS, SW, ZS), 34" (MX), 42" (MX, SS, SW, ZS), 50" (MX, SS, SW, SWX, ZS), 54" (SS) and 60" (MX) Timecutter Models. Due to Variation Within Model Numbers/Series, for an Accurate Break down of Usage Refer to the Model Fit Chart and The Special Note Section Below. Please refer to the Images above; Product Specifications and the Model Fit guide below to ensure proper fit.







ASSOCIATED PARTS REFERENCES FOR PART NUMBER 119-3427-03 ONLY

CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED





1. 1-633268 - MOWER DECK LIFT LEVER GRIP - (Slide Over the End of the Mower Deck Lift Lever) x1 Per Mower Deck Lift Handle

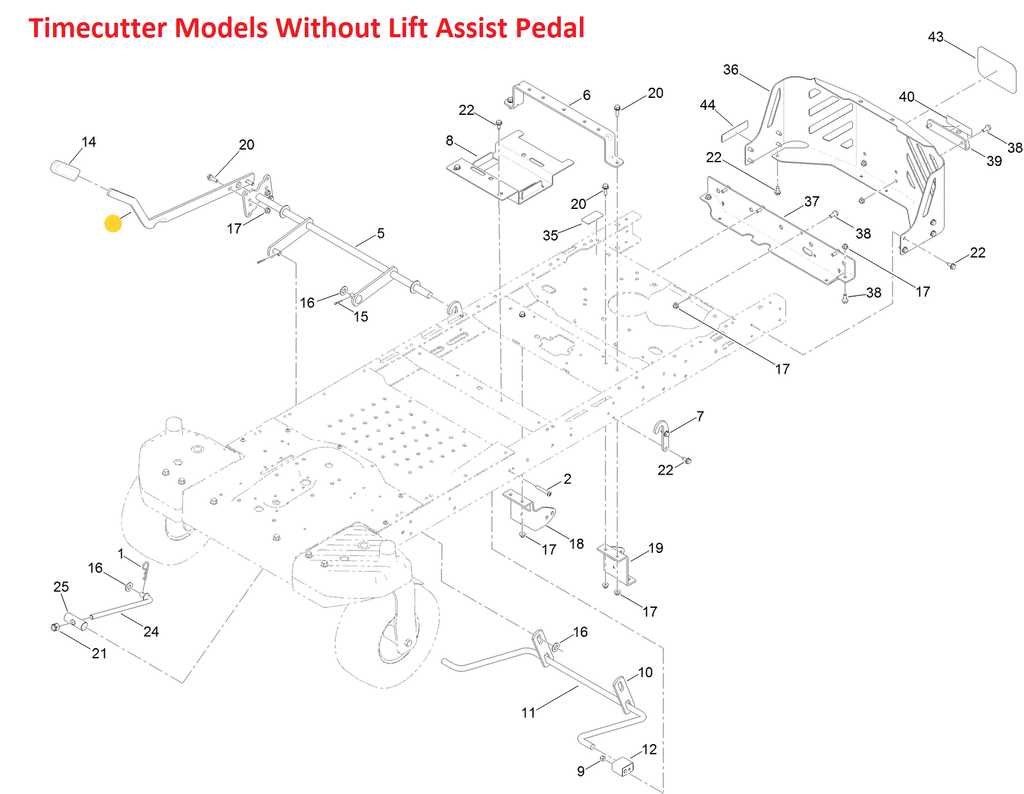

2. 3234-29 - FLANGE BOLTS - Models Without Foot Assist Pedal - (Retains Mower Deck Lift Handle to Mower Deck Lift/Leverage Arm) x2 Per Mower Deck Handle
3. 104-8300 - FLANGE LOCK NUT - Models Without Foot Assist Pedal - (Retains Mower Deck Lift Handle to Mower Deck Lift/Leverage Arm) x2 Per Mower Deck Handle

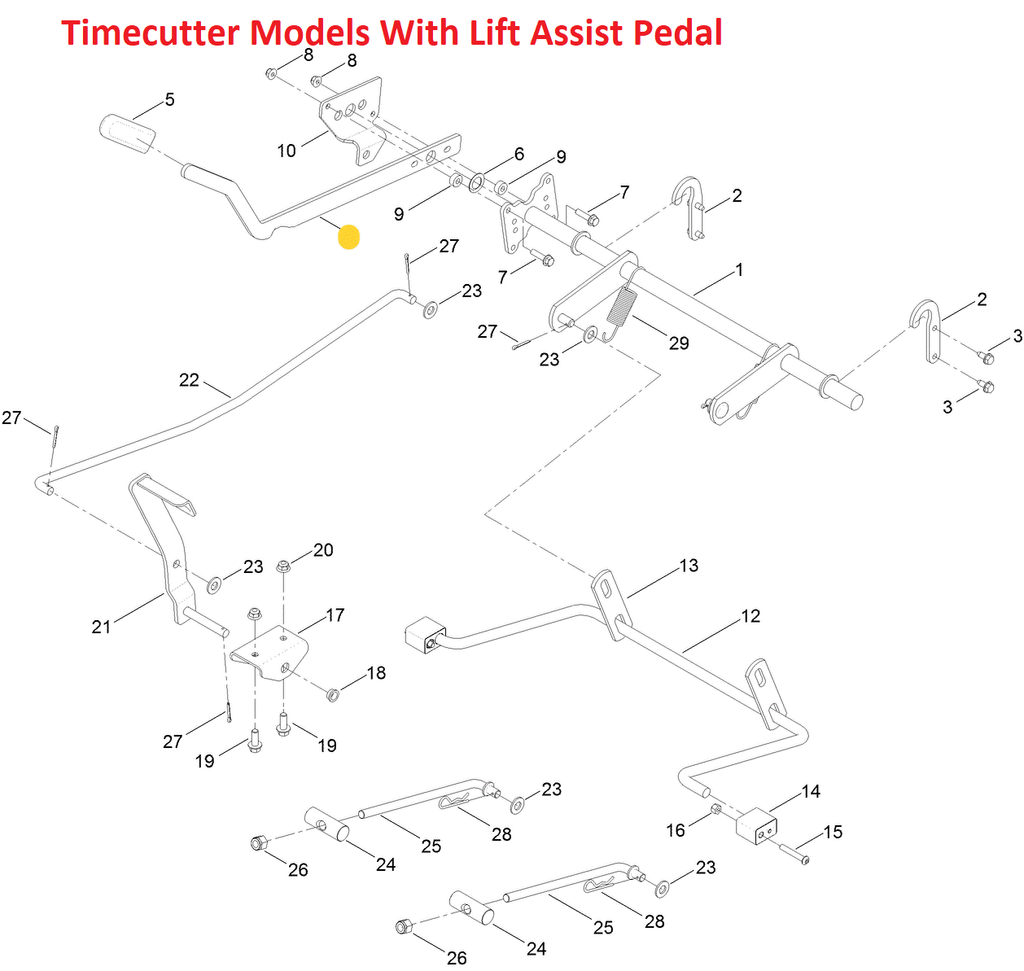

4. 3234-36 - HEX HEAD FLANGE BOLTS - Model With Foot Assist Pedal - (Used in Place of 3234-29 Above to Fasten Washers, Spacers, Footlift Plate and Mower Deck Lift Handle to Mower Deck Lift/Leverage Arm) x2 Per Mower Deck Lift Handle
5. 104-8300 - FLANGE LOCK NUT - Models With Foot Assist Pedal - (Retains Thrust Washer, Spacers, Footlift Plate and Mower Deck Lift Handle to Mower Deck Lift/Leverage Arm) x2 Per Mower Deck Handle
6. 3-6498 - THRUST WASHER - Models With Foot Assist Pedal - (Spacers Mower Deck Lift Handle Away from Mower Deck Lift/Leverage Arm - Installed Over Mower Deck Lift Leverage Rod) x1 Per Mower Deck Lift Handle
7. 121-1759 - SPACER - Models With Foot Assist Pedal - (Spaces Mower Deck Lift Handle Away from Mower Deck Lift/Leverage Arm Used on Flanged Bolt Fasteners) x2 Per Mower Deck Lift Handle
8. 131-3933 - FOOTLIFT PLATE - Models With Foot Assist Pedal - (Fastens Overtop Mower Deck Lift Handle and Enable you to Connect Mower Deck Foot Assist Lift Rod) x1 Per Mower Deck Lift Handle
9. 132-6872-03 - MOWER DECK LIFT LEVARAGE ARM - (Fits select 32", 34", 42" Timecutter Models - Travels across the Frame of the Mower and Attaches to the Lift Handle and Lift Linkage - Review Part Number Model Fit Chart to Ensure Correct Fit) x1 Per Unit
10. 132-6878-03 - MOWER DECK LIFT LEVARAGE ARM - (Fits select 50", 54" Timecutter Models - Travels across the Frame of the Mower and Attaches to the Lift Handle and Lift Linkage - Review Part Number Model Fit Chart to Ensure Correct Fit) x1 Per Unit
11. 133-7010-03 - MOWER DECK LIFT LEVARAGE ARM - (Fits Only 60" Timecutter Model 74777 - Travels across the Frame of the Mower and Attaches to the Lift Handle and Lift Linkage - Review Part Number Model Fit Chart to Ensure Correct Fit) x1 Per Unit







Specification

Product Number:	119342703
Brand:	Toro
Length:	24.000 IN (60.960 CM)
Width:	7.750 IN (19.685 CM)
Height:	0.300 IN (0.762 CM)
Weight:	2.055 LB (0.932 KG)





Model Fit:



TIMECUTTER 32” ZS Series – Model Numbers – 74682, 74385, 74388, 74650



TIMECUTTER 32” SS Series – Model Numbers – 74620, 74621, 74629, 74710



TIMECUTTER 32” SW Series – Model Numbers – 74670, 74780, 74781





TIMECUTTER 34” MX Series – Model Numbers – 74750





TIMECUTTER 42” MX Series – Model Numbers – 74640, 74642, 74760, 74765, 74766



TIMECUTTER 42” ZS Series – Model Numbers – 74386, 74389, 74390, 74655, 74656, 74657, 74665, 74667, 74684, 74686



TIMECUTTER 42” SS Series – Model Numbers – 74622, 74624, 74625, 74626, 74623, 74627, 74628, 74633, 74616, 74636, 74705, 74706, 74711, 74720, 74721, 74722, 74723, 74725, 74726



TIMECUTTER 42” SW Series – Model Numbers – 74675, 74676, 74784, 74785, 74788



TIMECUTTER 42” SWX Series – Model Numbers – 74787





TIMECUTTER 50” MX Series – Model Numbers – 74641, 74643, 74770, 74771, 74775, 74776, 74778, 74727, 74768, 74772, 74773, 74774, 74776



TIMECUTTER 50” ZS Series – Model Numbers – 74688, 74660, 74661, 74395, 74387



TIMECUTTER 50” SS Series – Model Numbers – 74630, 74632, 74631, 74635, 74637, 74638, 74730, 74731, 74732



TIMECUTTER 50” SW Series – Model Numbers – 74680, 74790



TIMECUTTER 50” SWX Series – Model Numbers – 74797, 74798, 74795





TIMECUTTER 54” SS Series – Model Numbers – 74740, 74741



TIMECUTTER 54” SW Series – Model Numbers – 74793





TIMECUTTER 60” MX Series – Model Numbers – 74777
