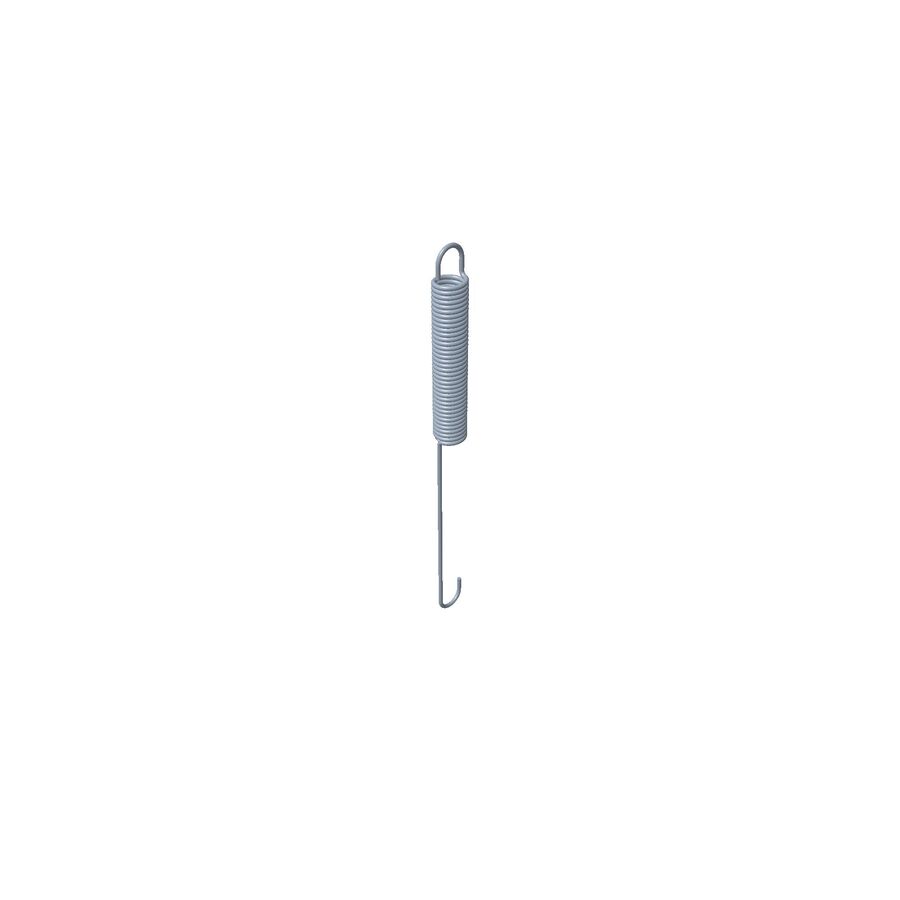

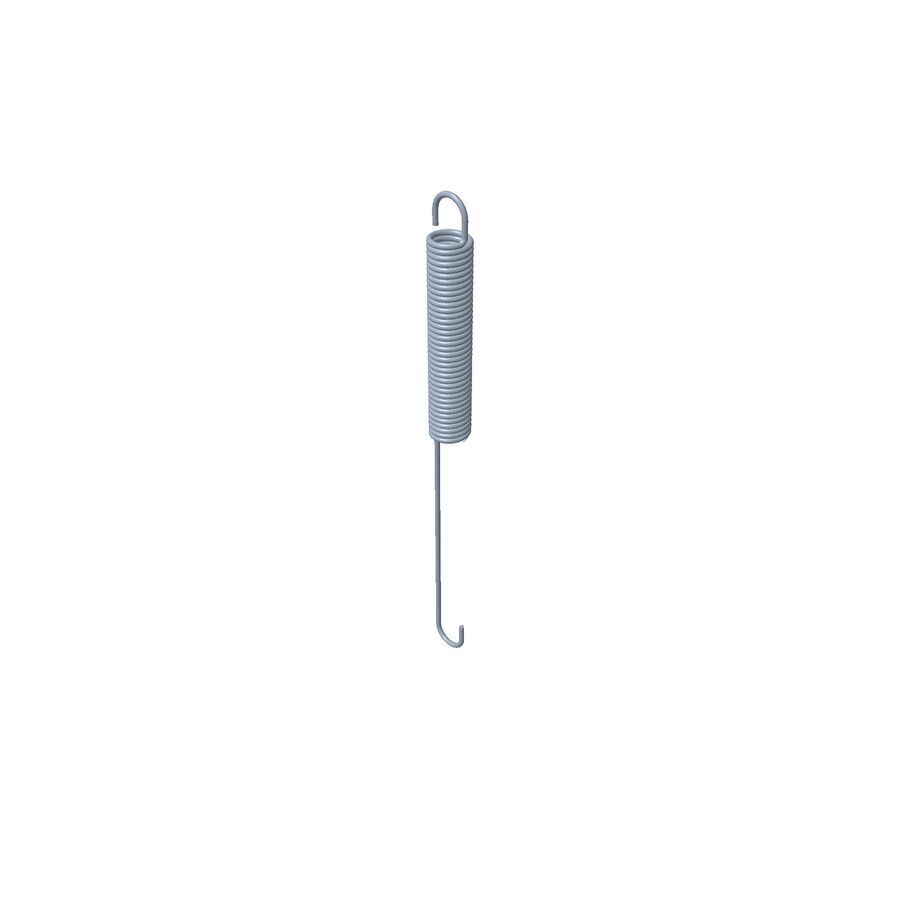

Toro OEM 119-2913 Auger/Rotor Clutch Cable Spring Fits Toro Select 18" Single Stage Power Clear and Power Lite Snowblower Models.

Please refer to the Images above; Product Specifications, Associate Part Chart and the Model Fit Guide below to Ensure a proper fit.

Part Number 117-7740 Supersedes to Part Number 119-2913

• PRODUCT NUMBER AND VARIATIONS: 119-2913, 119 2913, 1192913, 117-7740, 117 7740, 1177740
• PRODUCT TYPE: Auger/Rotor Clutch Cable Spring
• SIZE: Length 7.750 in. - Width 0.600 in. - Height 0.600 in. - Weight 0.100 lbs.
• NOTES & DETAILS: Toro OEM  117-7740 IS COMMINLY USED - In the Upper Handle Clutch Bail and Clutch Cable Adjustment Plate and Eliminates Broken Cables and Linkage Items in the Case of if those Items Where too Freeze or Bind from Less-than-Ideal Weather Elements and Circumstances. Toro 117 7740 Design also Enable the Operator to Easily Adjust Clutch Cable Tension/Responsiveness to Preferred Amount While on the Go.
• COMMON SERIES APPLICATIONS: Toro Select 18" Power Clear & Power Lite Snow Blower Models.

• MODEL FIT CHART:

SNOWBLOWER’S

POWER LITE Series – Model Numbers – (* Model Numbers 38273, 38274, 38283)

POWER CLEAR Series – Model Numbers – (* Model Numbers 38272, 38282, 38472, 38473, 38474, 38475)

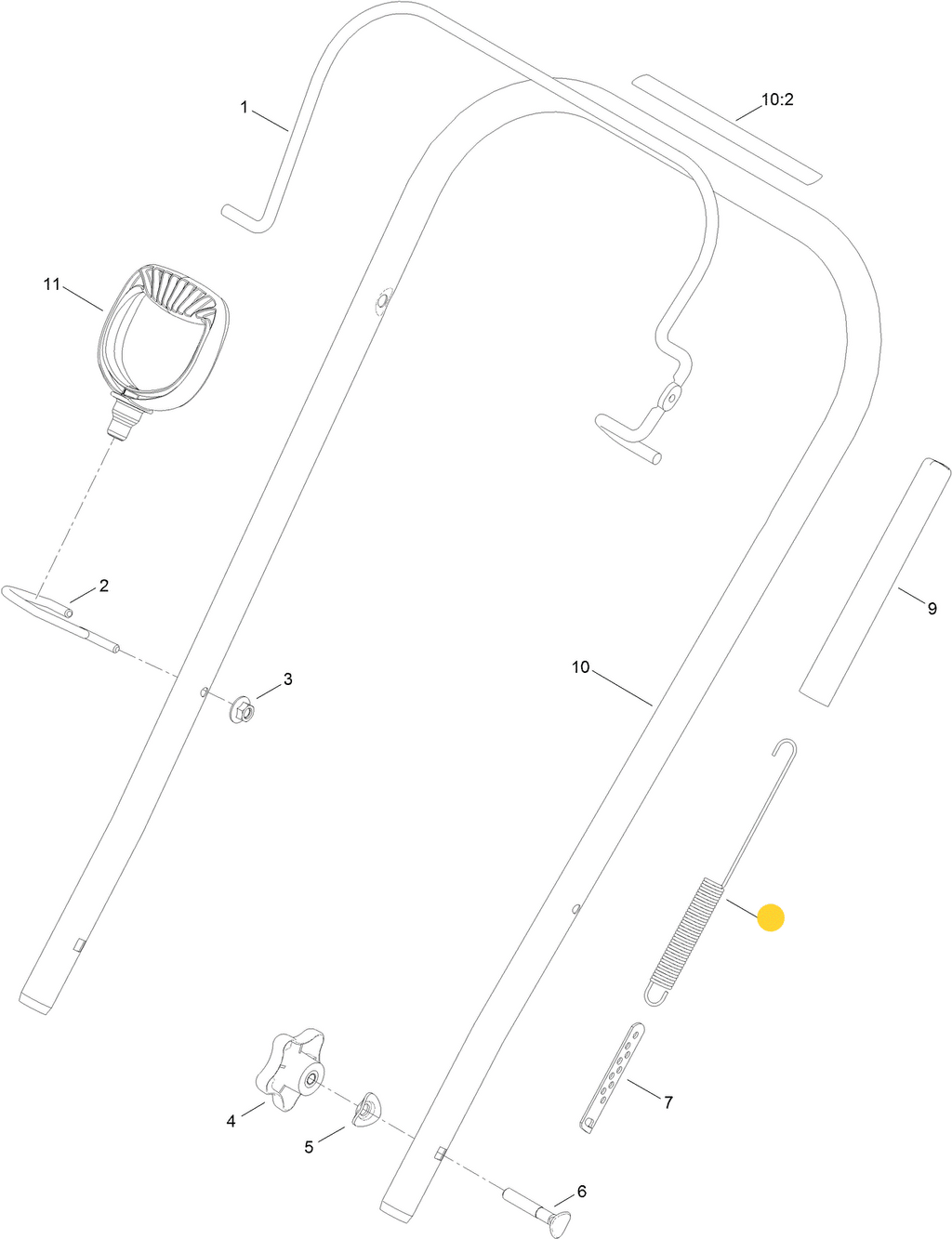

• ASSOCIATED PARTS CHART:

ASSOCIATED PARTS REFERENCES FOR PART NUMBER 119-2913 ONLY

CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED

1. 117-7718-03 - CLUTCH BAIL (Inserts into the Upper Whole's in the Upper Handle Section and Enables the Operator to Engage and Disengage the Rotors/Auger) x1 Per Handle Assembly
2. 114-3796 - CLUTCH SPRING COVER (Installed Over the Spring to Protect the Spring of Outside Elements) x1 Auger/Rotor Clutch Spring
3. 136-7126 - CLUTCH SPRING/CABLE ADJUSTMENT PLATE (Serves as the link between the Clutch Cable and the Clutch Cable Spring to which both would Hook Into - 136-7126 Contains Numerous Whole for Adjustment Purposes) x1 Per Clutch Cable and Spring
