Toro OEM 119-1988 Carburetor Rebuild Kit Fits Select 18" 400 Series Power Clear Snowblower Models (Only Models 38272, 38282) and Powerlite (Only Models 38273, 38283) Snowblower Models - Toro Dealer.

Please refer to the Images above; Product Specifications, Associate Part Chart and the Model Fit Guide below to Ensure a proper fit.



NOTE: Carburetor Rebuild Kits is the Cost-Effective Approach for Fixing Carburetor Issue - However, Hilly Ridge cannot Guarantee that a Carburetor Repair Kit will be an Effective Approach in Repairing your Carburetor Problems - Sometimes a Complete Carb. Assembly is the only Necessary to Repair Carburetor Issues.





• PRODUCT NUMBER AND VARIATIONS: 119-1988, 119 1988, 119 1988
• PRODUCT TYPE: Carburetor Repair Kit
• SIZE: Weight 0.040 lbs.
• NOTES & DETAILS: Toro OEM  119-1988 IS COMMINLY USED -



Most Common Reason for Snowblower Repairs is a Fuel/Carburetor Issue in Which Fuel Commonly Causes Carburetor issues due to Ethanol and/or Gas Going Stale in The Carburetor Causing Engine Start and/or Run Failure and Possible Gas Spills or Leaks.



119-1988 Carburetor Rebuild Kit Contains Necessary Parts to Rebuild Select Carburetors Listed Below.



1. 119-1980 - Powerlite (Only Model 38273 & 38283) & Select Power Clear 400 Series (* Model Numbers 38272 - Serial Number 311000001 and Higher, 38282 - Serial Number 311000001 and Higher)
2. 119-1977 - Select Power Clear 400 Series (* Model Numbers 38272 - Only Serial Number 310999999 and Lower, 38282 - Only Serial Number 310999999 and Lower)

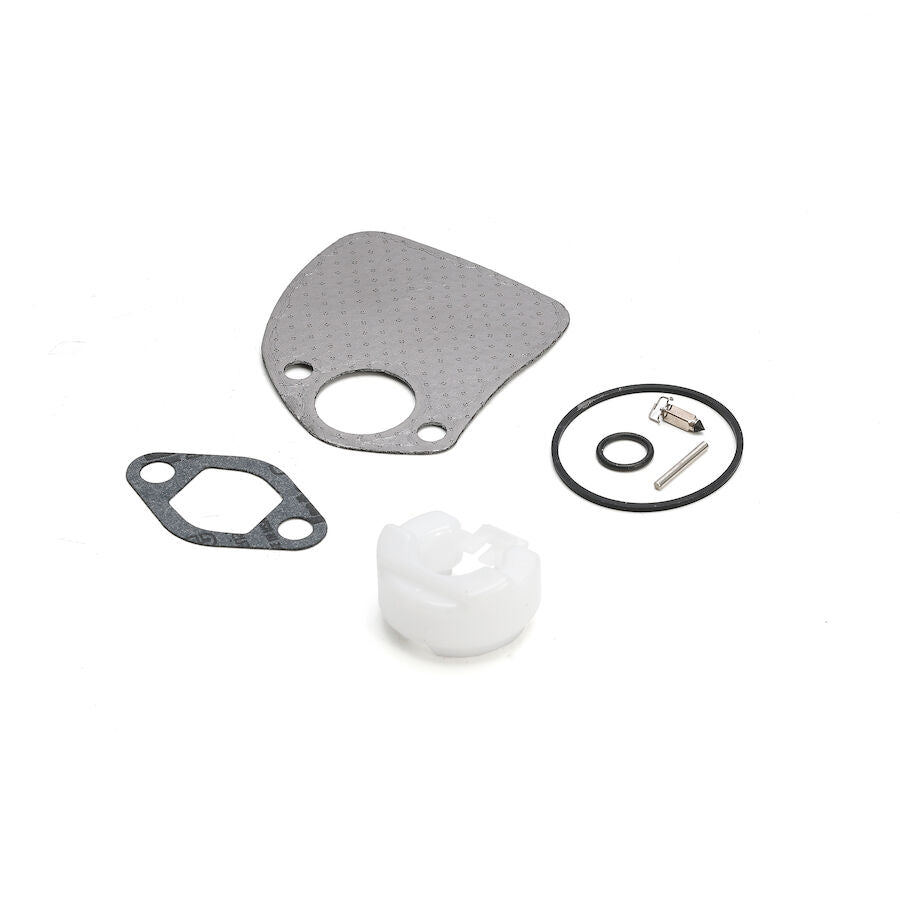

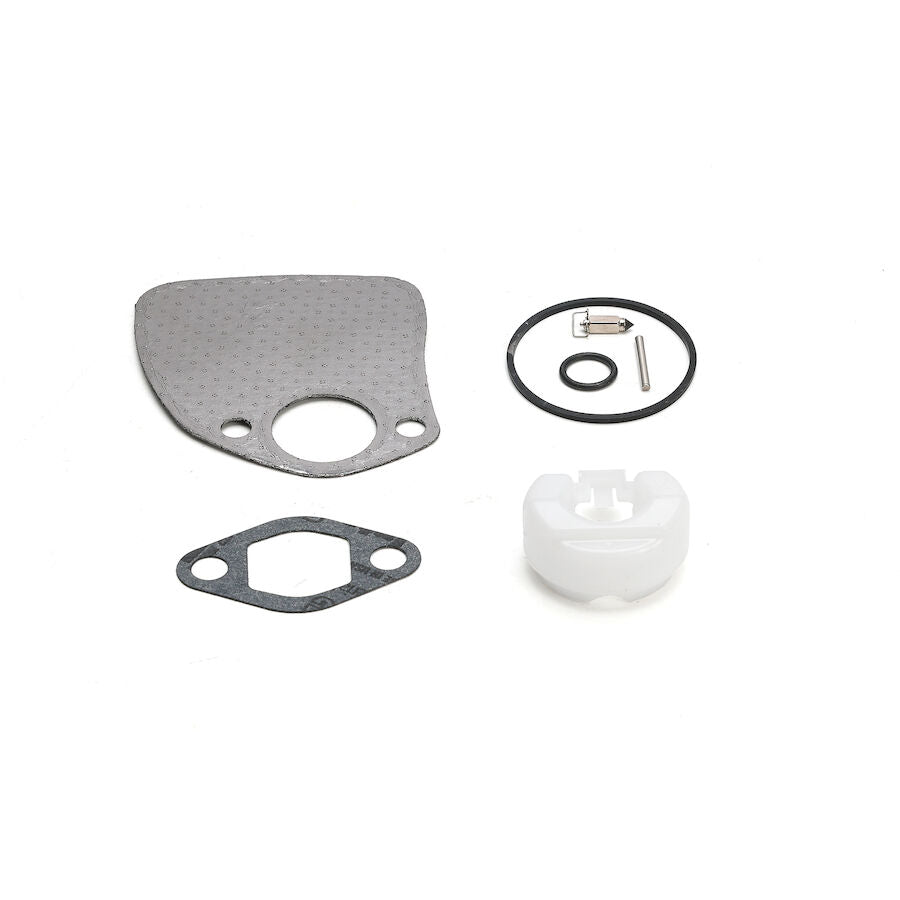

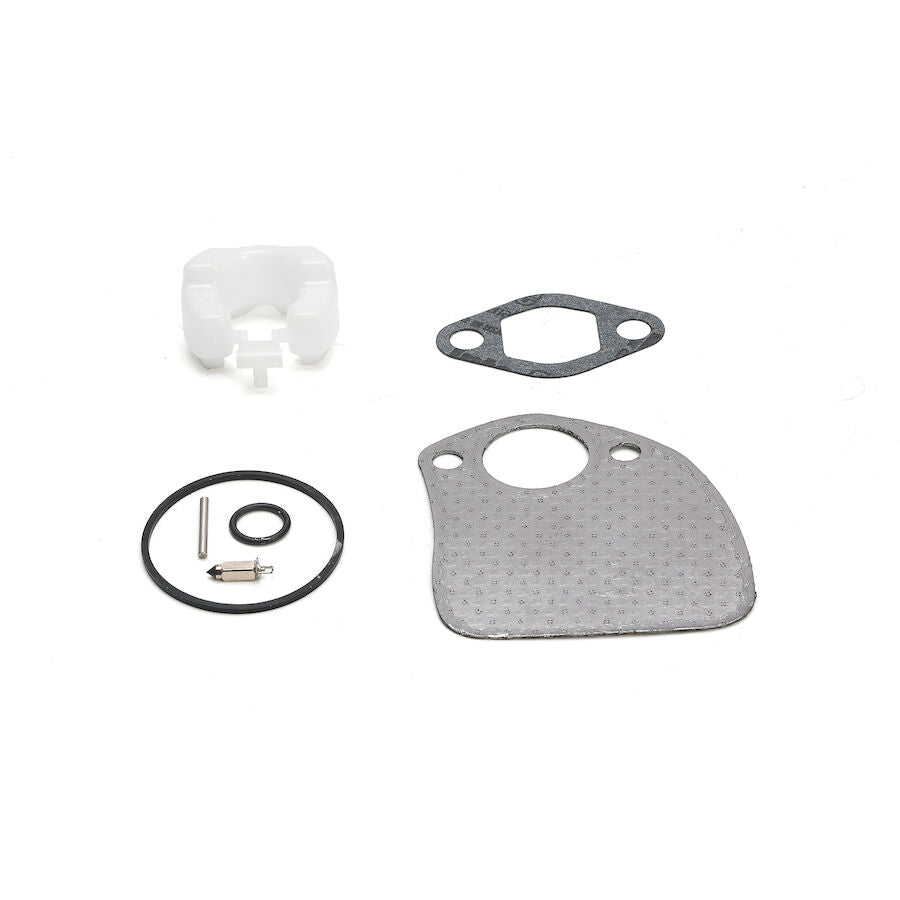

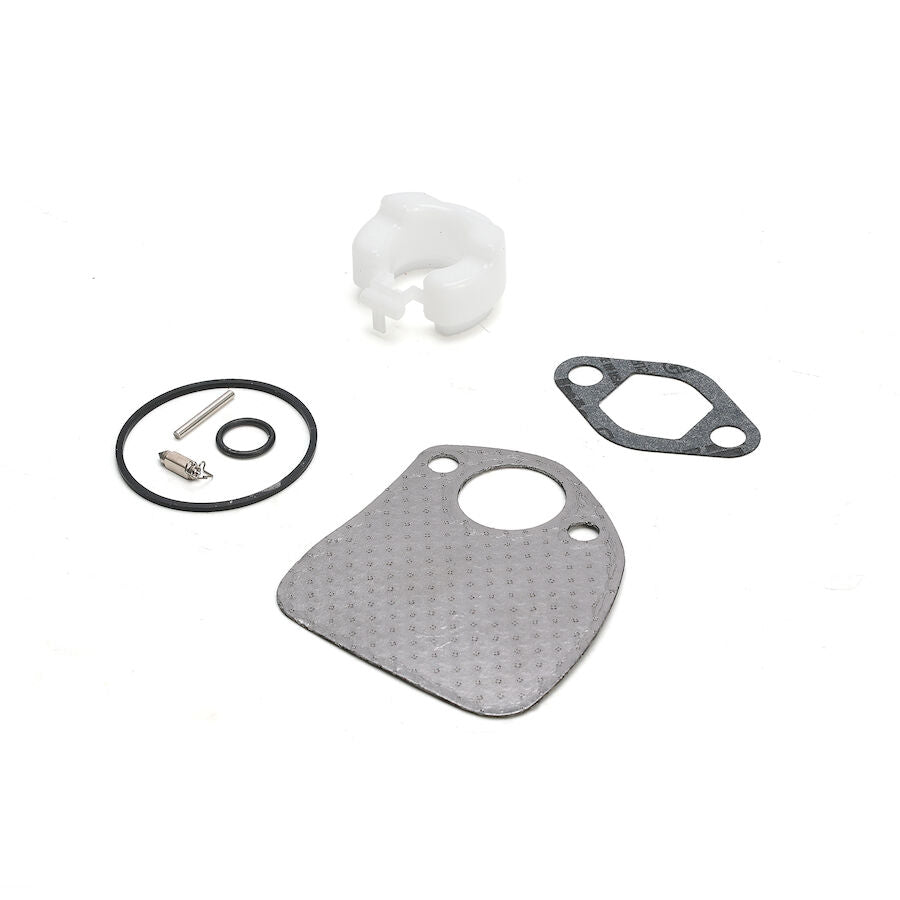

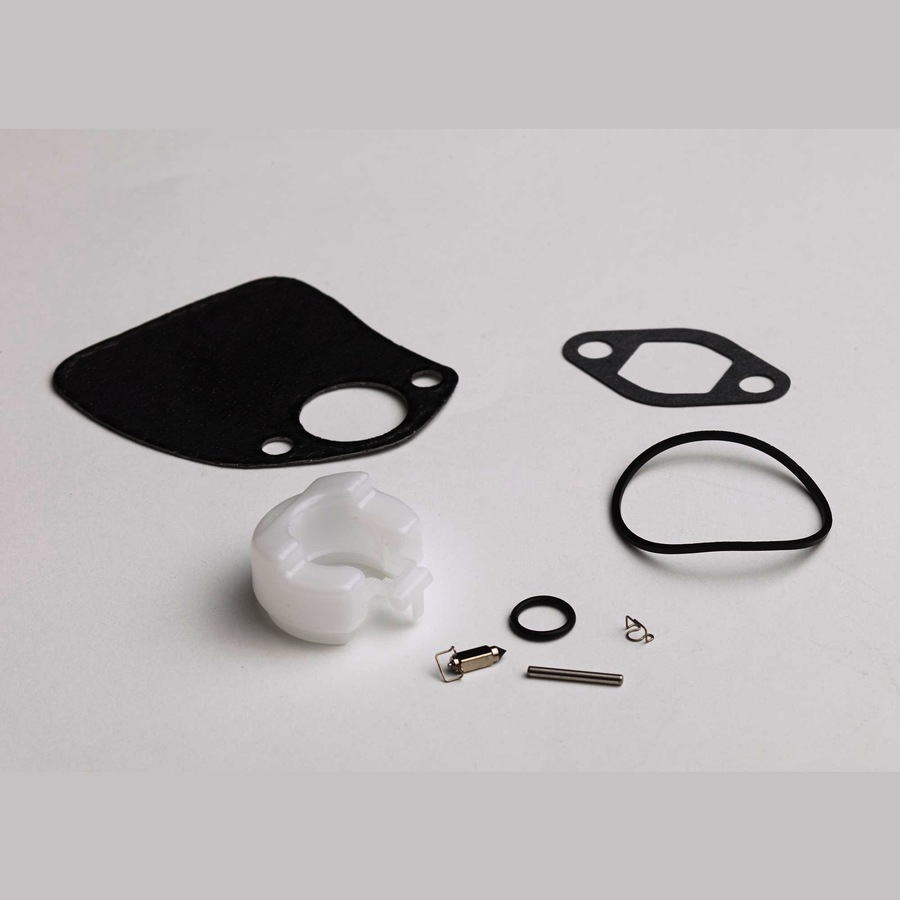

119-1988 Carburetor Repair Kits Come Contain the Following Part



1. Float or Inlet Needle
2. Inlet Needle Clip
3. Float Retaining Pivot Pin
4. Float
5. Bowl Sealing O-Ring
6. Bowl Retaining Bolt Gasket
7. Insulator Gasket
8. Carburetor Gasket



• COMMON SERIES APPLICATIONS: Toro Select 400 Series Power Clear (Only Model 38272 & 38282) & Powerlite (Only Model 38273 & 38283) Snow Blower Models





• MODEL FIT CHART:



SNOWBLOWER’S



POWER LITE Series – Model Numbers – (* Model Numbers 38273, 38283)



POWER CLEAR Series – Model Numbers – (* Model Numbers 38272, 38282)





• ASSOCIATED PARTS CHART:



ASSOCIATED PARTS REFERENCES FOR PART NUMBER 119-1988 ONLY

CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED





COMPLETE CARBURETOR ASSEMBLY



1. 119-1980 - Powerlite (Only Model 38273 & 38283) & Select Power Clear 400 Series (* Model Numbers 38272 - Serial Number 311000001 and Higher, 38282 - Serial Number 311000001 and Higher)
2. 119-1977 - Select Power Clear 400 Series (* Model Numbers 38272 - Only Serial Number 310999999 and Lower, 38282 - Only Serial Number 310999999 and Lower)






ASOCCIATED INDIVIDUAL PARTS & KITS



1. 120-4486 - INSUALTOR GASKET (Gasket That is Assemble Between the Isolator and Engine Block) x1 Per Carburetor
2. 121-0093 - INSULATOR - CARBURETOR (Insulator Assemble Between the Carburetor and Engine Block as well as Between 120-4486 Insulator Gasket and 127-9052 Carburetor Gasket - Is Essential for Delivering the Carburetor's Proper Air Fuel Mixture to The Combustion Chamber as well as Correct Spacing for Linkage Arm and Throttle Linkage) x1 Per Carburetor
3. 127-9052 - CARBURETOR GASKET (Gasket That is Assemble Between the Carburetor and Insulator) x1 Per Carburetor
4. 121-0489 - CARBURETOR/GOVERNOR SPRING and ROD LINKAGE KIT (Installed Between the Carburetor and Governor Linkage - Controls the Amount of Air and Fuel Mixture that Enters the Carburetor Via the Engine RPM'S or Speed) x1 Per Carburetor Spring and Rod Included in the Kit (* Excluding Model Numbers 38272 With Serial Number 310999999 and Lower, 38282 With Serial Number 310999999 and Lower)
5. 119-1941 - CARBURETOR/GOVERNOR SPRING and ROD LINKAGE KIT (Installed Between the Carburetor and Governor Linkage - Controls the Amount of Air and Fuel Mixture that Enters the Carburetor Via the Engine RPM'S or Speed) x1 Per Carburetor *Governor Arm, Spring and Rod Included in the Kit (* Only Model Numbers 38272 With Serial Number 310999999 and Lower, 38282 With Serial Number 310999999 and Lower)
6. 133-9975 - CHOKE LEVER (Clip over the Choke Linkage and Enables the Operator to Easily Controls the Choke Operation of the Carburetor - Reduces Air and Increase Fuel Draw to the Intake and Combustions Chamber Allowing for a Faster Starting Under Cold Engine Temperatures) x1 Per Carburetor
7. 119-1981 - PRIMER BULB KIT (Enable the Operator to Draw Fuel from the Carburetor Bowl into the Intake Area of the Carburetor Before Trying to Start the Engine - Enabling a Faster Engine Startup) x1 Per Carburetor *Primer Hose, Primer Bulb Assembly, Primer Hose Clamps Include in the Kit (* Excluding Model Numbers 38272 With Serial Number 310999999 and Lower, 38282 With Serial Number 310999999 and Lower)
8. 119-1930 - PRIMER BULB KIT (Enable the Operator to Draw Fuel from the Carburetor Bowl into the Intake Area of the Carburetor Before Trying to Start the Engine - Enabling a Faster Engine Startup) x1 Per Carburetor *Primer Hose, Primer Bulb Assembly, Primer Hose Clamps Include in the Kit (* Only Model Numbers 38272 With Serial Number 310999999 and Lower, 38282 With Serial Number 310999999 and Lower)
9. 121-0487 - FUEL LINE & FILTER KIT (Enables Fuel to Travel from the Fuel Tank to the Carburetor Bowl - Fuel Line is supposed to Connect to Both Sides of the Inline Fuel Filter and from there Connect to the Carburetor and Fuel Tank) x1 Per Carburetor *Fuel Line Hose, Inline Fuel Filter, Hose Clamps Include in the Kit
10. 119-1982 - CARBURETOR SHROUD or HEAT BOX KIT (Installed Over the Carburetor to Enable the Carburetor to Retain Heat After Startup as well as Eliminate the Entrance of Moisture and Dirt through the Carburetor's Air Intake Hole) x1 Per Carburetor *Comes with Ignition Switch - No Ignition Key, Carburetor Retaining Nut and Carburetor Shroud (* Excluding Model Numbers 38272 With Serial Number 310999999 and Lower, 38282 With Serial Number 310999999 and Lower)
11. 119-1931 - CARBURETOR SHROUD or HEAT BOX KIT (Installed Over the Carburetor to Enable the Carburetor to Retain Heat After Startup as well as Eliminate the Entrance of Moisture and Dirt through the Carburetor's Air Intake Hole) x1 Per Carburetor *Comes with Ignition Switch - No Ignition Key, Carburetor/Shroud Spacer Carburetor Retaining Nut and Carburetor Shroud (* Only Model Numbers 38272 With Serial Number 310999999 and Lower, 38282 With Serial Number 310999999 and Lower)
