Toro OEM 119-1980 Carburetor Kit Fits Select 18" 400 Series Power Clear and Powerlite Snowblower Models - Toro Dealer.

Please refer to the Images above; Product Specifications, Associate Part Chart and the Model Fit Guide below to Ensure a proper fit.

Select POWER CLEAR Models do have a Serial Number Break in there Required Carburetor Part Number Usage.



• PRODUCT NUMBER AND VARIATIONS: 119-1980, 119 1980, 1191980

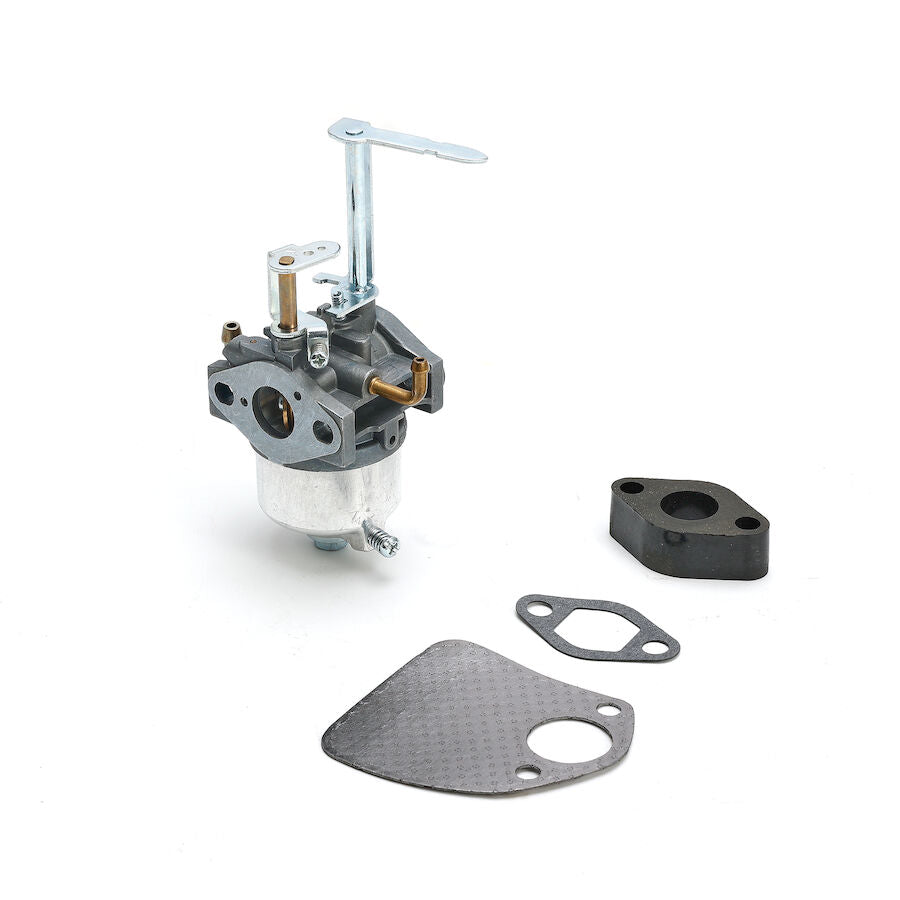

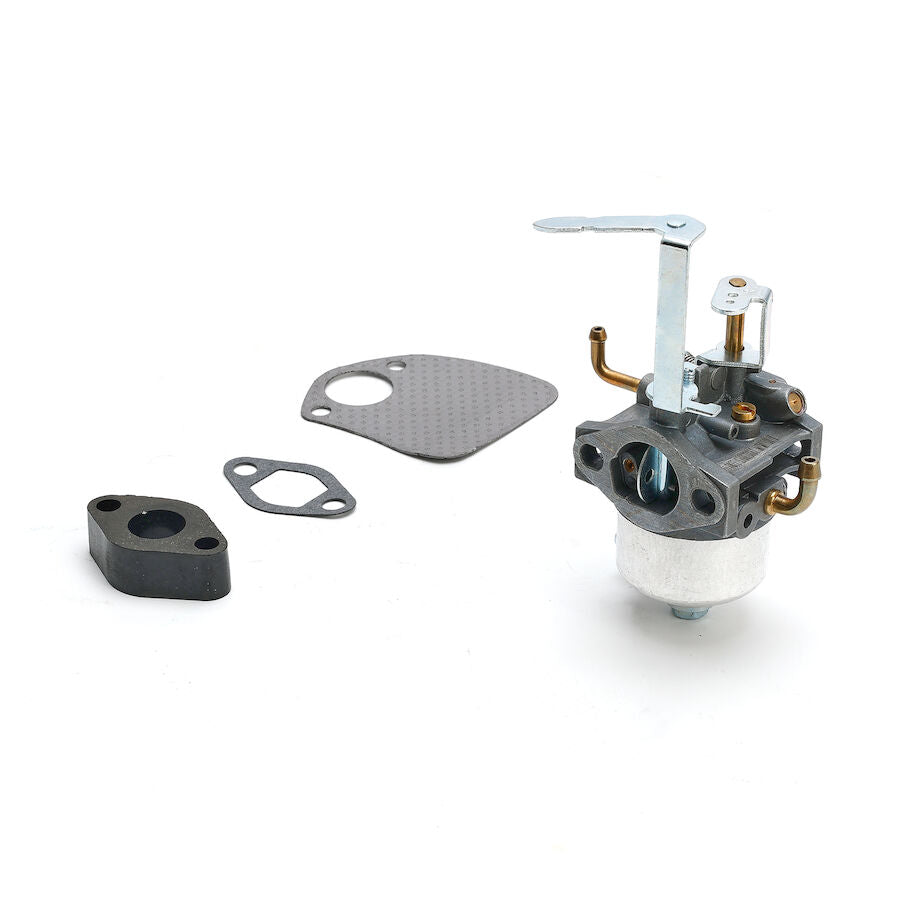

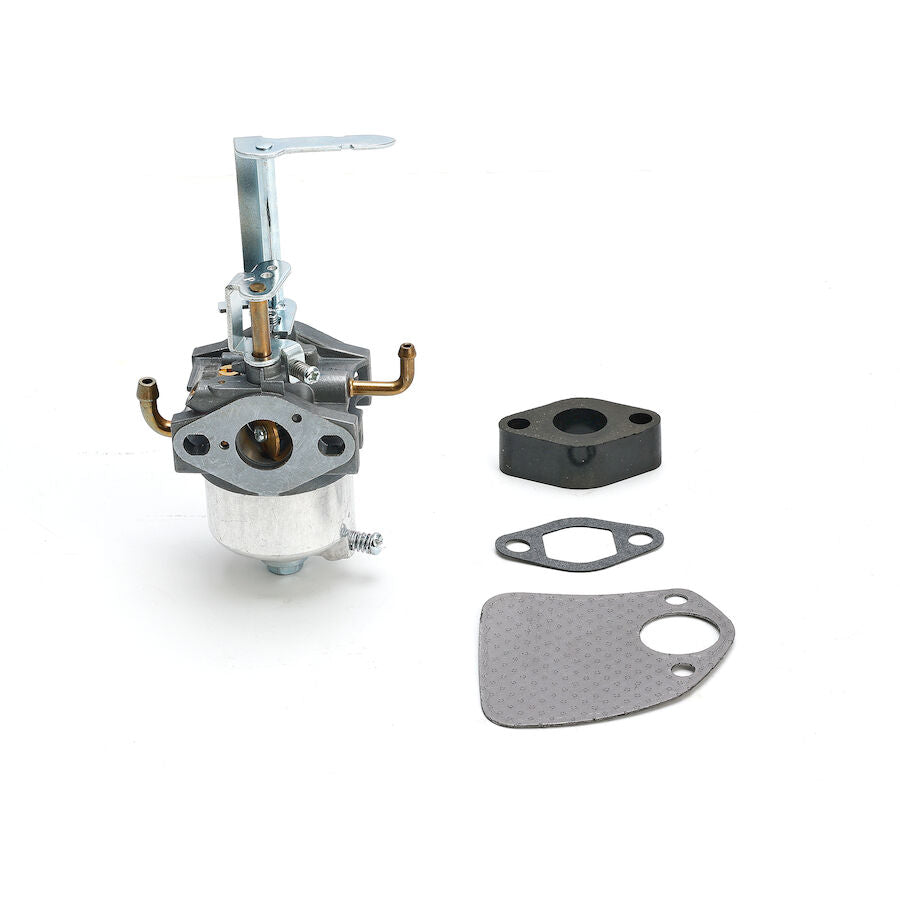

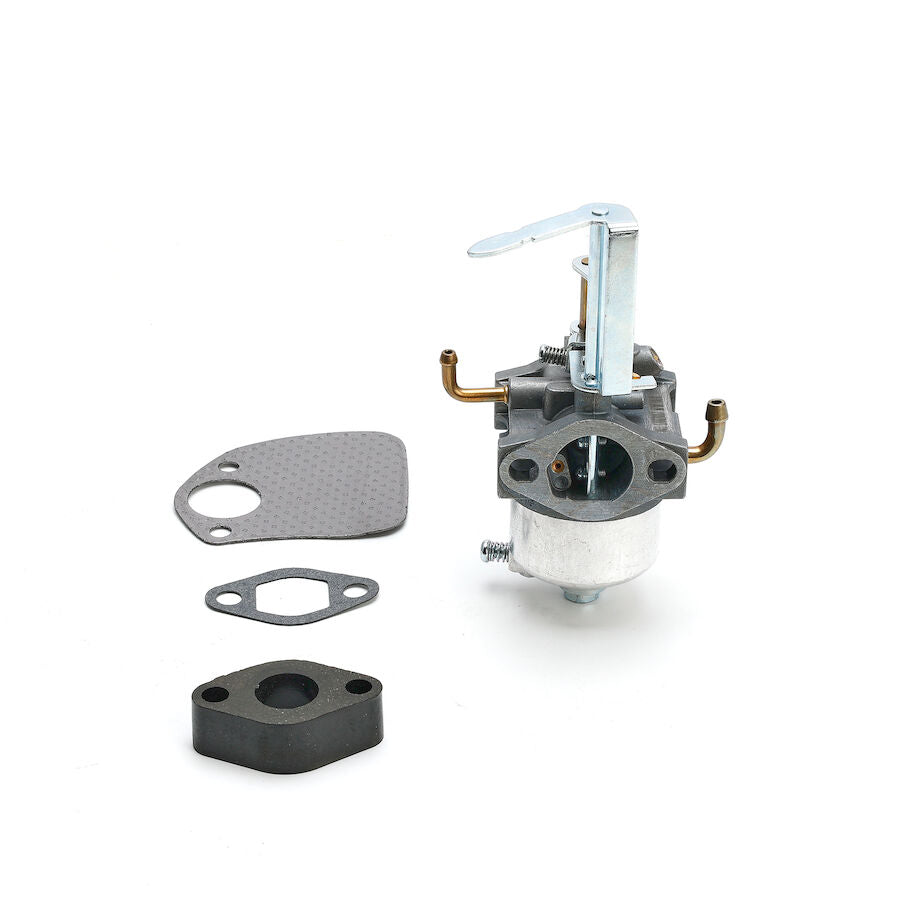

• PRODUCT TYPE: Carburetor Kit - Comes with Gasket's and Isolator
• SIZE: N/A
• NOTES & DETAILS: Toro OEM  119-1980 IS COMMINLY USED - 119-1980 Carburetor is Installed on the Intake Side and Enables the Correct Air and Fuel Mixture to be Drawn Through the Valves and into the Cylinder or Combustion Chamber. Most Common Reason for Snowblower Repairs is a Fuel/Carburetor Issue in Which Fuel Commonly Causes Carburetor issues due to Ethanol and/or Gas Going Stale in The Carburetor Causing Engine Start and/or Run Failure. 119-1980 Carburetor Kit Does Come with Carburetor, Gasket and Isolator.
• COMMON SERIES APPLICATIONS: Toro Select 18" Powerlite and 400 Series Power Clear Snow Blower Models.





• MODEL FIT CHART:

SNOWBLOWER’S



POWER LITE Series – Model Numbers – (* Model Numbers 38273, 38283)



POWER CLEAR Series – Model Numbers – (* Model Numbers 38272 - Serial Number 311000001 and Higher, 38282 - Serial Number 311000001 and Higher)





• ASSOCIATED PARTS CHART:



ASSOCIATED PARTS REFERENCES FOR PART NUMBER 119-1980 ONLY

CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED





1. N/A - *Only Available with Complete Carburetor or Carburetor Repair/Rebuild Kit - INSUALTOR GASKET (Gasket is Assemble Between the Isolator and Engine Block) x1 Per Carburetor
2. N/A - *Only Available with Complete Carburetor Kit - INSULATOR - CARBURETOR (Insulator Assemble Between the Carburetor and Engine Block as well as Between Insulator Gasket and Carburetor Gasket - Is Essential for Delivering the Carburetor's Proper Air Fuel Mixture to The Combustion Chamber as well as Correct Spacing for Linkage Arm and Throttle Linkage) x1 Per Carburetor
3. N/A - *Only Available with Complete Carburetor or Carburetor Repair/Rebuild Kit - CARBURETOR GASKET (Gasket That is Assemble Between the Carburetor and Insulator) x1 Per Carburetor
4. 121-0489 - CARBURETOR/GOVENOR SPRING and ROD LINKAGE KIT (Installed Between the Carburetor and Govenor Linkage - Controls the Amount of Air and Fuel Mixture that Enters the Carburetor Via the Engine RPM'S or Speed) x1 Per Carburetor *Spring and Rod Included in the Kit
5. 133-9975 - CHOKE LEVER (Clip over the Choke Linkage and Enables the Operator to Easily Controls the Choke Operation of the Carburetor - Reduces Air and Increase Fuel Draw to the Intake and Combustions Chamber Allowing for a Faster Starting Under Cold Engine Temperatures) x1 Per Carburetor
6. 119-1981 - PRIMER BULB KIT (Enable the Operator to Draw Fuel from the Carburetor Bowl into the Intake Area of the Carburetor Before Trying to Start the Engine - Enabling a Faster Engine Startup) x1 Per Carburetor
7. 121-0487 - FUEL LINE KIT (Enables Fuel to Travel from the Fuel Tank to the Carburetor Bowl - Fuel Line is supposed to Connect to Both Sides of the Inline Fuel Filter and from there Connect to the Carburetor and Fuel Tank) x1 Per Carburetor *Fuel Line Hose, Inline Fuel Filter, Hose Clamps Include in the Kit
8. 119-1982 - CARBURETOR SHROUD or HEAT BOX KIT (Installed Over the Carburetor to Enable the Carburetor to Retain Heat After Startup as well as Eliminate the Entrance of Moisture and Dirt through the Carburetor's Air Intake Hole) x1 Per Carburetor
9. 119-1988 - CARBURETOR REPAIR KIT (Complete Rebuild Kit Comes with Carburetor Gasket and Necessary Internal Carburetor O-Rings and Other Part Required to Rebuild the Carburetor) x1 Per Carburetor
