Description

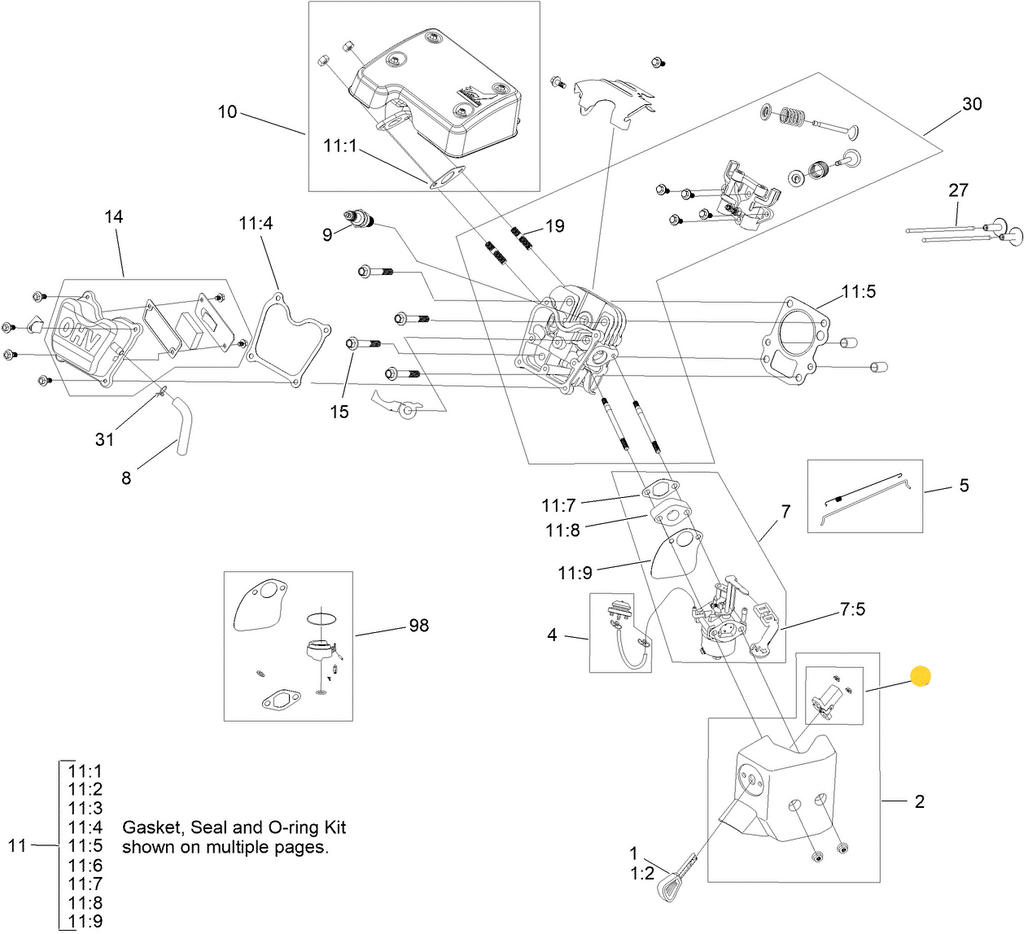

Please refer to the Images above; Product Specifications, Associate Part Chart and the Model Fit Guide below to Ensure a proper fit.
- PRODUCT NUMBER AND VARIATIONS: 119-1932, 119 1932, 119-1932

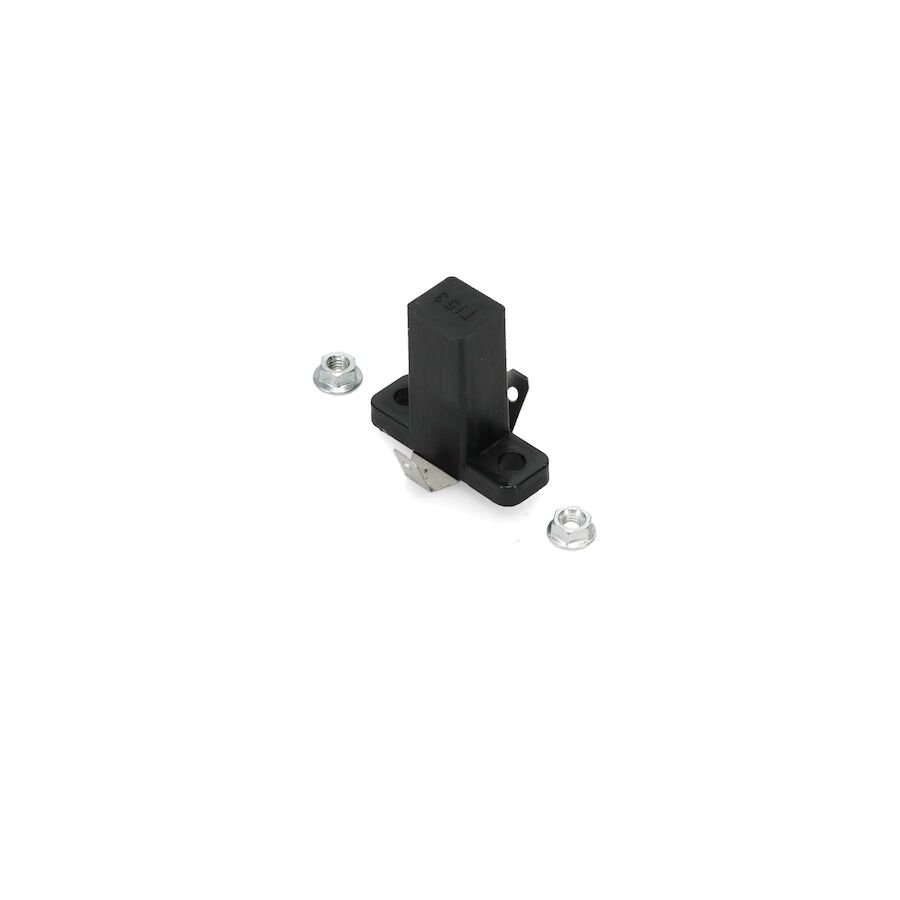

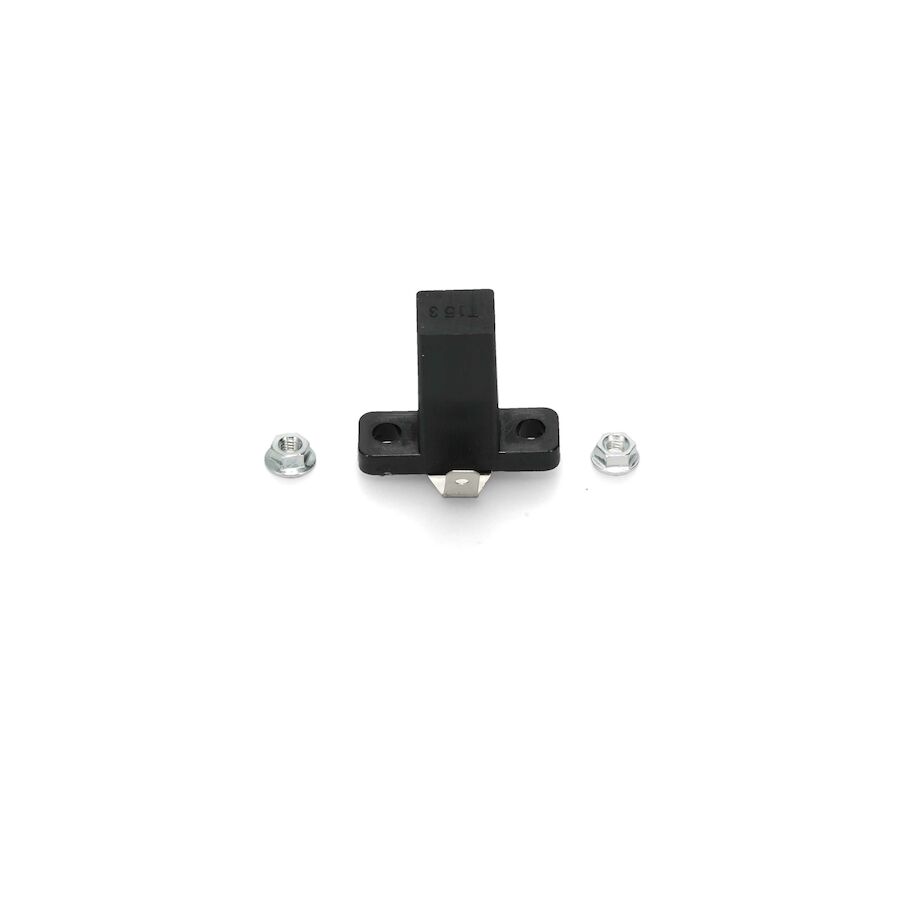

- PRODUCT TYPE: IGNITION or START/STOP KEY SWITCH
- SIZE: Weight 0.020 lbs.
- NOTES & DETAILS: Toro OEM 119-1932 IS COMMINLY USED - 119-1932 Start/Stop Ignition Switch is a Made to Fit for Toro Snowblower Engine Shrouds and Typically Inserts into the Carburetor Shroud. 119-1932 Start/Stop Ignition Switch Contains a Simple 2-Point Functionality. Functionality of 119-1932 Start /Stop Ignition Switch is - Key in = Neutralizes Ground and Enable the Engine to Start and Run - Key out = Established Ground and Grounds out the Ignition Coil, Eliminating Spark to the Spark Plug and Shutting the Engine Down. For Additional reference Regarding Ignition or Sop/Start Keys Refer to the Additional Part Reference Charts Below.
- COMMON SERIES APPLICATIONS: Toro Select Power Clear and Powerlite Snow Blower Models.
- MODEL FIT CHART:
SNOWBLOWER’S
POWER LITE Series – Model Numbers – (* Model Numbers 38273, 38274, 38283)
POWER CLEAR Series – Model Numbers – (* Model Numbers 38272, 38282, 38472, 38473, 38474, 38475)
- ASSOCIATED PARTS CHART:
ASSOCIATED PARTS REFERENCES FOR PART NUMBER 119-1932 ONLY
CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED
- 117-7728 - INDIVIDUAL KEY (Same as 119-1929 Except it Comes as an Individual Key) x1 Per Ignition Switch
- 119-1929 - PAIR of KEYS with LANYARD (Same as 117-7728 Except it Comes as a set of Two Key with a Lanyard) x1 Per Ignition Switch
