Toro OEM 119-1930 Primer Bulb/Fuel Line Kit Fits Select 18" 400 Series Power Clear Snowblower Models - Toro Dealer.

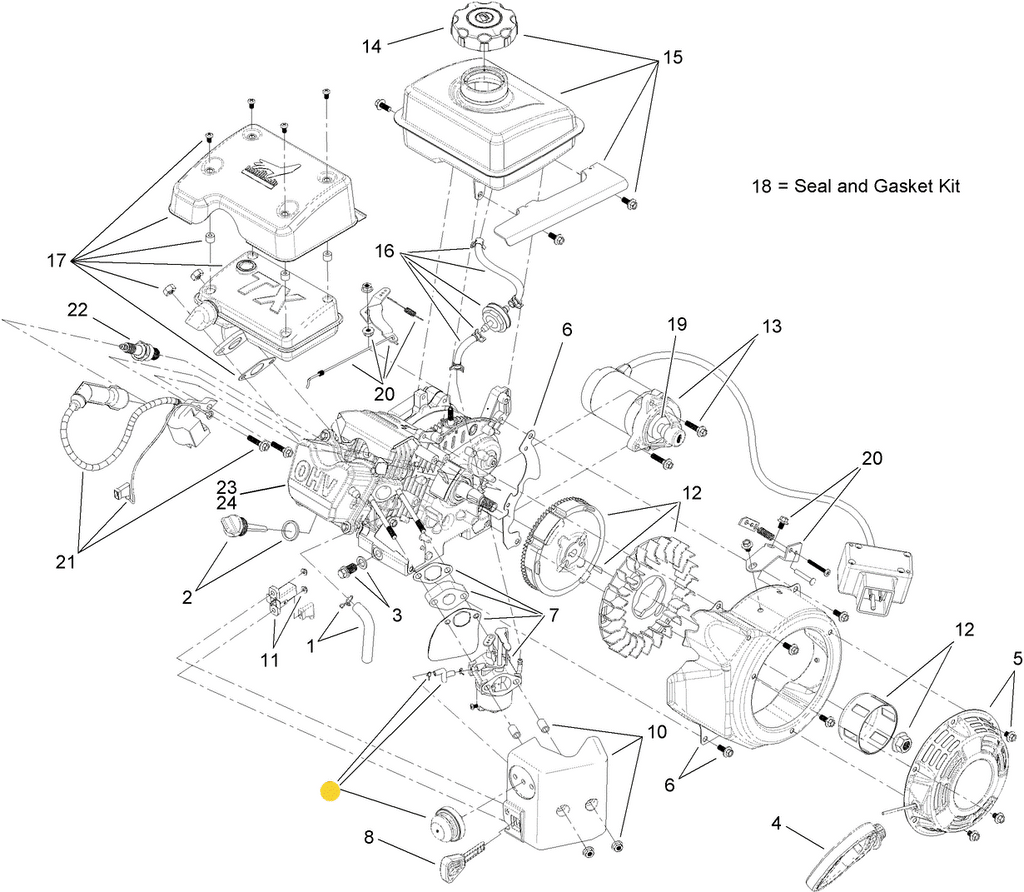

Please refer to the Images above; Product Specifications, Associate Part Chart and the Model Fit Guide below to Ensure a proper fit.





• PRODUCT NUMBER AND VARIATIONS: 119-1930, 119 1930, 119930

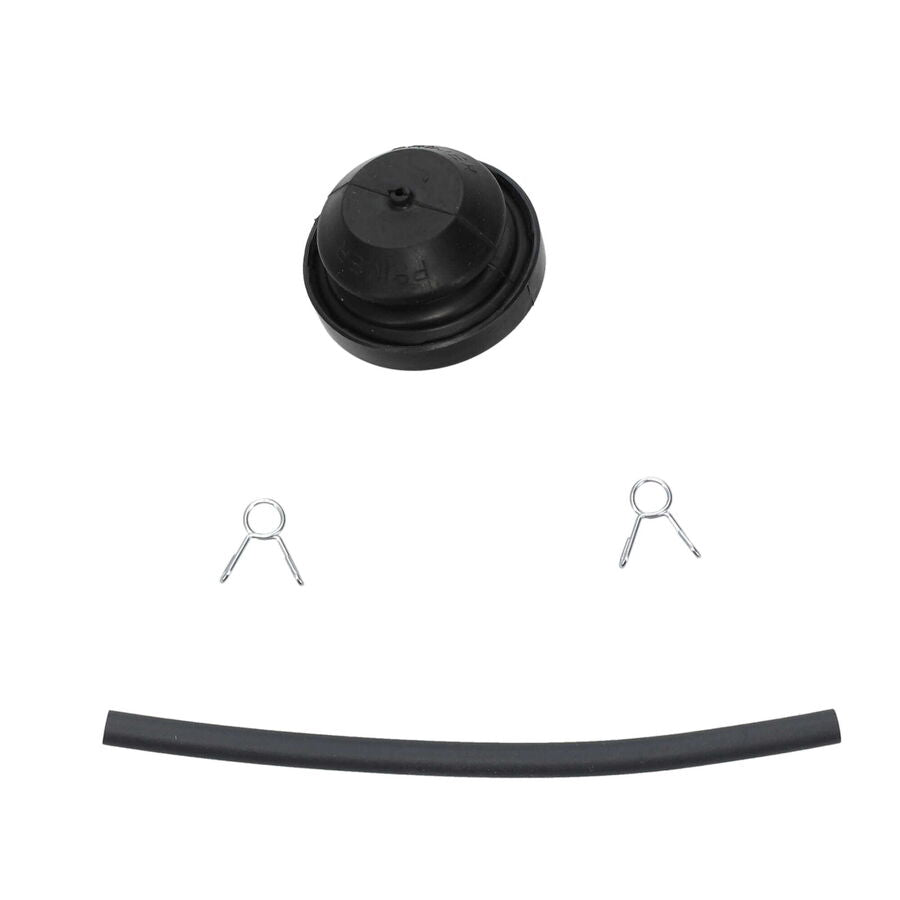

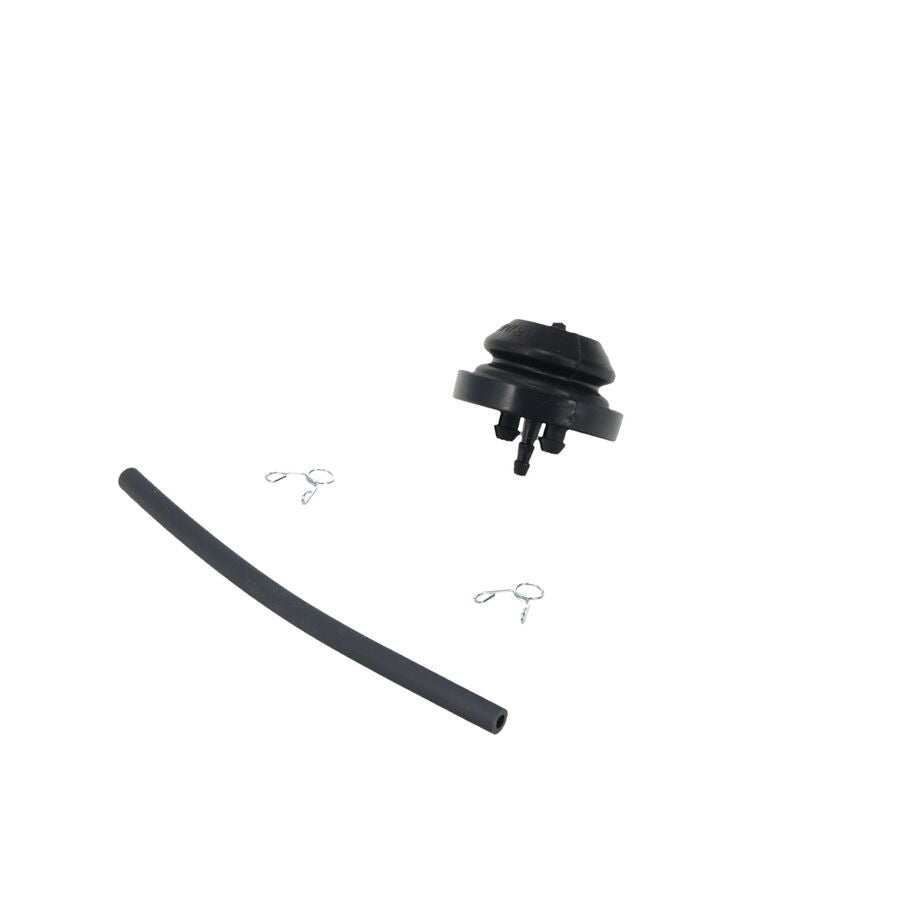

• PRODUCT TYPE: Primer Bulb & Fuel Line Kit - Comes with Primer Bulb Assembly, Primer Bulb Fuel Line & Fuel Line Clamp
• SIZE: Weight 0.040 lbs.
• NOTES & DETAILS: Toro OEM  119-1930 IS COMMINLY USED - 119-1930 Both Fuel Line and Primer Bulb Assembly is Commonly Used to Connect and Allow Fuel to Be Siphoned into the Carburetor Intake. 119-1930 Fuel Line Kit Enable Fuel to be Delivered to the Intake of the Carburetor Via the Primer Bulb Operation Allowing for a Faster Starting Procedure. 119-1930 Primer Bulb Fuel Line Kit Comes with all the Necessary Primer Bulb, Primer Bulb Line and Primer Bulb Line Clamp - For Additional Associated Parts Refer to the Associated Part Chart Below.
• COMMON SERIES APPLICATIONS: Toro Select 400 Series Power Clear Snow Blower Models





• MODEL FIT CHART:



SNOWBLOWER’S





POWER CLEAR Series – Model Numbers – (* Model Numbers 38272 Serial Number 310999999 and Lower, 38282 Serial Number 310999999 and Lower)





• ASSOCIATED PARTS CHART:



ASSOCIATED PARTS REFERENCES FOR PART NUMBER 119-1930 ONLY

CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED





COMPLETE CARBURETOR ASSEMBLY





1. 119-1977 - Select Power Clear 400 Series (* Model Numbers 38272 - Only Serial Number 310999999 and Lower, 38282 - Only Serial Number 310999999 and Lower)





ASOCCIATED MAIN FUEL LINE & PRIMER BULB/FUEL LINE KITS





1. 119-1981 - PRIMER BULB KIT (Enable the Operator to Draw Fuel from the Carburetor Bowl into the Intake Area of the Carburetor Before Trying to Start the Engine - Enabling a Faster Engine Startup) x1 Per Carburetor *Primer Hose, Primer Bulb Assembly, Primer Hose Clamps Include in the Kit (* Excluding Model Numbers 38272 With Serial Number 310999999 and Lower, 38282 With Serial Number 310999999 and Lower)
2. 119-1930 - PRIMER BULB KIT (Enable the Operator to Draw Fuel from the Carburetor Bowl into the Intake Area of the Carburetor Before Trying to Start the Engine - Enabling a Faster Engine Startup) x1 Per Carburetor *Primer Hose, Primer Bulb Assembly, Primer Hose Clamps Include in the Kit (* Only Model Numbers 38272 With Serial Number 310999999 and Lower, 38282 With Serial Number 310999999 and Lower)
3. 121-0487 - FUEL LINE & FILTER KIT (Enables Fuel to Travel from the Fuel Tank to the Carburetor Bowl - Fuel Line is supposed to Connect to Both Sides of the Inline Fuel Filter and from there Connect to the Carburetor and Fuel Tank) x1 Per Carburetor *Fuel Line Hose, Inline Fuel Filter, Hose Clamps Include in the Kit
