Part Number 106-4480 Supersede to Part Number 119-1567
- PRODUCT NUMBER AND VARIATIONS: 119-1567, 119 1567, 1191567, 106-4480, 106 4480, 1064480

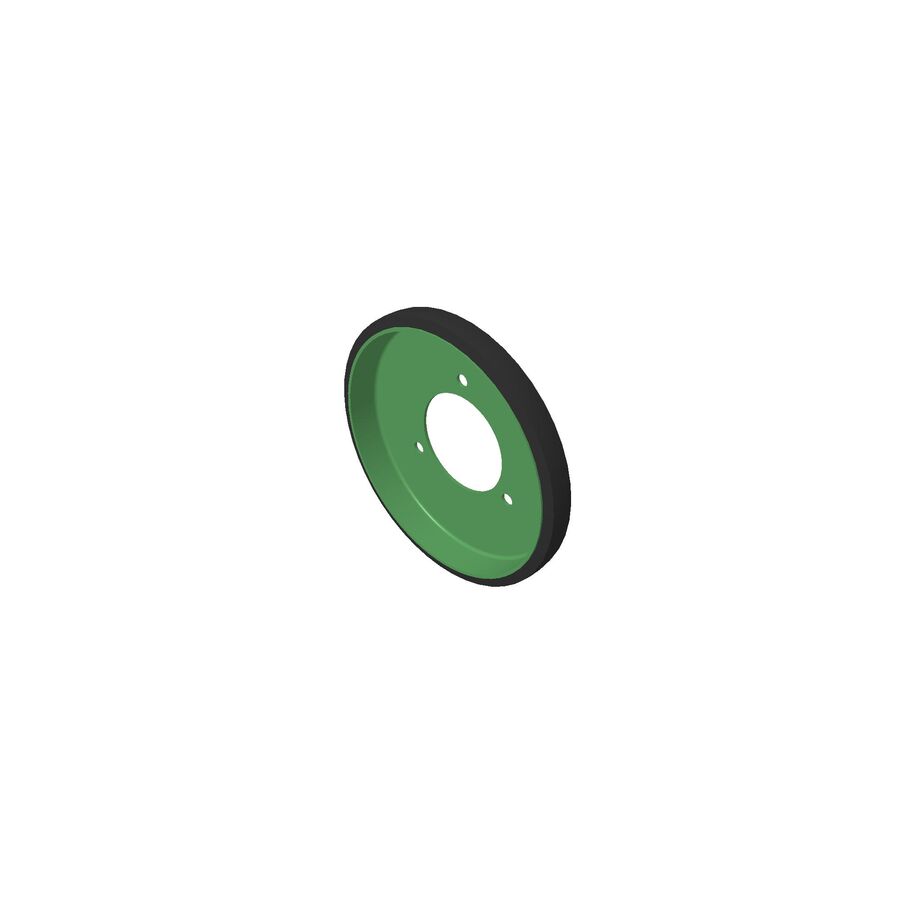

- PRODUCT TYPE: Friction Drive Wheel
- SIZE: Length 5.900 in. - Width 5.900 in. - Height 0.800 in. - Weight 0.705 lbs.

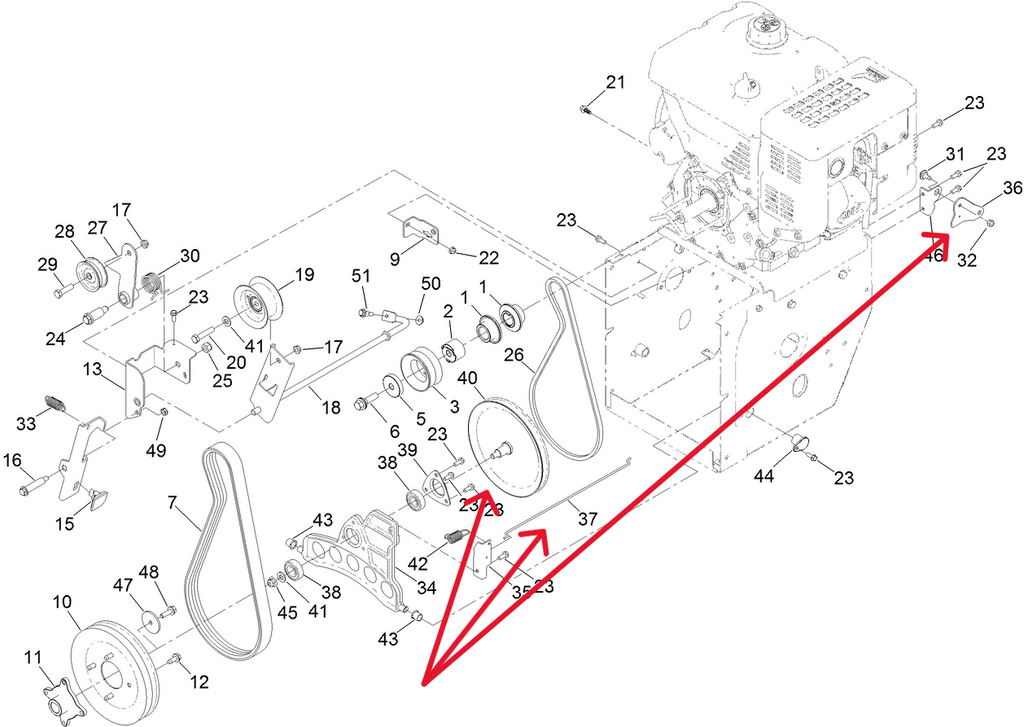

- NOTES & DETAILS: Toro OEM 119-1567 IS COMMINLY USED - 119-1567 contains a wearable rubber disc. over a metal disc and is designed to be the wearable wear component of the drive components eliminating rotational metal on metal surface. Assembly and Operational Explanation - Traction/Drive Cable End Inserts into the Operator's Control Lever and the other Cable's Spring End Hooks into the Traction/Drive Bell crank Rotational Plate which connects to a Rod that Connects to the Friction Wheel Plate Which Retains the Traction Pulley. When the Operator Engages the Operator's Control Lever it Tightens the Cable and Enables Tightening/Engaging of the Friction Wheel Plate Applying Pressure Between the Traction Pulley and the Rubber Friction Wheel - Rotation of the Traction Pulley is Constant with The Engine/Belt/Pulleys. 119-1567 Drive Friction Wheel is also Assembled on a Trunnion that is enabled to Slide Across a Hex Shaft Enabling the Operator to Select his Preferred Travel Speed and Forward and Reverse Selection. Travel Speed is Selected by where The Friction Wheel is Shifted as to How Much Pressure and Rotational Speed is Applied between the Beveled Style Traction Pulley as Selected by the Operator - Smaller the Travel Rotation = Faster the Travel Speed. Forward and Reverse is Determined as to which side of the Beveled Style Traction Pulley the Friction Wheel Rest on Whether it Receives Right-Hand Rotation or Left-Hand Rotation.
- COMMON SERIES APPLICATIONS: Toro Select Standard Power MAX, E-Power MAX & Power MAX HD Snow Blower Models - Power Broom Models.
- MODEL FIT CHART:
SNOWBLOWER’S & POWER BROOMS
POWER MAX Series – Model Numbers – (* Model Numbers 37770, 37771, 37772, 37775, 37777, 37779, 37780, 37781, 37793, 37797, 37798, 37799, 37802, 37805, 37807, 38595, 38597, 38610, 38611, 38614, 38620, 38621, 38622, 38624, 38629, 38630, 38631, 38632, 38633, 38634, 38635, 38637, 38639, 38640, 38641, 38642, 38644, 38645, 38650, 38651, 38652, 38654, 38657, 38660, 38661, 38662, 38663, 38664, 38674, 38680, 38800, 38801, 38802, 38803, 38805, 38806, 38810, 38811, 38812, 38813, 38814, 38815, 38816, 38817, 38819, 38820, 38822, 38823, 38824, 38826, 38828, 38830, 38833, 38834, 38836, 38838, 38840, 38841, 38842, 38843, 38844, 38850, 38855, 38860, 38865)
E - POWER MAX Series – Model Numbers – (* Model Numbers 31875, 39924, 39925, 39926, 39926T)
Misc. Lawn Boy Models – Model Numbers – (* Model Numbers 17740)
Power Broom Series – Model Numbers – (* Model Numbers 23740, 23741, 38700, 38701)
- ASSOCIATED PARTS CHART:
ASSOCIATED PARTS REFERENCES FOR PART NUMBER 119-1567 ONLY
CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED
(SELECT LATE MODEL NUMBERS ONLY)
* Review Model Numbers Associated to Each Part Number
- 120-7950 - SHOULDER SCREW (Retains the Friction Wheel to the Trunnion) x3 Per Snowblower Unit
-
137-3091 - HEX NUT (Retains the Friction Wheel to the Trunnion) x3 Per Snowblower Unit
- 125-1135 - TRUNNION (Retains the Friction Wheel and Enables it to Travel the Length of the Hex Shaft - Enabling the Direction and Speed of Travel to be Adjustable) x1 Per Snowblower Unit
(SELECT EARLY MODEL NUMBERS ONLY)
* Review Model Numbers Associated to Each Part Number
- 321-4 - HEX SCREW (Retains the Friction Wheel to the Trunnion) x3 Per Snowblower Unit
- 3296-42 - HEX NUT (Retains the Friction Wheel to the Trunnion) x3 Per Snowblower Unit
- 106-4434 - TRUNNION (Retains the Friction Wheel and Enables it to Travel the Length of the Hex Shaft - Enabling the Direction and Speed of Travel to be Adjustable) x1 Per Snowblower Unit
