Description

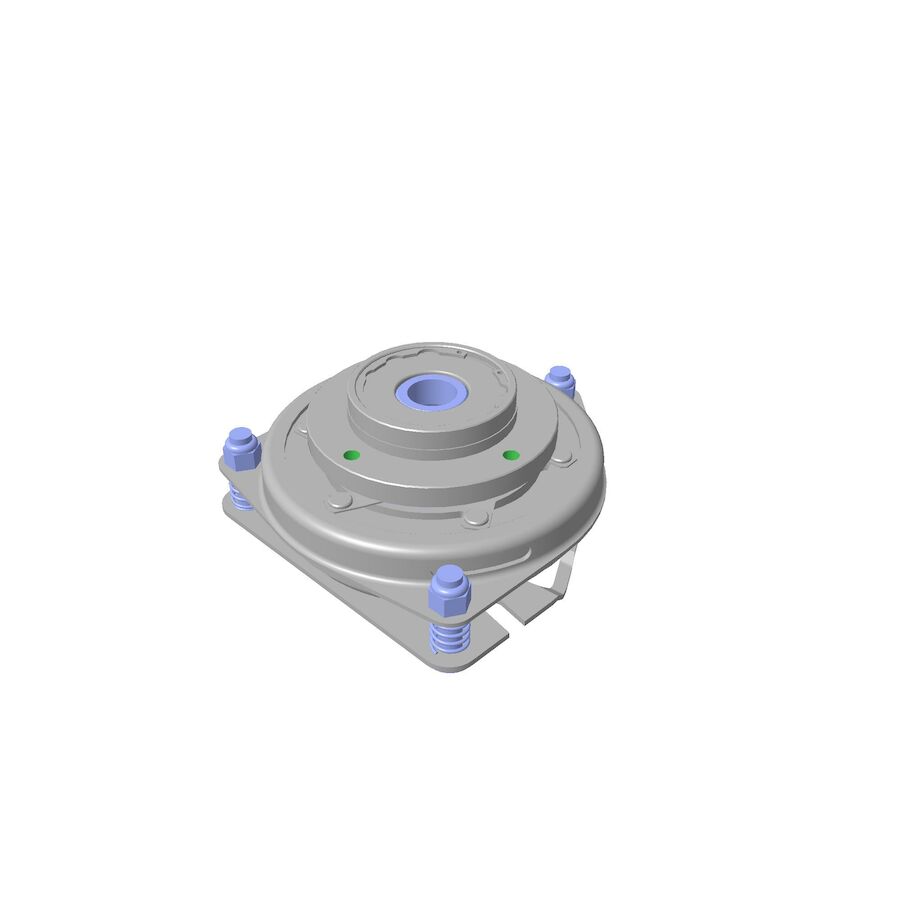

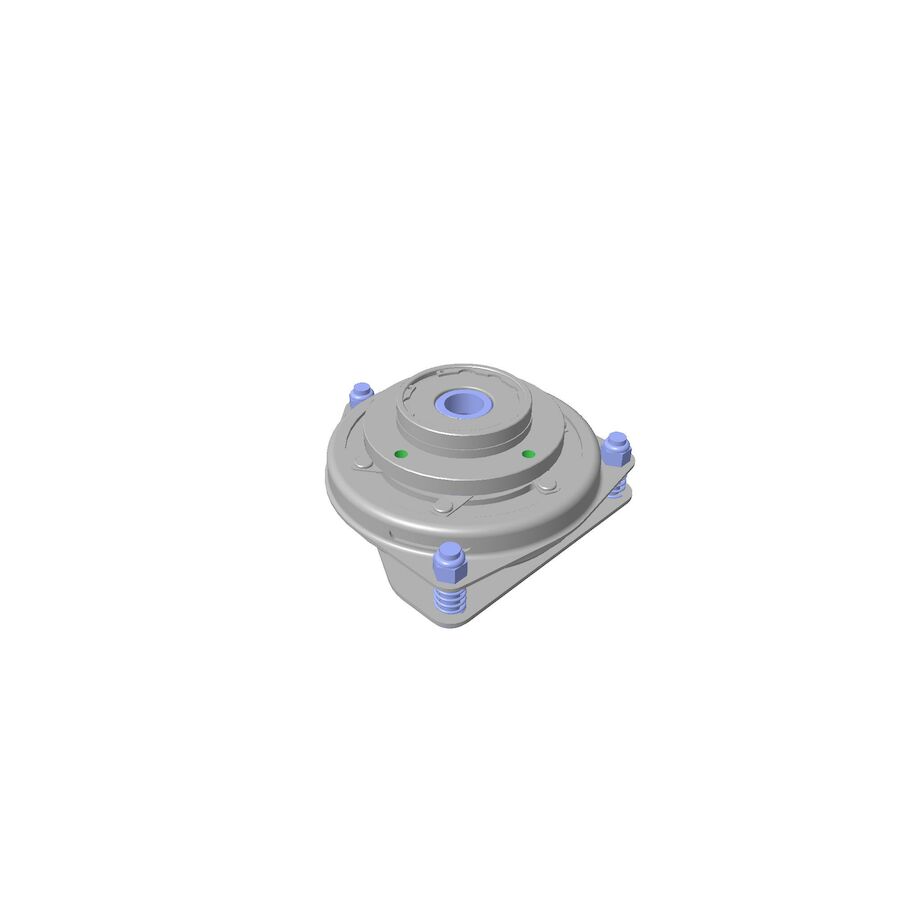

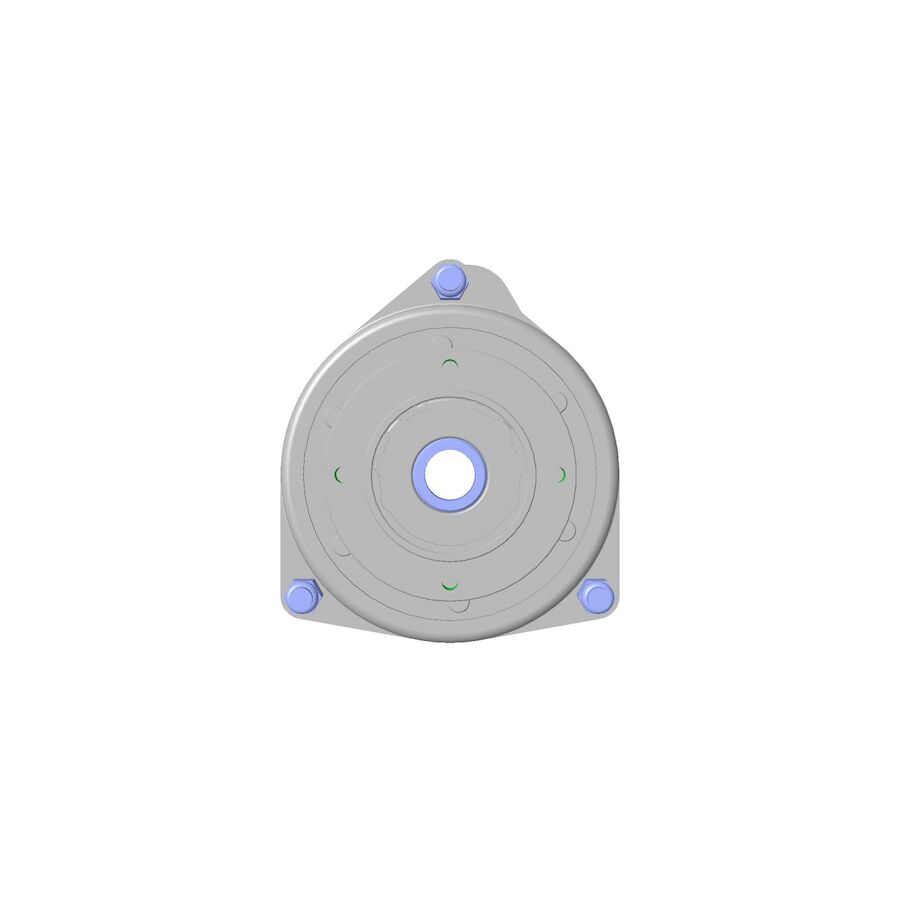

Toro OEM 119 0220 PTO Clutch is known for its precision engineering, durability, and reliable performance. Designed to Allow the correct Torque, Delay and Engagement Optimal for Engine and Mower Deck Components for Performance and Durability with the Push or Pull of a PTO switch. Enabling High-Quality Electronic Control over Mower Deck and Attachments, Toro 119 0220 PTO Clutch is Designed for Current/Late Toro 36", 40" Grandstand Standard Models. Hilly Ridge does not offer any Type of Return on Electrical Items Unless it was an Error in Our Listings. So, Due to Variation Within Model Numbers/Series, Refer to the Model Fit Chart for an Accurate Break down of Specific Model Number Usage. Please refer to the Images above; Product Specifications and the Model Fit guide below to ensure proper fit. Important to Note PTO Clutch Pulley and PTO Clutch Fasteners that Bolt it to the PTO Clutch is sold Separately from the PTO Clutch.
NOTE: Due to Serial Number and/or Model Design changes it is always Beneficial to Eliminate Confusion by Searching your Product Type and Model Number at the Top of our Website Page in the Search Tab. That in return will search the Model Fit Chart at the Bottom of the Pages to Find the correct Model/Switch Part Number Combo.

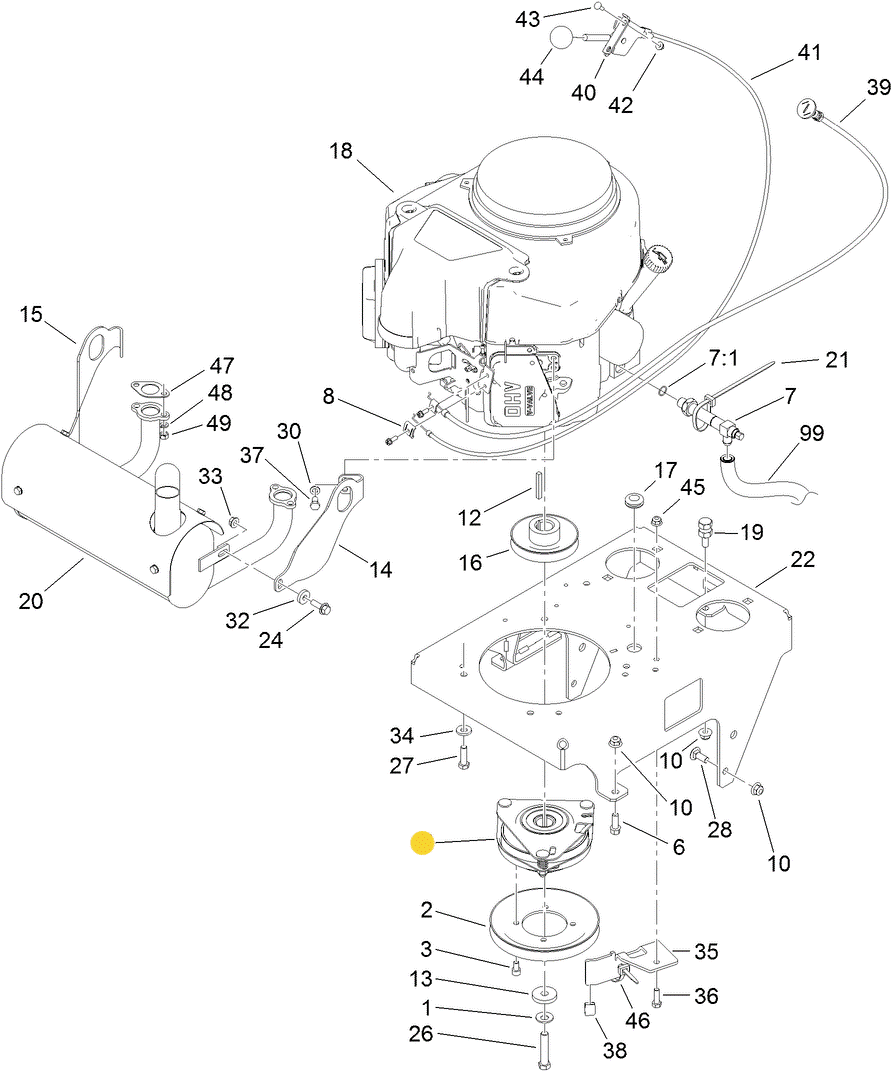

ASSOCIATED PARTS REFERENCES FOR PART NUMBER 119-0220 ONLY
CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED
- 119-0215 - PTO CLUTCH/MOWER DECK BELT PULLEY - (Attaches to the PTO Clutch and Drives the Mower Deck Belt) x1 Per PTO Clutch - * Sold Separately from the PTO Clutch
- 119-0221 PTO CLUTCH PULLEY SOCKET FASTENERS - (Retains PTO Clutch Pulley to the PTO Clutch) x4 Per PTO Clutch - *Sold Separately from the PTO Clutch
- 3212-9 - PTO CLUTCH/ENGINE PULLEY BOLT - (Retains PTO Clutch and Engine Pulley to Engine) x1 Per Engine
- 1-543610 - PTO CLUTCH/ENGINE PULLEY FLAT WASHER - (Supports Engine Pulley/PTO Clutch Bolt) x1 Per PTO Clutch
- 1-603610 - PTO CLUTCH/ENGINE PULLEY SPRING WASHER - (Retains Torque on PTO Clutch Bolt/PTO Clutch) x1 Per PTO Clutch
- 109-3765 - PTO CLUTCH ISOLATOR - (Slides Over Retaining Lip on PTO Clutch and Over PTO Clutch Stop/Arbor Bracket) x1 Per PTO Clutch
- 121-5984-03 - PTO CLUTCH STOP/ARBOR - (Retains PTO Clutch in one position - Eliminating PTO Clutch Spinning and Tearing Wire Harness) x1 Per PTO Clutch

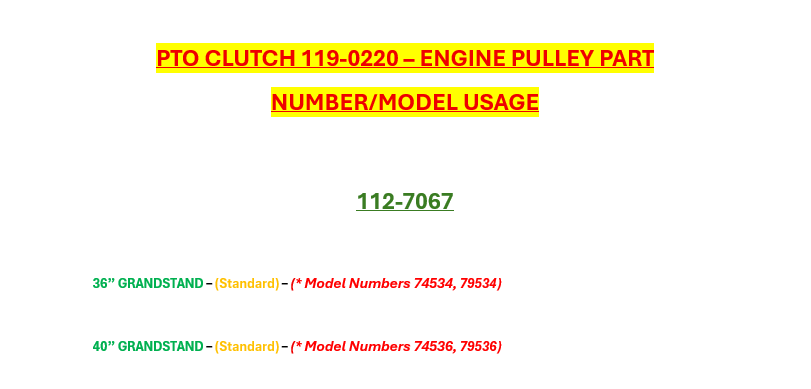

*REFER TO ENGINE PULLEY REFERENCE FOR PART NUMBER 119-0220 ONLY
CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED
112-7067 - ENGINE PULLEY - (Drives Hydraulic Drive Belt) x1 Per Unit
Specification
|
Product Number: |
1190220 |
|
Brand: |
Toro |
|
Length: |
10.000 IN (25.400 CM) |
|
Width: |
10.000 IN (25.400 CM) |
|
Height: |
6.000 IN (15.240 CM) |
|
Weight: |
10.130 LB (4.595 KG) |
Model Fit:
36” STANDARD GRANDSTAND - 119-0220 MODEL/SERIES USAGE
GRANDSTAND – (Standard) – (* Model Numbers 74534, 79534)
40” STANDARD GRANDSTAND - 119-0220 MODEL/SERIES USAGE
GRANDSTAND – (Standard) – (* Model Numbers 74536, 79536)
