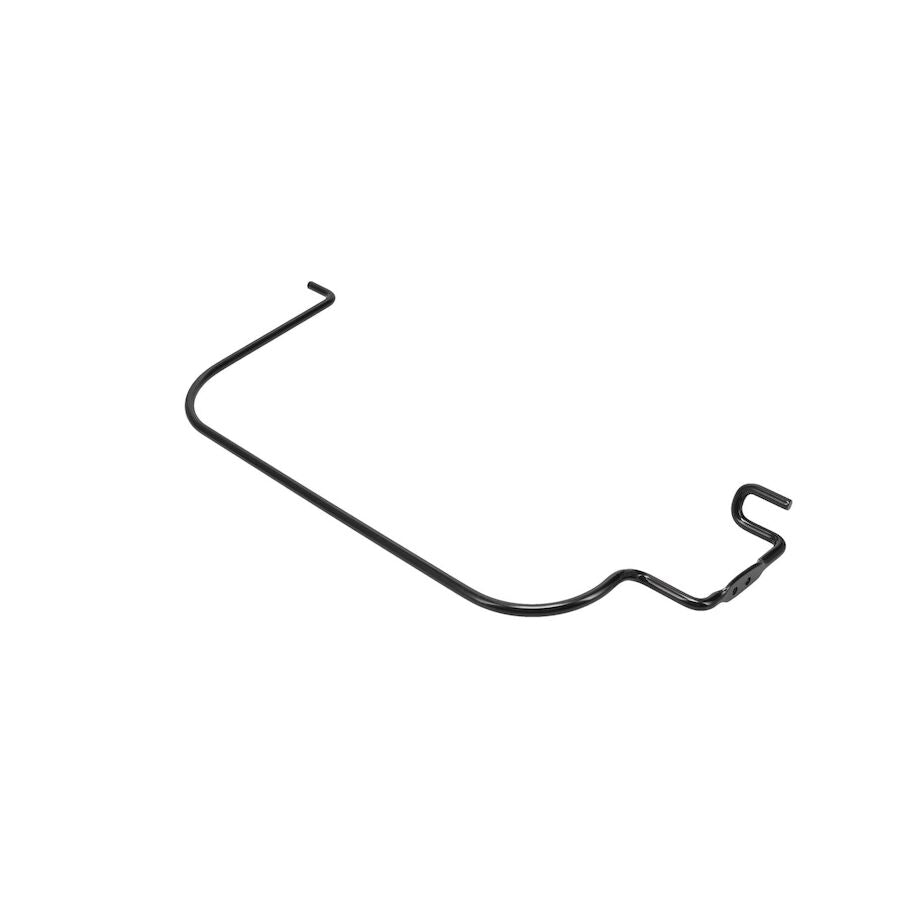

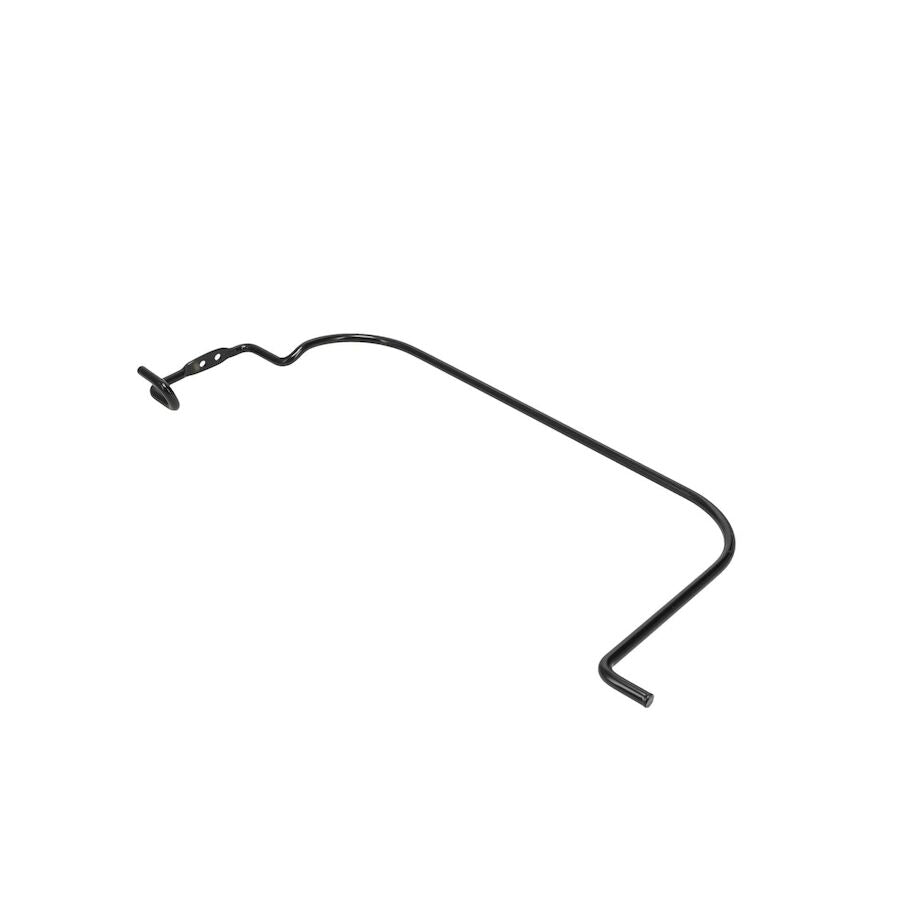

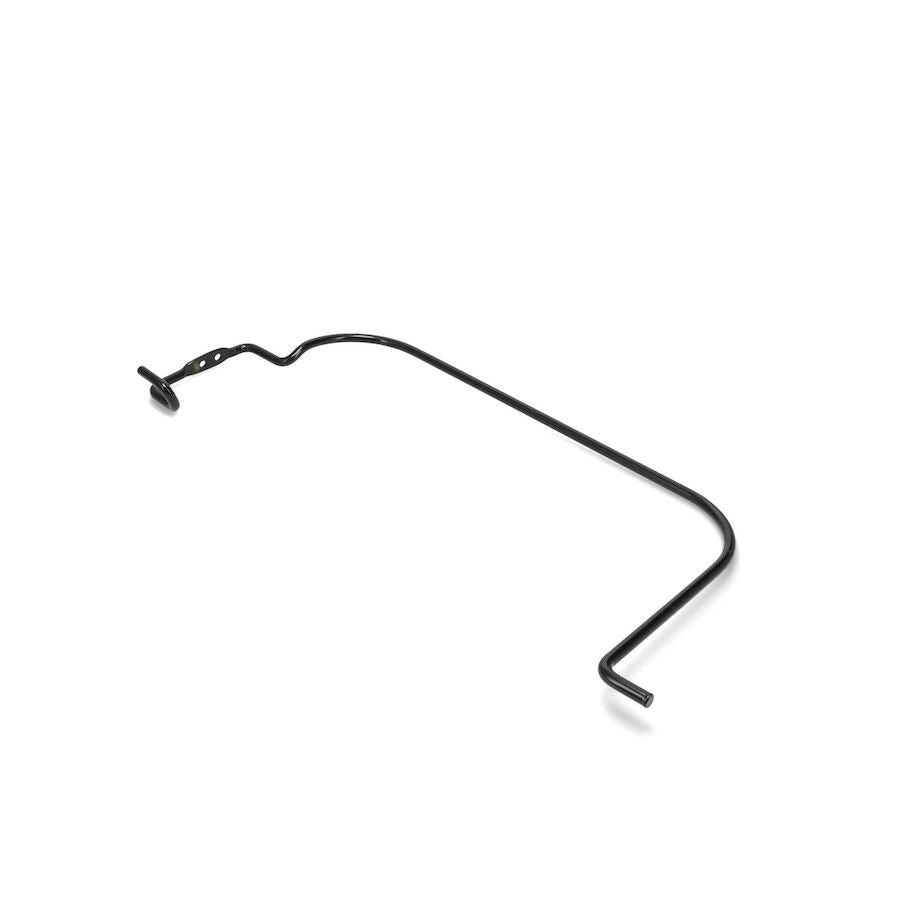

Toro OEM 117-9136-03 Upper Handle Clutch Bail Fits Select Toro Single Stage Power Clear and Quick Clear Snowblower (Only Model 38564) Models.

Please refer to the Images above; Product Specifications, Associate Part Chart and the Model Fit Guide below to Ensure a proper fit.

• PRODUCT NUMBER AND VARIATIONS: 117-9136-03, 117 9136 03, 117913603
• PRODUCT TYPE: Upper Handle Clutch Bail
• SIZE: Length 18.400 in. - Width 8.000 in. - Height 0.250 in. - Weight 0.714 lbs.
• NOTES & DETAILS: Toro OEM  127-5956-03 IS COMMINLY USED - Inserts in the Upper Handle Section and Connect to the Rotor/Auger Spring Cable Enabling the Operator to Engage and Disengage the Rotor/Augers.
• COMMON SERIES APPLICATIONS: Toro Select Power Clear & Quick Clear (Only Model 38564) Snow Blower Models.

• MODEL FIT CHART:

SNOWBLOWER’S

QUICK CLEAR Series – Model Numbers – (* Model Numbers 38564)

POWER CLEAR Series – Model Numbers – (* Model Numbers 38451, 38452, 38587, 38593, 38741, 38742)

• ASSOCIATED PARTS CHART:

ASSOCIATED PARTS REFERENCES FOR PART NUMBER 117-9136-03 ONLY

CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED

1. 117-9139 - UPPER HANDLE SECTION (Is the Upper of a Two-Piece Handle Assembly and Fastens to The Lower Handle Section and Contain the Clutch Bail to Engage and Disengage the Rotors/Auger) x1 Per Unit
2. 117-9146 - CLUTCH/CABLE ENGAGEMENT SPRING (Fastens or Inserts into the Upper Handle Clutch Bail and Clutch Cable Adjustment Plate and Enable the Operator to Easily Adjust Clutch Cable Tension/Responsiveness to Preferred Amount) x1 Per Upper Handle Clutch Bail *Select Models Only - Review Models Associated to the Part Number
3. 136-7146 - CLUTCH/CABLE ENGAGEMENT SPRING (Fastens or Inserts into the Upper Handle Clutch Bail and Clutch Cable Adjustment Plate and Enable the Operator to Easily Adjust Clutch Cable Tension/Responsiveness to Preferred Amount) x1 Per Upper Handle Clutch Bail *Select Models Only - Review Models Associated to the Part Number
