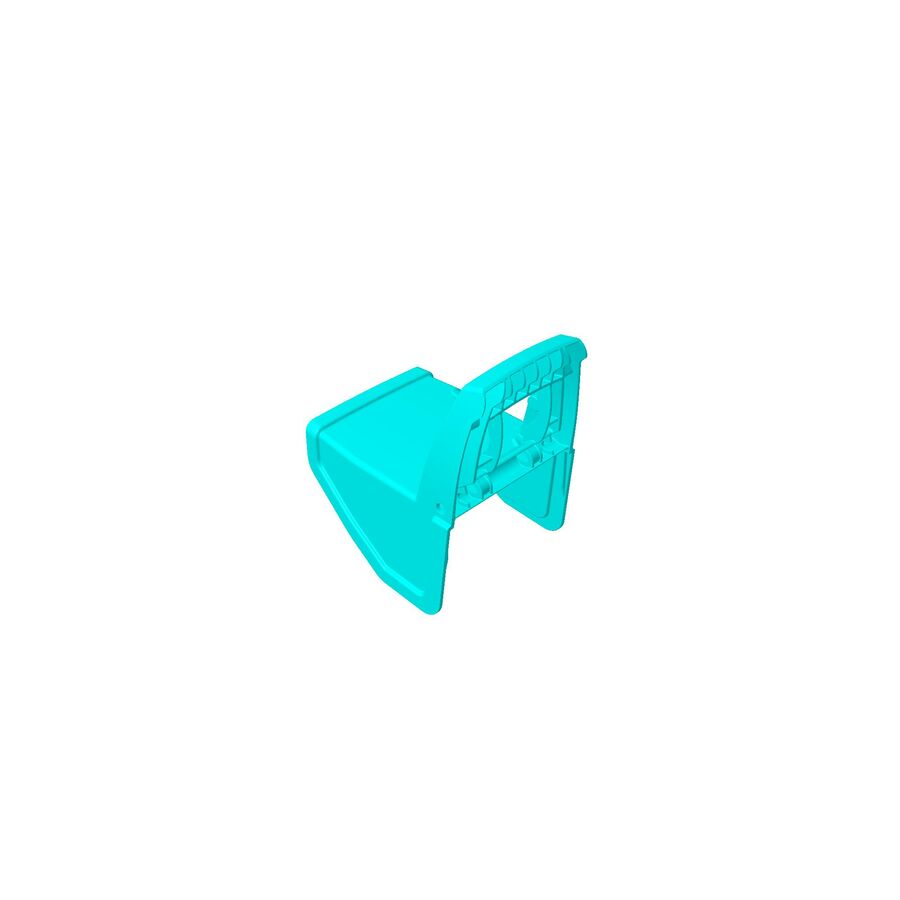

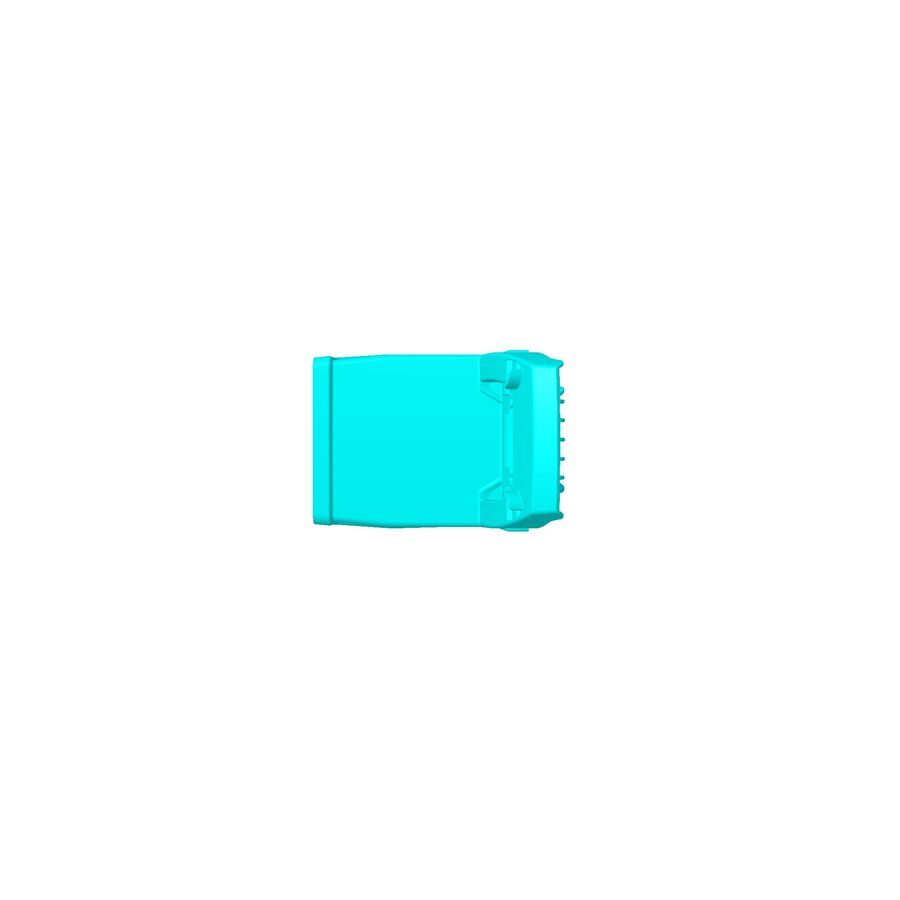

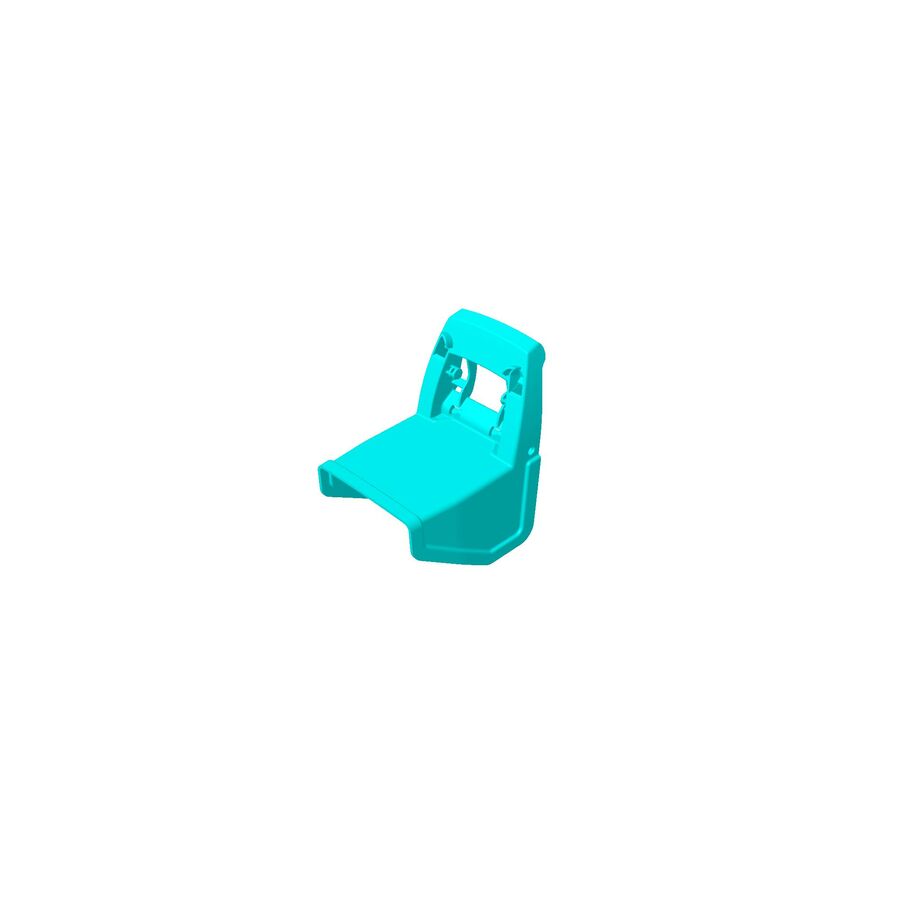

Toro OEM 117-9121 Chute Deflector



Restore proper snow-throwing control with this genuine Toro chute deflector assembly. The deflector mounts to the top of the discharge chute and adjusts the discharge height/trajectory helping you keep snow where you want it.



• OEM Part Number: 117-9121, 117 9121, 1179121
• Part Name: Deflector-Chute
• Function: Controls discharge throw height at the chute outlet
• Genuine Toro OEM: Correct fit and performance on Select Toro Quick Clear & Power Clear snow throwers



Supersession / Cross-Reference



• Replaces / Supersedes: 108-4940, 108 4940, 1084940, 114-1711, 114 1711, 1141711



Fits These Toro Models (By Family)

Verify your model number (and serial range when applicable) from the machine tag before ordering.



QUICK CLEAR Series – Model Numbers – (* Model Numbers 38563, 38567, 38568, 38569, 38571, 38575, 38576, 38577)



POWER CLEAR Series – Model Numbers – (* Model Numbers 38453, 38454, 38458, 38459, 38474, 38475, 38578, 38581, 38582, 38583, 38584, 38585, 38586, 38588, 38589, 38743, 38744, 38752, 38753, 38754, 38755, 38756, 38757)



Associated Parts (Common “Replace With” Items)

These parts live in the same chute/deflector assembly and are commonly replaced together when the deflector is damaged or won’t hold position:

Review Model Numbers Associated to Each Part Number to Verify a Correct Fit



• 108-4941 – Trigger-Deflector
• 136-7136 – Spring-Compression (deflector/trigger feel & return)
• 136-8672 – Hinge Pin-Deflector
• 104-8310 – Hinge Pin-Deflector Retaining Ring (Replace Every time Chute Deflector Hinge Pin is Removed)
• 108-4942 – Deflector Chute Hinge (Replace if Cracked or Broken)

• 114-3790 – Deflector Chute Seal
• 46-8091 – Deflector Chute Hinge and Seal Washer Head Screw
• 108-4939 – Discharge Chute (Replace if Screw Hole is Damaged or Chute is Crack or Broken)



Installation Tips (Chute Deflector Replacement)



• Safety first: Engine OFF, key removed and disconnect the spark plug wire before working near the chute/impeller area.
• Visual Documentation: Raise the deflector and note the spring orientation before disassembly (a quick phone photo helps).
• Remove: The pin/springs/trigger parts as needed - All Components are Clip Together or Inter Fit to Retain Each Other - Hinge Chute Deflector Pin's Retaining Ring 104-8310 Pushes on and is Retained with Little Metal Reversed Locking Tabs that may Require it to be Bent out of Shape or Cut when Removing it off the Chute Deflector Pin so it is always Recommended Replacing it when Removing the Chute Deflector Pin (common: 136-8672 hinge pin, 104-8310 chute deflector pin's retaining ring, 136-7136 compression spring, 108-4941 trigger). * Chute Deflector can also be Un-Bolted from the Main Discharge Chute, Chute Deflector, Seal Erea and Independently Disassembled and Re-Assembled for Convenience.
• Transfer or Assemble: The pin/springs/trigger parts as needed - All Components are Clip Together or Inter Fit to Retain Each Other - Hinge Chute Deflector Pin's Retaining Ring 104-8310 Pushes on and is Retained with Little Metal Reversed Locking Tabs that may Require it to be Bent out of Shape or Cut when Removing it off the Chute Deflector Pin so it is always Recommended Replacing it when Removing the Chute Deflector Pin (common: 136-8672 hinge pin, 104-8310 chute deflector pin's retaining ring, 136-7136 compression spring, 108-4941 trigger). * Chute Deflector can also be Un-Bolted from the Main Discharge Chute, Chute Deflector, Seal Erea and Independently Disassembled and Re-Assembled for Convenience.
• Test Cycle the Deflector Chute full up/down: Operate the Deflector Chute Trigger and Rotate Deflector Chute Up and Down confirming it holds position and does not bind.



Need Help Verifying Fit?



Send us your Toro model number and serial number and we’ll confirm the correct part before you order.
