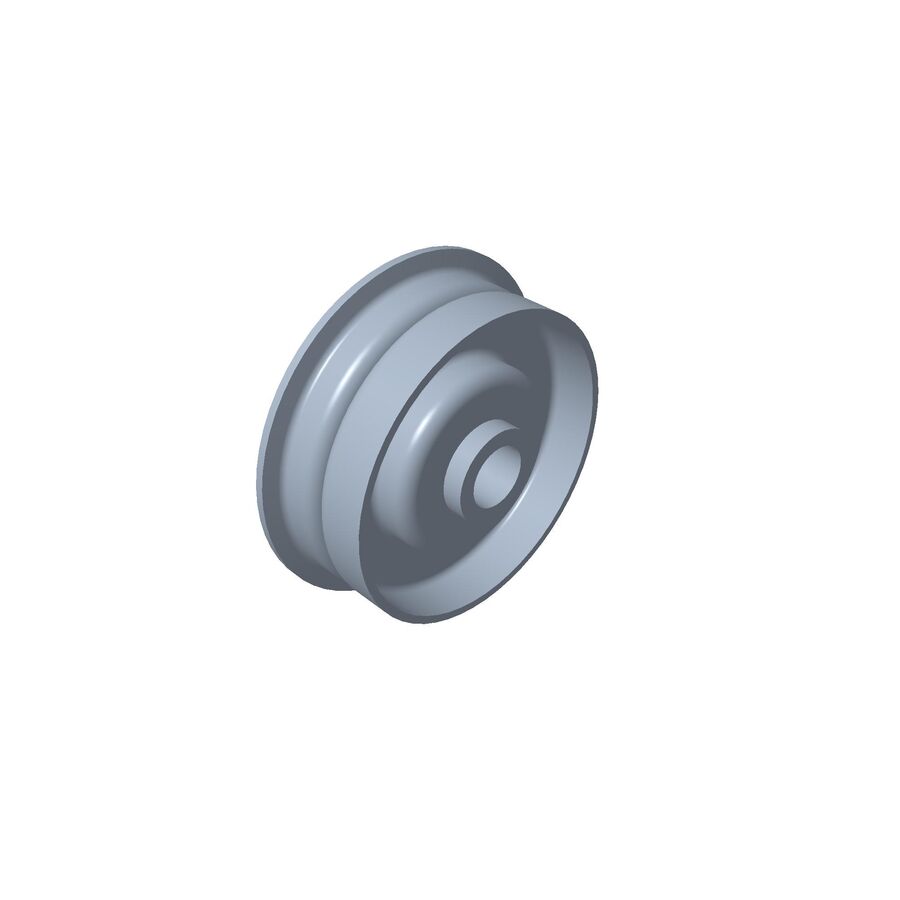

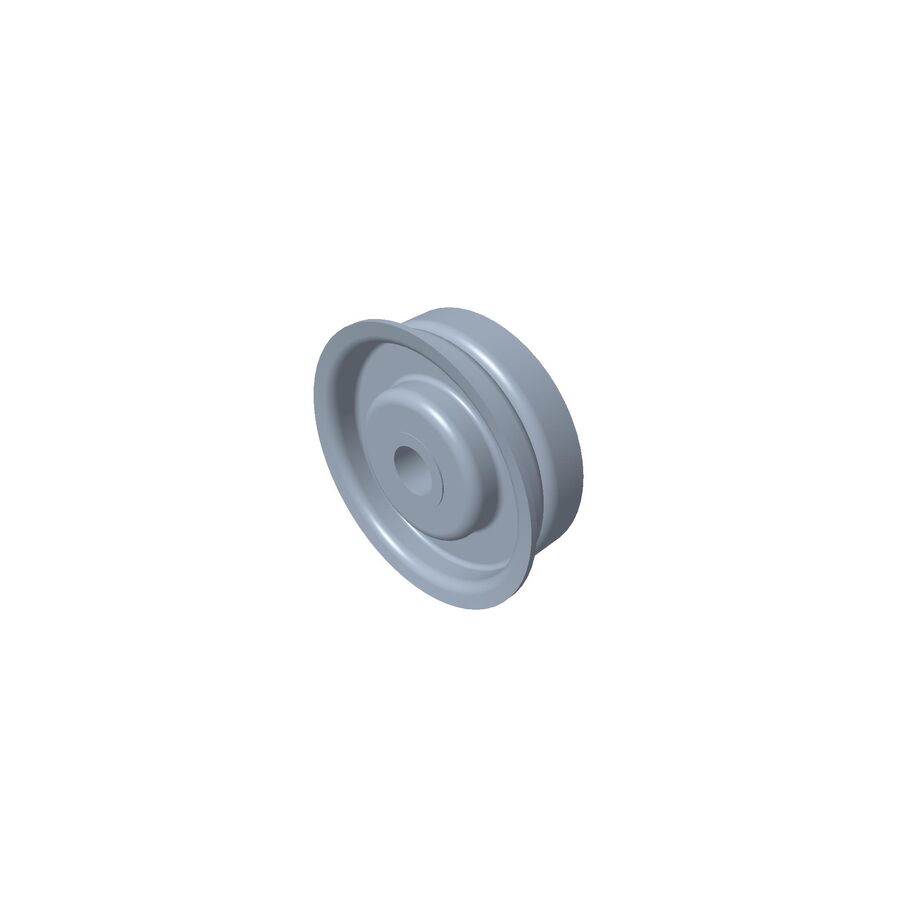

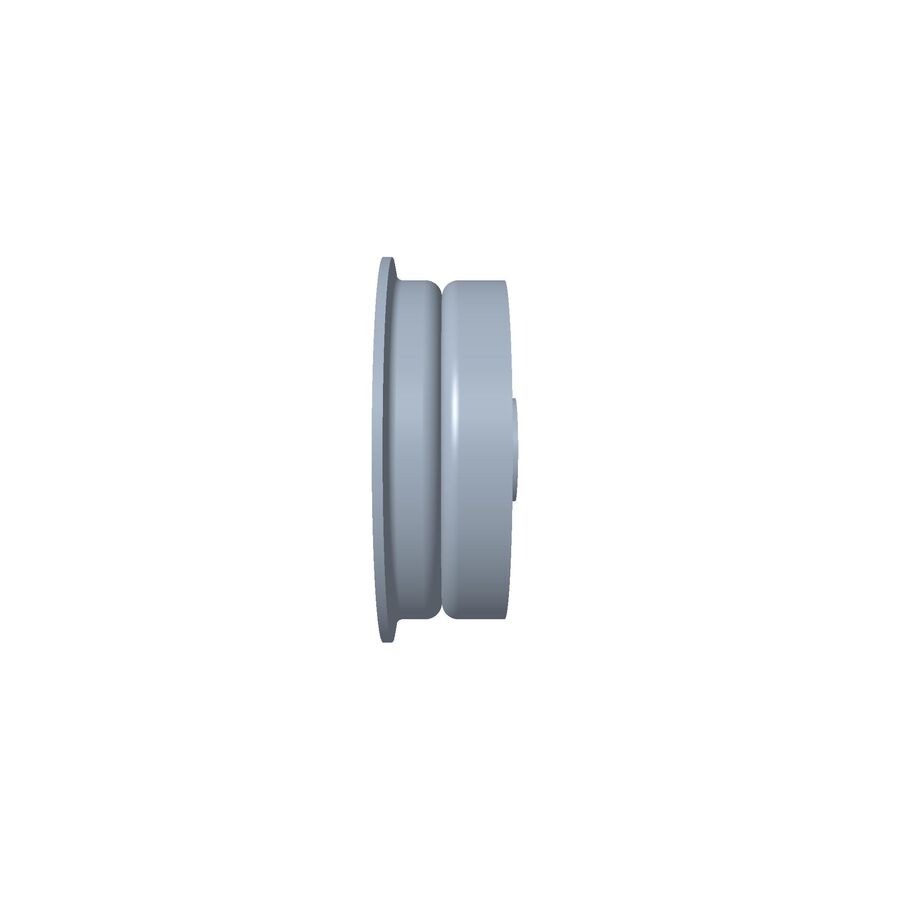

Toro OEM 117-9105 Auger Tensioner Idler Pulley Fits Select 18" Single Stage Power Clear and Powerlite Snowblower Models.

Please refer to the Images above; Product Specifications, Associate Part Chart and the Model Fit Guide below to Ensure a proper fit.

• PRODUCT NUMBER AND VARIATIONS: 117-9105, 117 9105, 1179105
• SIZE: Length 2.150 in. - Width 2.150 in. - Height 0.800 in. - Weight 0.200 lbs.
• NOTES & DETAILS: Toro OEM  117-9105 IS COMMINLY USED - 117-9105 Contains Steel Alloy Roller Bearing that Allow the Pulley to Match the Speed of the Engine RPM's as the Operator Applies Direct Tension Between the Belt and Idler Pulley while Engaging the Auger or Rotor - Fastens Directly on the Outside side of the Idler Pulley Tensioner Arm.
• COMMON SERIES APPLICATIONS: Toro Select 18" Power Clear & Powerlite Snow Blower Models.

• MODEL FIT CHART:

SNOWBLOWER’S

POWER LITE Series – Model Numbers – (* Model Numbers 38273, 38274, 38283)

POWER CLEAR Series – Model Numbers – (* Model Numbers 38272, 38282, 38472, 38473, 38474, 38475)

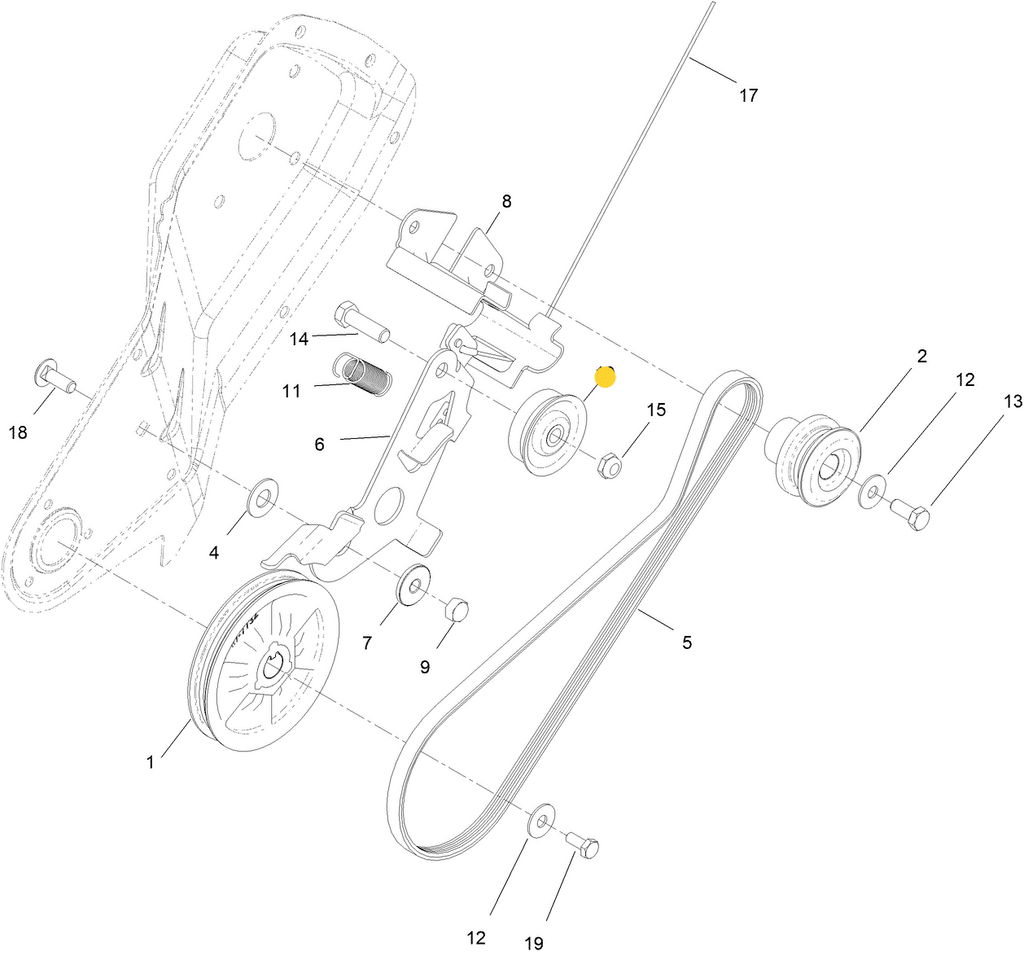

• ASSOCIATED PARTS CHART:

ASSOCIATED PARTS REFERENCES FOR PART NUMBER 117-9105 ONLY

CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED

1. 136-7123 - IDLER PULLEY TENSIONER ARM (Fastens to the Snowblower main Frame using a Pivot Bushing which allow the Idler Arm to Pivot when the Operator engages The Auger/Rotor Bail Handle. The Auger/Rotor Bail Handle uses a cable to Attach to the Idler Pulley Tensioner Arm and engages it by Tensioning the Idler Pulley against the Belt and Disengages it by allow the Return Spring to Return it when the Tension on the Auger/Rotor Cable and Auger /Rotor Idler Pulley Tensioner Arm is Released) x1 Per Snow Blower Unit * Only Select Models - Review Model Numbers Associated to Part Number
2. 117-7735 - IDLER PULLEY TENSIONER ARM (Fastens to the Snowblower main Frame using a Pivot Bushing which allow the Idler Arm to Pivot when the Operator engages The Auger/Rotor Bail Handle. The Auger/Rotor Bail Handle uses a cable to Attach to the Idler Pulley Tensioner Arm and engages it by Tensioning the Idler Pulley against the Belt and Disengages it by allow the Return Spring to Return it when the Tension on the Auger/Rotor Cable and Auger /Rotor Idler Pulley Tensioner Arm is Released) x1 Per Snow Blower Unit * Only Select Models - Review Model Numbers Associated to Part Number
3. 136-8684 or 323-44 - HEX HEAD BOLT (Installed on the Engine side of the Idler Pulley Tensioner Arm and travels through the Idler Arm - Retains the Idler Pulley to the Idler Pulley Tensioner Arm) x1 Per Idler Pulley *Both Parts Number Are the Same Size
4. 121-4600 - LOCK NUT (Installed from the Flange Side of the Idler Pulley and Retains the Idler Pulley to the Idler Pulley Tensioner Arm) x1 Per Idler Pulley
