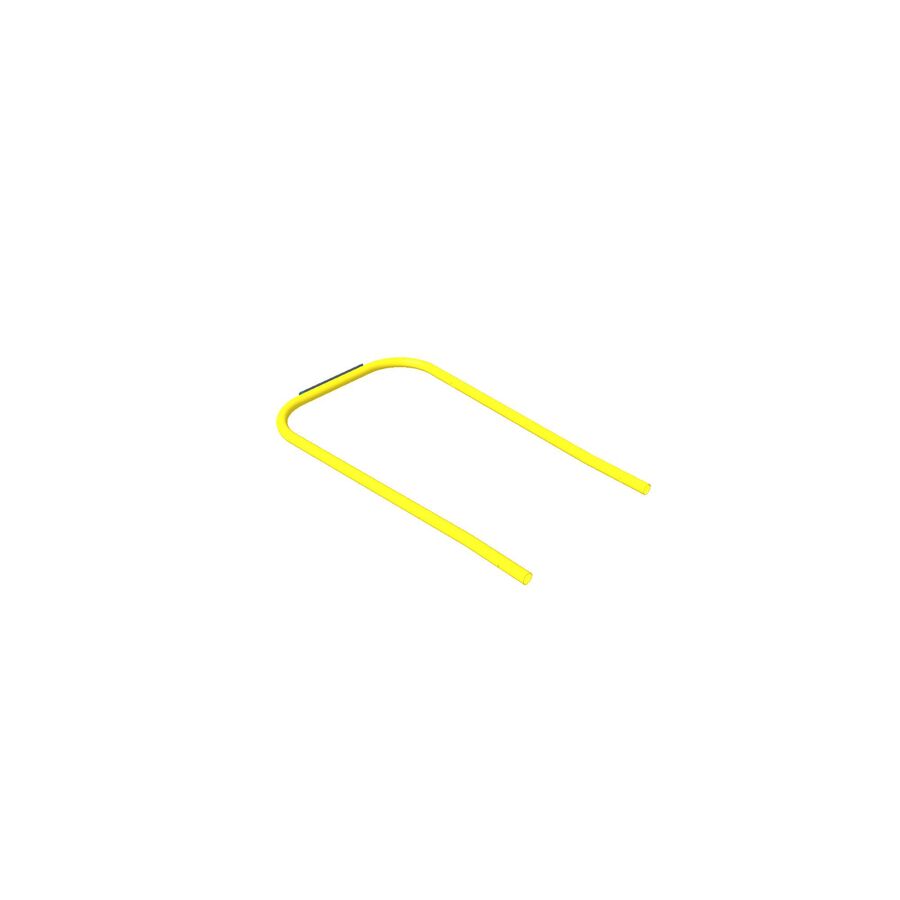

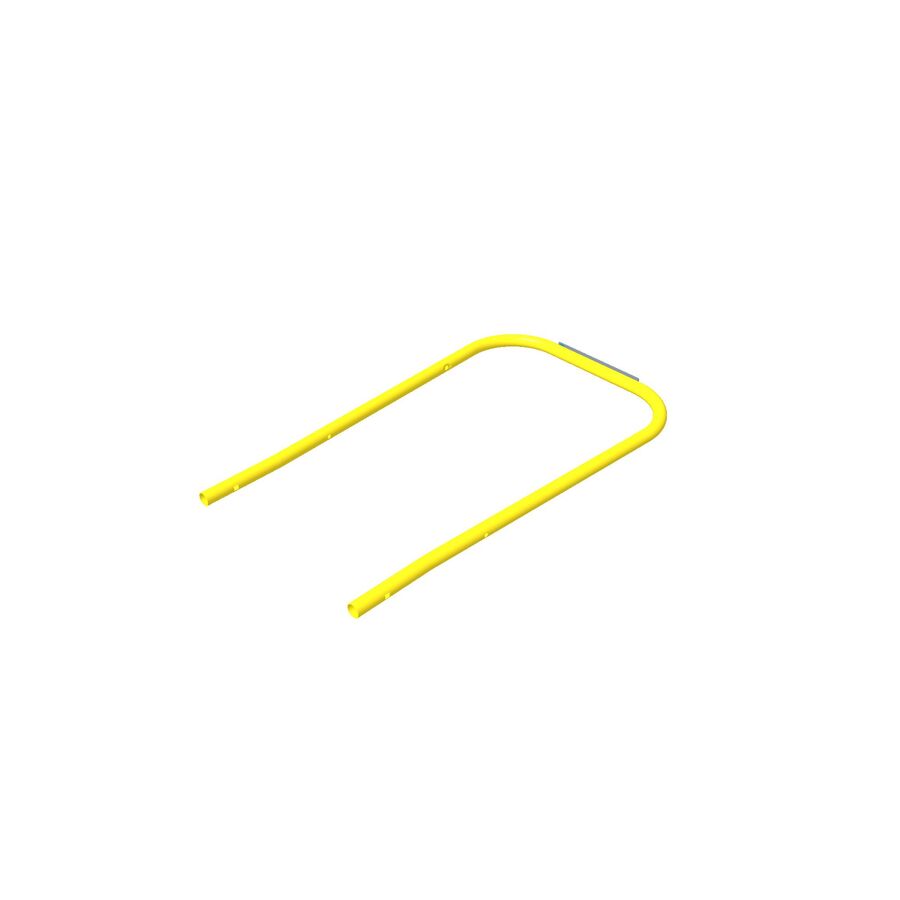

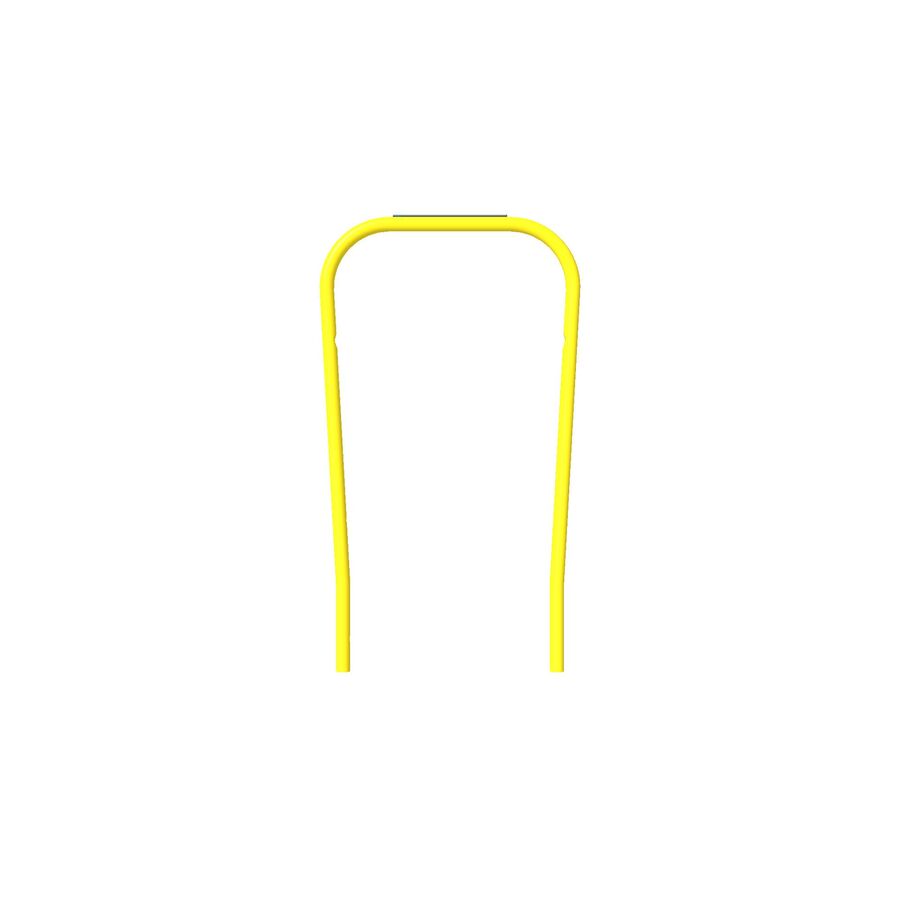

Toro OEM 117-7743 Upper Handle Section Fits Select 18" Toro Single Stage Power Clear and Power Lite Snowblower Models.

Please refer to the Images above; Product Specifications, Associate Part Chart and the Model Fit Guide below to Ensure a proper fit.



• PRODUCT NUMBER AND VARIATIONS: 117-7743, 117 7743, 1177743
• PRODUCT TYPE: Upper Handle Section
• SIZE: Length 28.000 in. - Width 14.000 in. - Height 1.000 in. - Weight 1.600 lbs.
• NOTES & DETAILS: Toro OEM  117-7743 IS COMMINLY USED - As the Upper of a Two-Piece Handle Assembly and Fastens to The Lower Handle Section - Enabling the Operator to Fold the Upper Handle Section Down for Transporting and Storage. The Upper Handle Section 117 7743 Also Contain the Clutch Bail to Engage and Disengage the Rotors/Auger.
• COMMON SERIES APPLICATIONS: Toro Select 18" Power Clear & Power Lite Snow Blower Models.



• MODEL FIT CHART:

SNOWBLOWER’S



POWER LITE Series – Model Numbers – (* Model Numbers 38273, 38274, 38283,)

POWER CLEAR Series – Model Numbers – (* Model Numbers 38272, 38282, 38472, 38473, 38474, 38475)

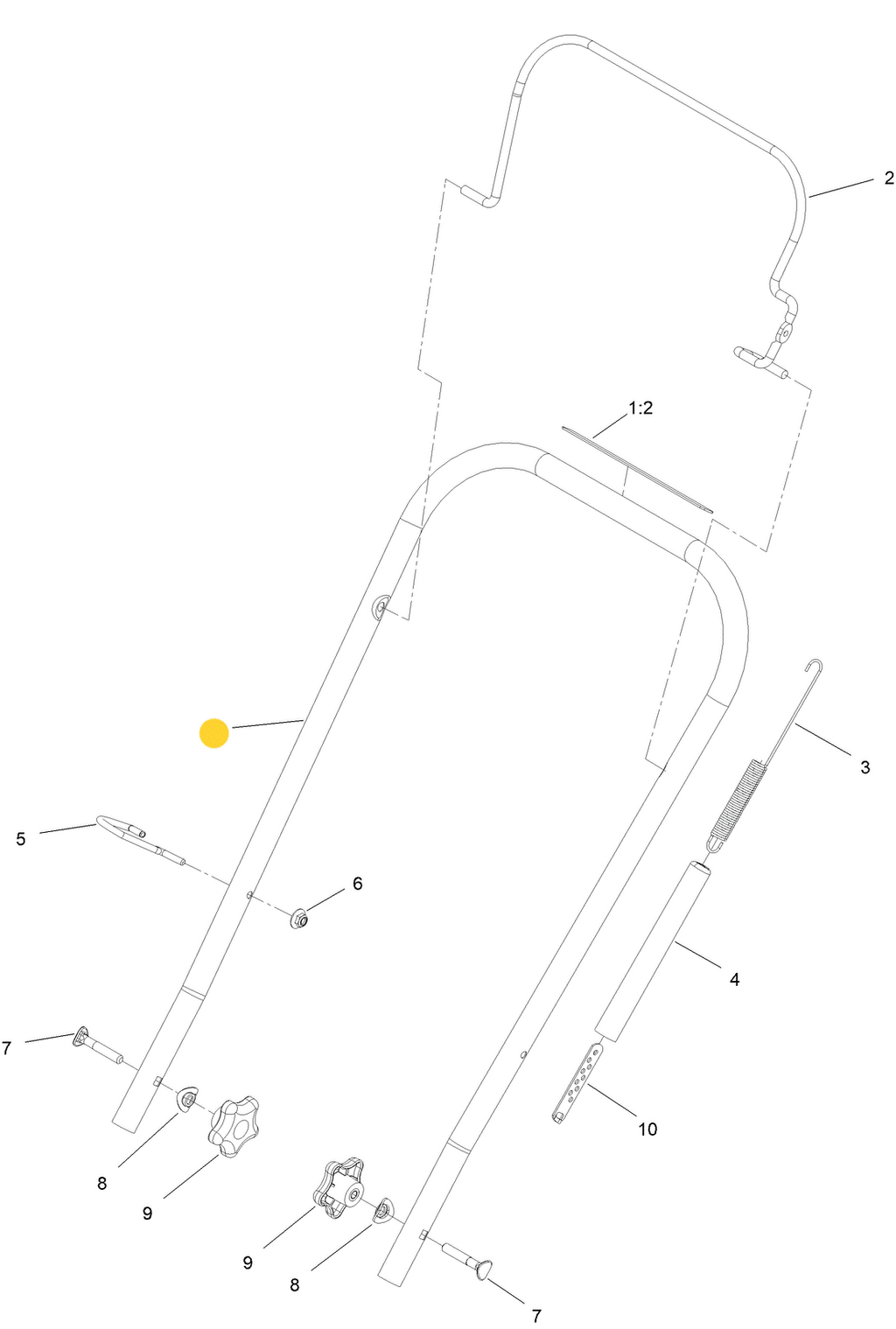

• ASSOCIATED PARTS CHART:



ASSOCIATED PARTS REFERENCES FOR PART NUMBER 117-7743 ONLY

CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED



UPPER & LOWER HANDLE FASTNERS



1. 117-2348-03 - LOWER HANDLE SECTION (Fastens to the Auger/Rotor Housing and is the Lower Section of a Two-Piece Handle Assembly that Retains the Upper Handle Section) x1 Per Unit
2. 92-2260 - CARRIAGE BOLT (Retains and Locks Two-Piece Handle Assemblies from Coming Apart or Folding) x2 Per Handle Assembly

3. 107-3844 - CONTOUR WASHER (Shaped to contour the Handle and is Used Between the Handle and the Fastners to Protect the Handle and Support the Fastners) x1 Per Handle Carriage Bolt Fastner
4. 106-4161 - HANDLE KNOB (Retains the Handle Lock Bolt Fastner in the Handle Two-Piece Handle Assembly and Enables Operator to Easily Disassemble or Fold the Handle Assembly) x2 Per Handle Assembly



UPPER HANDLE COMPONETS



1. 117-7718-03 - CLUTCH BAIL (Inserts into the Upper Whole's in the Upper Handle Section and Enables the Operator to Engage and Disengage the Rotors/Auger) x1 Per Handle Assembly
2. 117-7713 - ROTOR/AUGER DECAL (Installed at the Top of the Handle within Operator's View) x1 Per Handle Assembly
3. 145-0653 - ROPE GUIDE (Fastened to the Upper Handle Section and Retains the Rope Handle within easy Access to the Operator) x1 Per Handle Assembly * Review Model Numbers under Parts Listing to Verify Correct Fit - Part May be Interchangeable with Part Number 136-7144
4. 136-7144 - ROPE GUIDE (Fastened to the Upper Handle Section and Retains the Rope Handle within easy Access to the Operator) x1 Per Handle Assembly *Review Model Numbers under Parts Listing to Verify Correct Fit - Part May be Interchangeable with Part Number 145-0653
5. 114-3778 - FLANGE NYLON LOCK NUT (Retains the Rope Handle Guide to the Lower Handle Section) x1 Per Handle Assembly
