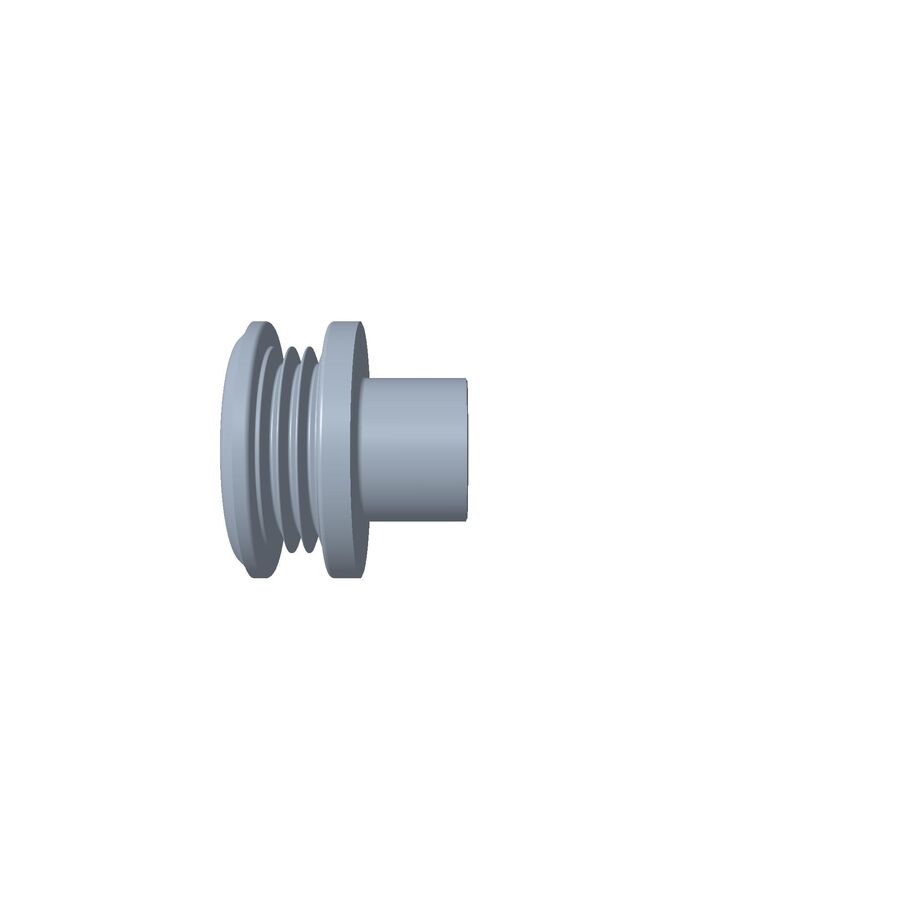

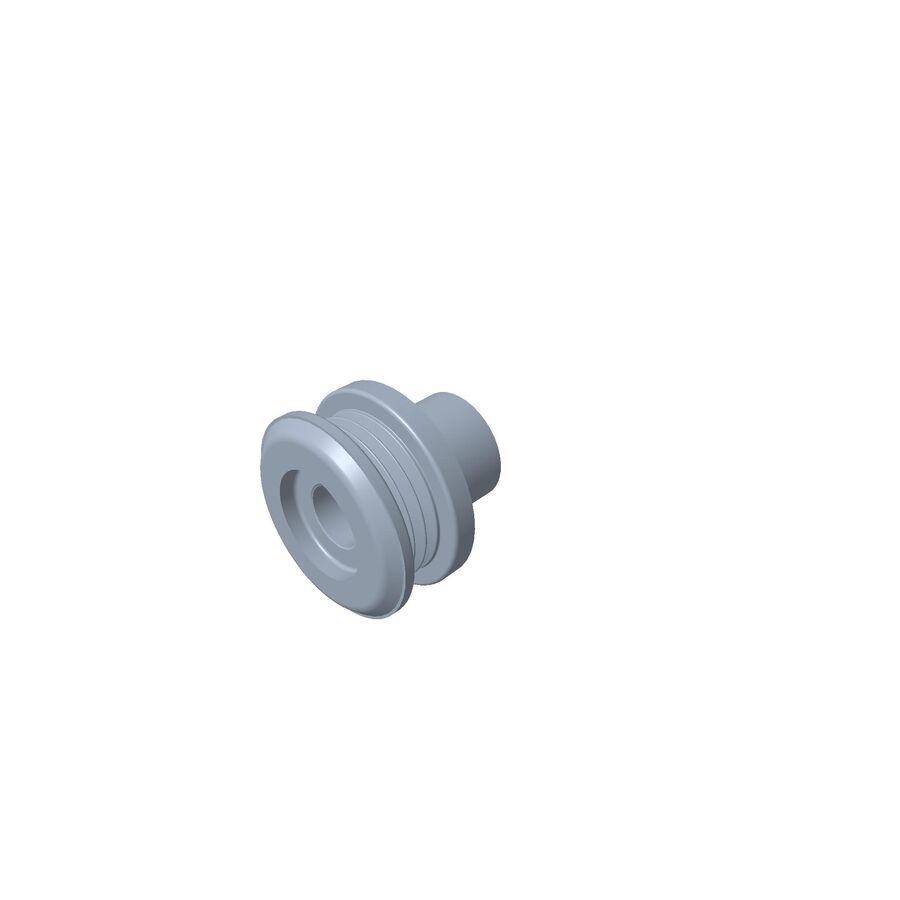

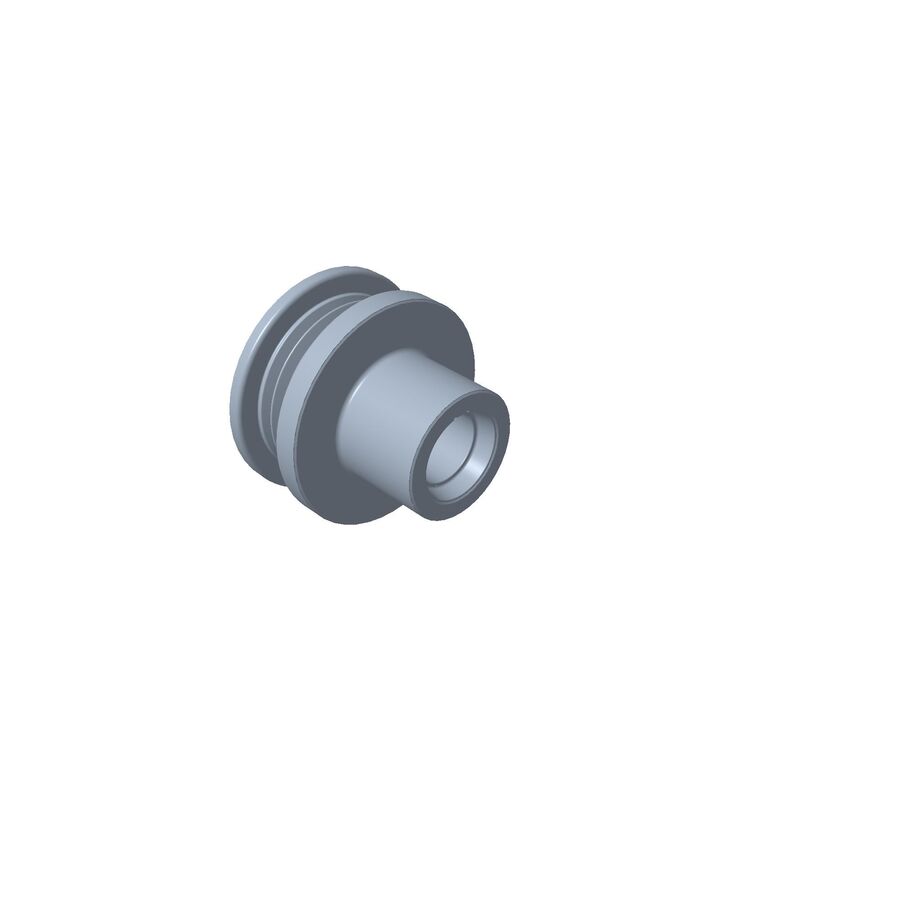

Toro OEM 117-7734 Engine Crankshaft Pulley Fits Select 18" Toro Single Stage Power Clear and Power Lite Snowblower Models.

Please refer to the Images above; Product Specifications, Associate Part Chart and the Model Fit Guide below to Ensure a proper fit.

• PRODUCT NUMBER AND VARIATIONS: 117-7734, 117 7734, 1177734
• PRODUCT TYPE: Engine Crankshaft Pulley Assembly
• SIZE: Weight 0.692 lbs.
• NOTES & DETAILS: Toro OEM  117-7734 IS COMMINLY USED - 117-7734 Is Assembled Directly to the Engine Crankshaft and Enables the Engine to Rotate the Auger/Rotor when the Operator Applies Tension on the Auger/Rotor Drive Belt by Engaging the Auger/Rotor Clutch Bail Handle.
• COMMON SERIES APPLICATIONS: Toro Select 18" Power Clear & Powerlite Snow Blower Models.

• MODEL FIT CHART:

SNOWBLOWER’S

POWER LITE Series – Model Numbers – (* Model Numbers 38273, 38274, 38283)

POWER CLEAR Series – Model Numbers – (* Model Numbers 38272, 38282, 38472, 38473, 38474, 38475)

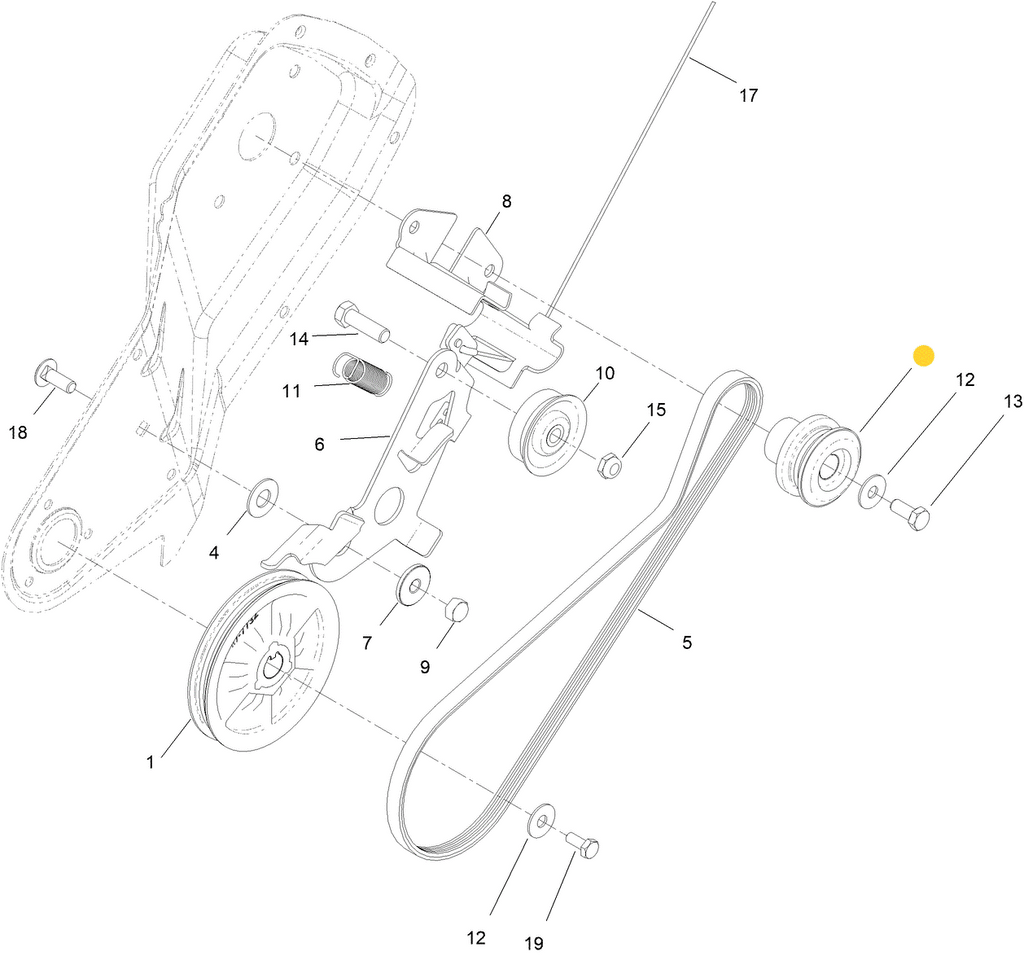

• ASSOCIATED PARTS CHART:

ASSOCIATED PARTS REFERENCES FOR PART NUMBER 117-7734 ONLY

CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED

1. 137-3069 - HEX HEAD BOLT (Retains 117-7734 Engine Crankshaft Pulley to the Engine Crankshaft) x1 Per Engine *Select Models Only (Only Models 38274, 38474, 38475)
2. 3235-6 - HEX HEAD BOLT (Retains 117-7734 Engine Crankshaft Pulley to the Engine Crankshaft) x1 Per Engine *Select Models Only - Same Bolt Size for Both Bolt Part Numbers (5/16 x 3/4 - 24)
3. 3290-456 - BELLEVILLE WASHER (Used Between 117-7734 Engine Pulley and 137-3069 Hex Head Bolt - When Tightened or Compressed it Applies Pressure on the Bolt Head and Pulley Not Allowing the Bolt to Rotate as Easy if the Augers where to come in Contact with anything and Forcibly Stopped causing Reversal Rotational Torque that Could Loosen the Pulley) x1 Per Engine Pulley *Select Models Only (Only Models 38274, 38474, 38475)
4. 3256-71 - FLAT WASHER (Used Between 117-7734 Engine Pulley and 3235-6 Hex Head Bolt - Supports the Bolt Hex Head Against the Pulley Whole) x1 Per Engine Pulley *Select Models Only - Used Only with Bolt 3235-6
5. 117-7733 - AUGER/ROTOR DRIVE BELT (Travels from the Engine Pulley to the Auger/Rotor Pulley - Rotates the Auger When Pressure is Applied by the Tensioner Idler Pulley) x1 Per Snowblower Unit
