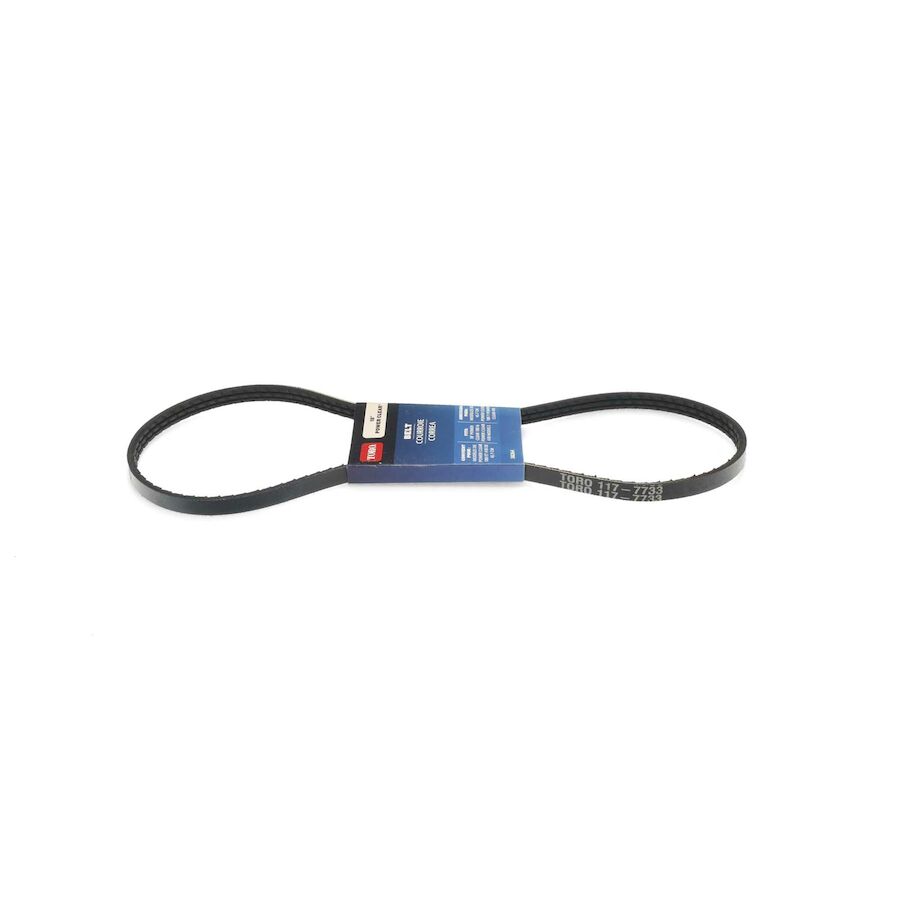

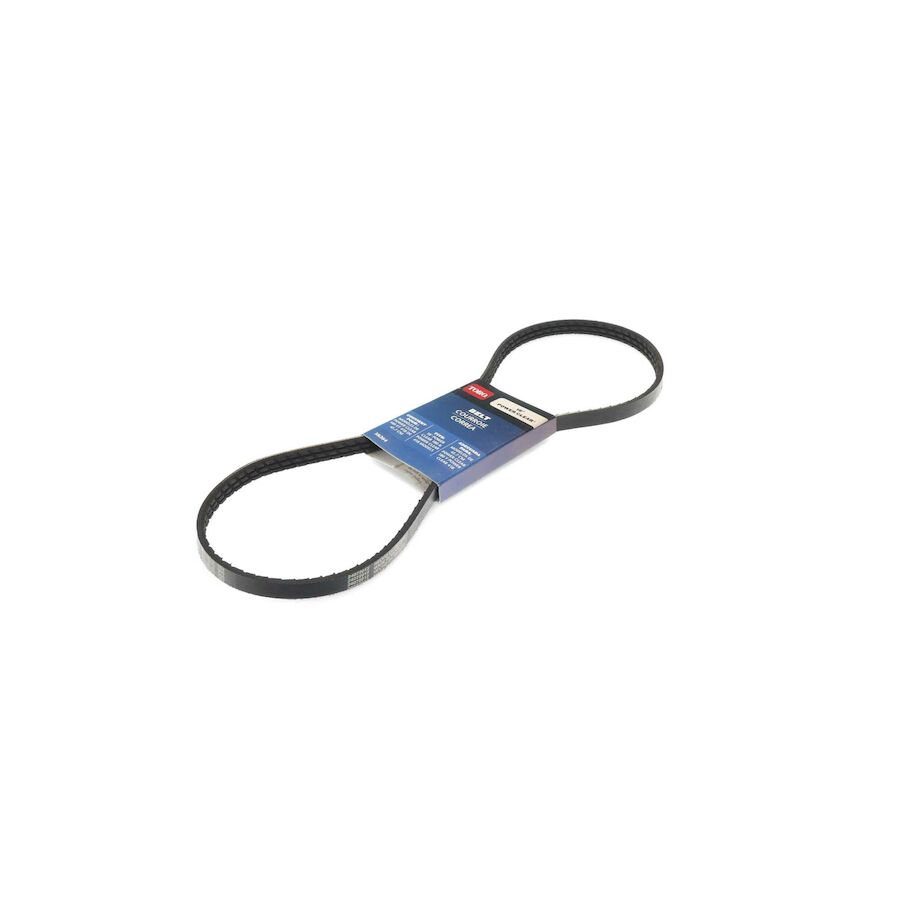

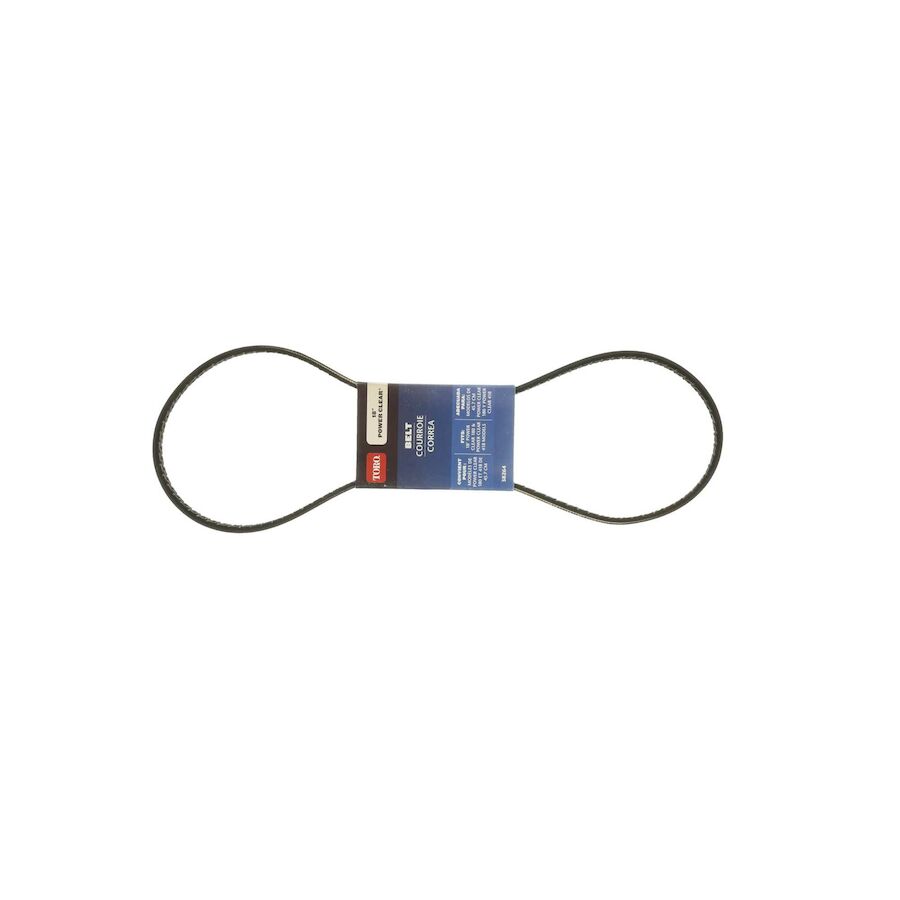

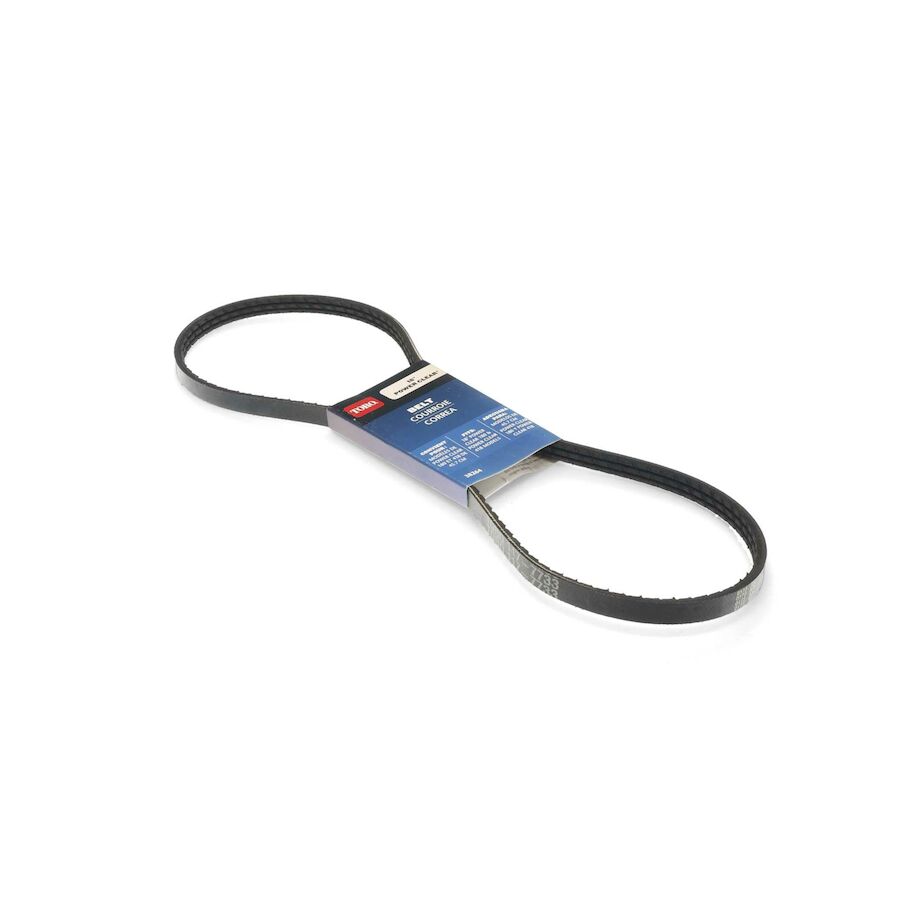

Toro OEM 117-7733 Ribbed Auger/Rotor Drive Belt Fits Select 18" Toro Single Stage Power Clear and Powerlite Snowblower Models.

Please refer to the Images above; Product Specifications, Associate Part Chart and the Model Fit Guide below to Ensure a proper fit.

• PRODUCT NUMBER AND VARIATIONS: 117-7733, 117 7733, 1177733
• PRODUCT TYPE: Ribbed Auger/Rotor Drive Belt
• SIZE: Length N/A in. - Width N/A in. - Height N/A in. - Weight 0.126 lbs.

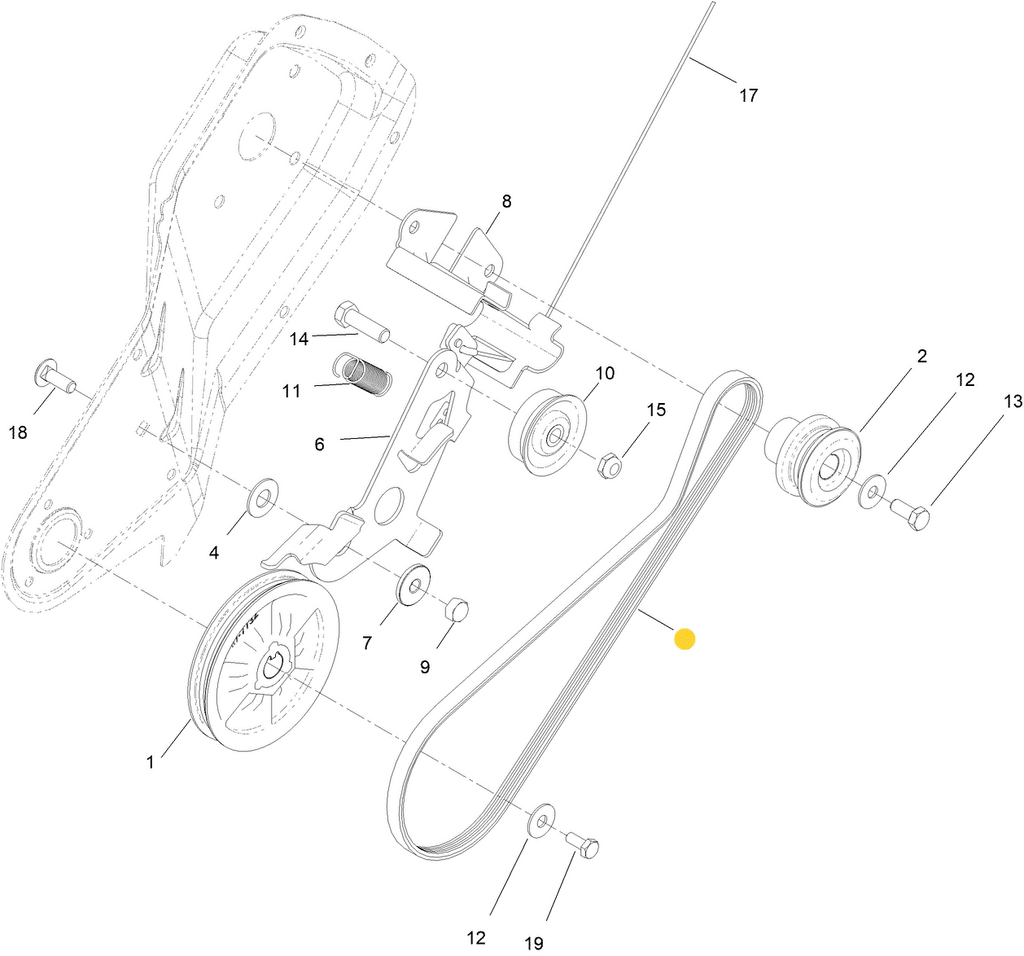

• NOTES & DETAILS: Toro OEM  117-7733 IS COMMINLY USED - 117-7733 Travels from the Engine Pulley to the Auger/Rotor Pulley - Rotates the Auger When Pressure is Applied by the Tensioner Idler Pulley.
• COMMON SERIES APPLICATIONS: Toro Select 18" Power Clear Snow & Powerlite Blower Models.

• MODEL FIT CHART:

SNOWBLOWER’S

POWER LITE Series – Model Numbers – (* Model Numbers 38273, 38274, 38283)

POWER CLEAR Series – Model Numbers – (* Model Numbers 38272, 38282, 38472, 38473, 38474, 38475)

• ASSOCIATED PARTS CHART:

ASSOCIATED PARTS REFERENCES FOR PART NUMBER 117-7733 ONLY

CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED

1. 117-7734 - ENGINE PULLEY (Is Assembled Directly to the Engine Crankshaft and Enables the Engine to Rotate the Auger/Rotor when the Operator Applies Tension on the Auger/Rotor Drive Belt by Engaging the Auger/Rotor Clutch Bail Handle) x1 Per Snowblower Unit
2. 117-7732 - AUGER/ROTOR PULLEY (Is Assembled Directly to the Auger/Rotor Assembly Shaft and Enables the Auger/Rotor to Rotate when the Operator Applies Tension on the Auger/Rotor Drive Belt by Engaging the Auger/Rotor Clutch Bail Handle) x1 Per Snowblower Unit
3. 117-9105 - IDLER PULLEY (Maintains Roller Bearing that Allow the Pulley to Match the Speed of the Engine RPM's as the Operator Applies Direct Tension Between the Belt and Idler Pulley while Engaging the Auger or Rotor - Fastens Directly on the Outside side of the Idler Pulley Tensioner Arm) x1 Per Snowblower Unit
