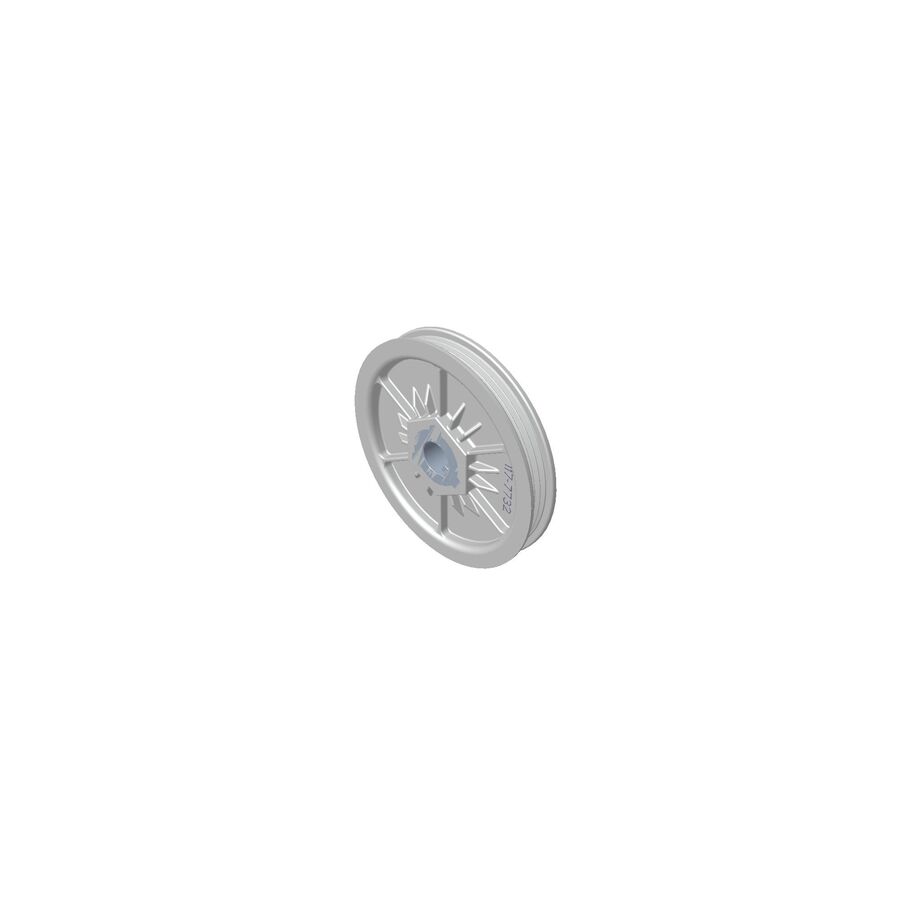

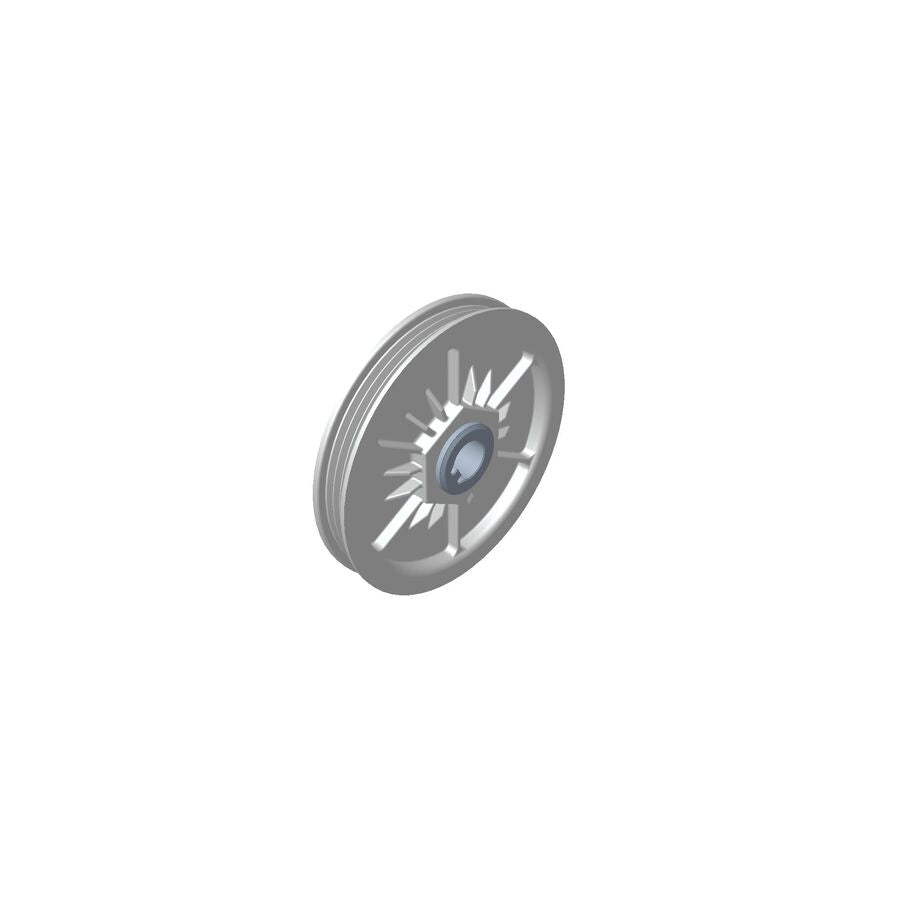

Toro OEM 117-7732 Auger/Rotor Pulley Assembly Fits Select 18" Toro Single Stage Power Clear and Power Lite Snowblower Models.

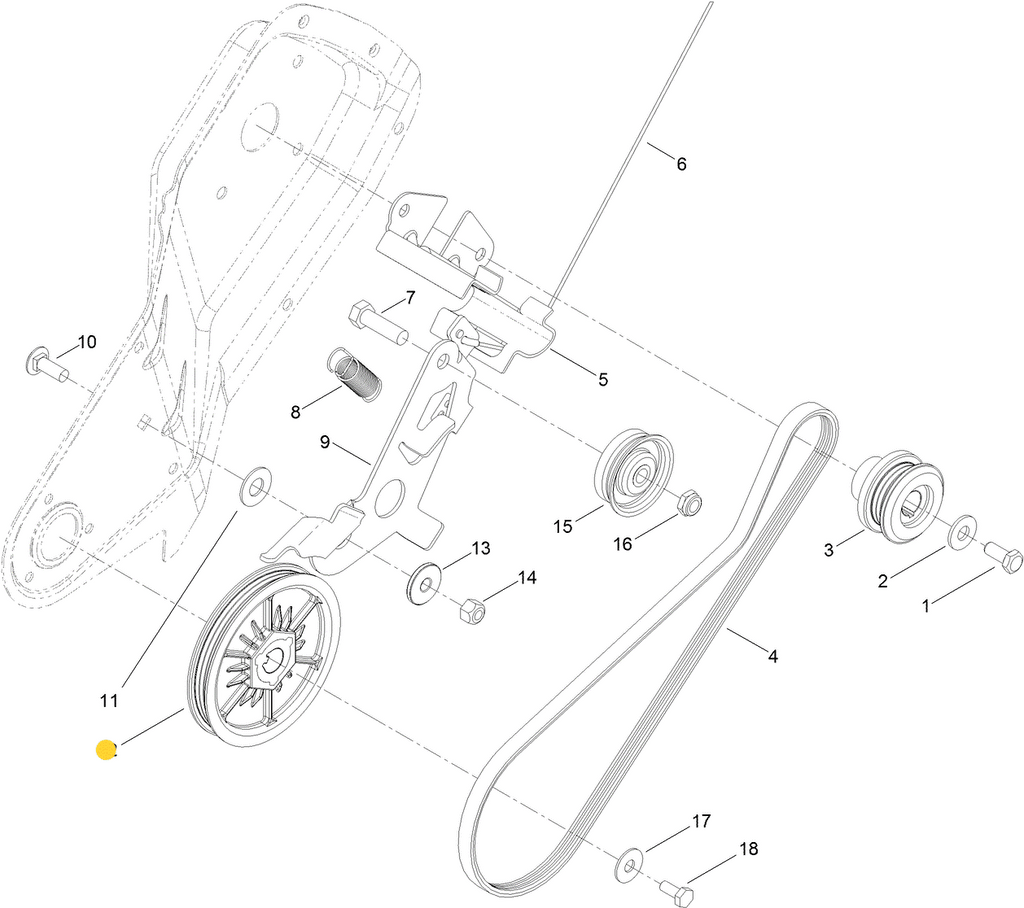

Please refer to the Images above; Product Specifications, Associate Part Chart and the Model Fit Guide below to Ensure a proper fit.

• PRODUCT NUMBER AND VARIATIONS: 117-7732, 117 7732, 1177732
• PRODUCT TYPE: Auger/Rotor Pulley Assembly
• SIZE: Length 4.600 in. - Width 4.600 in. - Height 0.800 in. - Weight 0.340 lbs.
• NOTES & DETAILS: Toro OEM  117-7732 IS COMMINLY USED - 117-7732 Is Assembled Directly to the Auger/Rotor Assembly Shaft and Enables the Auger/Rotor to Rotate when the Operator Applies Tension on the Auger/Rotor Drive Belt by Engaging the Auger/Rotor Clutch Bail Handle.
• COMMON SERIES APPLICATIONS: Toro Select 18" Power Clear & Powerlite Snow Blower Models.

• MODEL FIT CHART:

SNOWBLOWER’S

POWER LITE Series – Model Numbers – (* Model Numbers 38273, 38274, 38283)

POWER CLEAR Series – Model Numbers – (* Model Numbers 38272, 38282, 38472, 38473, 38474, 38475)

• ASSOCIATED PARTS CHART:

ASSOCIATED PARTS REFERENCES FOR PART NUMBER 117-7732 ONLY

CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED

1. 110-9381 or 137-3014 - HEX HEAD BOLT (Retains 117-7732 Auger/Rotor Pulley to the Auger/Rotor Assembly Shaft) x1 Per Auger/Rotor Pulley *Select Models Only - Same Bolt Size for Both Bolt Part Numbers (1/4 x 5/8 - 20)
2. 3290-456 - BELLEVILLE WASHER (Used Between 117-7732 Auger/Rotor Pulley and 137-3014 Hex Head Bolt - When Tightened or Compressed it Applies Pressure on the Bolt Head and Pulley Not Allowing the Bolt to Rotate as Easy if the Augers where to come in Contact with anything and Forcibly Stopped causing Reversal Rotational Torque that Could Loosen the Pulley) x1 Per Auger/Rotor Pulley
3. 117-7733 - AUGER/ROTOR DRIVE BELT (Travels from the Engine Pulley to the Auger/Rotor Pulley - Rotates the Auger When Pressure is Applied by the Tensioner Idler Pulley) x1 Per Snowblower Unit *Select Models Numbers Only - Review Model Numbers Listed Under the Model Fit Chart for a Correct Fit
4. 108-4921 - AUGER/ROTOR DRIVE BELT (Travels from the Engine Pulley to the Auger/Rotor Pulley - Rotates the Auger When Pressure is Applied by the Tensioner Idler Pulley) x1 Per Snowblower Unit *Select Models Numbers Only - Review Model Numbers Listed Under the Model Fit Chart for a Correct Fit
