Toro OEM 117-7728 Ignition or Stop/Run Key Fits Powerlite, Power Clear, E Power Clear, Snow Master, Snow Thrower, Snow Max, Power Max and Power TRX Snowblower Models.

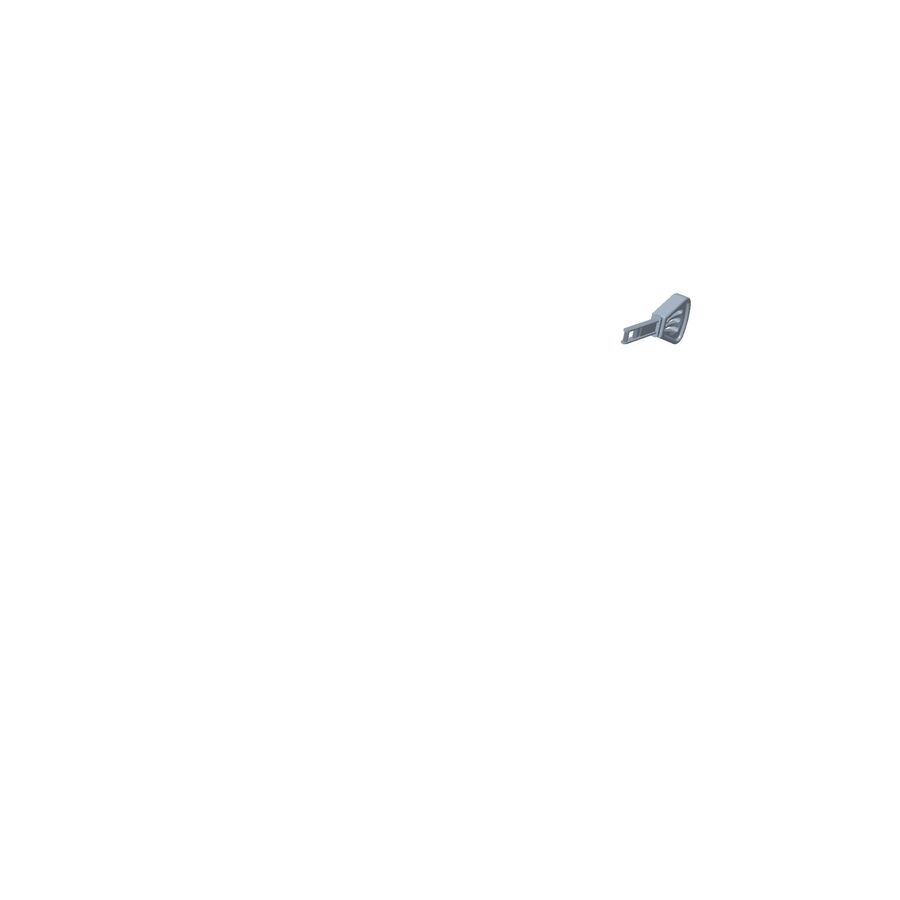

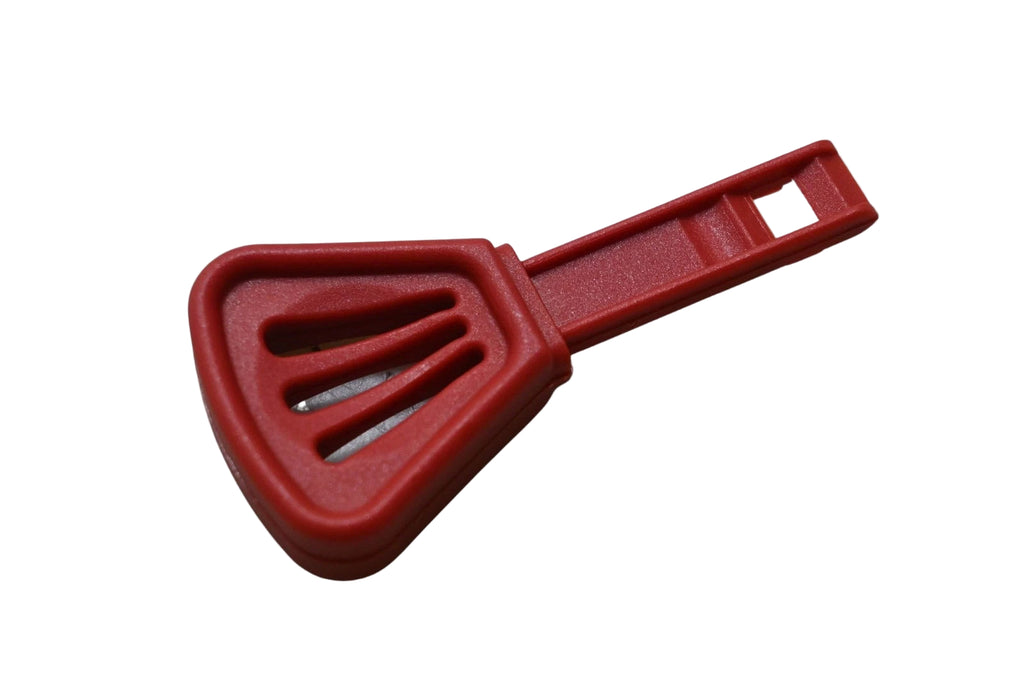

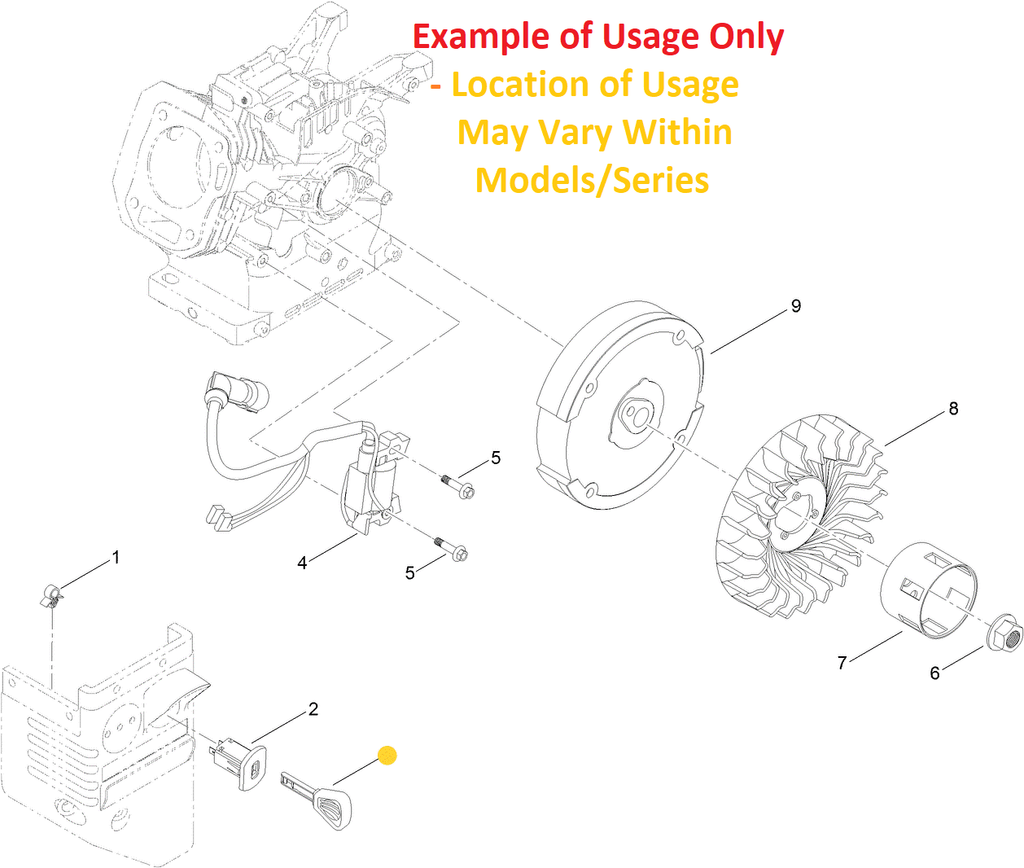

Please refer to the Images above; Product Specifications, Associate Part Chart and the Model Fit Guide below to Ensure a proper fit.



• PRODUCT NUMBER AND VARIATIONS: 117-7728, 117 7728, 1177728
• PRODUCT TYPE: IGNITION or START/STOP KEY
• SIZE: Length 2.760 in. - Width 1.340 in. - Height 0.420 in. - Weight 0.015 lbs.
• NOTES & DETAILS: Toro OEM  117-7728 IS COMMINLY USED - 117-7728 Start/Stop Key is a Made to Fit for Toro Snowblower Engine Shrouds and Ignition Systems and inserts into the Ignition/Stop Switch and Disable the Grounding of the Start/Stop Switch Enabling the Operator to Start the Unit. Same Likeness - By Pulling the Ignition Key the Operator Initiates the Ground to the Ignition Coil Causing the Engine to Stop. 117-7728 Ignition Key Is Just One Key. To Buy a Key Set with a Lanyard Refer to Part Number 119-1929.
• COMMON SERIES APPLICATIONS: Toro Select Powerlite, Power Clear, E Power Clear, Snow Master, Snow Thrower, Snow MAX, Power MAX and Power TRX Snow Blower Models.





• MODEL FIT CHART:

SNOWBLOWER’S



POWER LITE Series – Model Numbers – (* Model Numbers 38273, 38274, 38283)



POWER CLEAR Series – Model Numbers – (* Model Numbers 38272, 38282, 38472, 38473, 38474, 38475, 38752, 38753, 38754, 38755, 38756, 38757)



SNOW MASTER Series – Model Numbers – (* Model Numbers 36001, 36002, 36003)



SNOW THROWER Series – Model Numbers – (* Model Numbers 38710, 38711, 38712)



POWER MAX Series – Model Numbers – (* Model Numbers 37779, 37780, 37781, 37793, 37797, 37798, 37799, 37802, 37805, 37807, 38660, 38661, 38662, 38663, 38664, 38674, 38801, 38802, 38805, 38806, 38811, 38812, 38813, 38814, 38815, 38819, 38820, 38822, 38823, 38824, 38826, 38830, 38833, 38834, 38836, 38838, 38840, 38841, 38842, 38843, 38844, 38850, 38855, 38860, 38865)



POWER TRX Series – Model Numbers – (* Model Numbers 38870, 38875, 38890, 38891)



SNOW MAX Series – Model Numbers – (* Model Numbers 38720, 38721)



Misc. Lawn Boy Models – Model Numbers – (* Model Numbers 17740)





• ASSOCIATED PARTS CHART:



ASSOCIATED PARTS REFERENCES FOR PART NUMBER 117-7728 ONLY

CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED





1. 119-1929 - PAIR of KEYS with LANYARD (Same as 117-7728 Except it Comes as a set of Two Key with a Lanyard) x1 Per Ignition Switch
2. 119-1932 - IGNITON or START/STOP SWITCH (Often Installed on the Carburetor Shroud - Key in = Neutralizes Ground, Key out = Established Ground) x1 Per Snowblower Unit *Select Model/Serial Numbers Only - ONLY Power Clear Models 38752, 38753, 38754, 38755, 38756, 38757 With Serial Number 399999999 and Lower.
3. 121-0283 - IGNITON or START/STOP SWITCH (Often Installed on the Carburetor Shroud - Key in = Neutralizes Ground, Key out = Established Ground) x1 Per Snowblower Unit *Select Model/Serial Numbers Only - All Models Excluding Power Clear Models 38752, 38753, 38754, 38755, 38756, 38757 With Serial Number 400000000 and Above.
