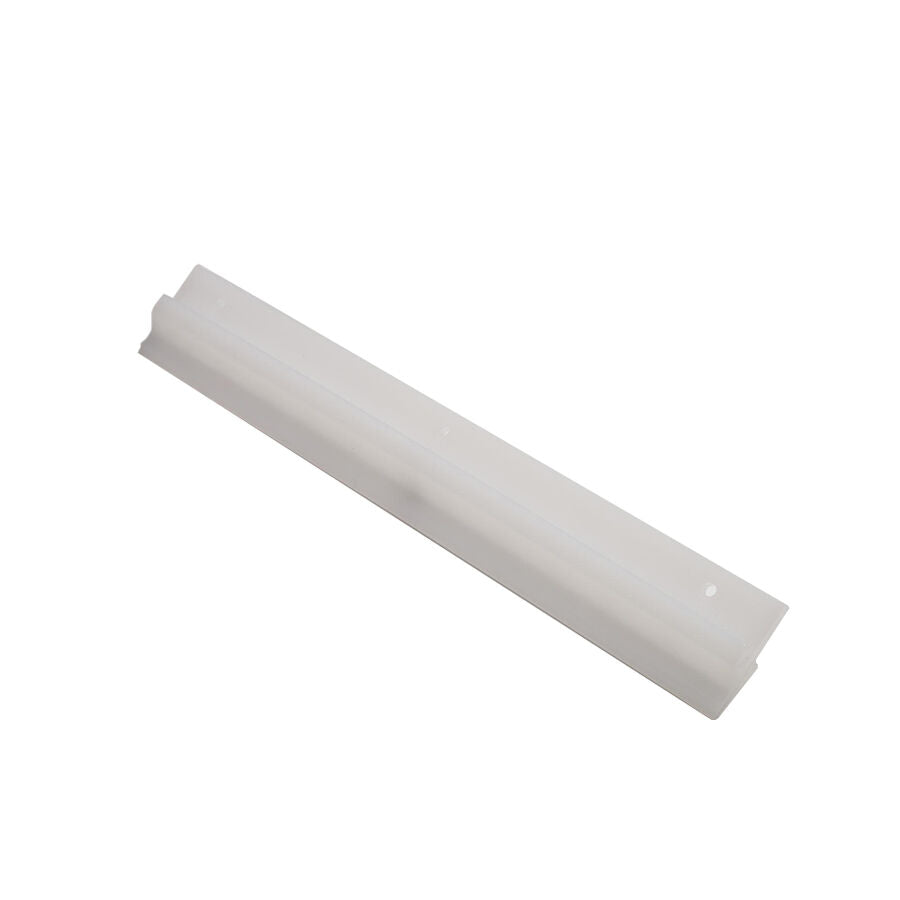

Toro OEM 117-7717 Poly/Plastic Scraper Bar Fits Select Toro 18" Single Stage Power Clear and Power Lite Snowblower Models.

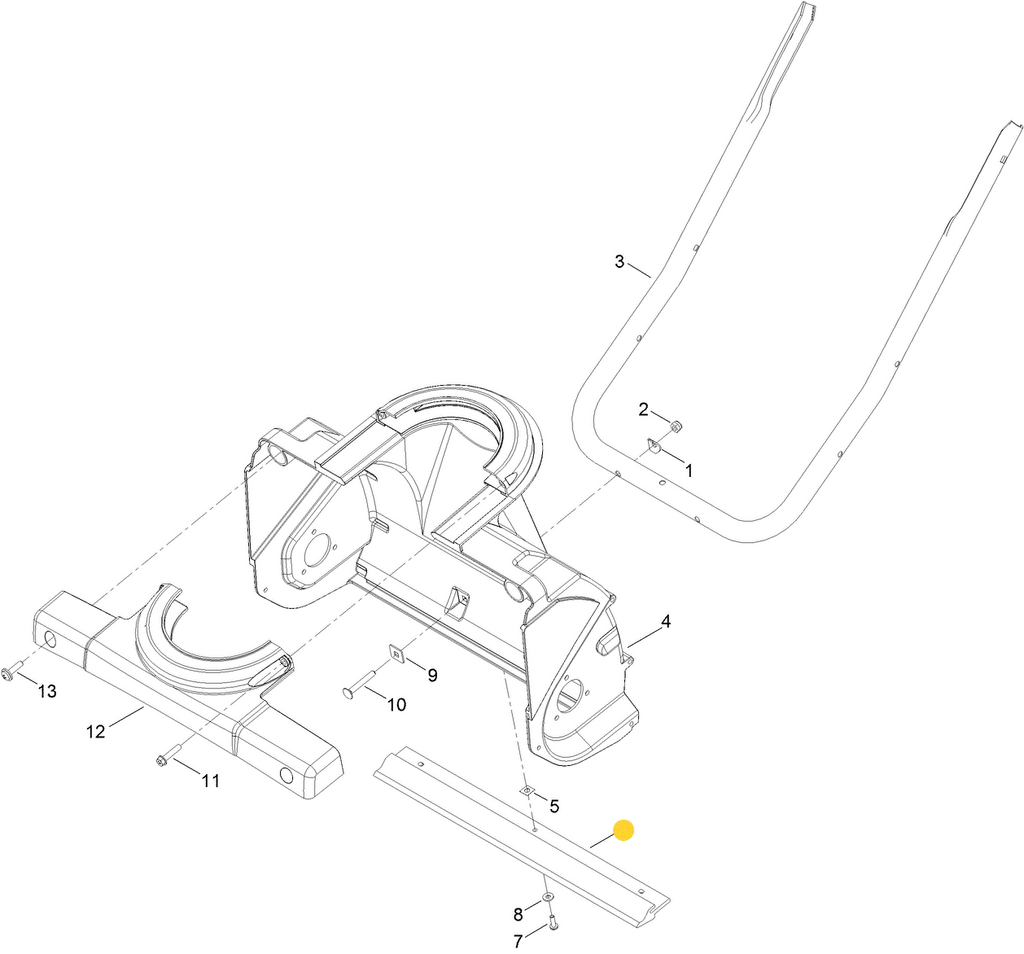

Please refer to the Images above; Product Specifications, Associate Part Chart and the Model Fit Guide below to Ensure a proper fit.



• PRODUCT NUMBER AND VARIATIONS: 117-7717, 117 7717, 1177717
• PRODUCT TYPE: Replaceable Poly/Plastic Scraper Blade
• SIZE: Length 17.000 in. - Width 2.100 in. - Height 0.400 in. - Weight 0.320 lbs.
• NOTES & DETAILS: Toro OEM  117-7717 IS COMMINLY USED - 117-7717 is a Hard Poly/Plastic Replaceable Scraper Bar and is Designed to Travels the Length of the Snowblower Housing. 117-7717 Scraper Bar Travels Against Hard Surfaces Absorbing the Wear and Abuse. This Enable an Easy Replacement of the Scraper Bar when it is Worn over Repairing or Replacing the Main Snowblower Auger Housing. 117-7717 Scraper Bar is Fastened Using Three Bolts and a Supporting Washer That Insert from The Bottom and Screw into a Push-On U Clip that is Inserted over the Non-Threaded Whole in the Snowblower Auger Housing.
• COMMON SERIES APPLICATIONS: Toro Select 18" Power Clear and Powerlite Snow Blower Models.





• MODEL FIT CHART:

SNOWBLOWER’S



POWER LITE Series – Model Numbers – (* Model Numbers 38273, 38274, 38283)



POWER CLEAR Series – Model Numbers – (* Model Numbers 38272, 38282, 38472, 38473, 38474, 38475)





• ASSOCIATED PARTS CHART:



ASSOCIATED PARTS REFERENCES FOR PART NUMBER 117-7717 ONLY

CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED



INDIVIDUAL ASSOCIATED PARTS



1. 163-0258 OR 32144-34 - HEX HEAD BOLT (Retains the Scraper Bar to the Bottom of the Snowblower Auger Housing - Insert from the Back or Bottom Side Through the Supporting Washer, Snowblower Auger Housing and Screws into the Removable U-Clip Nuts) x3 Per Scraper Blade
2. 3256-14 - FLAT WASHER (Supports Scraper Bar Hex Head Bolt/Fastner) x3 Per Scraper Blade
3. 32115-19 - U-CLIP NUT (Installed over the Flange and Scraper Bar Holes with the Threaded Section on the Opposite side of the flange from the Scraper Bar Allowing the Bolt to travel through the Scraper Bar and Auger Housing and Thread into the U-Clip and Retaining all Components Including the U-Clip) x3 Per Scraper Blade
