Toro OEM 117-7711 Insert Spacer - Idler Tensioner Arm Fits Select Snow Thrower, Powerlite, Power Clear, SnowMaster and Power MAX Snowblower Models.

Please refer to the Images above; Product Specifications and the Model Fit Guide below to Ensure a proper fit.





• PRODUCT NUMBER AND VARIATIONS: 117-7711, 117 7711, 1177711

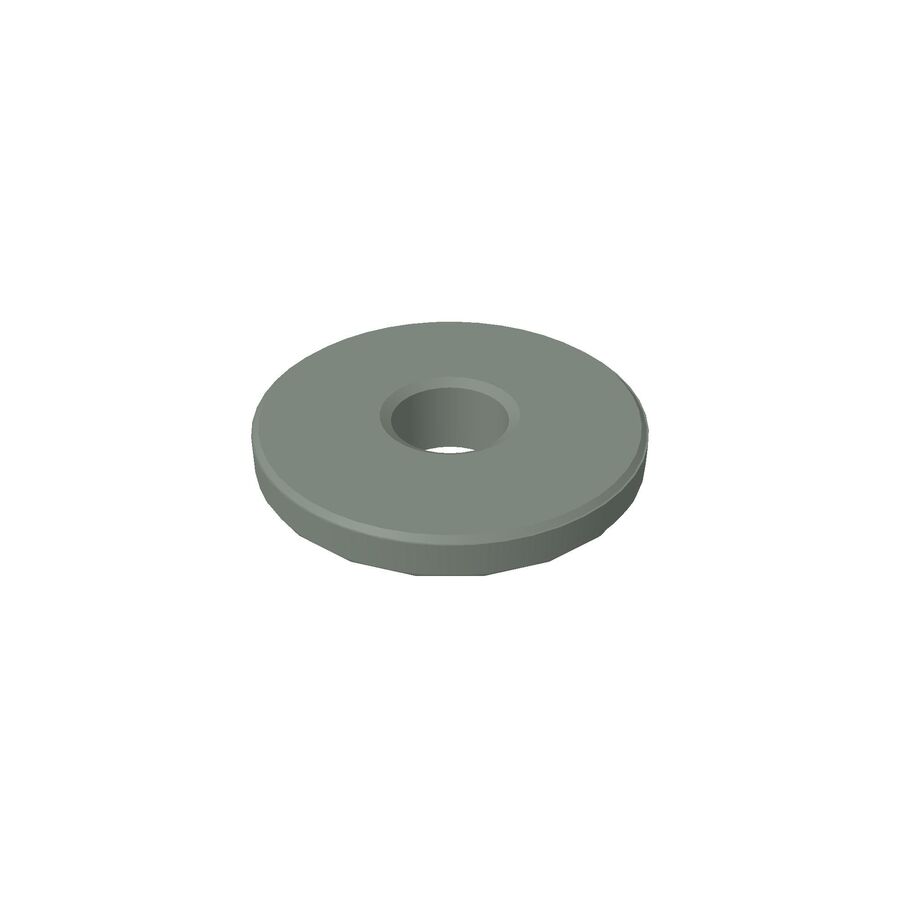

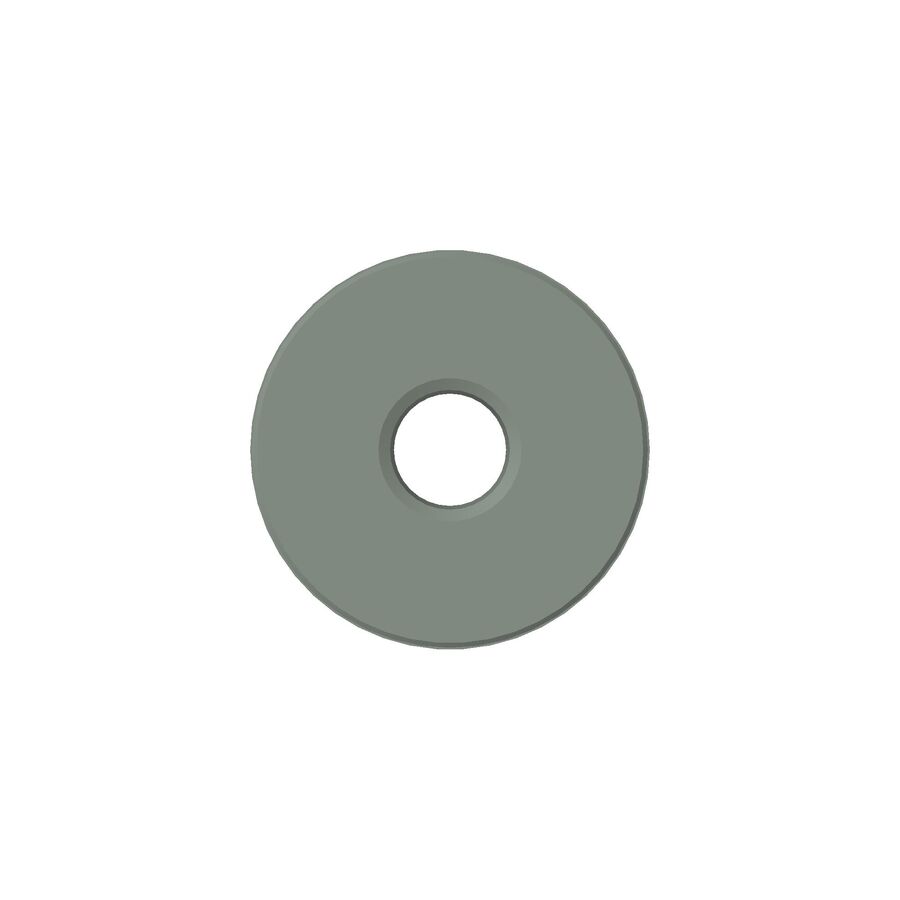

• PRODUCT TYPE: Insert Spacer - Idler Pulley Tensioner Arms
• SIZE: Length 1.000 in. - Width 1.000 in. - Height 0.250 in. - Weight 0.050 lbs.
• NOTES & DETAILS: Toro OEM  117-7711 IS COMMINLY USED - Inserts into the Fastener Whole of Select Traction/Drive & Auger/Propeller Idler Pulley Tensioner Arm Allowing the Flange to Support the Retaining Nut in Retaining the Idler Pulley Tensioner Arm as well as leaving the Idler Arm Rotate.
• COMMON SERIES APPLICATIONS: Toro Select Snow Thrower, Powerlite, Power Clear, Snow Master and Power Max Snow Blower Models.



• MODEL FIT CHART:



SNOWBLOWER’S

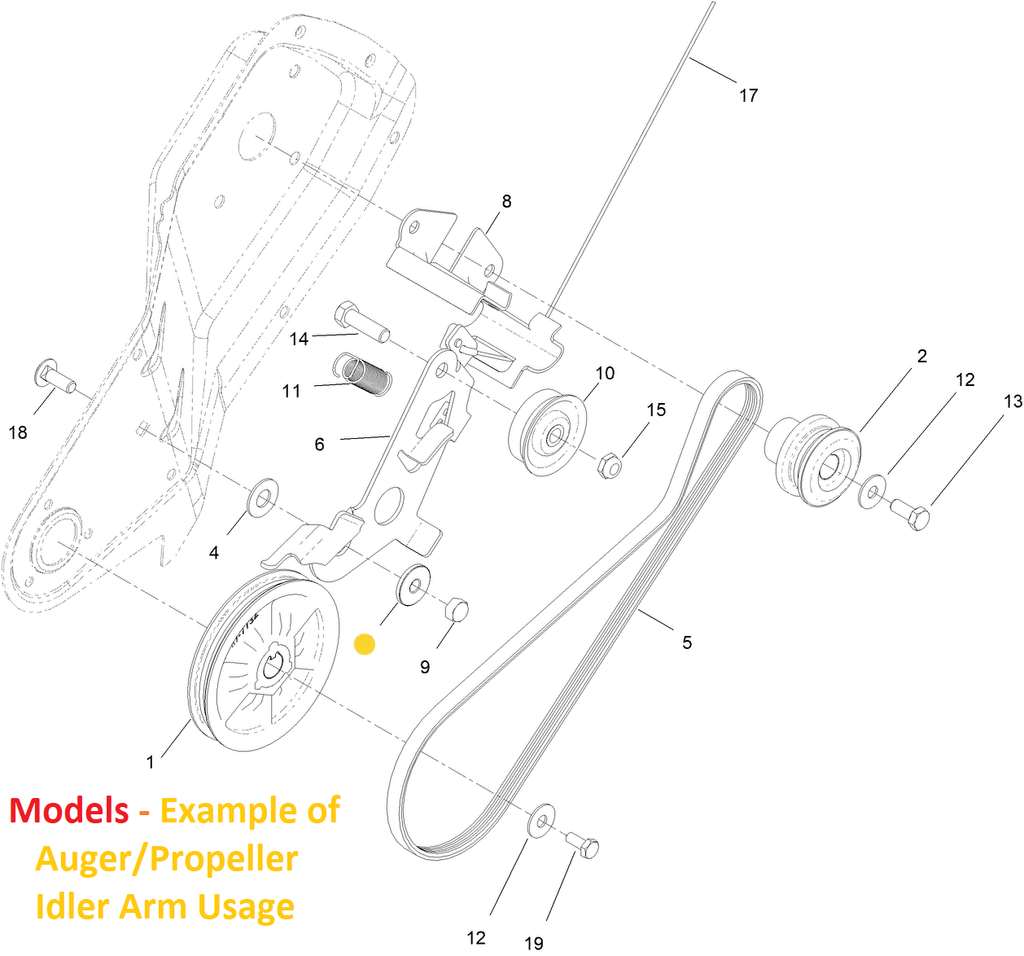

Auger Idler Pulley Tensioner Arm



POWER LITE Series – Model Numbers – (* Model Numbers 38273, 38274, 38283)

POWER CLEAR Series – Model Numbers – (* Model Numbers 38272, 38282, 38472, 38473, 38474, 38475)

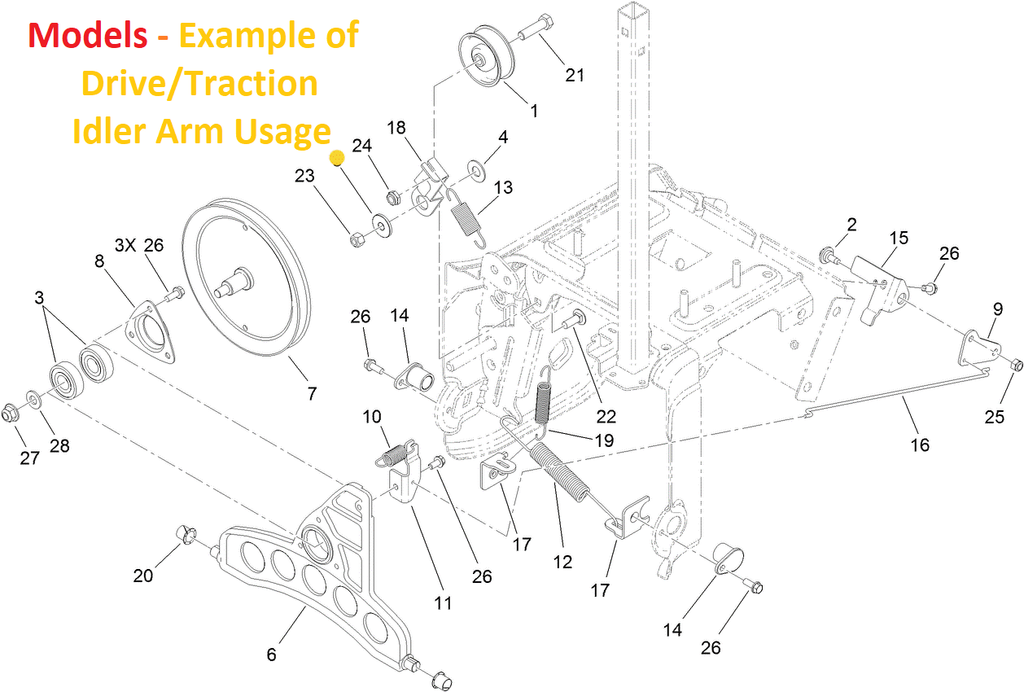

Drive/ Traction Idler Pulley Tensioner Arm



POWER MAX Series – Model Numbers – (* Model Numbers 37770, 37771, 37772, 37775, 37777, 37779, 37780, 37781, 37793, 37797, 37798, 37799, 37802, 37805, 37807, 38810, 38811, 38812, 38813, 38814, 38815, 38816, 38817, 38819)

E POWER MAX Series – Model Numbers – (* Model Numbers 31875, 39924, 39925, 39926, 39926T)

SNOW MAX & E SNOW MAX Series – Model Numbers – (* Model Numbers 38274, 38720, 38721, 38812, 38814, 38815, 38819)

SNOWMASTER Series – Model Numbers – (* Model Numbers 36001, 36002, 36003)

E SNOWMASTER Series – Model Numbers – (* Model Numbers 31860, 39914, 39914T, 39915, 39915T)

SNOWTHROWER Series – Model Numbers – (* Model Numbers 38711, 38712)

Misc. Lawn Boy Models – Model Numbers – (* Model Numbers 17740)
