Description
Toro OEM 117 7468 PTO Clutch is known for its precision engineering, durability, and reliable performance. Designed to Allow the correct Torque, Delay and Engagement Optimal for Engine and Mower Deck Components for Performance and Durability with the Push or Pull of a PTO switch. Enabling High-Quality Electronic Control over Mower Deck and Attachments, Toro 117 7468 PTO Clutch is Designed for Toro Late 32" Timecutter MX & Standard Models - Current/Late 34" Timecutter MX & Standard Models - Current/Late 42" Timecutter MX, SS, SW, SWX, Z, ZS, 4200, ZR4200, Standard, My-Ride Models - Early XLS Riding Tractor Models. Hilly Ridge does not offer any Type of Return on Electrical Items Unless it was an Error in Our Listings. So, Due to Variation Within Model Numbers/Series, Refer to the Model Fit Chart for an Accurate Break down of Specific Model Number Usage. Please refer to the Images above; Product Specifications and the Model Fit guide below to ensure proper fit. *Refer to the Engine Pulley and Associated Part Chart Below the Model Fit Chart for Reference for Appropriate PTO Clutch Fastner Parts and Pulleys Associated to Segregated Models/Series Associated to PTO Clutch 117-7468.
NOTE: Due to Serial Number and/or Model Design changes it is always Beneficial to Eliminate Confusion by Searching your Product Type and Model Number at the Top of our Website Page in the Search Tab. That in return will search the Model Fit Chart at the Bottom of the Pages to Find the correct Model/Switch Part Number Combo.
Specification
|
Product Number: |
1177468 |
|
Brand: |
Toro |
|
Length: |
10.000 IN (25.400 CM) |
|
Width: |
10.000 IN (25.400 CM) |
|
Height: |
6.000 IN (15.240 CM) |
|
Weight: |
7.914 LB (3.590 KG) |
Model Fit:
32” TIMECUTTER MODELS - 117-7468 MODEL/SERIES USAGE
32” TIMECUTTER ZS Series – Model Numbers – (* Model Numbers 74385, 74388 Serial Number 313999999 and Below)
32” TIMECUTTER SS Series – Model Numbers – (* Model Numbers 74620, 74621)
34” TIMECUTTER MODELS - 117-7468 MODEL/SERIES USAGE
34” TIMECUTTER MX Series – Model Numbers – (* Model Numbers 74750)
34” TIMECUTTER (STANDARD) Series – Model Numbers – (* Model Numbers 75734, 77301)
42” TIMECUTTER MODELS - 117-7468 MODEL/SERIES USAGE
42” TIMECUTTER MX Series – Model Numbers – (* Model Numbers 74640, 74642, 74690, 74691, 74760, 74765, 74766)
42” TIMECUTTER Z Series – Model Numbers – (* Model Numbers 74360, 74380, 74381, 74365, 74366)
42” TIMECUTTER ZS Series – Model Numbers – (* Model Numbers 74386, 74389, 74390, 74655, 74656, 74657, 74665, 74667, 74677, 74683, 74684, 74685, 74686, 74687)
42” TIMECUTTER SS Series – Model Numbers – (* Model Numbers 74622, 74624, 74625, 74626, 74623, 74627, 74628, 74633, 74616, 74636, 74705, 74706, 74711, 74720, 74721, 74722, 74723, 74725, 74726)
42” TIMECUTTER SW Series – Model Numbers – (* Model Numbers 74675, 74676, 74784, 74785, 74788)
42” TIMECUTTER SWX Series – Model Numbers – (* Model Numbers 74787)
42” TIMECUTTER 4200 & ZR 4200 Series – Model Numbers – (* Model Numbers 74679, 75740)
42” TIMECUTTER (STANDARD) Series – Model Numbers – (* Model Numbers 75741, 75742, 75744, 75746, 75748, 75749, 77401, 77404)
42” TIMECUTTER (My-Ride) Series – Model Numbers – (* Model Numbers 74692, 75743, 75745, 75747)
XLS RIDING MOWER MODELS - 117-7468 MODEL/SERIES USAGE
XLS Riding Tractor Series (MOWER DECK) – Model Numbers (* Model Numbers 71254, 71255)

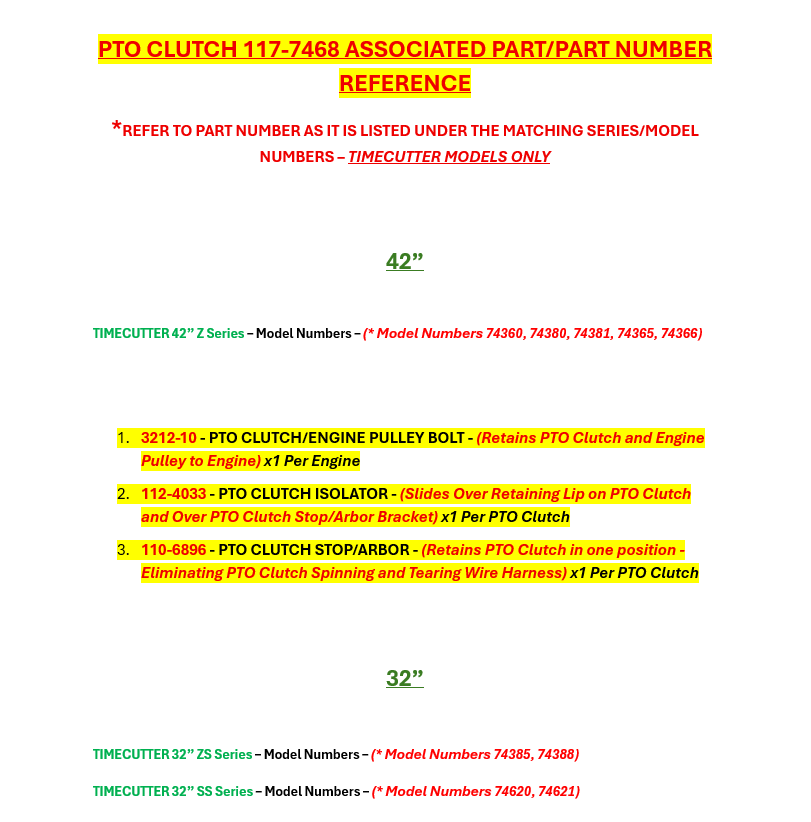

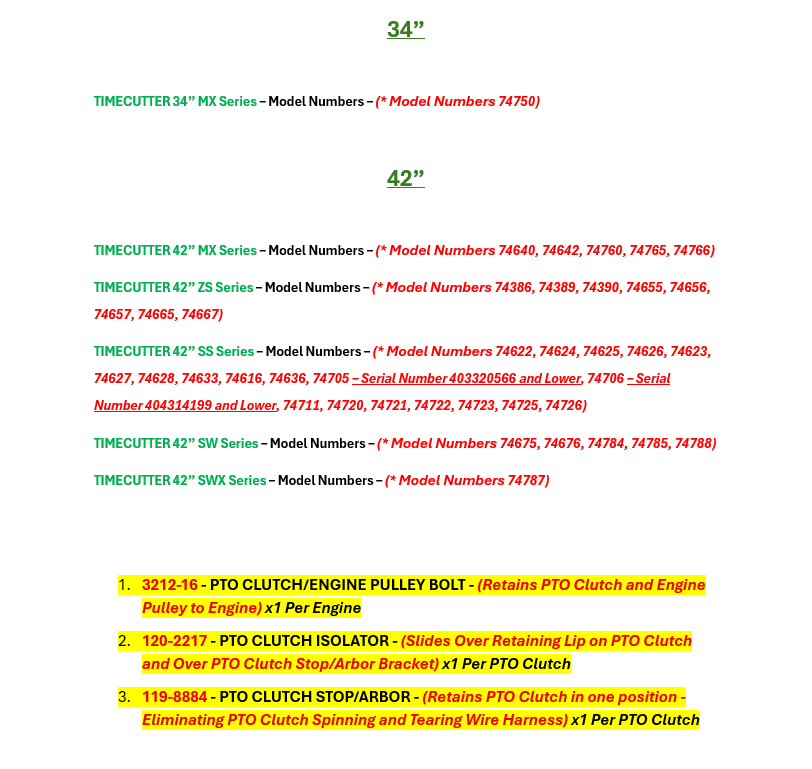

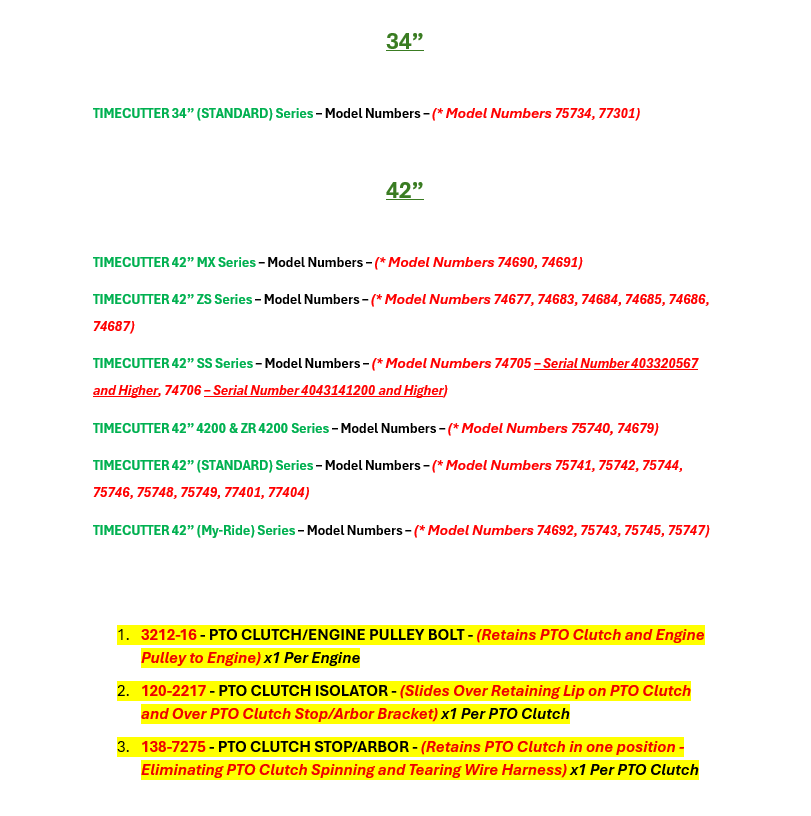

ASSOCIATED PARTS REFERENCE CHART FOR PART NUMBER 117-7468 ONLY
*DUE TO THE AMOUNT OF CONTENT PART REFERENCE IS IN CHART FORM ONLY

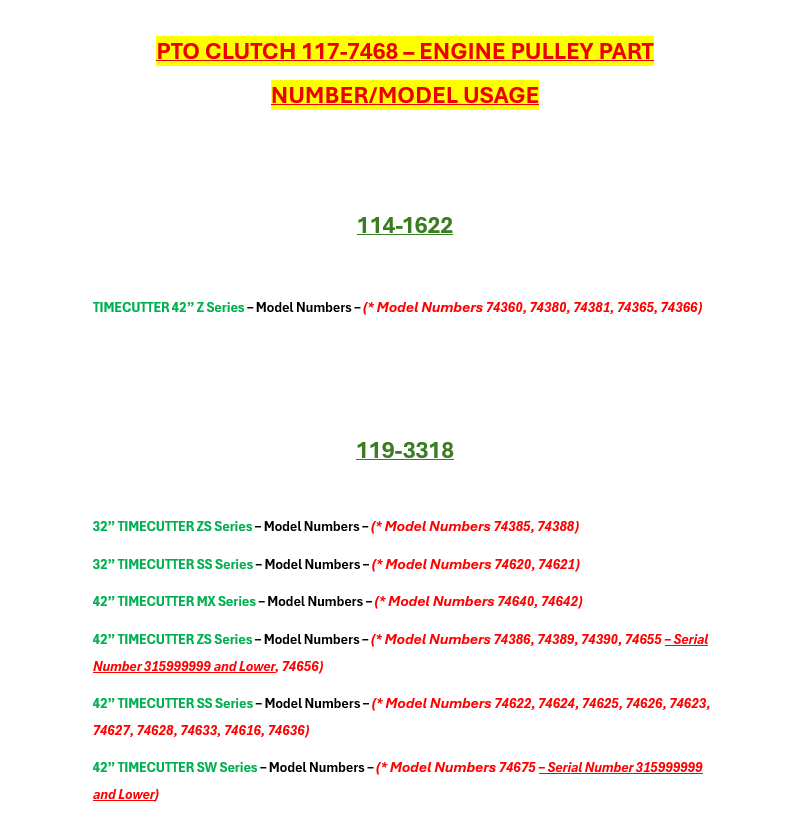

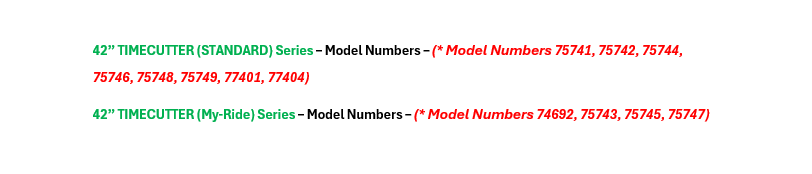

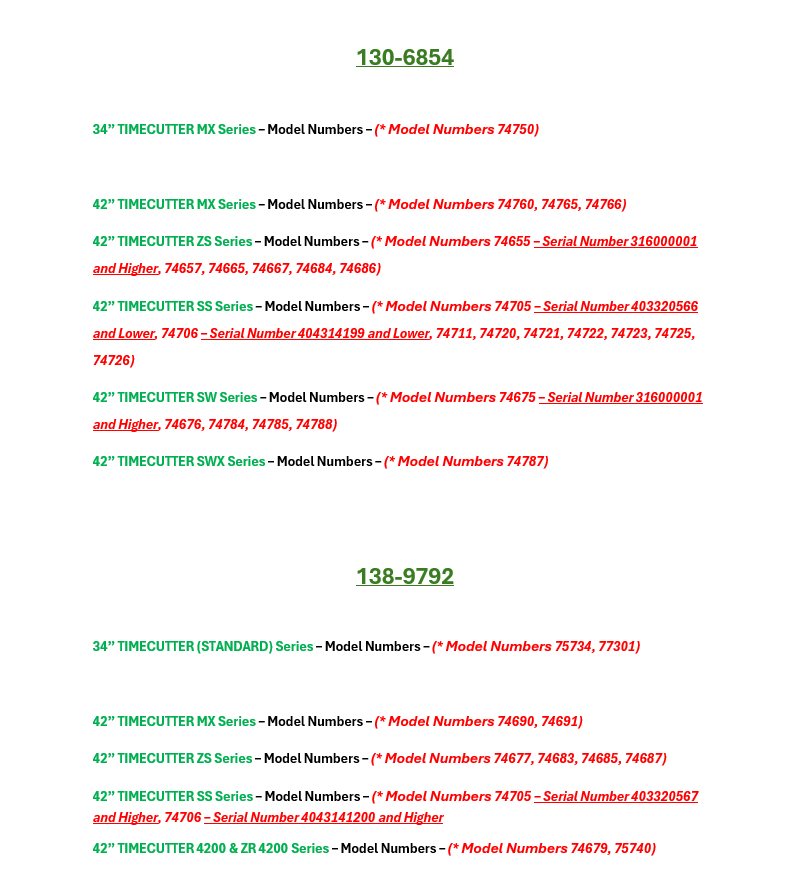

*REFER TO THE ENGINE PULLEY CHART BELOW FOR REFERENCE TO ASSOCIATED MODEL/PART NUMBER REFERENCES
