Toro OEM 117-7418-03 Discharge Baffle Fits Late 48" Timecutter HD Model - Late 48" Titan ZX, MX, X, XS 4800, Standard, MyRide Models (Tube Style Framing) - Current 48" TITAN Standard, MyRide (I-Beam Framing) - Late/Current 48" Proline Models.

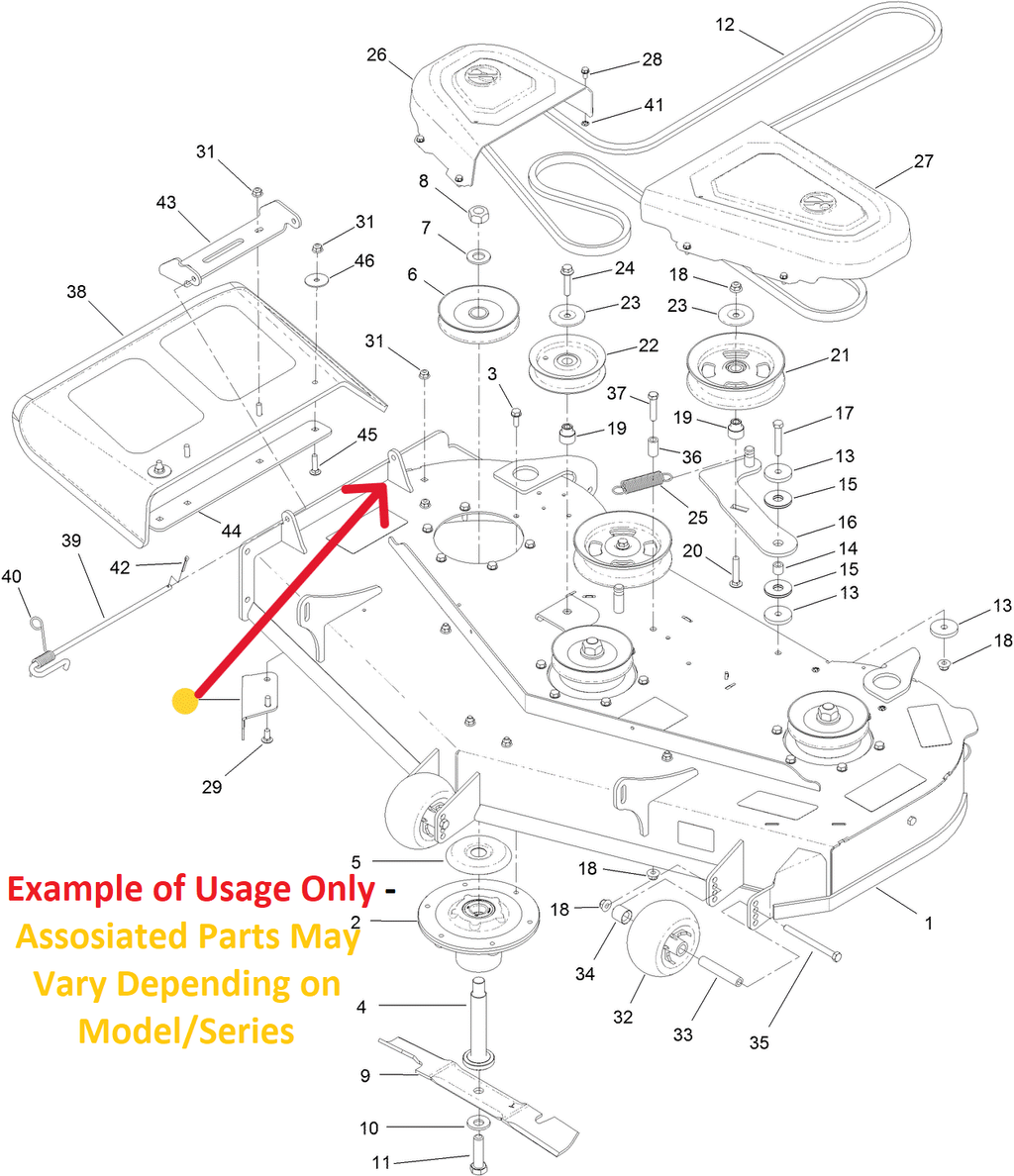

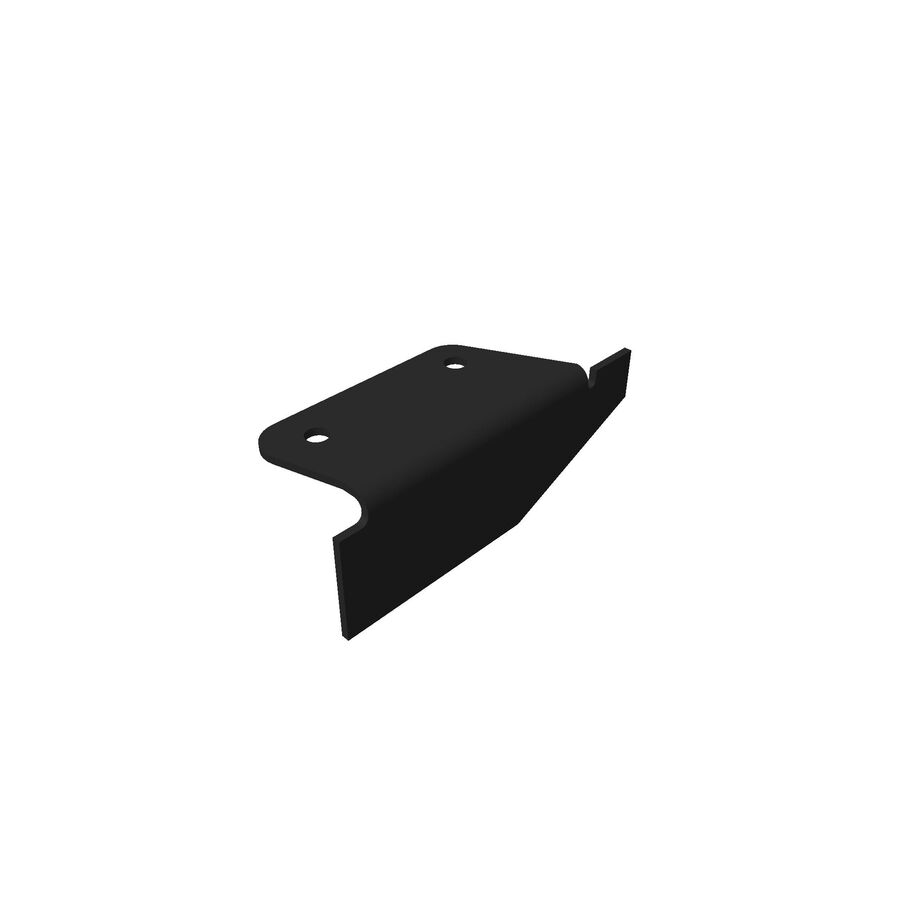

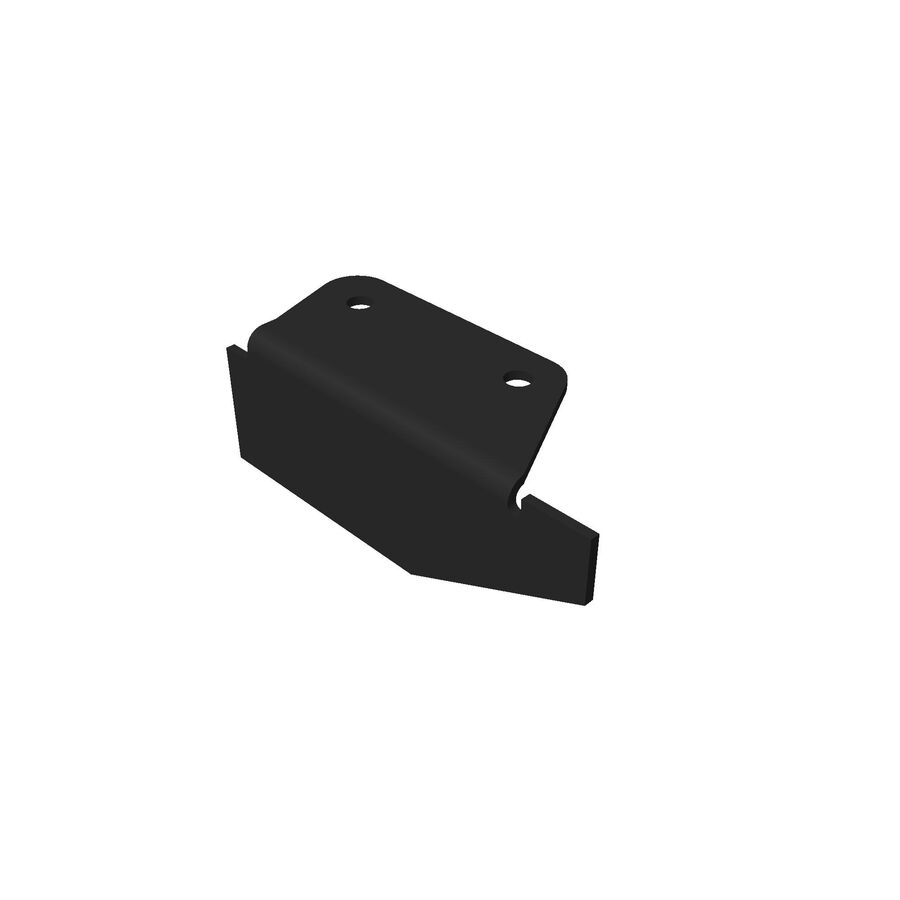

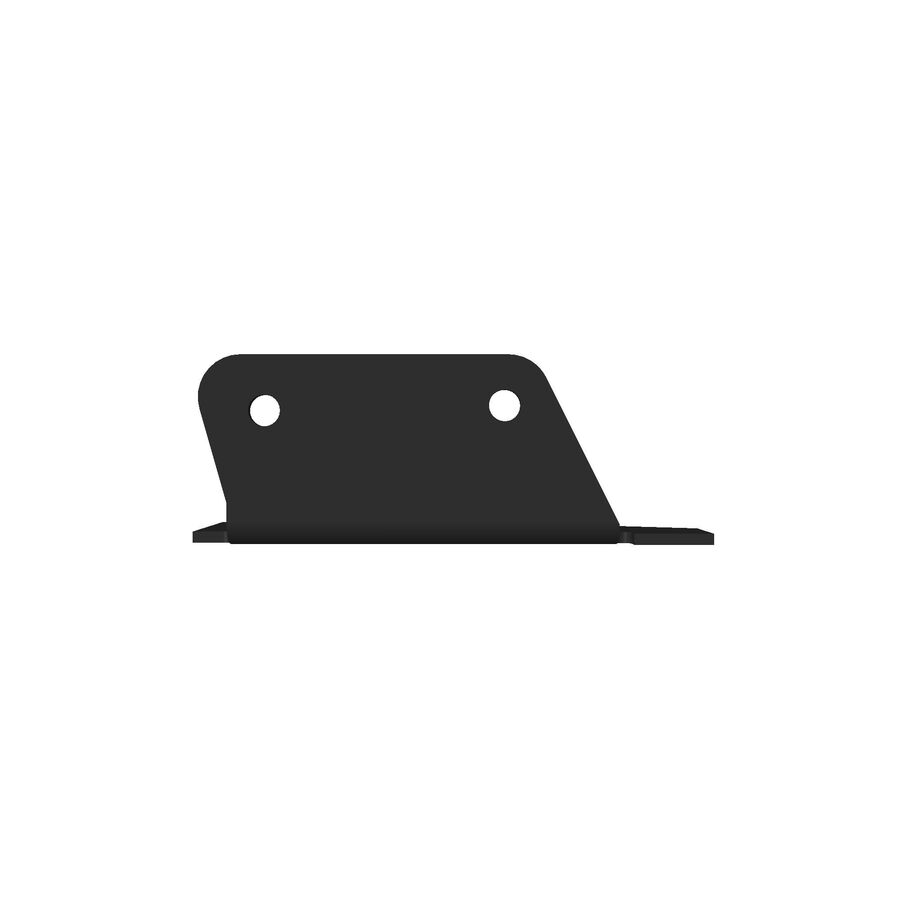

Toro OEM 117 7418 03 Mower Deck Discharge Baffle is used under or inside the Mower Deck by the Discharge Opening. Toro 117 7418 03 Discharge Baffle is used for the Purpose of Redirecting or Interrupting Air Flow and Grass, Stemming Circular Air Flow Toward the Discharge Opening. Toro OEM 117-7418-03 is Designed to fit Toro Late 48" Timecutter HD Models - Late 48" TITAN ZX, MX, X, XS, 4800, Standard, My-Ride Models (Models with Tube Framing) - Current 48" TITAN Standard and My-Ride Models (Models With I-Beam Framing) - Current/Late 48" Proline Models. Due to Variation Within Model Numbers/Series, please refer to the Images above; Product Specifications and to the Model Fit Chart below to ensure a correct fit and for an Accurate Break down of Specific Model Number Usage.







ASSOCIATED PARTS FOR PART NUMBER 117-7418-03 ONLY

CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED





1. 322-1 - HEX HEAD BOLT (Timecutter HD Models Only) - (Retains the Mower Deck Discharge Baffle to the Mower Deck) x2 Per Mower Deck Discharge Baffle
2. 322-2 - HEX HEAD BOLT (Select TITAN Models Only) - (Retains the Mower Deck Discharge Baffle to the Mower Deck) x2 Per Mower Deck Discharge Baffle
3. 3230-22 - CARRIAGE BOLT (Select TITAN Models Only) - (Retains the Mower Deck Discharge Baffle to the Mower Deck) x2 Per Mower Deck
4. 3230-3 - CARRIAGE BOLT (PROLINE Models Only) - (Retains the Mower Deck Discharge Baffle to the Mower Deck) x2 Per Mower Deck Discharge Baffle
5. 104-8300 - NYLON LOCK NUT - (Retains the Mower Deck Discharge Baffle to the Mower Deck) x2 Per Mower Deck Discharge Baffle







Specification

Product Number:	117741803
Brand:	Toro
Length:	NA
Width:	NA
Height:	NA
Weight:	0.779 LB (0.353 KG)





Model Fit:



TIMECUTTER



48” TIMECUTTER HD Series – Model Numbers – (* Model Numbers 74864, 74866, 74886, 75201, 75210, 75211)



TITAN



48” TITAN Standard, My-Ride (48” Newer/Current Models I-Beam Frame) – 48” Current Models - (* Model Numbers 76401, 76411, 76420, 76425, 76448)

48” TITAN 4800, TITAN Standard, TITAN My-Ride (PRE - Current IBEAM – Framing – Tube Framing Models Only) – 48” Early / Late Models Only - (* Model Numbers 75301, 75311, 75314, 75304)

48” Titan X, XS Series (PRE - Current IBEAM – Framing – Tube Framing Models Only) – 48” Early Models - (* Model Numbers 74874, 74875, 74887, 74890)

48” Titan MX & ZX Series (PRE - Current IBEAM – Framing – Tube Framing Models Only) – 48” Early Models - (* Model Numbers 74830, 74841, 74845, 74846, 74851, 74855, 74861, 74871, 74891, 74912, 74920)



PROLINE



48” Proline Series – 48” Current/Late Models Only - (* Model Numbers 44423, 44424, 44448)
