Description

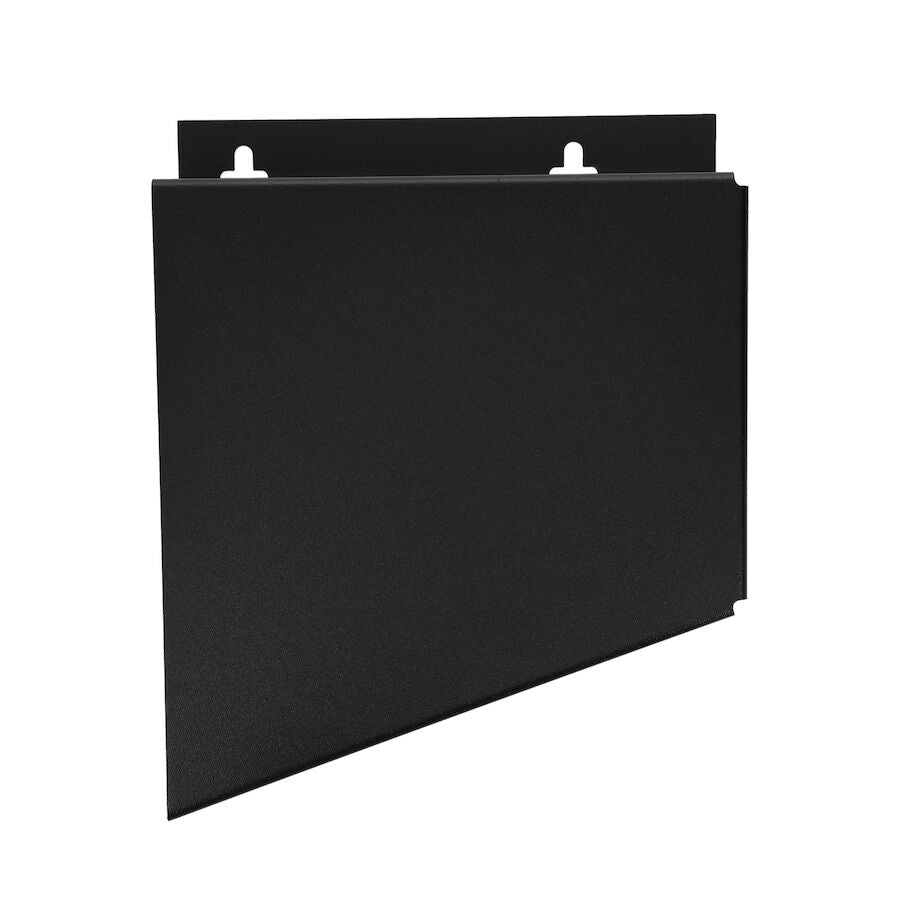

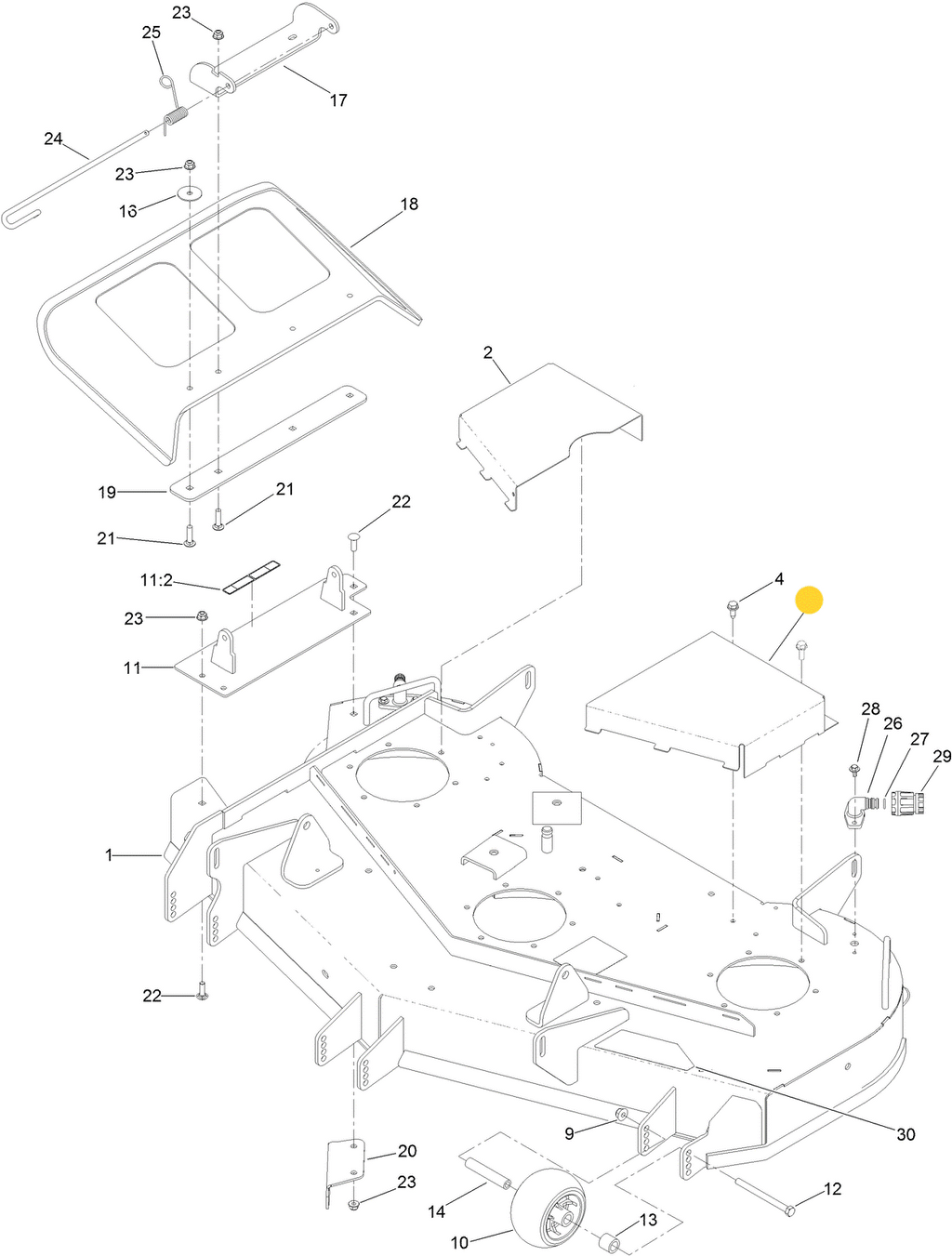

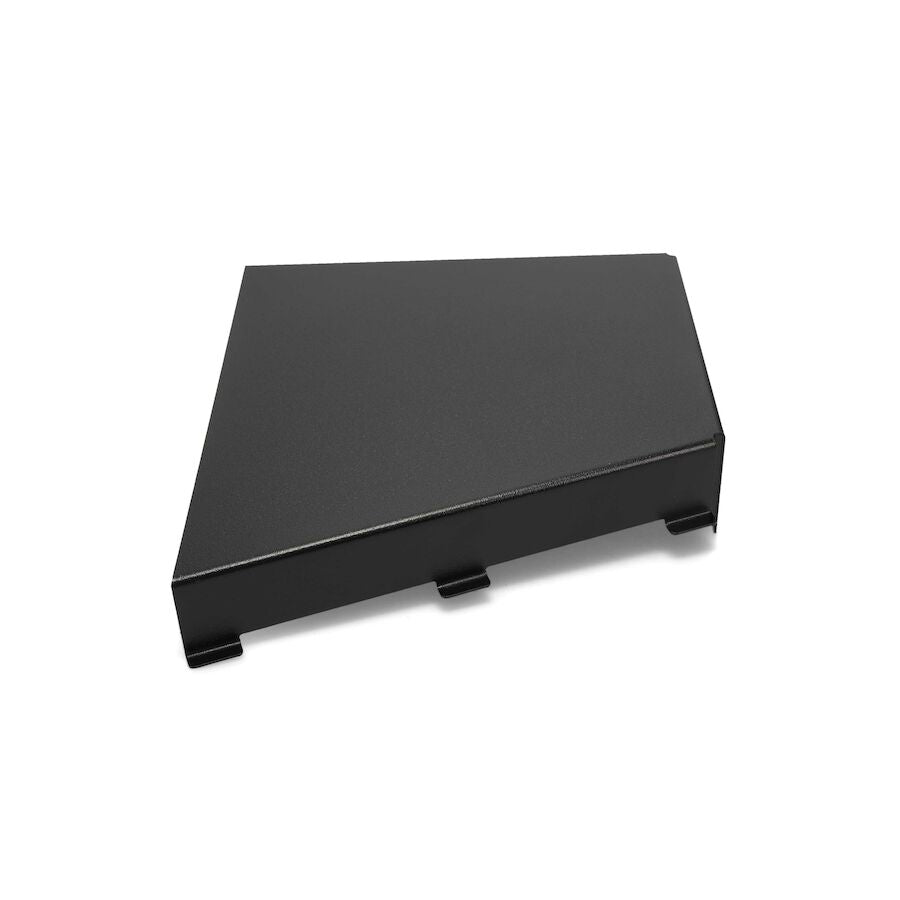

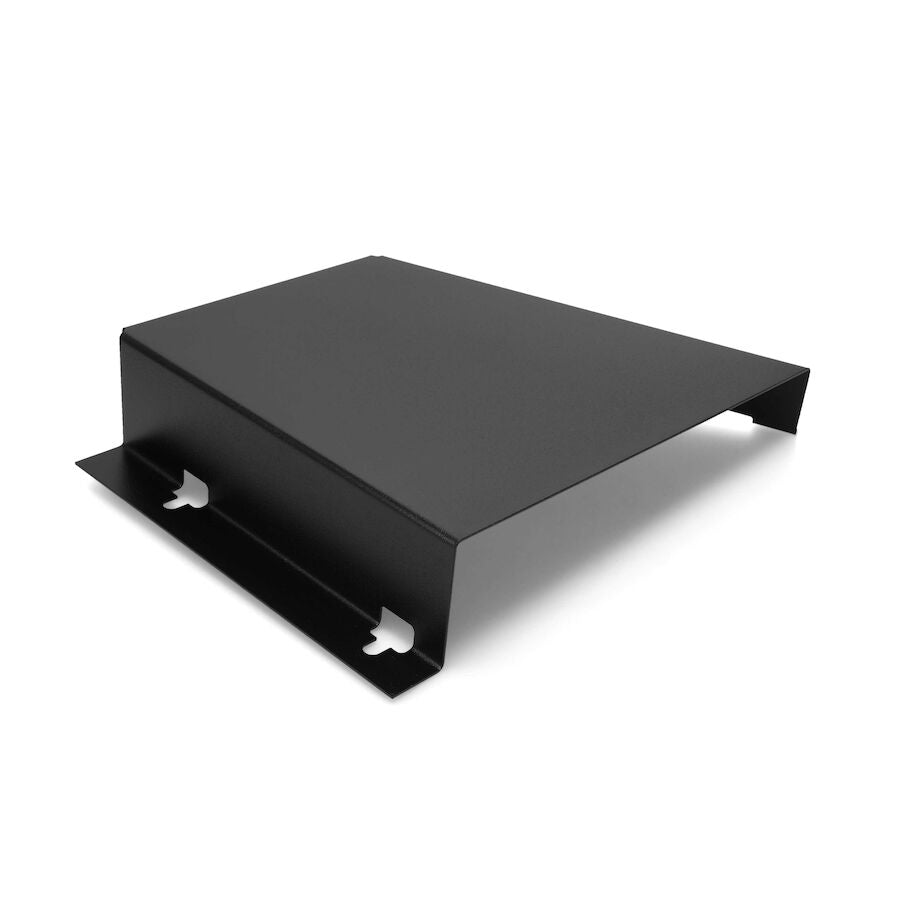

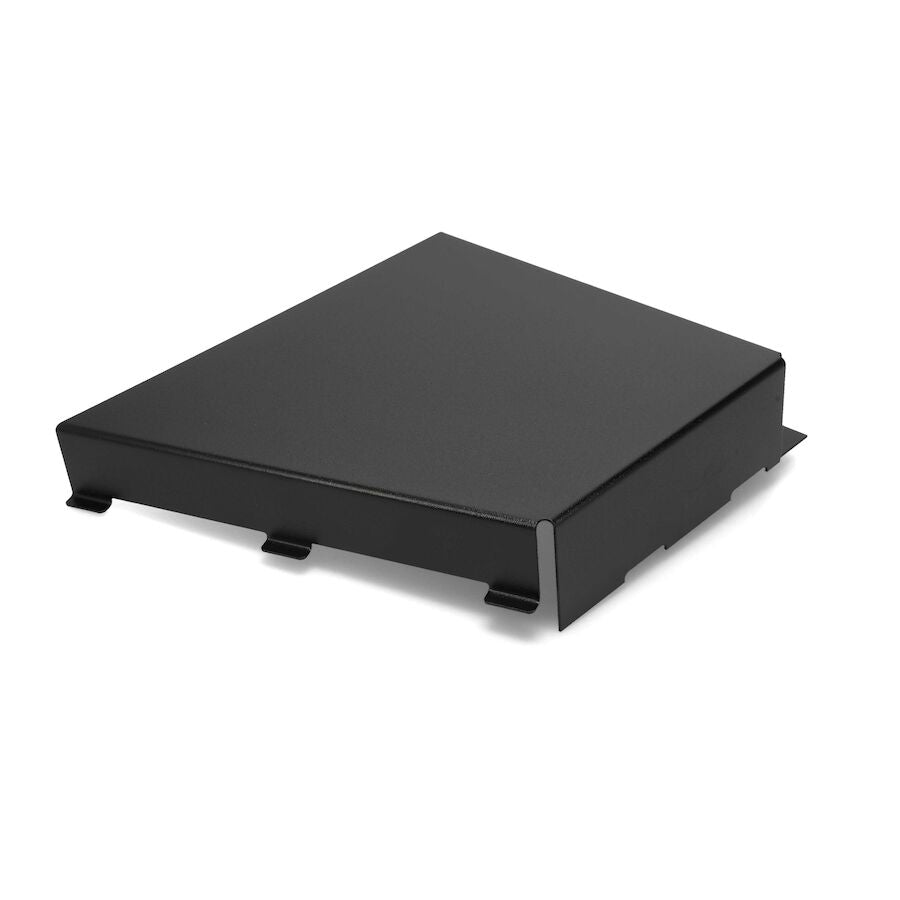

Trust Oem Replacement Left-Side 117 7397 05 Pulley and Belt Sheild to properly fit and cover those belts and pulleys, keeping the operator safe. this easy to remove Guard design allows easy access to cleaning your Mower Deck and fits Toro 48" Early Model Titan ZX 4800 Series Note: All models will have two Belt Covers, in most case there is a Left-hand and Right-hand side. Left to Right is Determined as you stand or sit on the Operator Station. Differences can also be determined by size. Due to Variation Within Model Numbers/Series, please refer to the Images above; Product Specifications and to the Model Fit Chart below for an Accurate Break down of Specific Model Number Usage. Part Number 117-7397-03 Supersedes to Part Number 117-7397-05.
ASSOCIATED FASTNERS FOR PART NUMBER 117-7397-05 ONLY
CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED
-
32144-70 - SELF-TAPPING TAP SCREW - (Retains Pulley Cover Retaining Bracket to Mower Deck) x2 Per Retaining Bracket
|
Product Number: |
117739703, 117739705 |
|
Brand: |
Toro |
|
Length: |
NA |
|
Width: |
NA |
|
Height: |
NA |
|
Weight: |
2.602 LB (1.180 KG) |
Model Fit:
TITAN 48” ZX 4800 Series (Early Model – Tube Framing) Series – Model Numbers – 74830, 74841, 74845, 74846, 74851, 74855, 74861, 74871, 74912, 74920
