Description

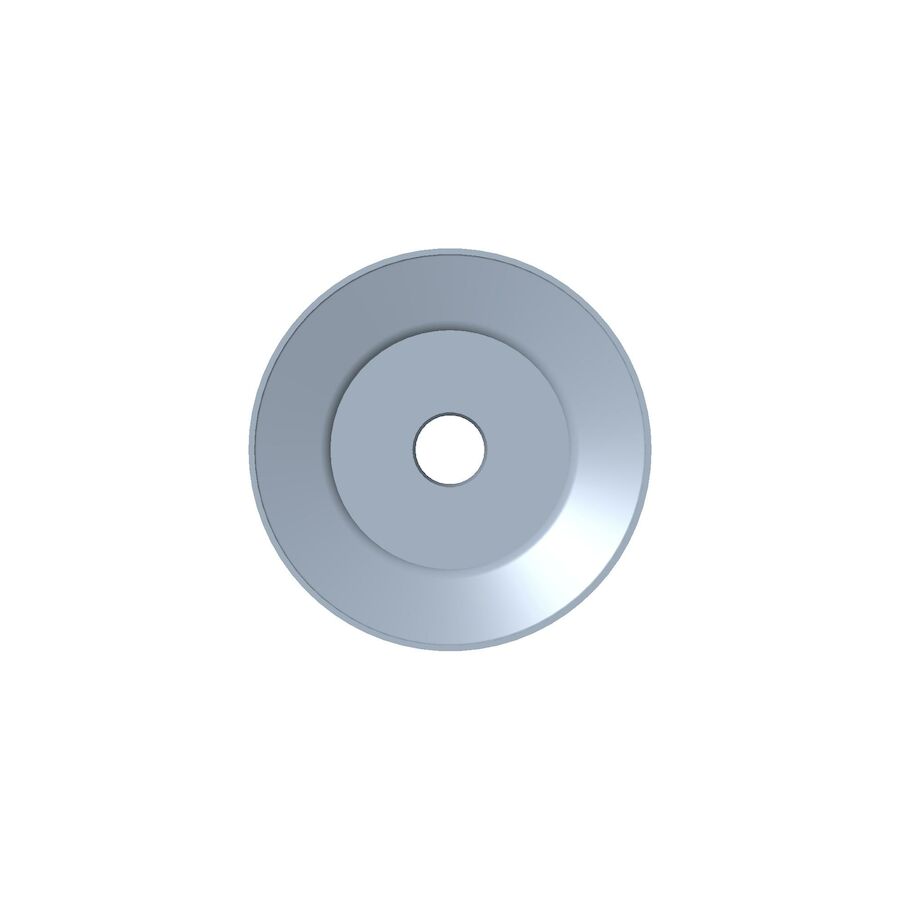

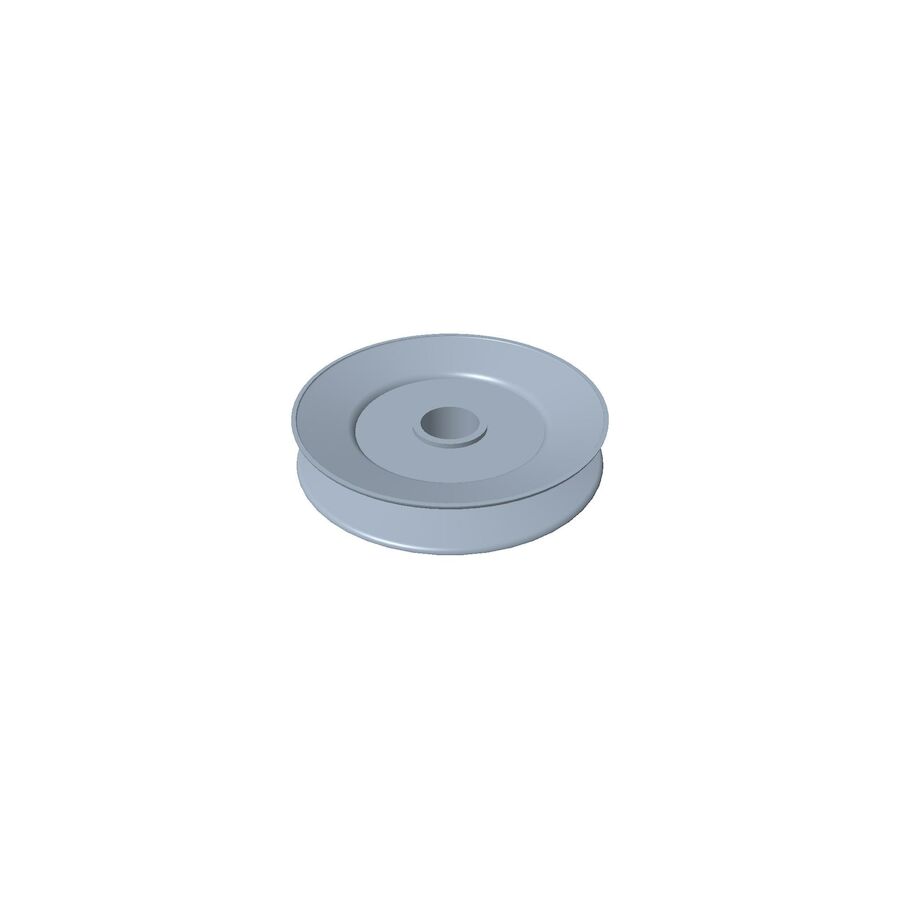

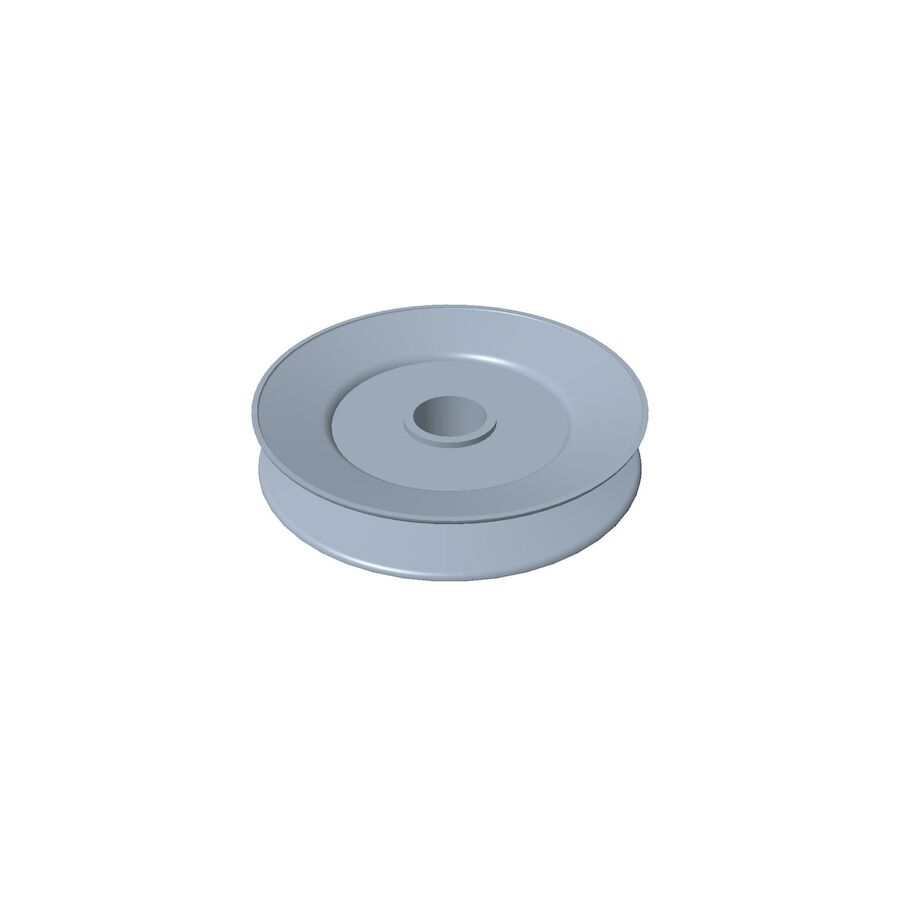

Expertly crafted from durable metal, the Toro OEM 115 4975 Spindle Assembly Pulley is designed for precision and efficiency. Specifically made to fit Toro Spindle Assemblies on all Toro 48" Timecutter HD Models - Early/Late 48" TITAN HD 1500, TITAN HD 2000, TITAN MX and ZX Models (* Models with Tube Framing - Pre-IBEAM-Framing)- Early/Late 48" ZMaster 2000 Models (* Models with Tube Framing - Pre-I-BEAM Framing). The Toro 115 4975 high-quality pulley ensures accurate blade speed for optimal performance. Please refer to the Images above; Product Specifications, Special Notes and the Model Fit guide below to ensure proper fit.
NOTE: To Gain a better understanding of part number variations for TITAN Models Refer to the 48", 52", 54", 60" TITAN Spindle Pulley Chart below. The chart also includes Models/Series not listed within the TITAN Model/Series to clarify their corresponding part numbers.
ASSOCIATED MOWER DECK SPINDLE ASSEMBLY FOR PART NUMBER 117-7326
CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED
* MODELS ASSOCIATED TO PART NUMBER 117-7326 ONLY
139-2357 - SPINDLE ASSEMBLY - REQUIRES THREE PER MOWER DECK
|
Product Number: |
1177326 |
|
Brand: |
Toro |
|
Length: |
4.200 IN (10.668 CM) |
|
Width: |
3.900 IN (9.906 CM) |
|
Height: |
1.300 IN (3.302 CM) |
|
Weight: |
1.250 LB (0.567 KG) |
Model Fit:
1. Timecutter HD – 48” Late Models Only - (* Model Numbers 74864, 74866, 75201, 75210, 75211)
2. Titan MX & ZX Series (PRE - Current IBEAM – Framing – Tube Framing Models Only) - Early Models - (* Model Numbers 74830, 74912, 74841, 74845, 74920, 74871, 74851, 74855, 74846, 74891, 74861).
3. TITAN HD 1500 & HD 2000 (PRE - Current IBEAM – Framing – Tube Framing Models Only) - 48" Late Models / Tubed Framing - (* Model Numbers 78450, 74465, 74460, 74453, 74450)
4. Z Master 2000 (PRE - Current IBEAM – Framing – Tube Framing Models Only) - 48" Late Models / Tubed Framing - (* Model Numbers 74490, 74495, 77248, 77280)
