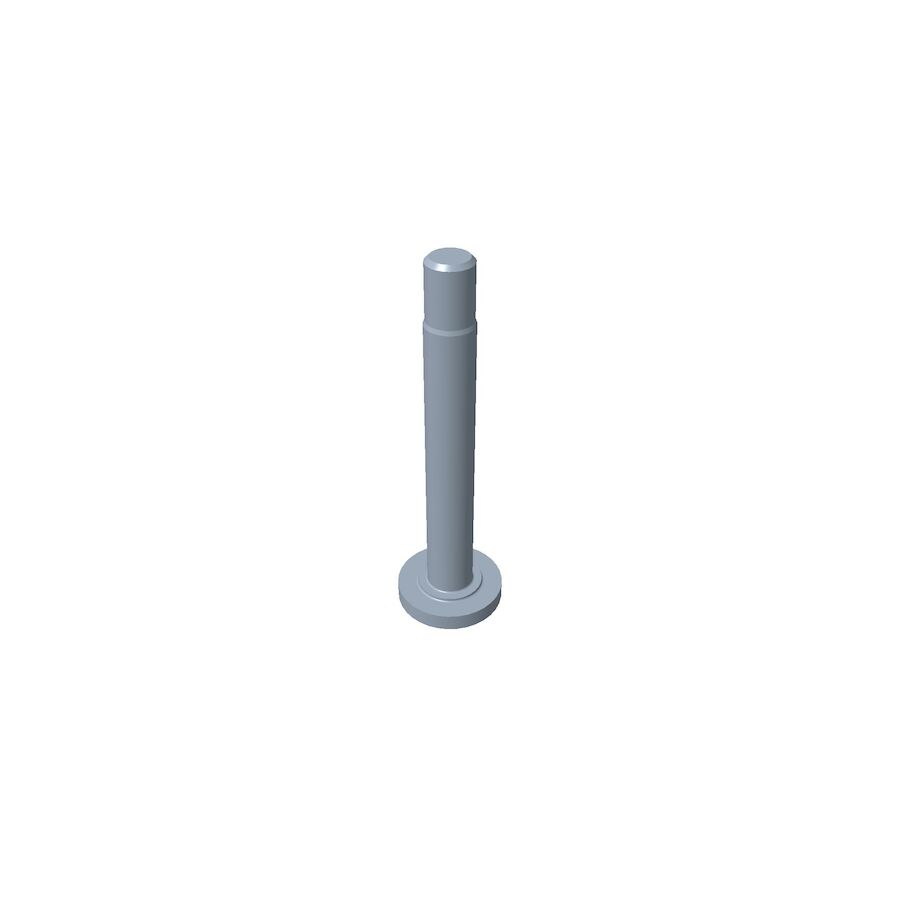

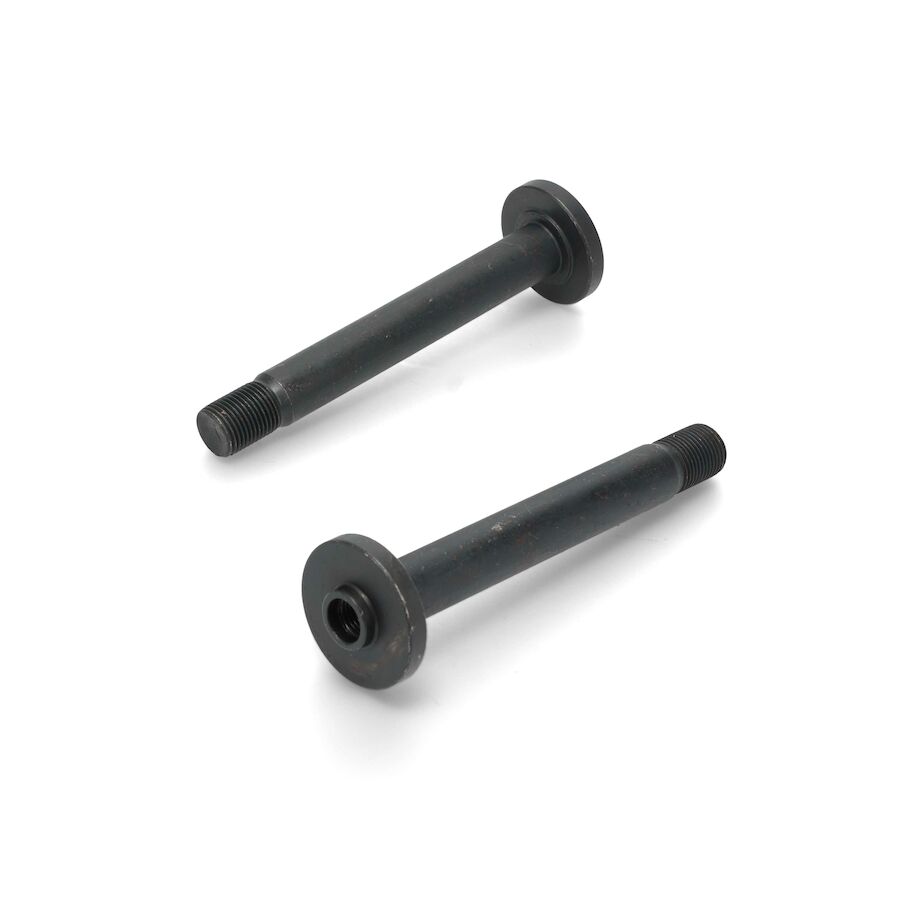

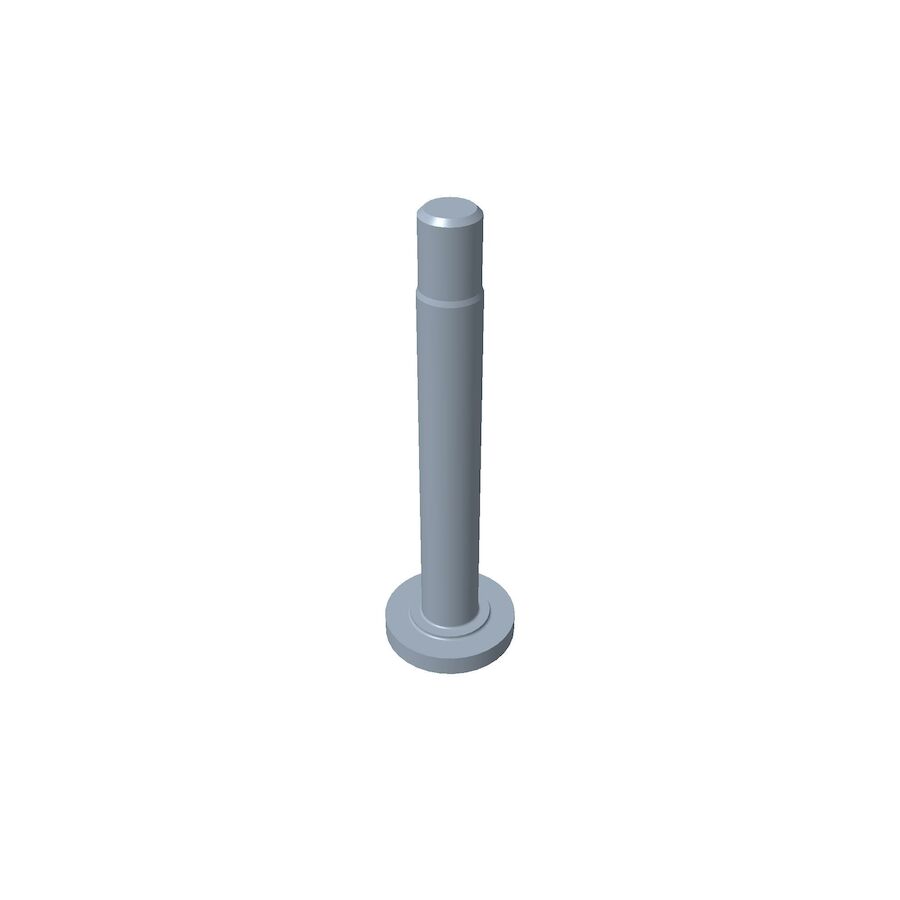

Toro OEM 117-7268 Fits 34", 42", 50", 54" and 60" Timecutter Models.

Improve your grass mowing experience with the Toro OEM Spindle Shaft 117 7268. This integral part is designed to fit perfectly and ensure safe operation of your Blade Mount and Mower Deck Spindle Pulleys. Made with the right hardness of metal, it maintains the strength and integrity of your machine for optimal performance. Trust OEM sizing for the best results. Toro OEM Spindle Shaft 117 7268  is designed for multiple Toro Timecutter Models Including: Timecutter  34" - (MX, Standard), 42" (MX, SS, SW, SWX, ZS, 4200, ZR 4200, Standard, My-Ride), 50" - (MX, SS, SW, SWX, ZS, 5000, Standard, My-Ride, MAX), 54" - (SW, SS, Standard, My-Ride, MAX), 60" - (MX, Standard, My-Ride, MAX). Toro 117-7268 Also Fits a Toro Titan 50" ZX Model and a E-Z Vac/Bagger Systems. For an Accurate Break down of Usage Refer to the Model Fit Chart. Please refer to the Images above; Product Specifications and the Model Fit guide below to ensure proper fit. 117-7268 come as 1 Individual Part.

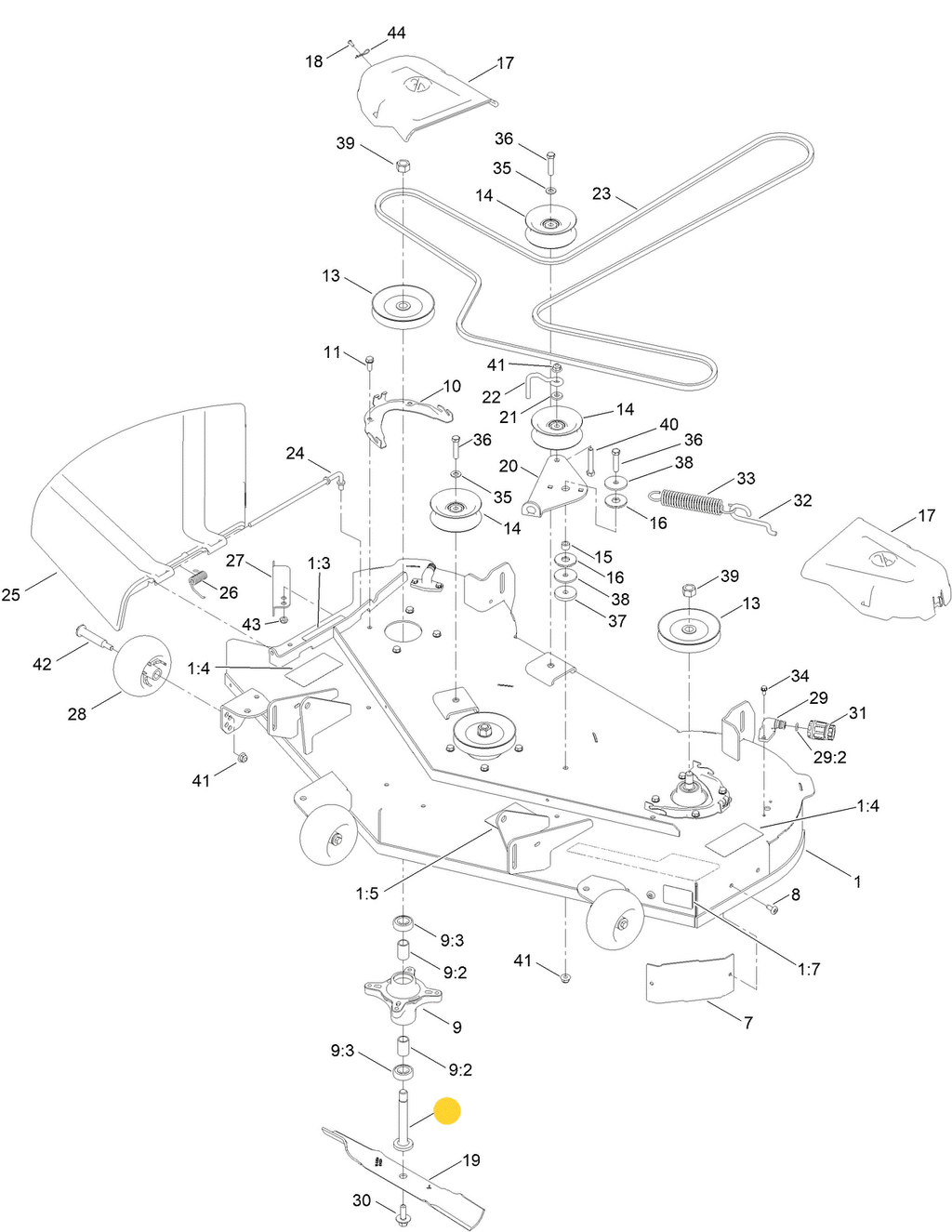

ASSOCIATED SPINDLE SHAFT PARTS FOR PART NUMBER 117-7268 ONLY

CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED





1. 139-3214 - SPINDLE ASSEMBLY (Does not come with spindle shaft & outside components)
2. 3219-6 - PULLEY NUT (Retains Internal Spindle Assembly Parts) x1
3. 138-9770 - BALL BEARING x2
4. 120-7935 - BEARING SPACER x2
5. 145-0411 - BLADE BOLT (Retains Mower Deck Blade) x1







Specification

Product Number:	1177268
Brand:	Toro
Length:	5.510 IN (13.995 CM)
Width:	1.540 IN (3.912 CM)
Height:	1.540 IN (3.912 CM)
Weight:	0.564 LB (0.256 KG)





Model Fit:



TIMECUTTER 34” MX Series – Model Numbers – 74750

TIMECUTTER 34” (STANDARD) Series – Model Numbers – 75734, 77301



TIMECUTTER 42” SS Series – Model Numbers – 74622, 74624, 74625, 74626, 74623, 74627, 74628, 74633, 74616, 74636, 74705, 74706, 74711, 74720, 74721, 74722, 74723, 74725, 74726

TIMECUTTER 42” SW Series – Model Numbers – 74675, 74676, 74784, 74785, 74788

TIMECUTTER 42” SWX Series – Model Numbers – 74787

TIMECUTTER 42” ZS Series – Model Numbers – 74386, 74389, 74390, 74655, 74656, 74657, 74665, 74667, 74677, 74683, 74684, 74685, 74686, 74687

TIMECUTTER 42” MX Series – Model Numbers – 74640, 74642, 74760, 74765, 74766, 74649, 74690, 74691

TIMECUTTER 42” 4200 & ZR 4200 Series – Model Numbers – 74679, 75740

TIMECUTTER 42” (STANDARD) Series – Model Numbers – 75741, 75742, 75744, 75746, 75748, 75749, 77401, 77404

TIMECUTTER 42” (My-Ride) Series – Model Numbers – 74692, 75743, 75745, 75747



TIMECUTTER 50” ZS Series – Model Numbers – 74387, 74660, 74661, 74395, 74688

TIMECUTTER 50” MX Series – Model Numbers – 74641, 74643, 74770, 74771, 74775, 74776, 74778, 74727, 74768, 74772, 74773, 74774

TIMECUTTER 50” SS Series – Model Numbers – 74630, 74632, 74631, 74635, 74637, 74638, 74730, 74731, 74732

TIMECUTTER 50” SW Series – Model Numbers – 74793, 74680, 74790

TIMECUTTER 50” SWX Series – Model Numbers – 74797, 74798, 74795

TIMECUTTER 50” 5000 Series – Model Numbers – 75751

TIMECUTTER 50” (STANDARD) Series – Model Numbers – 75750, 75753

TIMECUTTER 50” (My-Ride) Series – Model Numbers – 74696, 75755, 75759

TIMECUTTER MAX 50” (STANDARD) Series – Model Numbers – 77501, 77505

TIMECUTTER MAX  50” (My-Ride) Series – Model Numbers – 77502



TIMECUTTER 54” SS Series – Model Numbers – 74740, 74741

TIMECUTTER 54” SW Series – Model Numbers – 74793

TIMECUTTER 54” (My-Ride) Series – Model Numbers – 75754, 75756, 75757

TIMECUTTER MAX 54” (STANDARD) Series – Model Numbers – 77504, 77506

TIMECUTTER MAX  54” (My-Ride) Series – Model Numbers – 77503, 77507



TIMECUTTER 60” MX Series – Model Numbers – 74777

TIMECUTTER 60” (STANDARD) Series – Model Numbers – 75760, 75762

TIMECUTTER 60” (My-Ride) Series – Model Numbers – 75763

TIMECUTTER MAX 60” (STANDARD) Series – Model Numbers – 77601, 77604

TIMECUTTER MAX  60” (My-Ride) Series – Model Numbers – 77602, 77603



TITAN 50” ZX Series – Model Numbers - 74840



E-Z VAC BLOWER & BAGGER BLOWER ASS. MODELS – Model Numbers – 79345
