Toro OEM 117-2348-03 Lower Handle Section Fits Select 18" Toro Single Stage Power Clear and Power Lite Snowblower Models.

Please refer to the Images above; Product Specifications, Associate Part Chart and the Model Fit Guide below to Ensure a proper fit.



• PRODUCT NUMBER AND VARIATIONS: 117-2348-03, 117 2348 03, 117234803
• PRODUCT TYPE: Upper Handle Section
• SIZE: Length 22.800 in. - Width 14.000 in. - Height 1.000 in. - Weight 2.200 lbs.
• NOTES & DETAILS: Toro OEM  117-2348-03 IS COMMINLY USED - As the Lower of a Two-Piece Handle Assembly and Fastens to The Main Snowblower Assembly - Enabling the Operator to Fold the Upper Handle Section for Transporting and Storage.
• COMMON SERIES APPLICATIONS: Toro Select 18" Power Clear & Power Lite Snow Blower Models.



• MODEL FIT CHART:

SNOWBLOWER’S



POWER LITE Series – Model Numbers – (* Model Numbers 38273, 38274, 38283,)

POWER CLEAR Series – Model Numbers – (* Model Numbers 38272, 38282, 38472, 38473, 38474, 38475)





• ASSOCIATED PARTS CHART:



ASSOCIATED PARTS REFERENCES FOR PART NUMBER 117-2348-03 ONLY

CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED



UPPER & LOWER HANDLE FASTNERS



1. 117-2348-03 - LOWER HANDLE SECTION (Fastens to the Auger/Rotor Housing and is the Lower Section of a Two-Piece Handle Assembly that Retains the Upper Handle Section) x1 Per Unit
2. 92-2260 - CARRIAGE BOLT (Retains and Locks Two-Piece Handle Assemblies from Coming Apart or Folding) x2 Per Handle Assembly
3. 107-3844 - CONTOUR WASHER (Shaped to contour the Handle and is Used Between the Handle and the Fastners to Protect the Handle and Support the Fastners) x1 Per Handle Carriage Bolt Fastner
4. 106-4161 - HANDLE KNOB (Retains the Handle Lock Bolt Fastner in the Handle Two-Piece Handle Assembly and Enables Operator to Easily Disassemble or Fold the Handle Assembly) x2 Per Handle Assembly




LOWER HANDLE & MAIN SNOWBLOWER UNIT FASTNERS

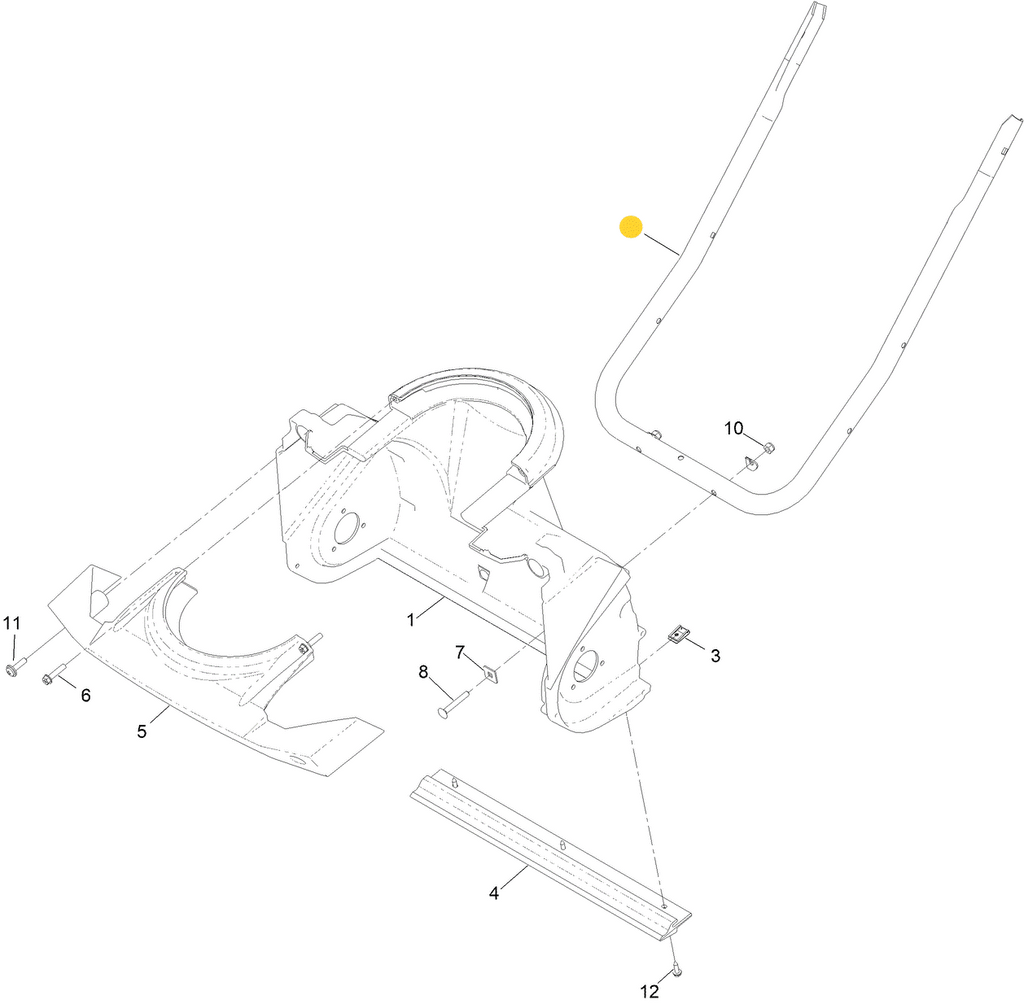

1. 120-9698 - CARRIAGE BOLT (Retains the Bottom Handle Section to the Main Snowblower Auger Housing - Inserted from Inside the Auger Housing Using a Square Washer That Inserts into the Auger/Rotor Housing) x2 Per Handle Assembly
2. 75-9040 - SQUARE WASHER (Supports and Retains the Carriage Bolt from Turning while tightening it and inserts into the Auger Housing) x2 Per Handle Assembly
3. 107-3844 - CONTOUR WASHER (Shaped to Contour the Handle and is Used Between the Handle and the Lock Nuts to Protect the Handle and Support the Lock Nuts) x1 Per Handle Carriage Bolt Fastner

4. 3296-73 - NYLON LOCK NUT (Retains the Bottom Handle Section to the Main Snowblower Auger Housing - Used against the Handle Contour Washer) x2 Per Lower Handle Section
