Toro OEM 117-2314 Snowblower Deflector Adjustment Trigger Fits Select Toro Power Curve, Powerlite, Power Clear, E-Power Clear, E-Snowthrower, Snow Max, Snow Master and Power Max Snowblower Models.

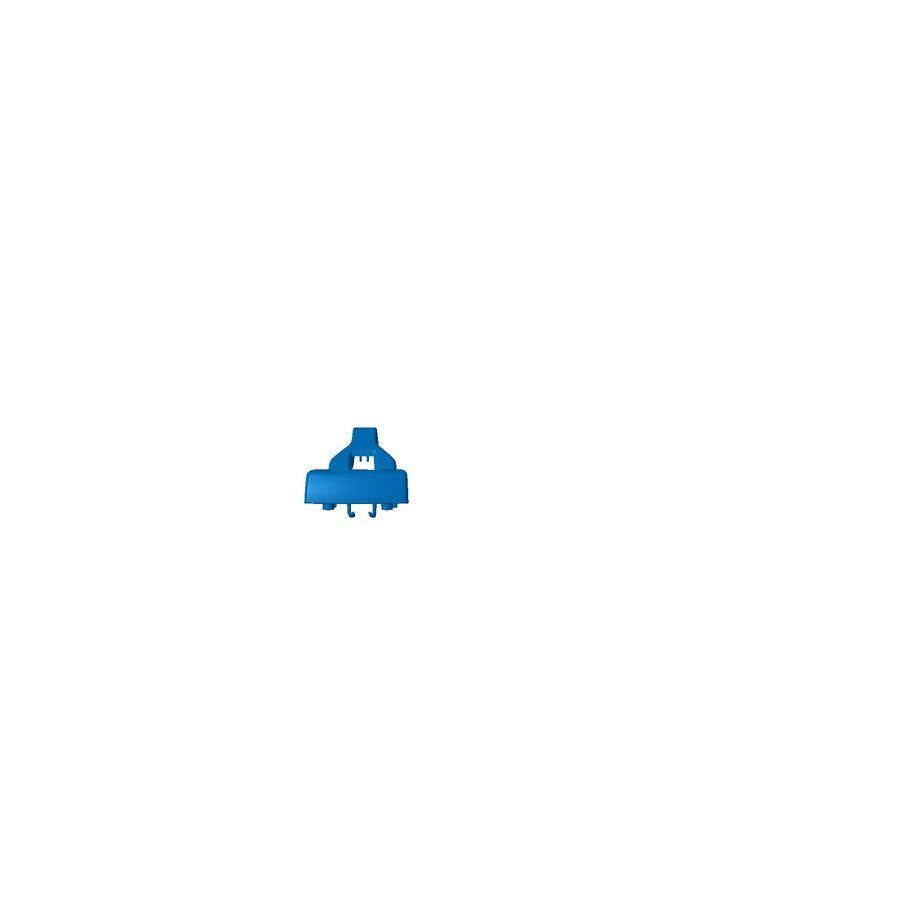

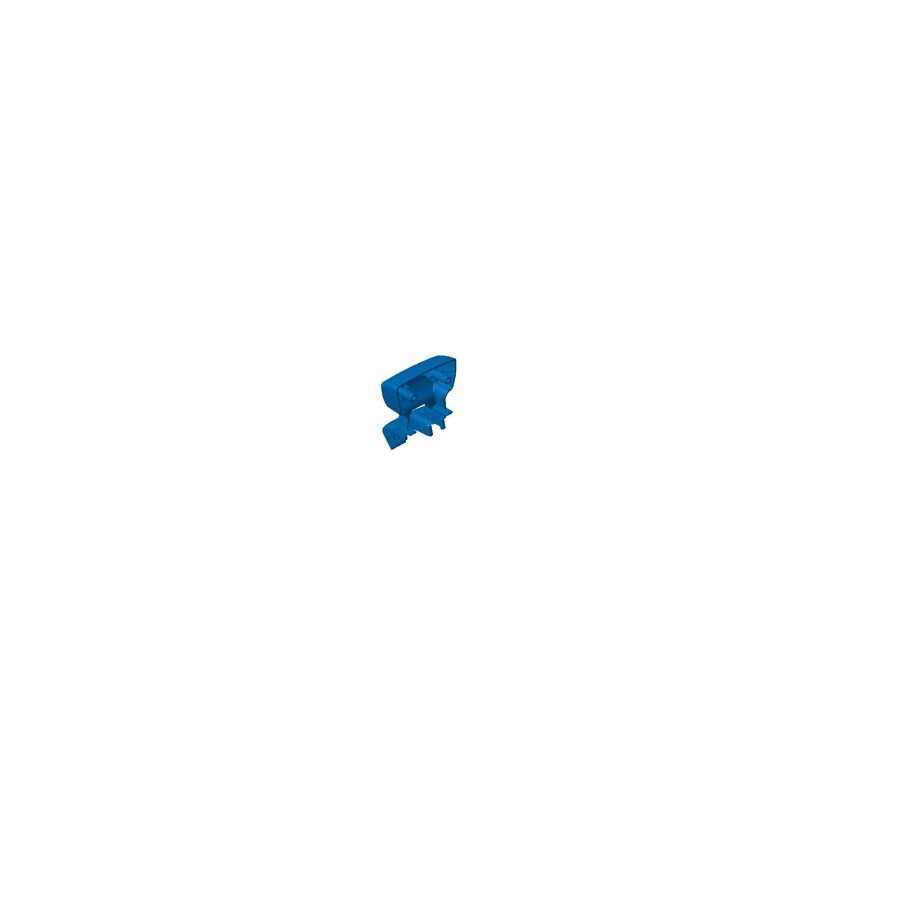

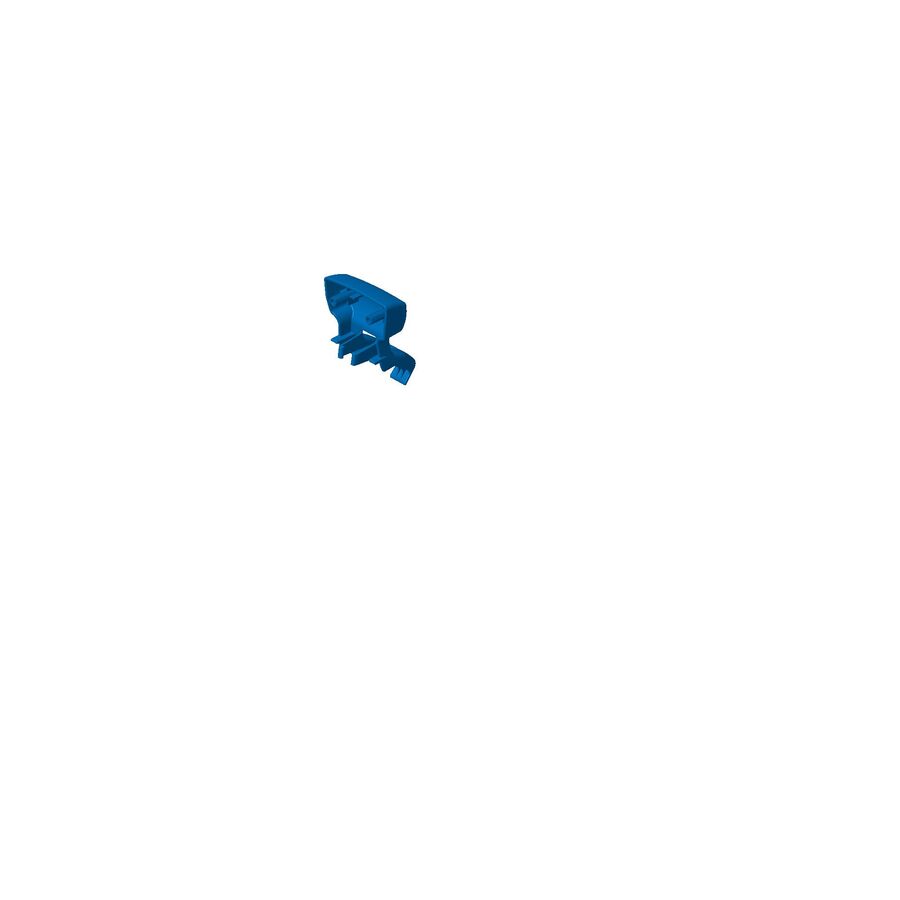

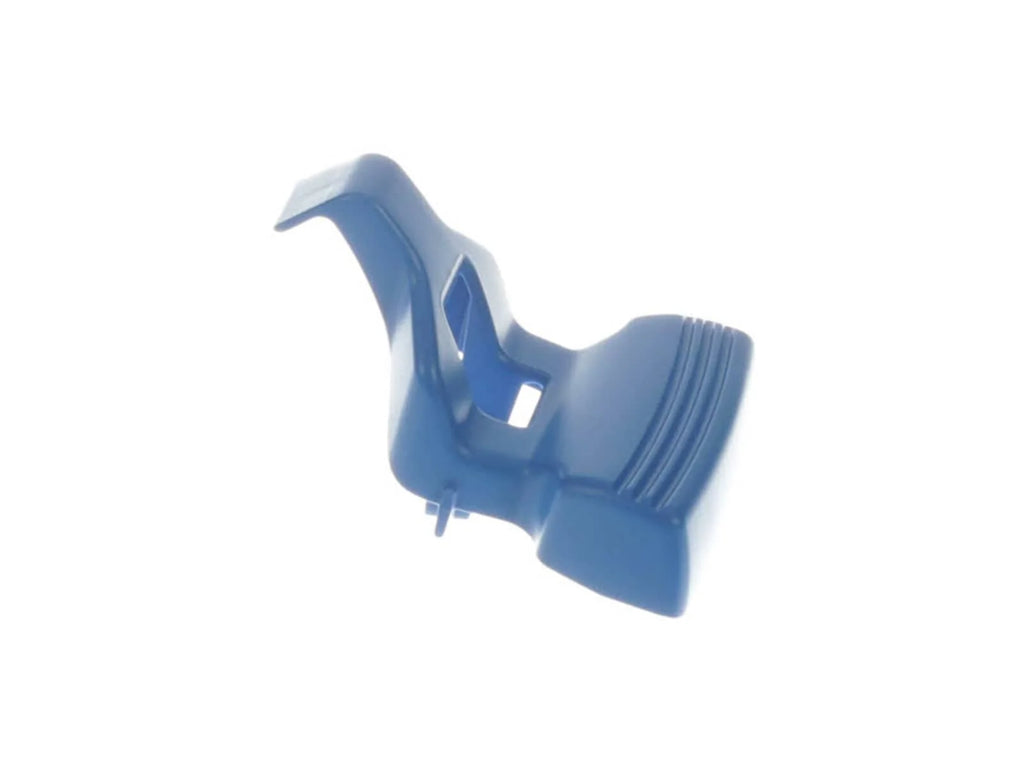

Toro OEM 117-2314 Deflector Trigger



Restore positive control of your snow stream height with the genuine Toro OEM 117-2314 Trigger-Deflector. This part is the hand-operated trigger that lets the operator squeeze, adjust, and re-lock the chute deflector to fine-tune how high or low the snow throws. If your deflector won’t hold position, slips during use, or the trigger is cracked/missing, replacing it May help bring back the firm “click-in” hold and smooth adjustment you been Missing.



• OEM Part Number: 117-2314, 117 2314, 1172314
• Part Name: Trigger-Deflector
• Function: Releases/Locks the Chute Deflector so you can change throw height on the fly
• Genuine Toro OEM: Correct fit and performance on Select Toro Powercurve, Powerlite, Power Clear, E-Power Clear, E-Snowthrower, Snow Max, Snow Master & Power Max snow throwers





Fits These Toro Models (By Family)

Verify your model number (and serial range when applicable) from the machine tag before ordering.



POWER CURVE Series – Model Numbers – (* Model Numbers 38302, 38303, 38381)



POWERLITE Series – Model Numbers – (* Model Numbers 38273, 38274, 38283)



POWER CLEAR Series – Model Numbers – (* Model Numbers 38272, 38282, 38472, 38473)



E POWER CLEAR Series – Model Numbers – (* Model Numbers 39901, 39901T, 39902)



SNOW MASTER Series – Model Numbers – (* Model Numbers 36001)



E SNOW THROWER Series – Model Numbers – (* Model Numbers 31853, 31853T)



POWER MAX Series – Model Numbers – (* Model Numbers 37770, 38810, 38811)



SNOW MAX Series – Model Numbers – (* Model Numbers 38710, 38720)

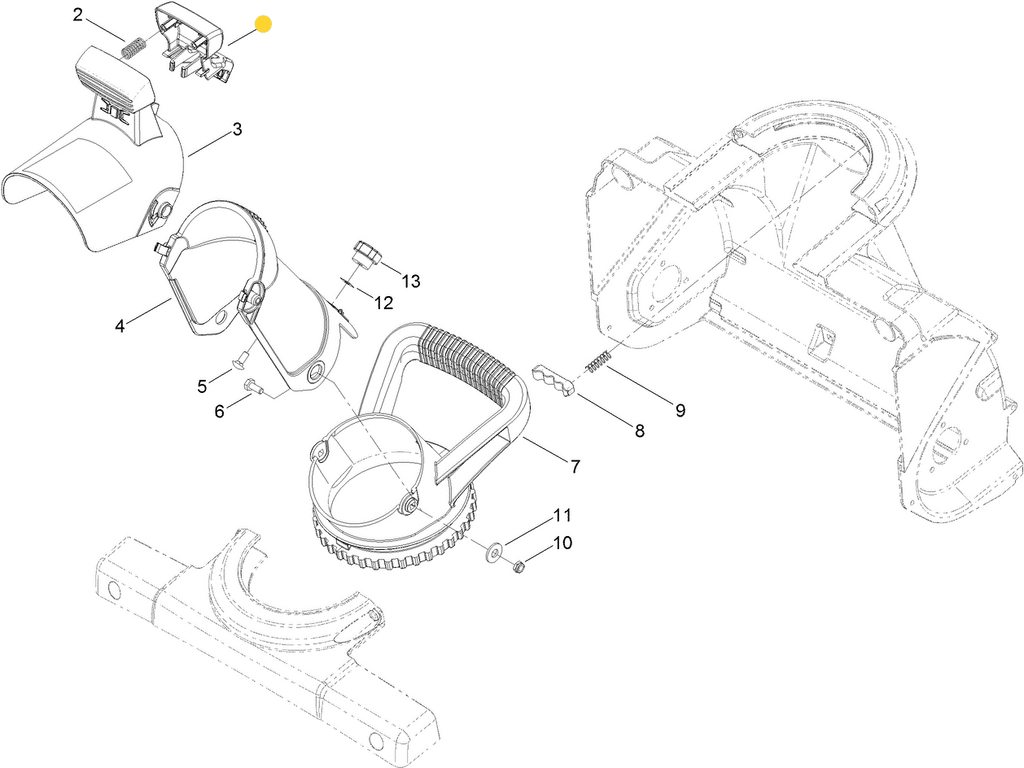

Associated Parts (Common “Replace With” Items)

These parts live in the same chute/deflector assembly and are commonly serviced together:



• 117-2314 – Trigger-Deflector
• 136-7136 – Spring-Compression (deflector/trigger feel & return)
• 117-2312 – Discharge Chute (Replace if Screw Hole is Damaged or Chute is Crack or Broken)






Toro OEM 117-2314 Deflector Triggers - Step-by-Step Installation



Tools You’ll Typically Need



• Phillips screwdriver or nut driver (for covers/shrouds if equipped)
• Small pick or flat screwdriver (to help seat springs)
• Needle-nose pliers (helpful for spring handling)
• Safety glasses (springs can pop free)

Installation Steps



1) Make It Safe

1. Shut the machine off and let all moving parts come to a complete stop.
2. Disconnect power:
   • Gas unit: remove the spark plug wire.
   • Battery unit: remove the battery pack.
3. Work on a bench or flat surface so small parts don’t get lost.

2) Get Access to the Trigger Area

1. Locate the chute/deflector control area near the chute base/handle assembly.
2. If a cover/shroud blocks access, remove the screws and set the cover aside.

3) Remove the Old Trigger

1. Locate the worn/broken trigger on the deflector control.
2. Take a quick photo of spring orientation before disassembly.
3. Carefully relieve spring tension and remove the trigger from its pivot/retainer - Will need to Use a Flat Screwdriver End and Carefully Pry it Apart beings it is a Clip-Together Assembly.

4) Replace / Transfer the Spring(s)

1. Inspect the compression spring(s). Replace if stretched, rusty, or damaged.
2. Install the spring(s) into/on the trigger pockets exactly like the original setup.
3. Many assemblies use (2) compression springs in this area—verify during disassembly.

5) Install the New 117-2314 Trigger

1. Position the new trigger in the same direction as the original - It Assembles as a Clip-Together Assembly.
2. Seat the trigger’s pivot tabs/points into the housing.
3. Compress and seat the spring(s) fully into their pockets (pliers help here).
4. Move the trigger by hand—ensure it moves freely and snaps back when released.

6) Reassemble and Function Test

1. Reinstall any covers/shrouds you removed.
2. Reconnect spark plug wire / reinstall battery.
3. Test operation:
   • Squeeze trigger, move deflector, release trigger.
   • Confirm it returns properly and holds/locks position as designed.



Need Help Verifying Fit?



Send us your Toro model number and serial number and we’ll confirm the correct part before you order.
