Description

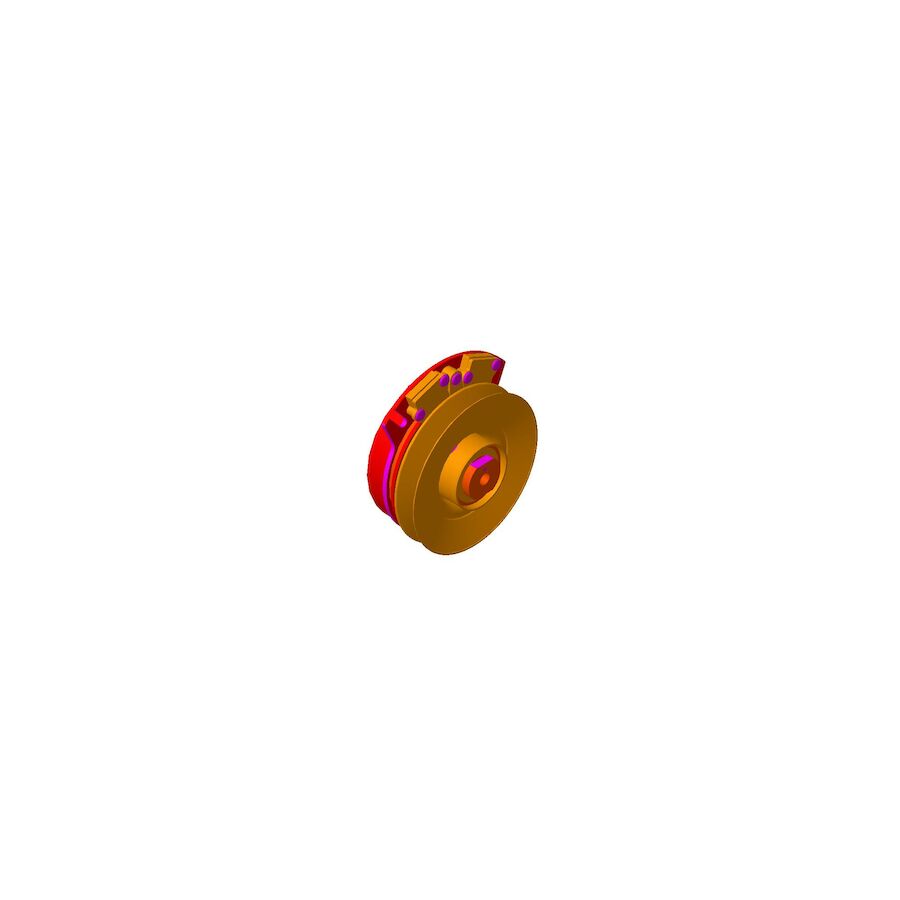

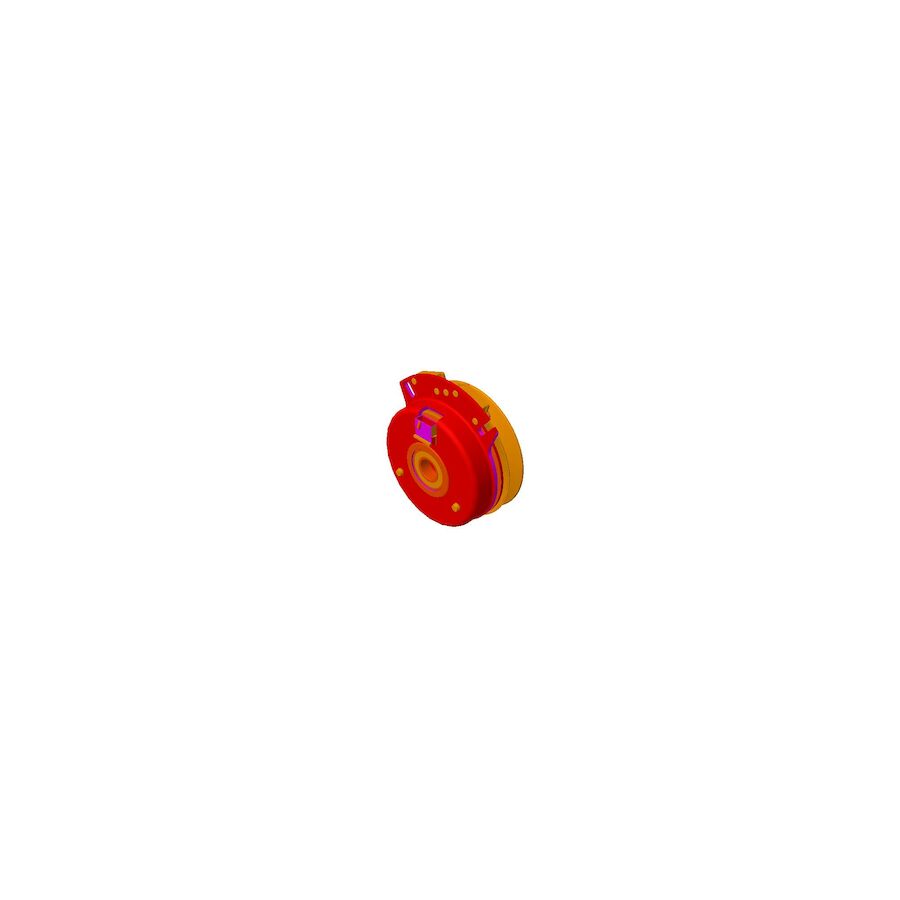

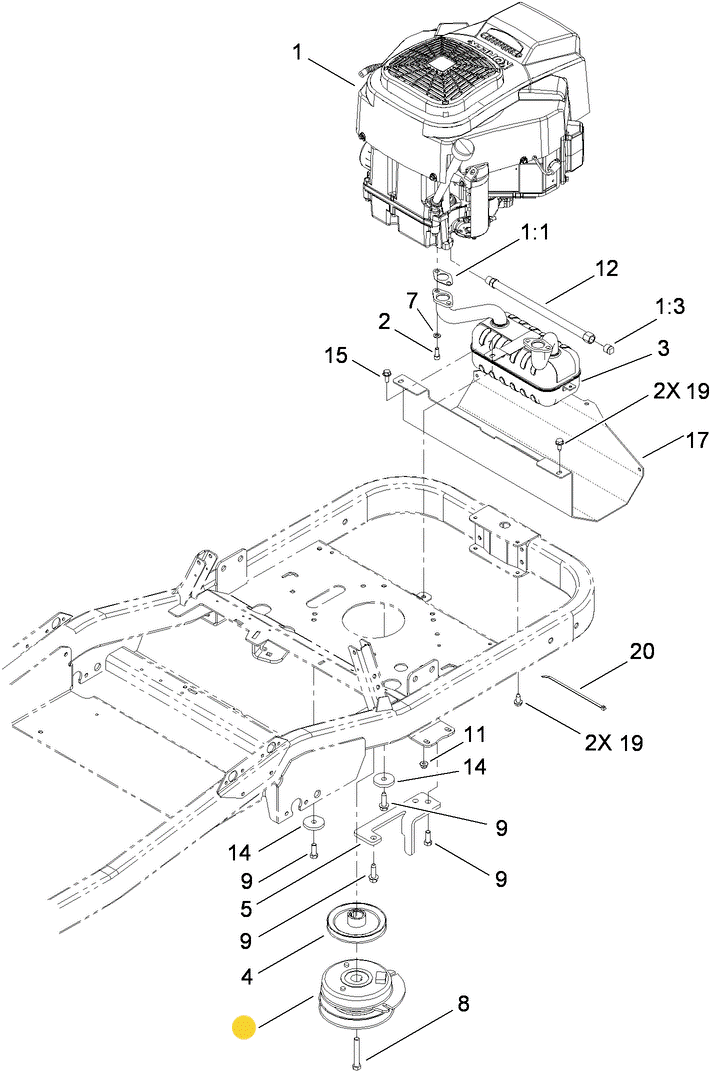

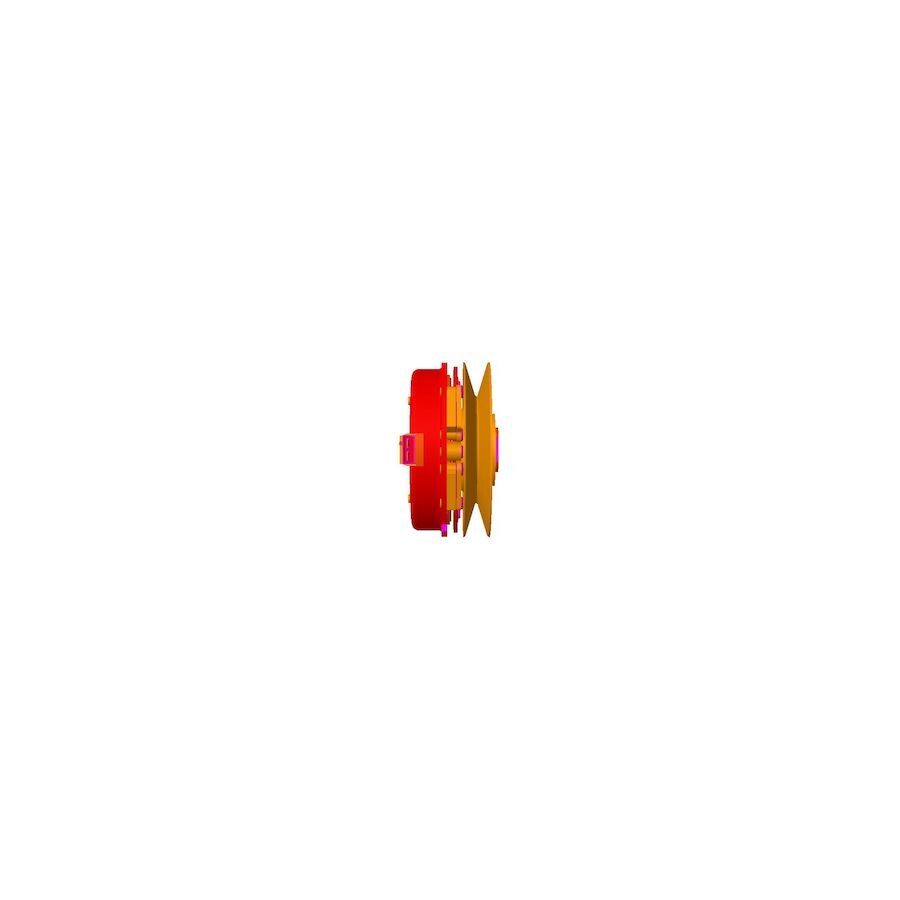

Toro OEM 117 1252 PTO Clutch is known for its precision engineering, durability, and reliable performance. Designed to Allow the correct Torque, Delay and Engagement Optimal for Engine and Mower Deck Components for Performance and Durability with the Push or Pull of a PTO switch. Enabling High-Quality Electronic Control over Mower Deck and Attachments, Toro 117 1252 PTO Clutch is Designed for Toro Late 48", 54", 60" TITAN ZX Models. Hilly Ridge does not offer any Type of Return on Electrical Items Unless it was an Error in Our Listings. So, Due to Variation Within Model Numbers/Series, Refer to the Model Fit Chart for an Accurate Break down of Specific Model Number Usage. Please refer to the Images above; Product Specifications and the Model Fit guide below to ensure proper fit.
NOTE: Due to Serial Number and/or Model Design changes it is always Beneficial to Eliminate Confusion by Searching your Product Type and Model Number at the Top of our Website Page in the Search Tab. That in return will search the Model Fit Chart at the Bottom of the Pages to Find the correct Model/Switch Part Number Combo.
ASSOCIATED PARTS REFERENCES FOR PART NUMBER 117-1252 ONLY
CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED
TITAN ZX MODELS ONLY
48”, 54", 60" Titan ZX Series - (* ONLY Model Numbers 74830, 74912, 74822, 74832, 74823, 74833)
- 3212-11 - PTO CLUTCH/ENGINE PULLEY BOLT - (Retains PTO Clutch and Engine Pulley to Engine) x1 Per Engine
- 117-1269-03 - PTO CLUTCH STOP/ARBOR - (Retains PTO Clutch in one position - Eliminating PTO Clutch Spinning and Tearing Wire Harness) x1 Per PTO Clutch
TITAN ZX MODELS ONLY
48”, 54", 60" Titan ZX Series - (* ONLY Model Numbers 74841, 74845, 74920, 74914, 74842, 74924,74824, 74843)
- 3212-11 - PTO CLUTCH/ENGINE PULLEY BOLT - (Retains PTO Clutch and Engine Pulley to Engine) x1 Per Engine
- 117-7344-03 - PTO CLUTCH STOP/ARBOR - (Retains PTO Clutch in one position - Eliminating PTO Clutch Spinning and Tearing Wire Harness) x1 Per PTO Clutch

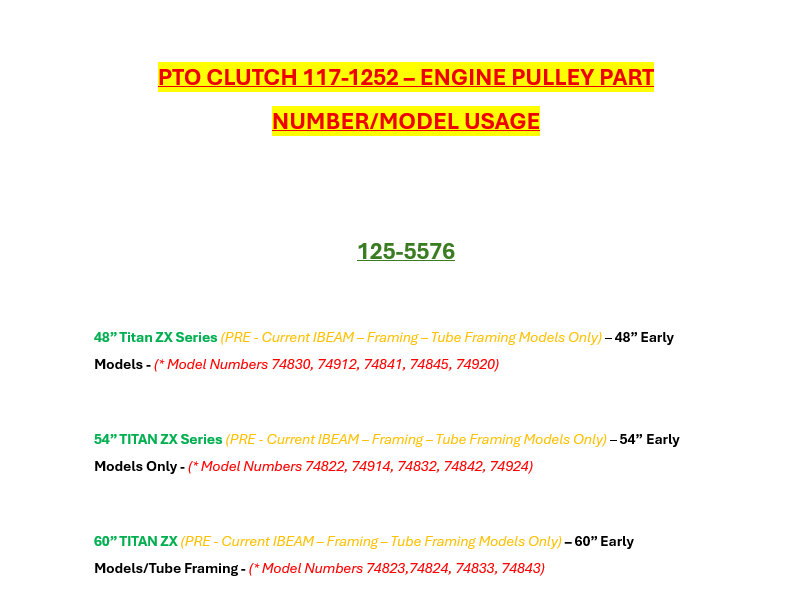

*REFER TO THE ENGINE PULLEY CHART BELOW FOR REFERENCE TO ASSOCIATED MODEL/PART NUMBER REFERENCES
Specification
|
Product Number: |
1171252 |
|
Brand: |
Toro |
|
Length: |
10.000 IN (25.400 CM) |
|
Width: |
10.000 IN (25.400 CM) |
|
Height: |
6.000 IN (15.240 CM) |
|
Weight: |
11.590 LB (5.257 KG) |
Model Fit:
48”, 54”, 60” TITIAN ZX - 117-1252 MODEL/SERIES USAGE
48” Titan ZX Series (PRE - Current IBEAM – Framing – Tube Framing Models Only) – 48” Early Models - (* Model Numbers 74830, 74912, 74841, 74845, 74920)
54” TITAN ZX Series (PRE - Current IBEAM – Framing – Tube Framing Models Only) – 54” Early Models Only - (* Model Numbers 74822, 74914, 74832, 74842, 74924)
60” TITAN ZX (PRE - Current IBEAM – Framing – Tube Framing Models Only) – 60” Early Models/Tube Framing - (* Model Numbers 74823,74824, 74833, 74843)
