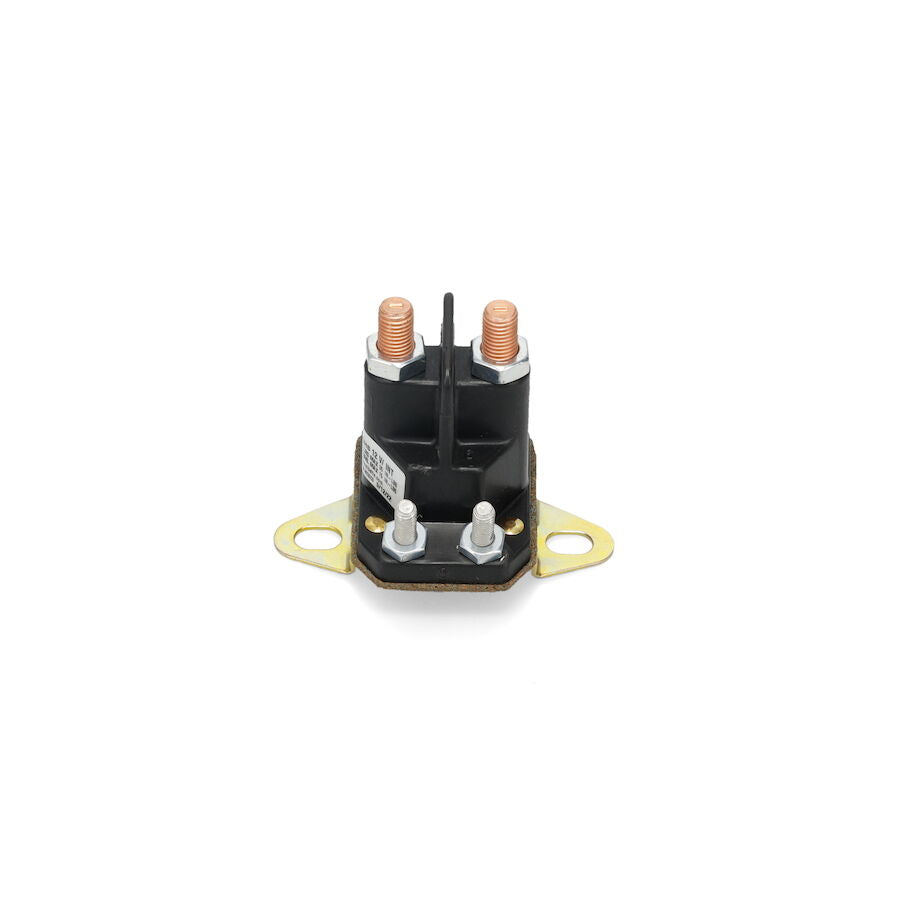

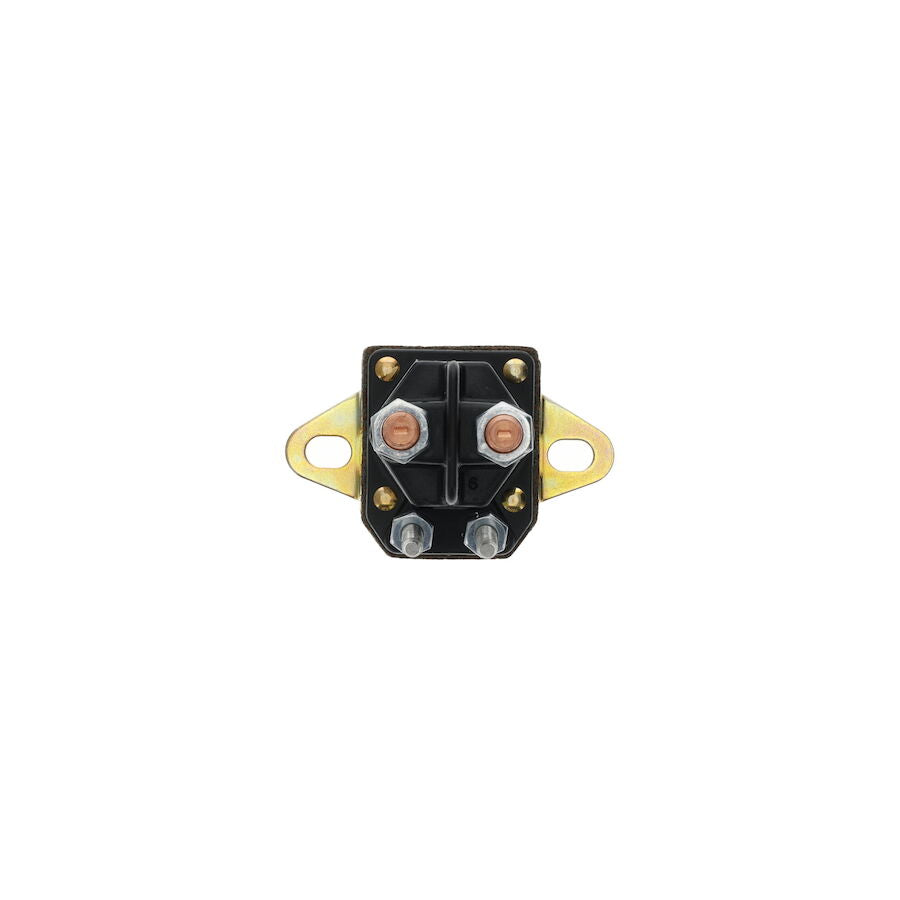

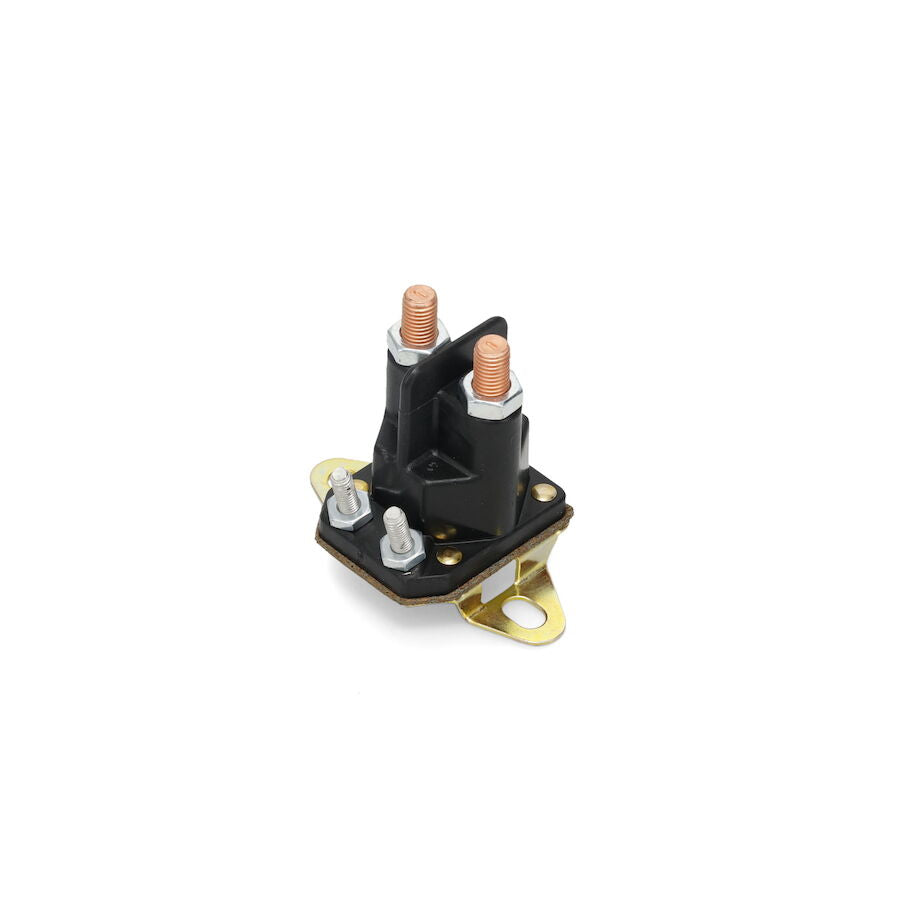

Toro OEM 117-1197 Electric Start Solenoid (Universal 12 Volt 4 Post) Fits a Wide Range of Toro Equipment.

Toro OEM 117 1197 Electric Start Solenoid controls the start function of your mower. Toro OEM 117 1197 properly opens and close its electrical circuit with the different function of the Ignition Switch and Individual Safety Switch Circuits. Toro OEM 117 1197 Electric Start Solenoid is used on a Wide Range of Toro Equipment Primarily Model with Models that do not Utilize a Joint Starter/Solenoid Combination (Universal12 Volt 4 Post Electric solenoid with Vertical Bolt Pattern). Please refer to the Images above; Product Specifications and the Model Fit guide below to ensure proper fit. Part Number E513075 and 1-513075 Supersedes to Part Number 117-1197.







ASSOCIATED SOLENOID COVER PARTS FOR PART NUMBER 117-1197 ONLY

CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED





1. 140-2080 - SOLENOID COVER/HOUSING - (Installed Prior to the Battery Cable - Battery Cable's keep it in Position and Allows for the Solenoid Cover Lid to be Clipped-On Protecting Solenoid from Elements) x1 Per Solenoid
2. 140-2081 - SOLENOID COVER/LID - (Clips into Solenoid Housing and Protects Wire Terminals and Solenoid from outside Elements) x2 Per Retaining Rod







ASSOCIATED FASTNERS FOR PART NUMBER 117-1197 ONLY

CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED





1. 126-6266 - PAN HEAD SOLENOID FASTENER - (Retains Solenoid to the Mower Frame) x2 Per Solenoid
2. 3220-2 or 139-2580 - BATTERY WIRE/SOLENOID NUT - (Retains Battery and Starter Wire to the Electric Solenoid) x2 Per Solenoid Two *Different Part Numbers for Same Size Nuts.
3. 32149-8 - SAFETY/IGNITION WIRE NUT - (Retains Smaller Safety, Ignition, Ground Wire Circuits to Electric Solenoid) x2 Per Solenoid









Specification

Product Number:	E513075, 1513075, 1171197
Brand:	Toro
Length:	2.500 IN (6.350 CM)
Width:	3.000 IN (7.620 CM)
Height:	1.800 IN (4.572 CM)
Weight:	0.345 LB (0.156 KG)





Model Fit:



22971, 22973, 22983, 23521, 23522, 30069, 30280, 30284, 30286, 30288, 30289, 30484, 30486, 30488, 30489, 30494, 30496, 30498, 30499, 31914, 33521, 33522, 38494, 39488, 39494, 39496, 39498, 44409, 44410, 44423, 44424, 44427, 44430, 71254, 71255, 74161, 74163, 74167, 74170, 74171, 74172, 74173, 74174, 74175, 74176, 74179, 74198, 74200, 74201, 74202, 74203, 74204, 74205, 74209, 74234, 74235, 74237, 74238, 74245, 74248, 74249, 74270, 74271, 74272, 74360, 74363, 74365, 74366, 74370, 74372, 74373, 74374, 74375, 74376, 74380, 74381, 74385, 74386, 74387, 74388, 74389, 74390, 74391, 74395, 74398, 74399, 74408, 74409, 74410, 74411, 74413, 74415, 74416, 74417, 74418, 74432, 74433, 74437, 74441, 74442, 74444, 74445, 74448, 74449, 74450, 74451, 74452, 74453, 74454, 74460, 74461, 74462, 74465, 74466, 74467, 74490, 74491, 74492, 74493, 74494, 74534, 74536, 74538, 74539, 74548, 74549, 74550, 74551, 74553, 74558, 74559, 74568, 74569, 74578, 74616, 74620, 74621, 74622, 74623, 74624, 74625, 74626, 74627, 74628, 74629, 74630, 74631, 74632, 74633, 74635, 74636, 74637, 74638, 74640, 74641, 74642, 74643, 74650, 74655, 74656, 74657, 74660, 74661, 74665, 74667, 74670, 74675, 74676, 74677, 74679, 74680, 74682, 74683, 74684, 74685, 74686, 74687, 74688, 74690, 74691, 74692, 74694, 74695, 74696, 74705, 74706, 74710, 74711, 74720, 74721, 74722, 74723, 74725, 74726, 74727, 74730, 74731, 74732, 74740, 74741, 74750, 74760, 74765, 74766, 74768, 74770, 74771, 74772, 74773, 74774, 74775, 74776, 74777, 74778, 74780, 74781, 74784, 74785, 74787, 74788, 74790, 74793, 74795, 74797, 74798, 74812, 74813, 74814, 74815, 74816, 74818, 74820, 74822, 74823, 74824, 74830, 74832, 74833, 74840, 74841, 74842, 74843, 74845, 74846, 74848, 74851, 74852, 74853, 74855, 74861, 74862, 74863, 74864, 74865, 74866, 74867, 74871, 74872, 74873, 74874, 74875, 74876, 74877, 74882, 74883, 74886, 74887, 74888, 74889, 74890, 74891, 74892, 74893, 74898, 74912, 74914, 74920, 74924, 75201, 75202, 75210, 75211, 75212, 75213, 75301, 75302, 75303, 75304, 75305, 75306, 75310, 75311, 75312, 75313, 75314, 75315, 75316, 75734, 75740, 75741, 75742, 75743, 75744, 75745, 75746, 75747, 75748, 75749, 75750, 75751, 75753, 75754, 75755, 75756, 75757, 75759, 75760, 75762, 75763, 76401, 76411, 76420, 76425, 76448, 76501, 76511, 76530, 76554, 76601, 76602, 76604, 76605, 76606, 76607, 76608, 76609, 76610, 76614, 76635, 76660, 77280, 77281, 77282, 77283, 77284, 77285, 77301, 77401, 77402, 77403, 77404, 77501, 77502, 77503, 77504, 77505, 77506, 77507, 77601, 77602, 77603, 78450, 79408, 79409, 79534, 79536, 79548, 79549, 79551, 79553, 79558, 79559, 81271, 94360, 94370, 94372, 94375, 94818
