Description

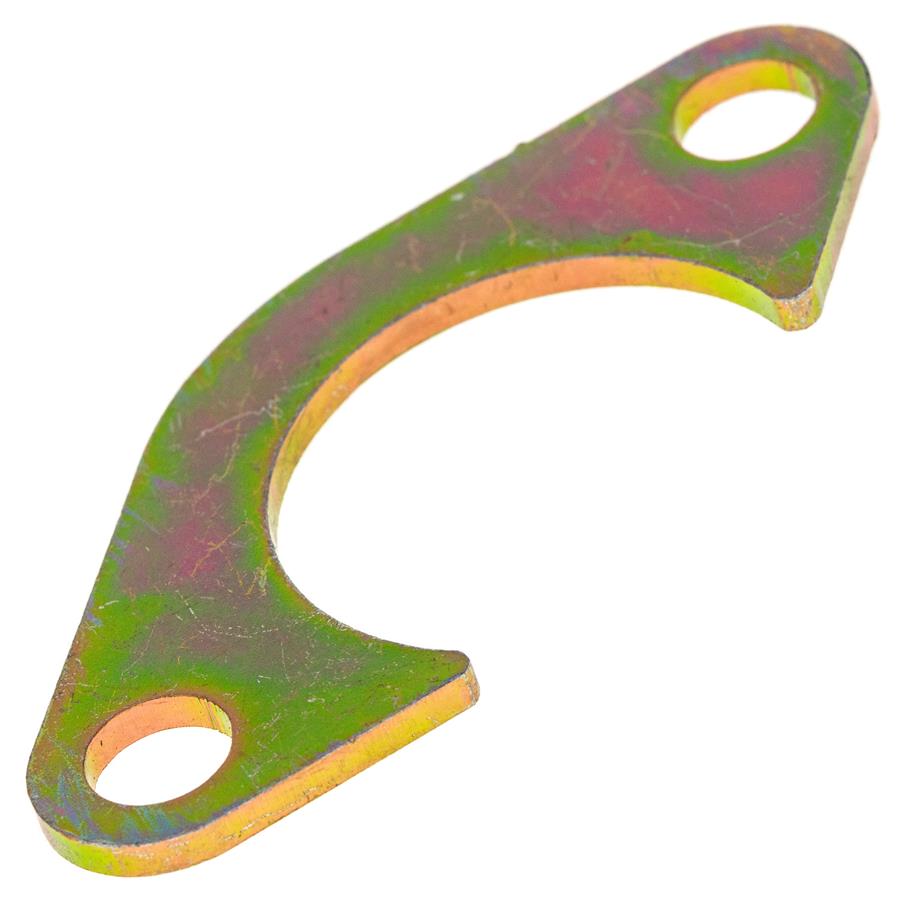

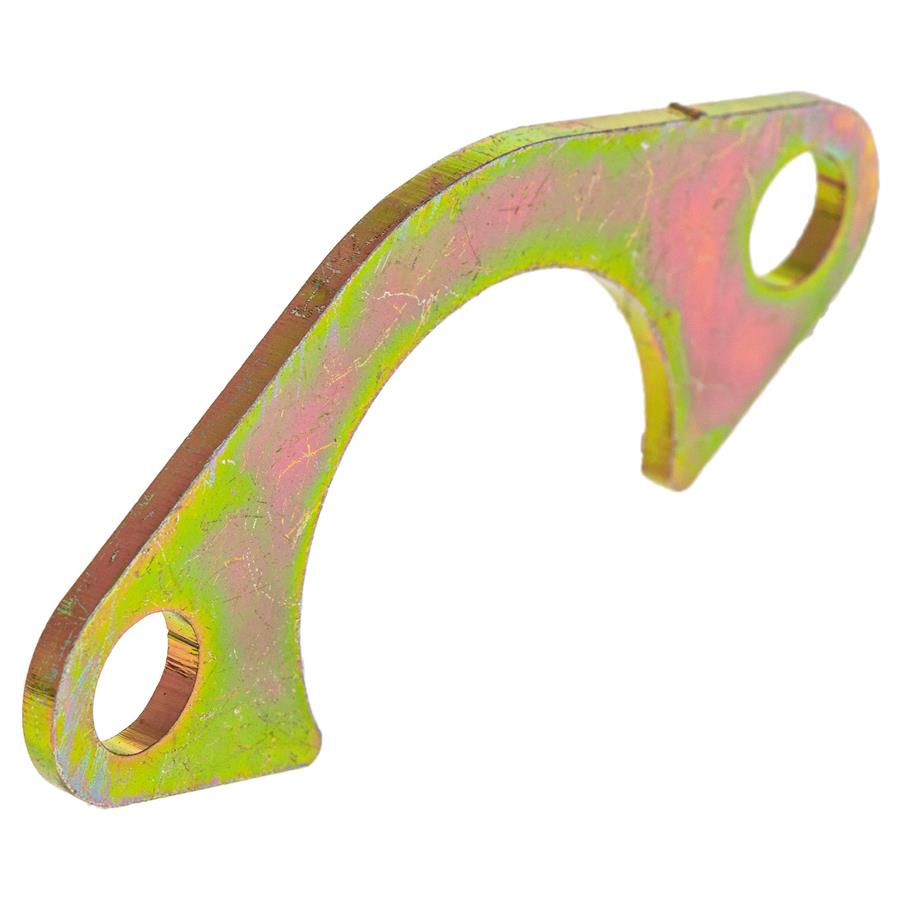

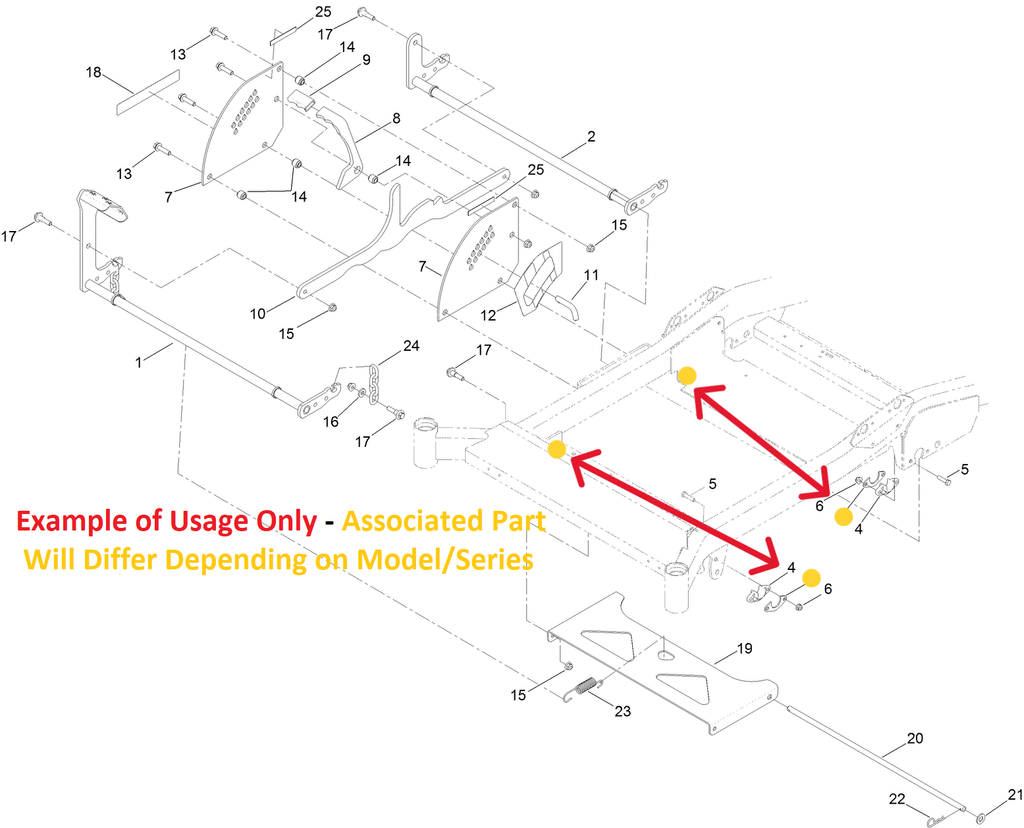

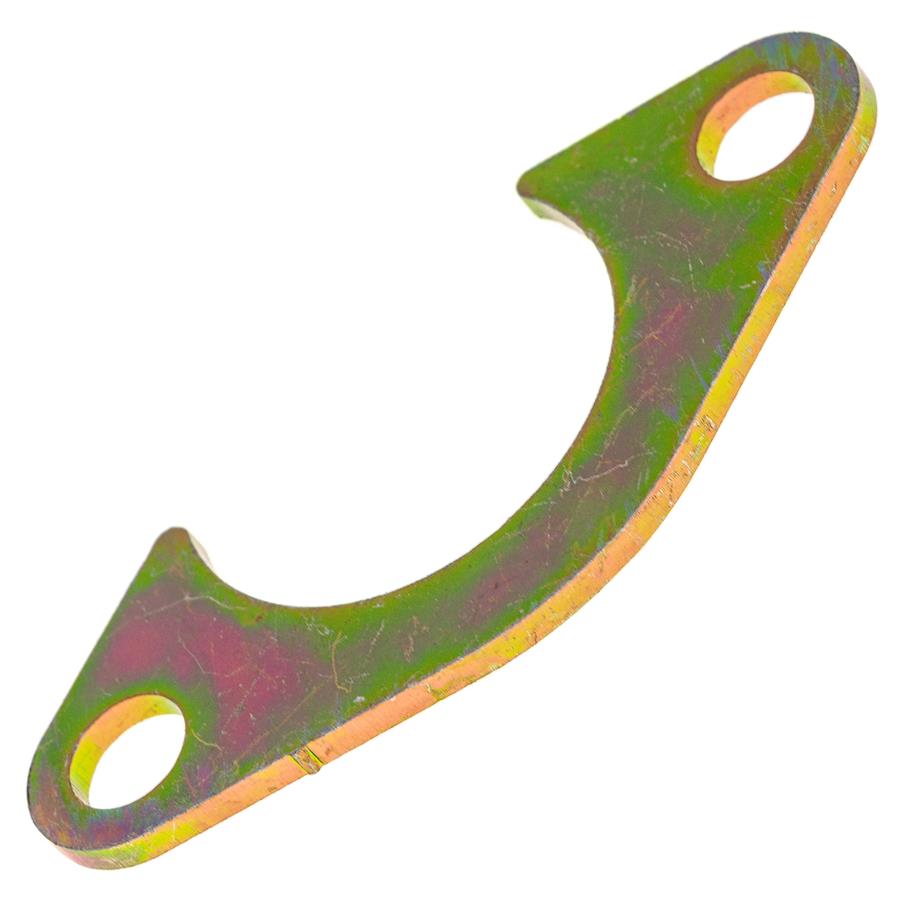

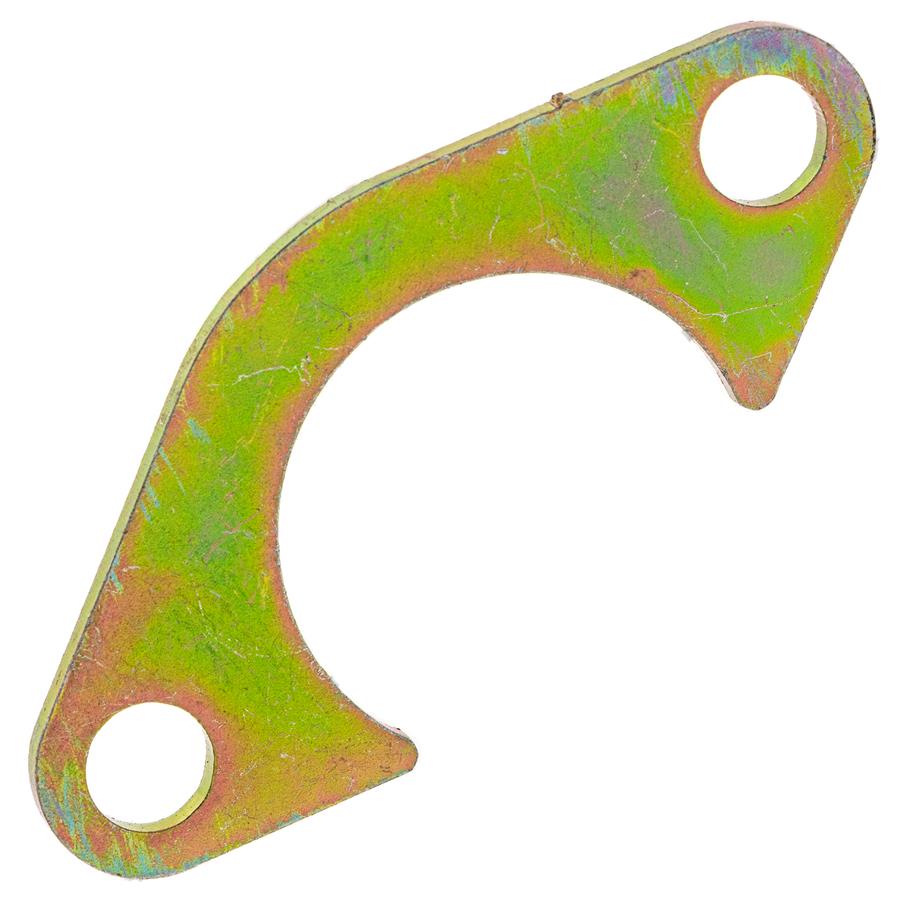

Toro OEM 116 2887 Gusset or Lower Cross Support Bracket Attaches with a Bearing/Bushing to the Upper Mower Deck Pivot/Lift Arm Bracket or Upper Cross Support Weldment Bracket/Frame and Assists in retaining the Mower Deck Pivot/Lift Arm as well as allowing it to freely rotate against the Surface of a Replaceable Bearing/Bushing. Toro OEM 116 2887 Gusset is Designed to fits Toro Late Timecutter HD Models - Late Titan X, XS, 4800, 5400, 6000, MAX, Standard, My-Ride Models (With Tube Style Framing) - Late Titan HD 1500, 2000, 2500 Models (With Tube Style Framing) - Current/Late Z Master 2000 Models (With I-Beam & Tube Style Framing) - Current Z Master 4000 & Revolution Models - Current Grandstand HDM & HDX Models. Due to Variation Within Model Numbers/Series, please refer to the Images above; Product Specifications and to the Model Fit Chart below to ensure a correct fit and for an Accurate Break down of Specific Model Number Usage.
NOTE: Some Model Numbers May Overlap in Part Number Requirement. If you Experience A Part Number Overlap Within Models Number Feel Free to Contact us Here @ Hilly Ridge and we will Try to Assist you with your Questions
Specification
|
Product Number: |
1162887 |
|
Brand: |
Toro |
|
Length: |
3.000 IN (7.620 CM) |
|
Width: |
1.300 IN (3.302 CM) |
|
Height: |
0.100 IN (0.254 CM) |
|
Weight: |
0.030 LB (0.014 KG) |
Model Fit:
TIMECUTTER
48” TIMECUTTER HD Series – Model Numbers – (* Model Numbers 74864, 74866, 75201, 75210, 75211)
54” TIMECUTTER HD Series – Model Numbers – (* Model Numbers 74865, 74867, 75202, 75212)
60” TIMECUTTER HD Series – Model Numbers – (* Model Numbers 75213)
TITAN & TITAN MAX
48” Titan MX & ZX Series (PRE - Current IBEAM – Framing – Tube Framing Models Only) – 48” Early Models - (* Model Numbers 74841, 74845, 74846, 74851, 74855, 74861, 74871, 74891, 74920)
54” TITAN ZX and MX Series (PRE - Current IBEAM – Framing – Tube Framing Models Only) – 54” Early Models Only - (* Model Numbers 74842, 74848, 74852, 74862, 74872, 74882, 74892, 74924)
60” TITAN MX6000 & ZX6000 (PRE - Current IBEAM – Framing – Tube Framing Models Only) – 60” Early Models/Tube Framing - (* Model Numbers 74843, 74853, 74863, 74873, 74883, 74893)
60” TITAN MAX (PRE - Current IBEAM – Framing – Tube Framing Models Only) - 60" Late Models / Tubed Framing - (* Model Numbers 76601, 76602)
TITAN HD
48” TITAN HD 1500 & HD 2000 (PRE - Current IBEAM – Framing – Tube Framing Models Only) - 48" Late Models / Tubed Framing - (* Model Numbers 78450, 74465, 74460, 74453, 74450, 77248, 77280)
52” TITAN HD 1500 & HD 2000 (PRE - Current IBEAM – Framing – Tube Framing Models Only) - 52" Late Models / Tubed Framing - (* Model Numbers 74451, 74454, 74461, 74466, 77282, 77290)
60” TITAN HD 1500 & HD 2000 (PRE - Current IBEAM – Framing – Tube Framing Models Only) - 60" Late Models / Tubed Framing - (* Model Numbers 74452, 74462, 74463, 74467, 74480, 77260, 77284, 77287, 77293, 77299)
60” TITAN HD 2500 Series (PRE - Current IBEAM – Framing – Tube Framing Models Only) – 60” Early Models Only - (* Model Numbers 74470, 74471, 74472, 78472)
Z-MASTER
CURRENT/LATE MODELS
Z MASTER 2000 MODELS – (Current/Late IBEAM – Framing Models) – (MODEL NUMBERS 77281, 77283, 77285, 77288, 77291, 77294)
Z MASTER 4000 MODELS – CURRENT/LATE MODELS- Current IBEAM – (MODEL NUMBERS 74000, 74002, 74004, 74010, 74015, 74020, 74022, 74024, 74035, 74050, 74052, 74054, 74055, 74057)
Z MASTER REVOLUTION MODELS – CURRENT/LATE MODELS- Current IBEAM – (MODEL NUMBERS 18748, 18752, 18760, 18762, 18765)
EARLY/LATE MODELS
Z Master 2000 (PRE - Current IBEAM – Framing – Tube Framing Models Only) - (* Model Numbers 74490, 74491, 74492, 74493, 74494, 74495, 74496, 74497, 77248, 77280)
GRANDSTAND
32” GRANDSTAND – (HDM) – (* Model Numbers 74532)
36” GRANDSTAND – (HDM) – (* Model Numbers 74535)
52” GRANDSTAND – (HDX) – (* Model Numbers 72506)
60” GRANDSTAND – (HDX) – (* Model Numbers 72510, 72514)
72” GRANDSTAND – (HDX) – (* Model Numbers 72517)
MOWER DECK HANGER KITS
MOWER DECK HANGER KITS – (* Part Numbers 121-5747)
