Description

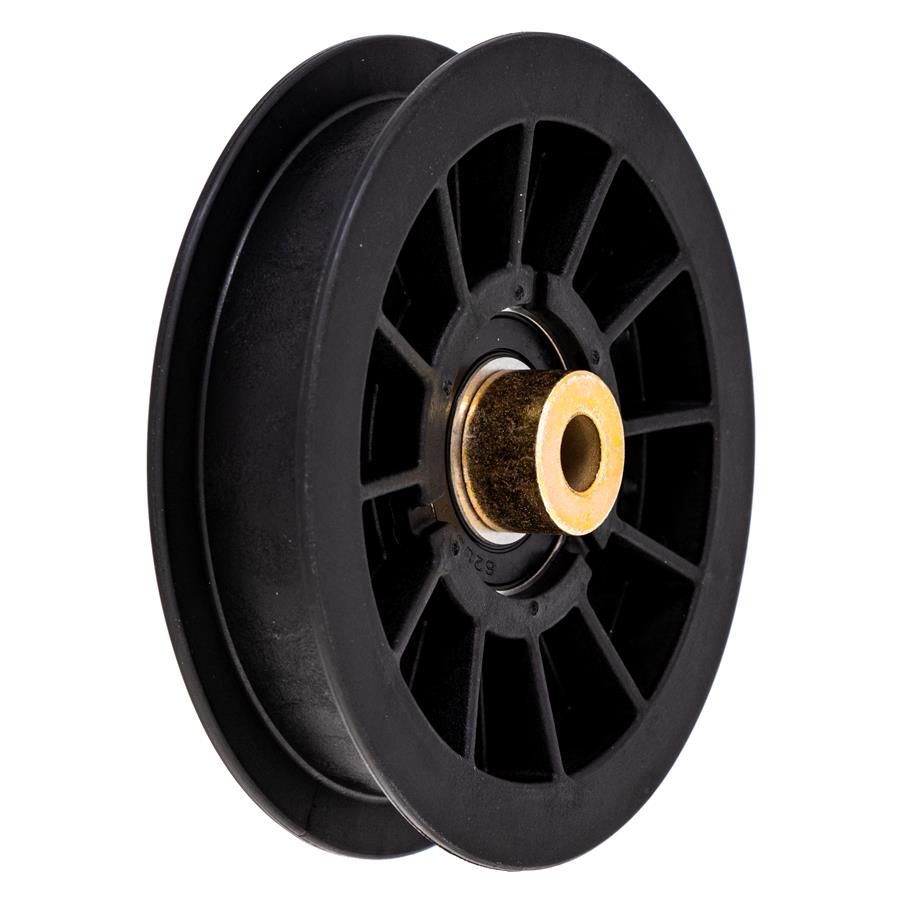

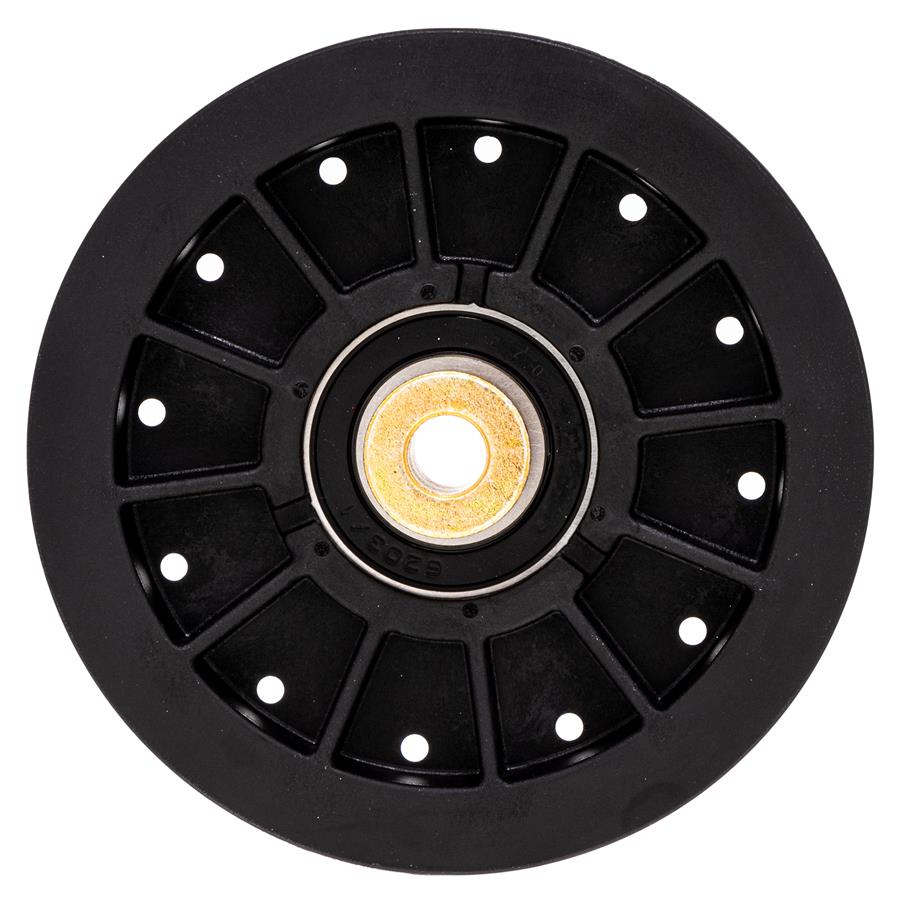

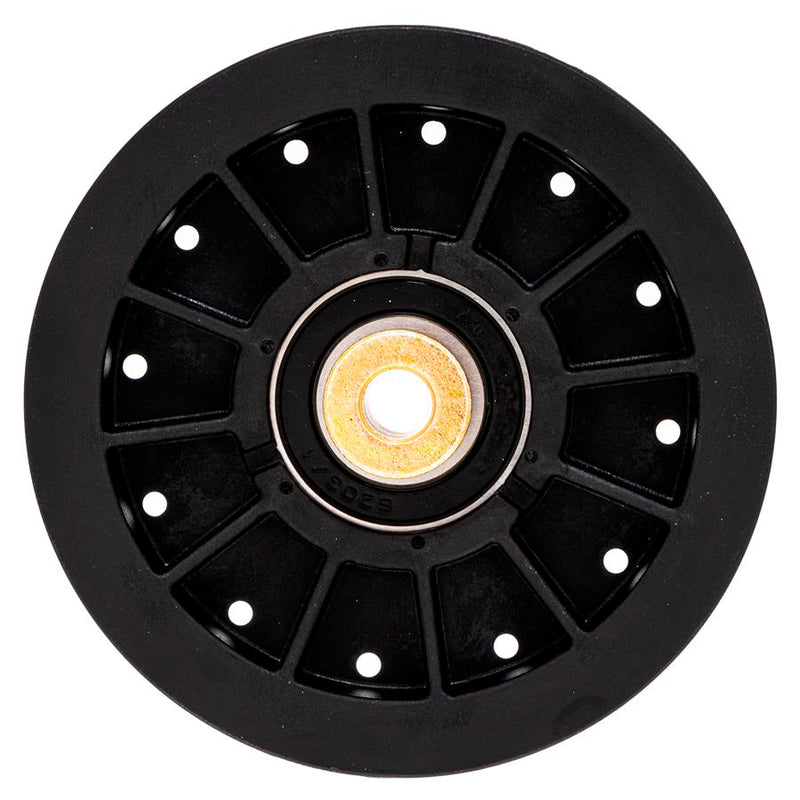

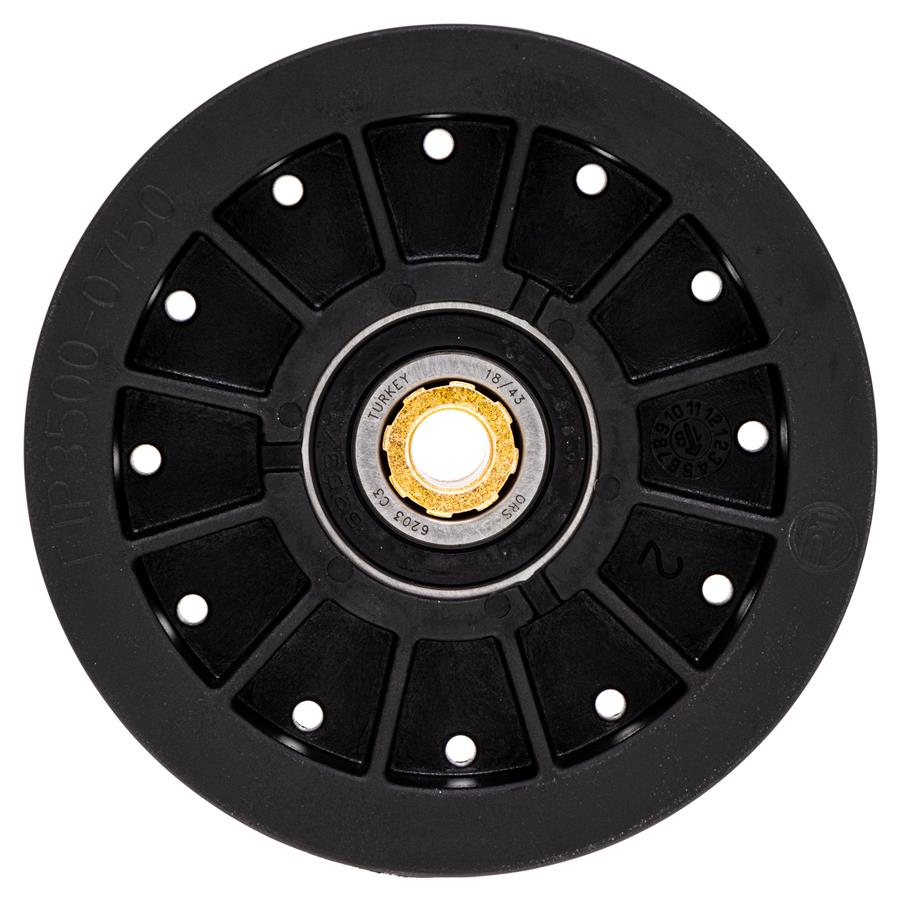

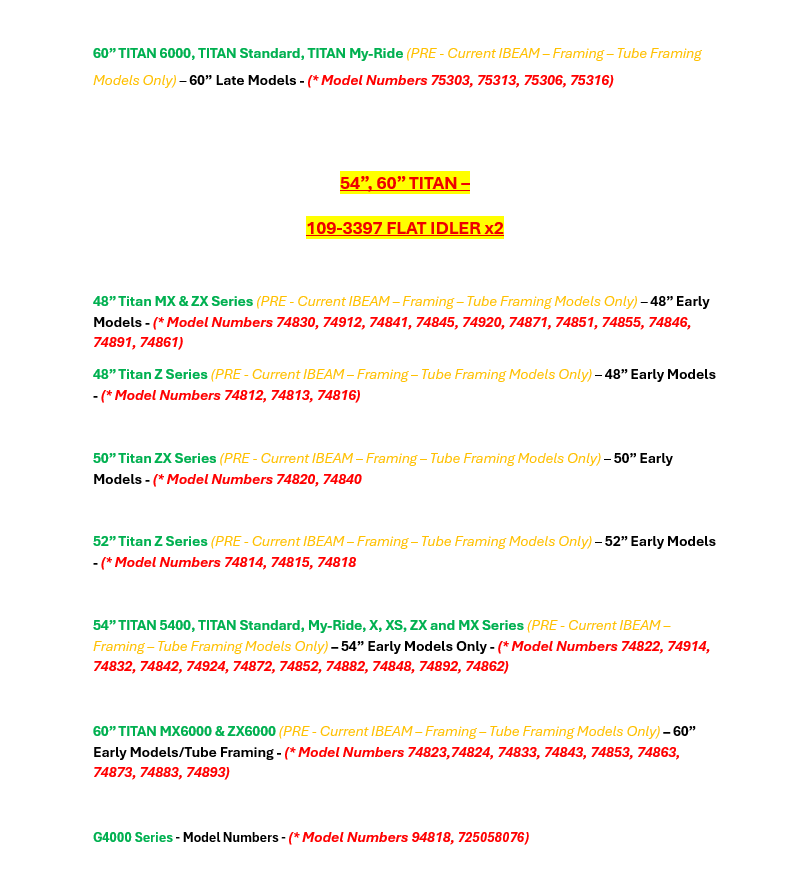

The Toro OEM 116 2456 Hydraulic Drive Flat Idler is manufactured with strong steel alloy and high-quality ball bearings to ensure dependable operation in harsh, wet, hot, and dirty conditions. Built to original specifications, this Flat Idler is designed to maintain correct tension on Hydraulic and/or Traction Drive Belts. 116 2456 OEM Flat Idler is compatible with a variety of Toro models, including the Late 48", 52",60", 72" Z Master 4000 Models * Refer to the Note Below Regarding Idler Pulley Changes within 4000 Series - Late 48", 52",60" Z Master 2000 Models (Tube Framing Models)- Late 48", 52", 60" TITAN MAX, TITAN HD 1500, 2000, 2500 (Tube Framing Models) Models - Stand-On Sprayer Models. Due to Variation Within Model Numbers/Series, please refer to the Images above; Product Specifications and to the Model Fit Chart below for an Accurate Break down of Specific Model Number Usage. For Additional Fastner & Associated Part references for Idler Pulley 116-2456 review the Associated Parts Link Below the Model Fit Chart. If You are Having Trouble Finding the Correct Hydraulic Idler Pulley Combination for Your Model, there is also a Chart with Detailed Break Down with Common Family and Model Numbers with the Correct Idler Pulley Part Number Combination Above in the Images as well as Below the Model Fit Guide and The Associated Part References. If this still doesn't prove helpful feel free to contact us with your questions.
* IMPORTANT 4000 SERIES SERIAL BREAK NOTE - DUE TO SERIAL BREAKS ONLY EARLY SERIAL NUMBERS REQUIRE PLASTIC IDLERS – IT IS RECOMMENDED TO REPLACE PLASIC WITH PLASTIC METAL WITH METAL – ALTHOUGH NO KNOWN ISSUES WITH UPDATING TO METAL IDLER IF CHOSEN BUT FACTORY SUGGESTION IS ALWAYS BEST.
NOTE: Due to Serial Number and/or Model Design changes it is always Beneficial to Eliminate Confusion by Searching your Part Type and Model Number at the Top of our Website Page in the Search Tab. That in return will search the Model Fit Chart at the Bottom of the Page to Find the correct Model/Pulley Part Number Combo.
Specification
|
Product Number: |
1162456 |
|
Brand: |
Toro |
|
Length: |
3.622 IN (9.200 CM) |
|
Width: |
3.622 IN (9.200 CM) |
|
Height: |
1.102 IN (2.799 CM) |
|
Weight: |
0.400 LB (0.181 KG) |
Model Fit:

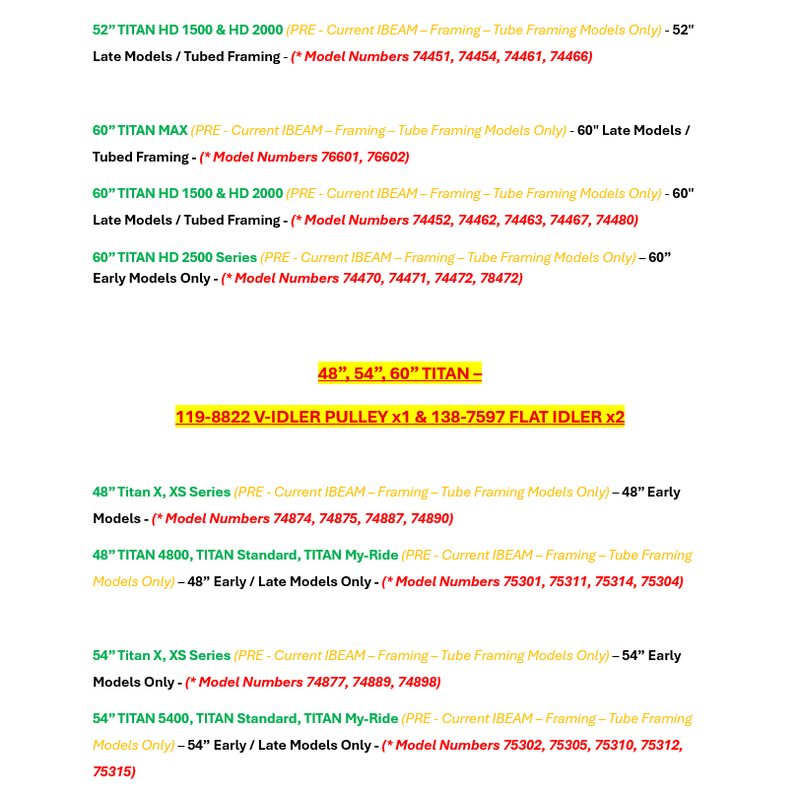

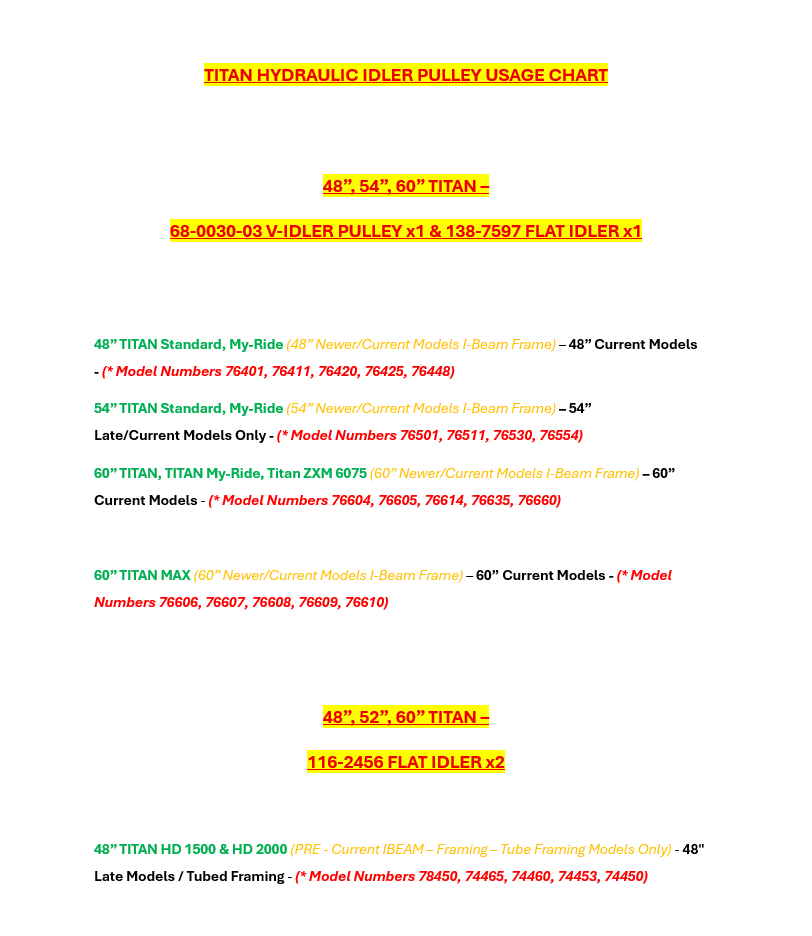

TITAN MAX, TITAN HD 1500, 2000, 2500 – 116-2456 MODEL/SERIES USAGE
48” TITAN HD 1500 & HD 2000 (PRE - Current IBEAM – Framing – Tube Framing Models Only) - 48" Late Models / Tubed Framing - (* Model Numbers 78450, 74465, 74460, 74453, 74450)
52” TITAN HD 1500 & HD 2000 (PRE - Current IBEAM – Framing – Tube Framing Models Only) - 52" Late Models / Tubed Framing - (* Model Numbers 74451, 74454, 74461, 74466)
60” TITAN MAX (PRE - Current IBEAM – Framing – Tube Framing Models Only) - 60" Late Models / Tubed Framing - (* Model Numbers 76601, 76602)
60” TITAN HD 1500 & HD 2000 (PRE - Current IBEAM – Framing – Tube Framing Models Only) - 60" Late Models / Tubed Framing - (* Model Numbers 74452, 74462, 74463, 74467, 74480)
60” TITAN HD 2500 Series (PRE - Current IBEAM – Framing – Tube Framing Models Only) – 60” Early Models Only - (* Model Numbers 74470, 74471, 74472, 78472)

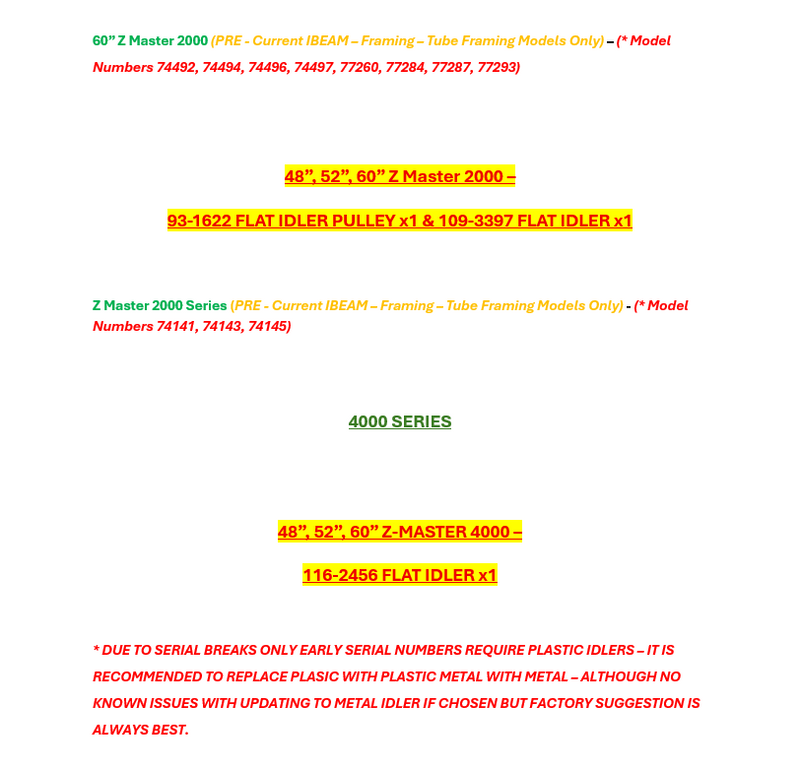

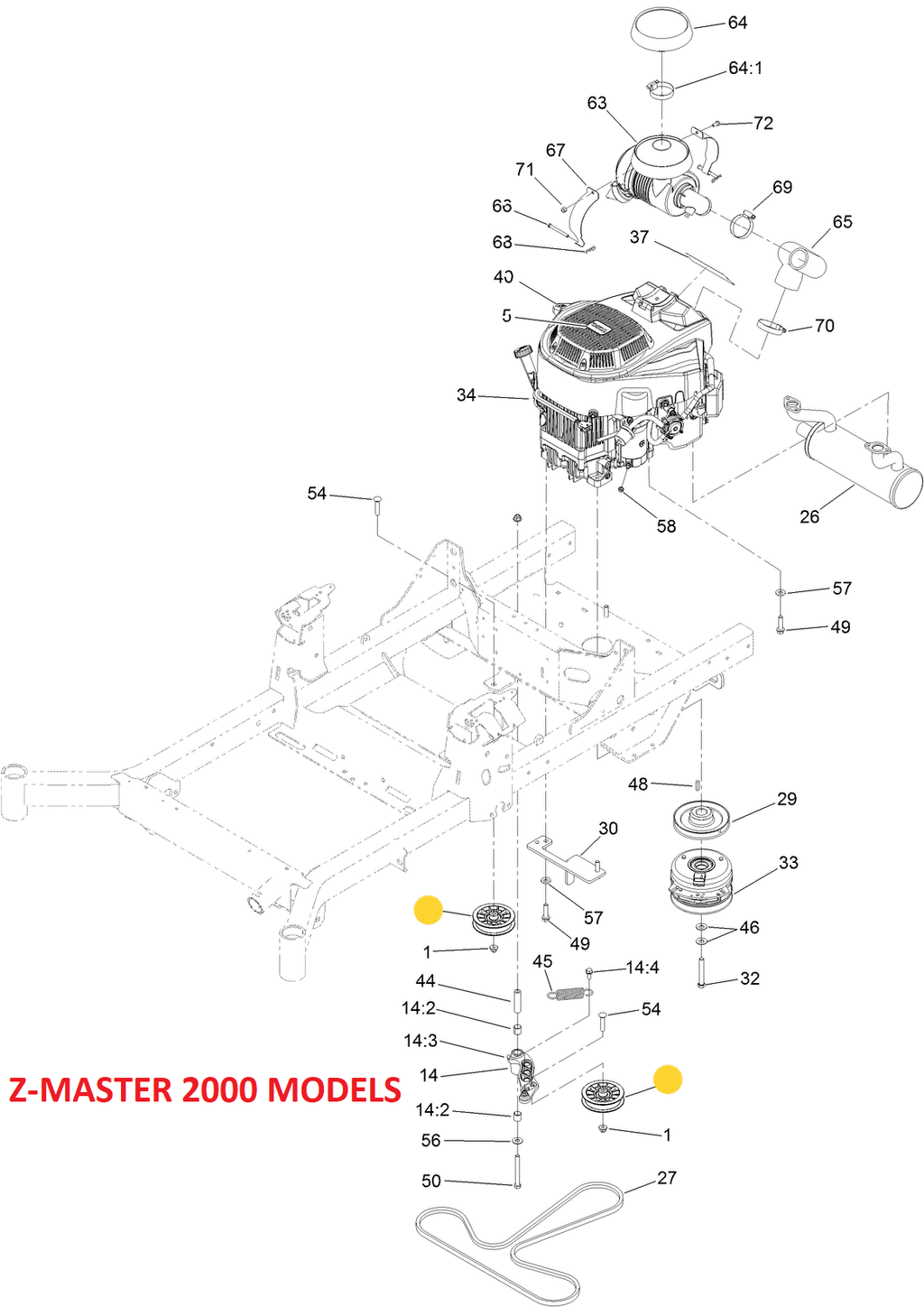

Z-Master 2000 – 116-2456 MODEL/SERIES USAGE
48” Z Master 2000 (PRE - Current IBEAM – Framing – Tube Framing Models Only) - (* Model Numbers 74490, 74495, 77248, 77280)
52” Z Master 2000 (PRE - Current IBEAM – Framing – Tube Framing Models Only) - (* Model Numbers 74491, 74493, 77282, 77290)
60” Z Master 2000 (PRE - Current IBEAM – Framing – Tube Framing Models Only) – (* Model Numbers 74492, 74494, 74496, 74497, 77260, 77284, 77287, 77293)
Z-Master 4000 – 116-2456 MODEL/SERIES USAGE
48”, 52”, 60”, 72” Z MASTER 4000 MODELS – CURRENT/LATE MODELS- Current IBEAM – (MODEL NUMBERS 74000, 74002, 74004, 74010, 74015, 74020, 74022, 74035, 74050, 74052, 74054, 74055)
SAND-ON SPRAYER Models – 116-2456 MODEL/SERIES USAGE
HYDROSTATIC DRIVE BELT TENSIONER
STAND-ON SPRAYER MODELS – (MODEL NUMBERS 34246)
ASSOCIATED PARTS REFERENCES FOR PART NUMBER 116-2456 ONLY
CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECT
TITAN MAX - TITAN HD 1500, 2000, 2500 - Z-MASTER 2000 MODELS ONLY
- 3231-29 - IDLER PULLEY BOLT - (Retains Flat Idler) x1 Per Flat Idler Pulley
- 126-0973 - IDLER ARM - (Retains One Flat Idler Pulley for Belt Tensioning Purposes) x1 Per Unit
- 104-8301 - IDLER PULLEY NUT - (Retains Flat Idler) x1 Per Flat Idler Pulley

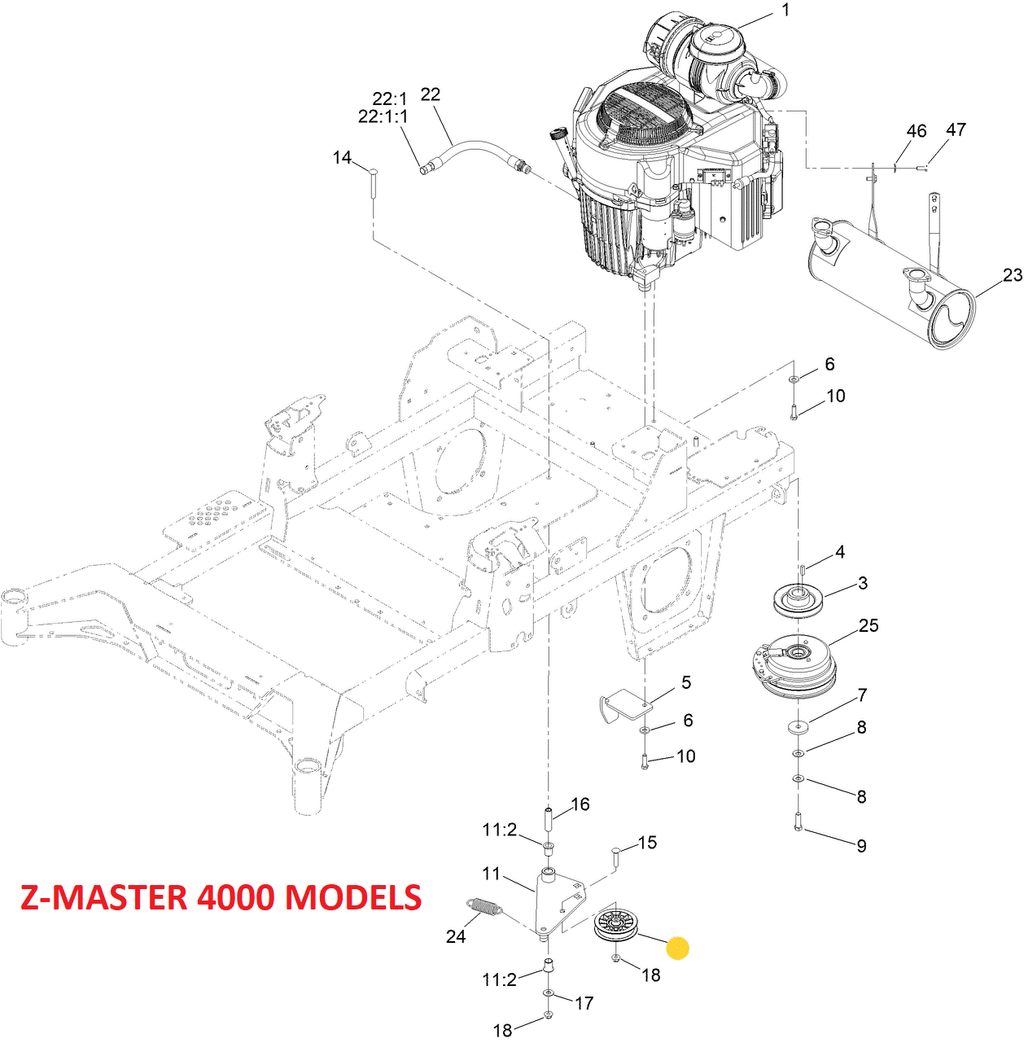

Z-MASTER 4000 MODELS ONLY
- 3231-29 - IDLER PULLEY BOLT - (Retains Flat Idler) x1 Per Flat Idler Pulley
- 144-2671 - IDLER ARM - (Retains One Flat Idler Pulley for Belt Tensioning Purposes) x1 Per Unit
- 104-8301 - IDLER PULLEY NUT - (Retains Flat Idler) x1 Per Flat Idler Pulley
