Description

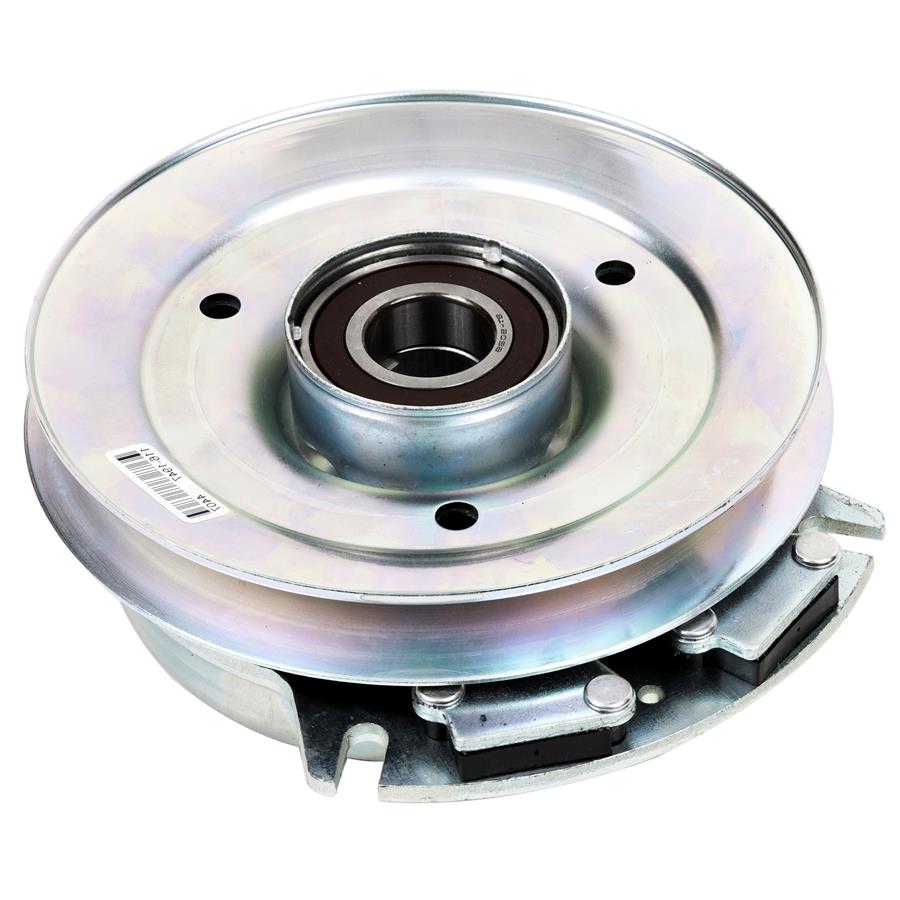

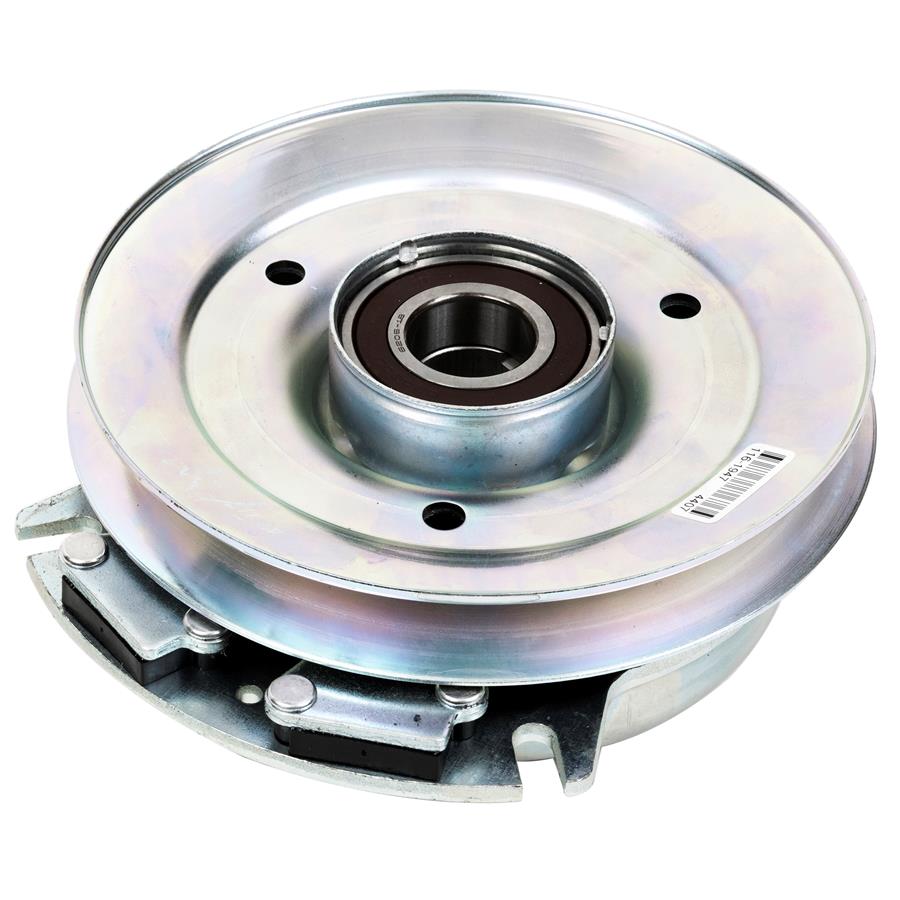

Toro OEM 116 1947 PTO Clutch is known for its precision engineering, durability, and reliable performance. Designed to Allow the correct Torque, Delay and Engagement Optimal for Engine and Mower Deck Components for Performance and Durability with the Push or Pull of a PTO switch. Enabling High-Quality Electronic Control over Mower Deck and Attachments, Toro 116 1947 PTO Clutch is Designed for Toro Current/Late 48" ZMaster 4000 Models - Current/Late/Early 48", 52" ZMaster 3000 Models. Hilly Ridge does not offer any Type of Return on Electrical Items Unless it was an Error in Our Listings. So, Due to Variation Within Model Numbers/Series, Refer to the Model Fit Chart for an Accurate Break down of Specific Model Number Usage. Please refer to the Images above; Product Specifications and the Model Fit guide below to ensure proper fit. *Refer to the Engine Pulley and Associated Part Chart Below for Reference for Appropriate PTO Clutch Fastner Parts and Pulleys Associated to Segregated Models/Series Associated to PTO Clutch 116-1947.
NOTE: Due to Serial Number and/or Model Design changes it is always Beneficial to Eliminate Confusion by Searching your Product Type and Model Number at the Top of our Website Page in the Search Tab. That in return will search the Model Fit Chart at the Bottom of the Pages to Find the correct Model/Switch Part Number Combo.

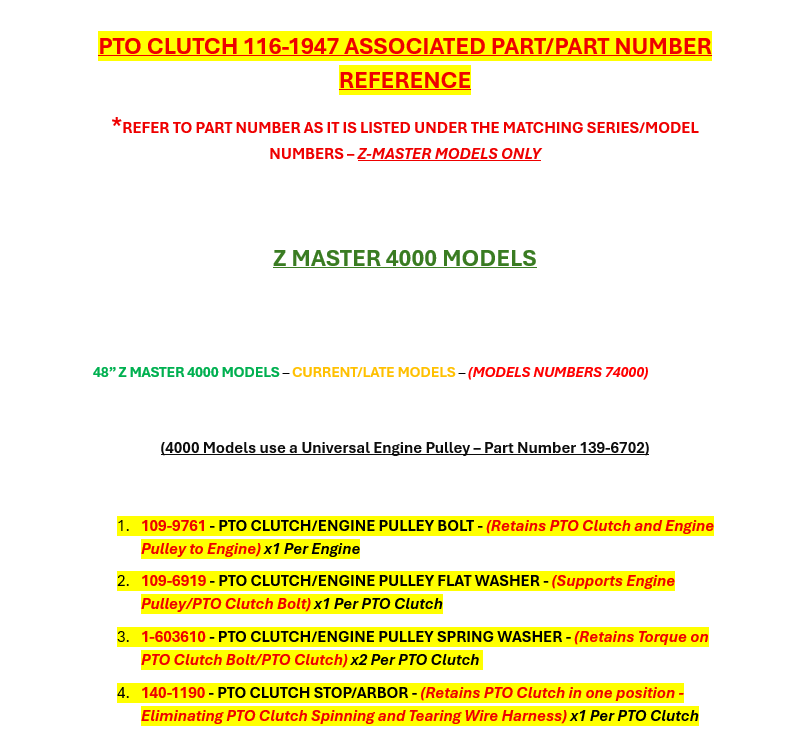

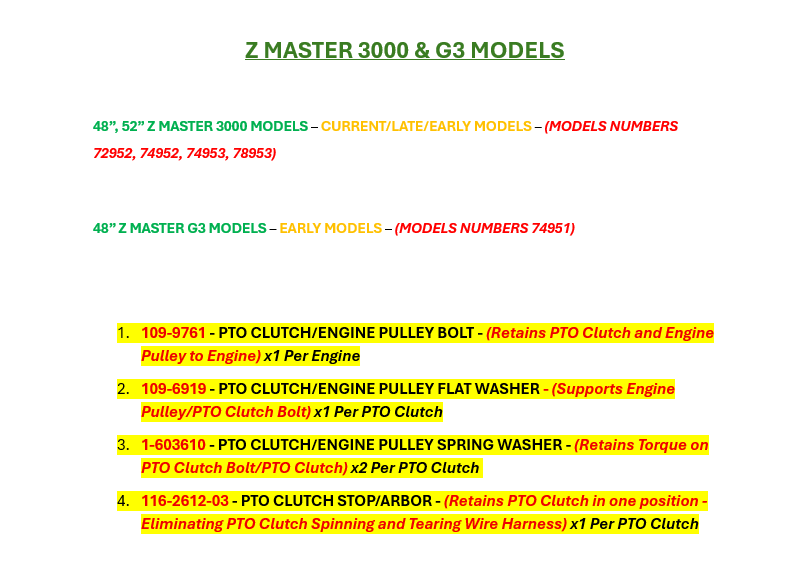

ASSOCIATED PARTS REFERENCE CHART FOR PART NUMBER 116-1947 ONLY
*DUE TO THE AMOUNT OF CONTENT PART REFERENCE IS IN CHART FORM ONLY

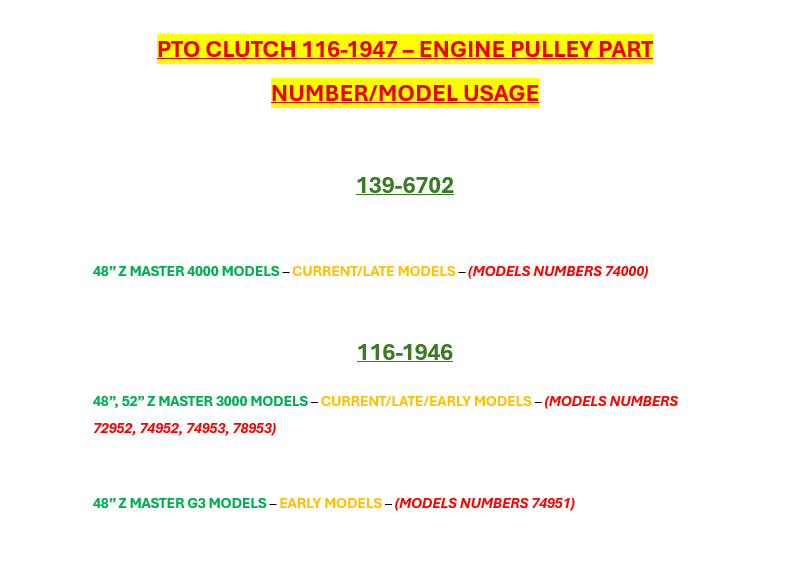

*REFER TO THE ENGINE PULLEY CHART BELOW FOR REFERENCE TO ASSOCIATED MODEL/PART NUMBER REFERENCES
Specification
|
Product Number: |
1161947 |
|
Brand: |
Toro |
|
Length: |
10.000 IN (25.400 CM) |
|
Width: |
10.000 IN (25.400 CM) |
|
Height: |
6.000 IN (15.240 CM) |
|
Weight: |
12.190 LB (5.529 KG) |
Model Fit:
48” & 52” Z-MASTER 3000, 4000, G3 - 116-1947 MODEL/SERIES USAGE

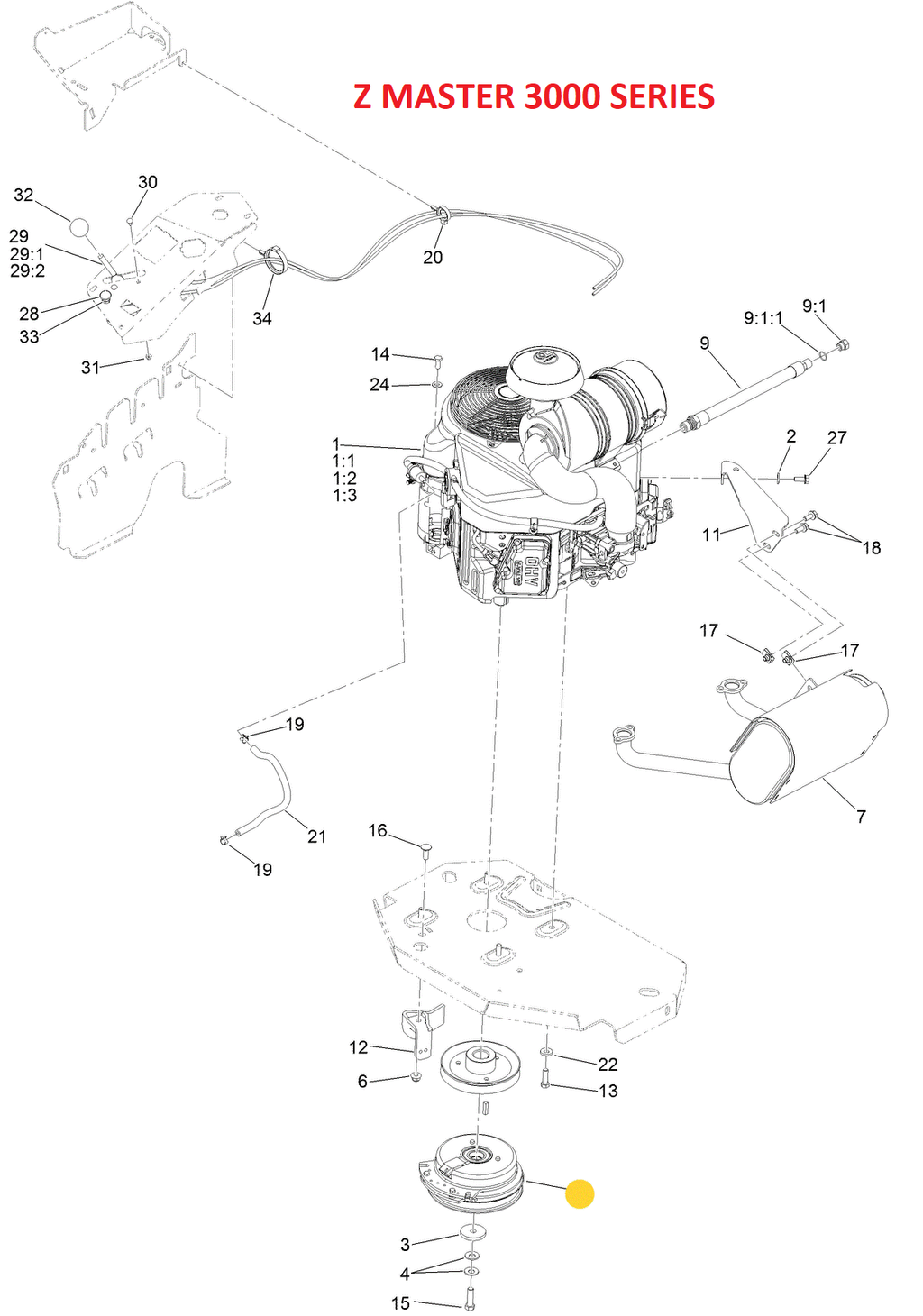

· Z MASTER 3000 MODELS – CURRENT/LATE/EARLY MODELS – (MODELS NUMBERS 72952, 74952, 74953, 78953)

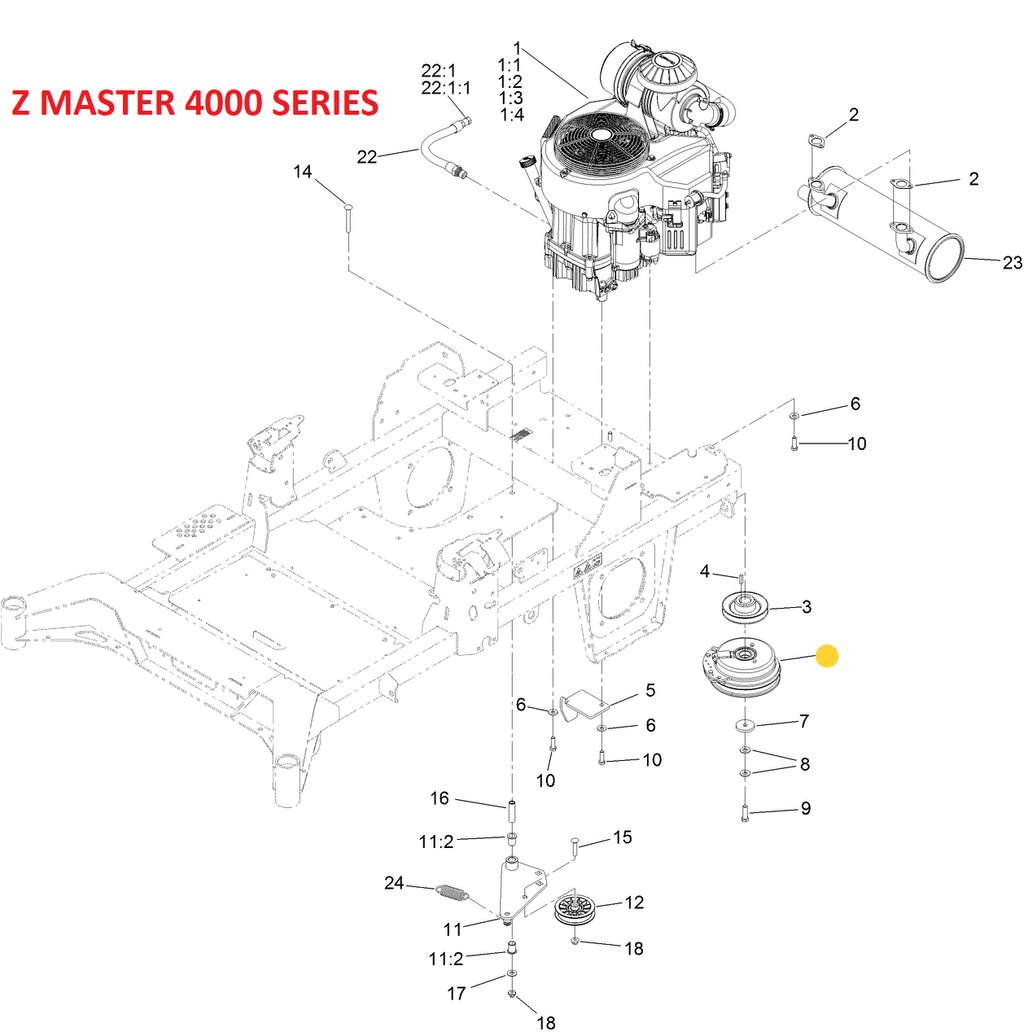

· Z MASTER 4000 MODELS – CURRENT/LATE MODELS – (MODELS NUMBERS 74000)
· Z MASTER G3 MODELS – EARLY MODELS – (MODELS NUMBERS 74951)
