Toro OEM 116-0886 Mower Deck Lift Assist Extension Spring Fits Toro Late 60" Timecutter HD Models - Late 60" Titan MX, ZX, 6000, Standard, My-Ride Models - Titan HD 1500, 2000, 2500 Models - ZMaster 2000, 3000, 4000, 5000, 6000 Models - Grandstand Models.

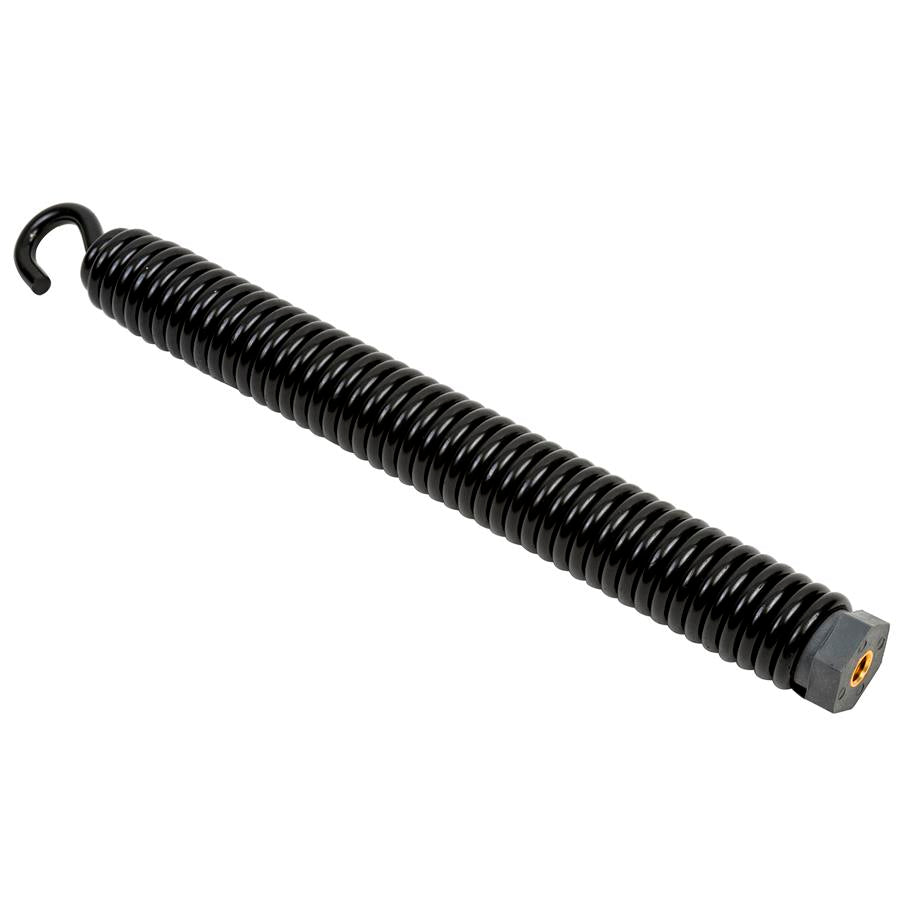

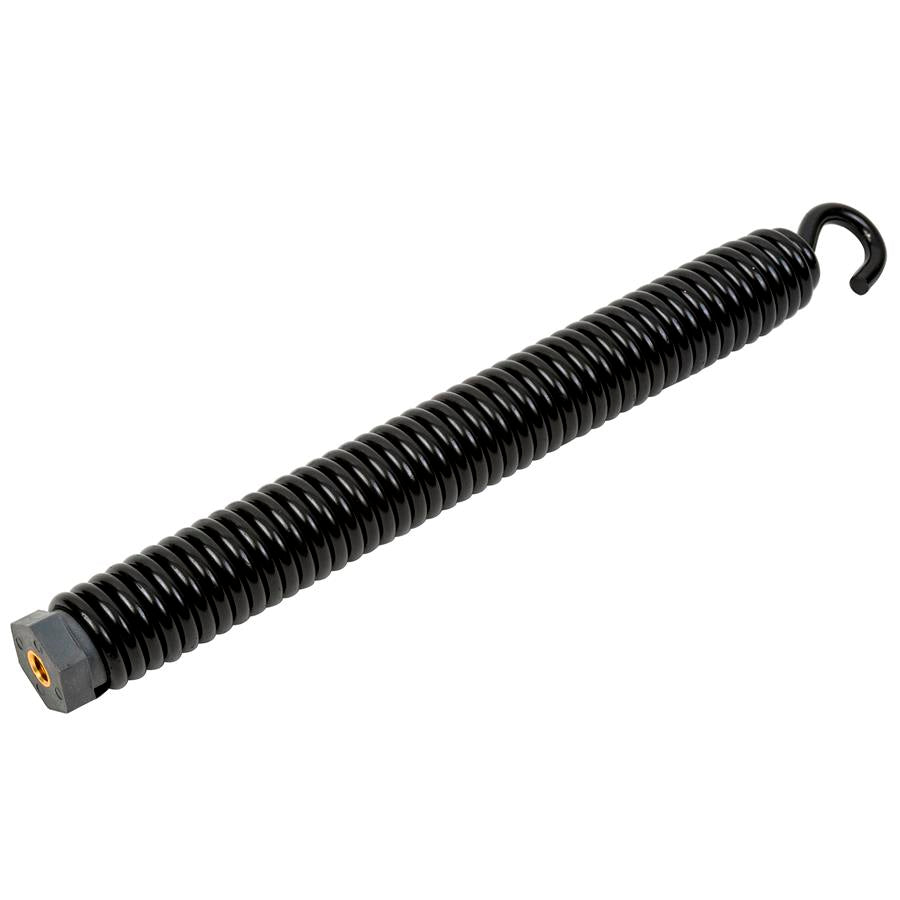

Toro OEM 116 0886 Mower Deck Lift Assist Extension Spring is Bolted to the Frame of the Mower by Using the Thread Insert Piece on the one End of the Spring and on the other end of the Spring Hooked on to a Bolt that is Fasten with A pair of Flange Nuts Through a Whole in the Mower Deck Rear Pivot Arm. Toro 116 0886 Lift Assist Spring Maintains the Correct Amount Tension on the Mower Deck Helping to Assist in the Lifting of the Mower Deck Without Having too much Tension which would Compromise the Even Cut of the Mower Deck trying to Return to the Transport on Uneven Terrain. Toro 116-0886 Fit Toro Late 60" Timecutter HD - Late 60" Titan MX, ZX, 6000, Standard, My-Ride (Tube Style Framing) - Titan HD 1500, HD 2000, HD 2500 (Tube Style Framing) - Z Master 2000 (With Tube Style and I-Beam Framing) - Z Master 3000, 4000, 5000, 6000, Revolution Models - Grandstand Standard, Multi-Force, Revolution, HDX, HDM Models - Mower Deck Assist Lift Kits.

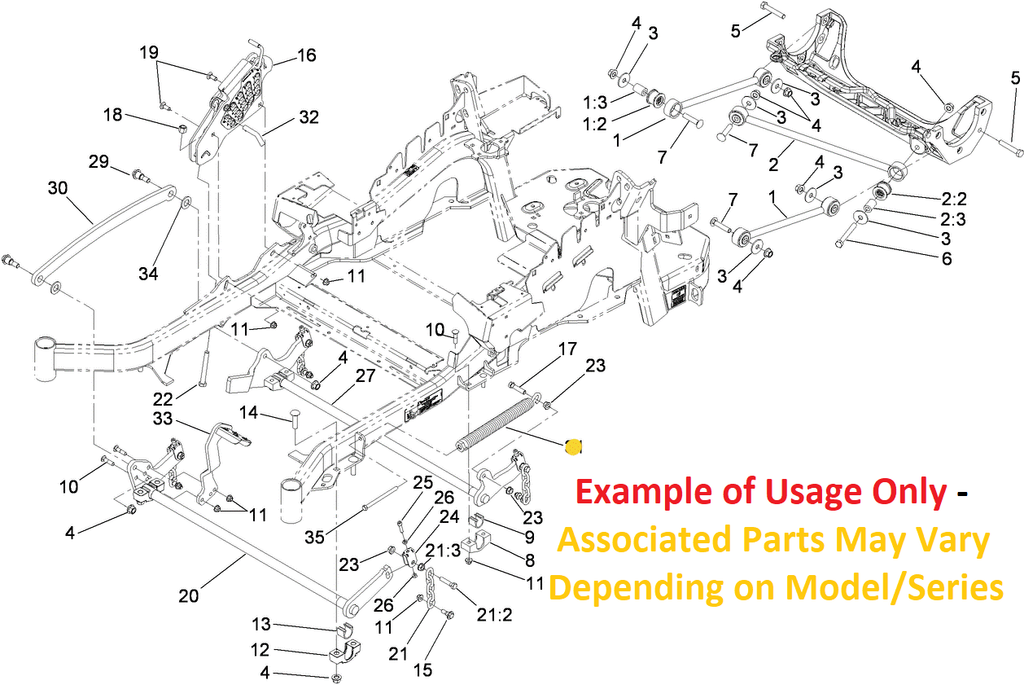

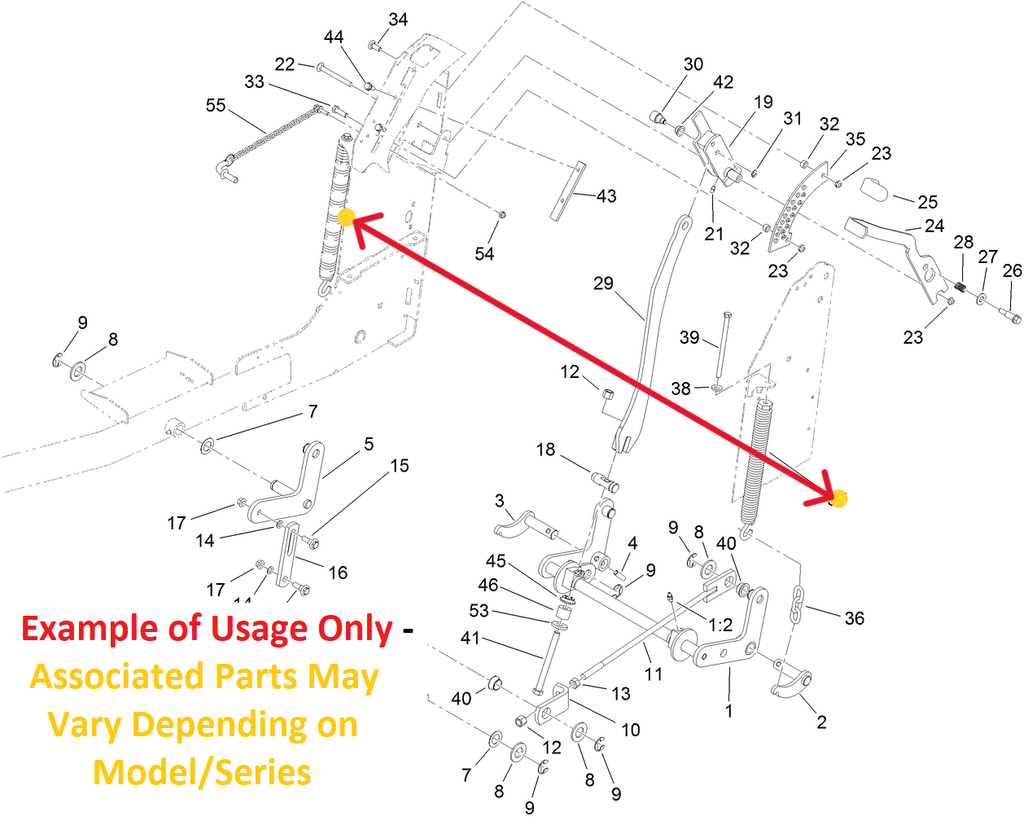

 NOTE: Due to Variation Within Model Numbers/Series, please refer to the Images above; Product Specifications and to the Model Fit Chart below to ensure a correct fit and for an Accurate Break down of Specific Model Number Usage. Model Numbers Listed in the Model Fit Chart Come with 116-0886 Factory Install. Some Models Require 1 Per Mower Deck - Some Models Require 2 Per Mower Deck. Toro 116-0886 is able to be Added to Models within the same Series with or without Different Mower Deck Size that are not Factory Installed. Listed Below Is a List of Mower Deck Lift Assist Kits Associated to Select Model/Series, Review the Model Numbers under each Mower Deck Lift Assist Kit Part Number to Ensure a Correct Fit.







ASSOCIATED LIFT ASSIST KITS FOR PART NUMBER 116-0886 ONLY

CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED





1. 132-6850 - MOWER DECK LIFT ASSIST KITS - (Fits Toro Timecutter HD Models and Titan ZX & MX Models)
2. 140-5123 - MOWER DECK LIFT ASSIST KITS - (Fits Toro Titan 4800, 5400, Standard & My-Ride Models)








Specification

Product Number:	1160886
Brand:	Toro
Length:	12.000 IN (30.480 CM)
Width:	1.000 IN (2.540 CM)
Height:	1.000 IN (2.540 CM)
Weight:	2.300 LB (1.043 KG)





Model Fit:



TIMECUTTER



60” TIMECUTTER HD Series – Model Numbers – (* Model Numbers 75213)



TITAN



60” TITAN 6000, TITAN Standard, TITAN My-Ride (PRE - Current IBEAM – Framing – Tube Framing Models Only) – 60” Late Models - (* Model Numbers 75303, 75313, 75306, 75316)

60” TITAN MX6000 & ZX6000 (PRE - Current IBEAM – Framing – Tube Framing Models Only) – 60” Early Models/Tube Framing - (* Model Numbers 74863, 74893)



TITAN HD



60” TITAN HD 1500 & HD 2000 (PRE - Current IBEAM – Framing – Tube Framing Models Only) - 60" Late Models / Tubed Framing - (* Model Numbers 74452, 74462, 74463, 74467, 74480)

60” TITAN HD 2500 Series (PRE - Current IBEAM – Framing – Tube Framing Models Only) – 60” Early Models Only - (* Model Numbers 74472, 78472)



Z-MASTER



CURRENT/LATE MODELS



Z MASTER 2000 MODELS – (Current/Late IBEAM – Framing Models) – (MODEL NUMBERS 77281, 77283, 77285, 77288, 77291, 77294)



Z MASTER 4000 MODELS – CURRENT/LATE MODELS- Current IBEAM – (MODEL NUMBERS 74000, 74002, 74004, 74010, 74015, 74020, 74022, 74024, 74035, 74050, 74054, 74057)



Z MASTER REVOLUTION MODELS – CURRENT/LATE MODELS- Current IBEAM – (MODEL NUMBERS 18748, 18752, 18760, 18762, 18765)



Z MASTER 3000 MODELS – LATE MODELS – (MODEL NUMBERS 72932, 72949, 72952)



Z MASTER 5000 MODELS – CURRENT/LATE MODELS – (MODEL NUMBERS 72904, 72906, 72907, 72908, 72955, 72956)



EARLY/LATE MODELS



Z Master 2000 (PRE - Current IBEAM – Framing – Tube Framing Models Only) - (* Model Numbers 74145, 74492, 74494, 74496, 74497, 77260, 77284, 77287, 77293, 77299)



Z MASTER 3000 MODELS – EARLY/LATE MODELS – (MODEL NUMBERS 74949, 74952, 74953, 74955, 74994, 75932, 75934, 78953)



Z MASTER 5000 MODELS – EARLY/LATE MODELS – (MODEL NUMBERS 74901, 74903, 74904, 74906, 74916, 74995, 75955)



Z MASTER 6000 MODELS – EARLY/LATE MODELS – (MODEL NUMBERS 74922, 74923, 78922, 78924)





GRANDSTAND



32” GRANDSTAND – (HDM) – (* Model Numbers 74532)



36” GRANDSTAND – (HDM) – (* Model Numbers 74535)



48” GRANDSTAND – (Standard) – (* Model Numbers 71504, 72504, 72518, 74504, 74518, 74538, 74548, 74574, 74578, 74588, 79504, 79518, 79548, 79574)

48” E - GRANDSTAND – (Revolution) – (* Model Numbers 18562)



52” GRANDSTAND – (Standard) – (* Model Numbers 71505, 72505, 72507, 72519, 74505, 74519, 74529, 74539, 74549, 74575, 74589, 79505, 79549, 79575, 79589)

52” GRANDSTAND – (Multi-Force) – (* Model Numbers 72529, 72530)

52” GRANDSTAND – (HDX) – (* Model Numbers 72506)

52” E - GRANDSTAND – (Revolution) – (* Model Numbers 18560)



60” GRANDSTAND – (Standard) – (* Model Numbers 72509, 72512, 72513, 72520, 74513, 74523, 74550, 74551, 74553, 74576, 74583, 79551, 79553)

60” GRANDSTAND – (Multi-Force) – (* Model Numbers 72523, 72524)

60” GRANDSTAND – (HDX) – (* Model Numbers 72510, 72514)

60” E - GRANDSTAND – (Revolution) – (* Model Numbers 18564)



72” GRANDSTAND – (HDX) – (* Model Numbers 72517)



MOWER DECK LIFT ASSIST KITS



MOWER DECK LIFT ASSIST KITS – (* Part Numbers 132-6850, 140-5123)
