Description

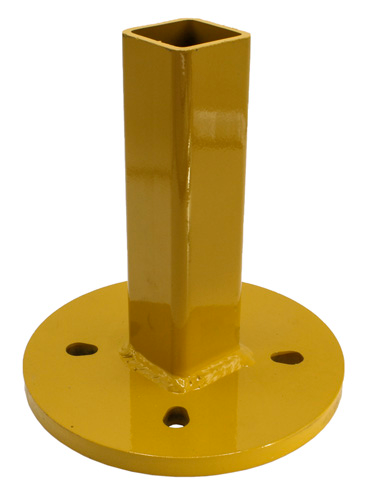

The Tool That is a Freind to a Landscaper (Gotta Have to Keep Out of Pinch). - Ever Been Mowing and Hit That Metal Surveyor Rod Bending your Mower Blade and a Damaging the Mower Spindle Assembly - You Oder New Parts and Were Installing Them Only to Realized that your New Set of Mower Blades Don't Line Up from Tip to Tip. Mower Decks Can Twist from Speed of Mower Blades and Torque from the Engine when a Sudden - Stopping - Impact Occurs. That is Where 115776 Mower Deck Straightener Will Come to Your Assistance. Hustler OEM 115776 Will Mount in Place of where The Spindle would Mount (Main Point of Mower Deck Twisting Occurs) and Allows you To Staraighten Your Mower Deck by Pounding and/or Twisting. Mower Blade Alignment Should Be within 1/16" - 1/8" of Each Other with the Mower Deck Blades Aligned Tip of Blade to Tip of Blade. It Is Always Important to Rember for a Premier Lawn Affect You Should Also Check Tire Pressure and Re-adjust your Mower Deck as well.
- Spindle Assembly Part Numbers that the Mower Decks Are Compatible to Utilizing 115776: 607407P, 607407, 607408P, 607408, 604255, 604256, 601630, and 601819
Model Fit Chart - Model After 2011
Some Early Models with XR7 Mower Deck May Not Be Listed but as Long they Use any One of the Above Listed Spindle Assembly Part Numbers 115776 Deck Straightener Will Be Adaptable.
* 115776 May Be Used on Additional Models/Families like Deisel Z & X-One Models - Due to Lack of Information and Details - Hilly Ridge Will Continue to MANUELLY Improve the Model Fit Chart with Time - If you Have any Questions on Exact Fit Feel free to Message or Call us.
X-ONE
(Models 2011 and Later are Listed - Models Listed Prior To 2011 May Not Be Listed If Applicable)
X-RIDE (ALL MODELS)
944074, 944868
Super Z
(Models 2011 and Later are Listed - Models Listed Prior To 2011 May Not Be Listed If Applicable)
929927, 929935, 929943, 929950, 930024, 930065, 930875, 931048, 932012, 932020, 932038, 932046, 932053, 932061, 932129, 932137, 932970, 932988, 933457, 933929US, 934216, 934224, 934232, 934240, 934265, 934273, 934281, 934984US, 934992, 935007, 935015US, 935023, 935031, 935049, 935056US, 935064, 936872, 936880, 936898US, 936914, 936922, 936930, 936948US, 936955, 936989, 937714, 937722, 937730, 938985, 938993, 940031, 940049, 941138, 941146, 941153, 941161, 941179, 941187, 941195, 941203, 941377, 941385, 942342, 942771, 942763, 942805, 942813, 942821, 942839, 942854, 942862, 942870, 942888, 942896, 942912, 942920, 943852, 943860, 943878, 943886, 943894, 943910, 943928, 943936, 943944
Super Z Hyper Drive
(Models 2011 and Later are Listed - Models Listed Prior To 2011 May Not Be Listed If Applicable)
932145, 932152, 932160, 932178, 932186, 932996, 933002, 934315, 934307, 934323, 934349, 934687, 934695, 934919, 934927, 934935, 934943, 934950, 934968, 934976, 936997, 937003, 937011, 937029, 937037, 937045, 937052, 937110, 939561, 939579, 939587, 939595, 941229, 941237, 941245, 941252, 941260, 941278, 941286, 941294, 941302, 941310, 941534, 941542, 941559, 941567, 942219, 942227, 942235, 942243, 942250, 942359, 942961, 942979, 942995, 943001, 943019, 943027, 943035, 943043, 943050, 943068, 943951, 943969, 943977, 943993, 943985, 944017, 944041, 944025, 944033
Diesel Z
(Models 2011 and Later are Listed - Models Listed Prior To 2011 May Not Be Listed If Applicable)
Super ATZ
(Models 2011 and Later are Listed - Models Listed Prior To 2011 May Not Be Listed If Applicable)
No Listed Model Numbers
Super 104
Super S
Super SF
Super 88
936617, 939546
Not sure if this is the correct part?
Contact us with your Hustler model and serial number and we will verify the correct part before you order.
