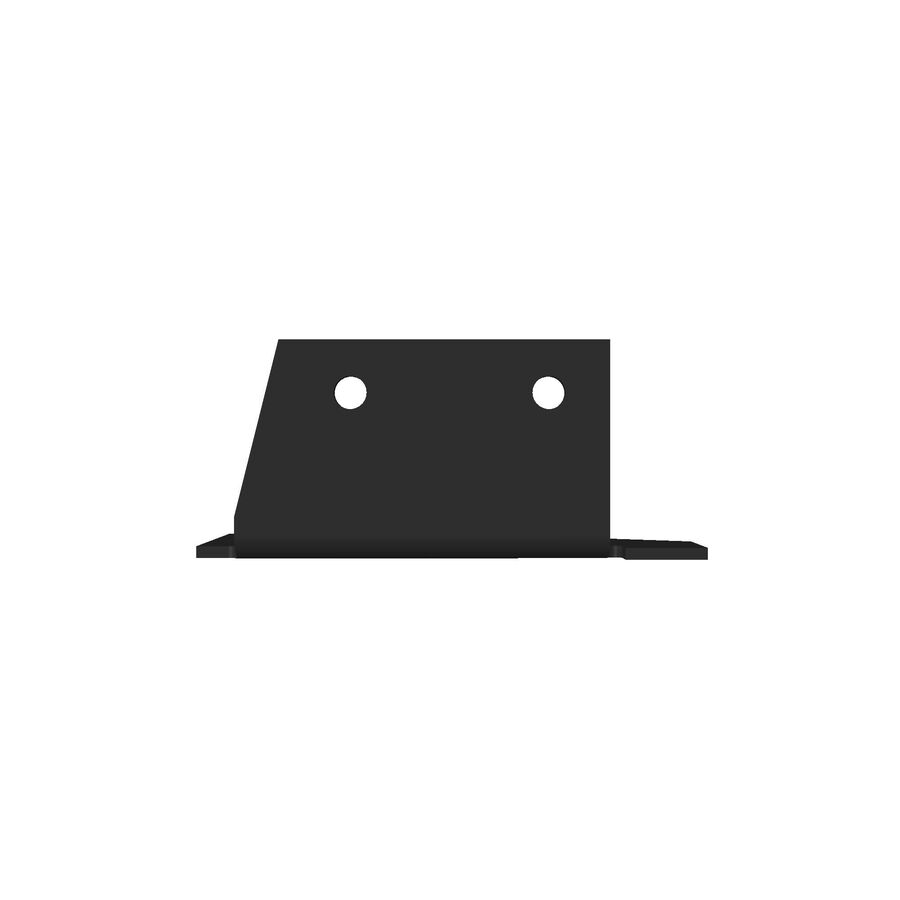

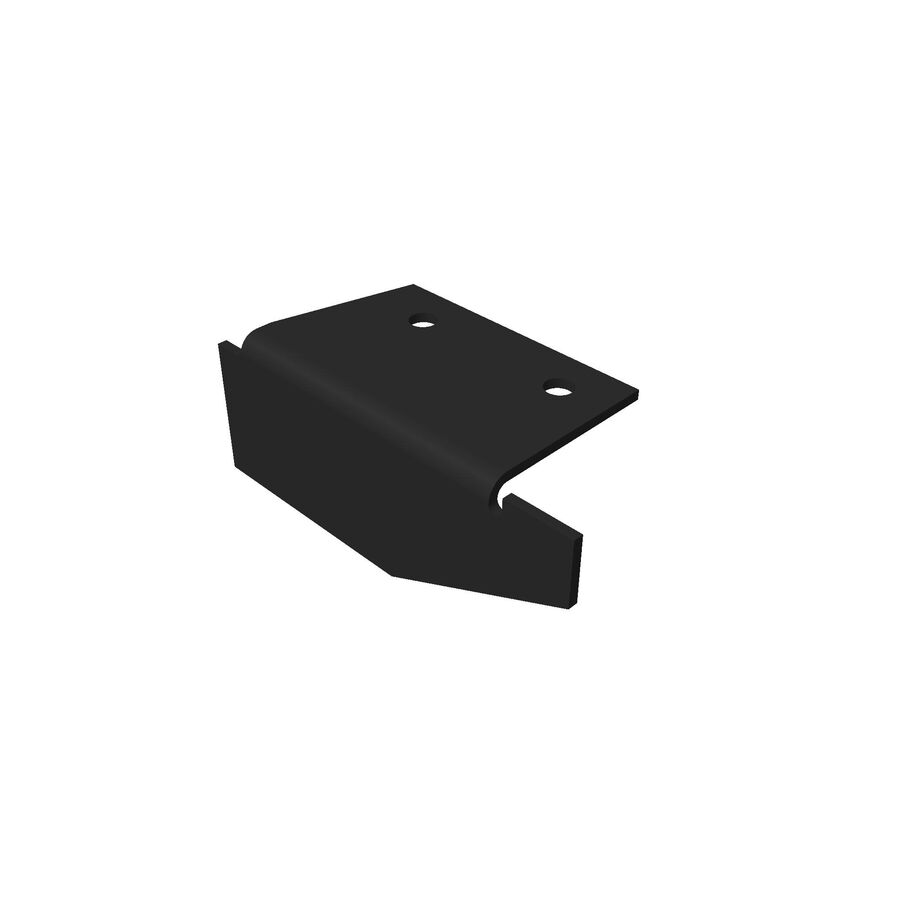

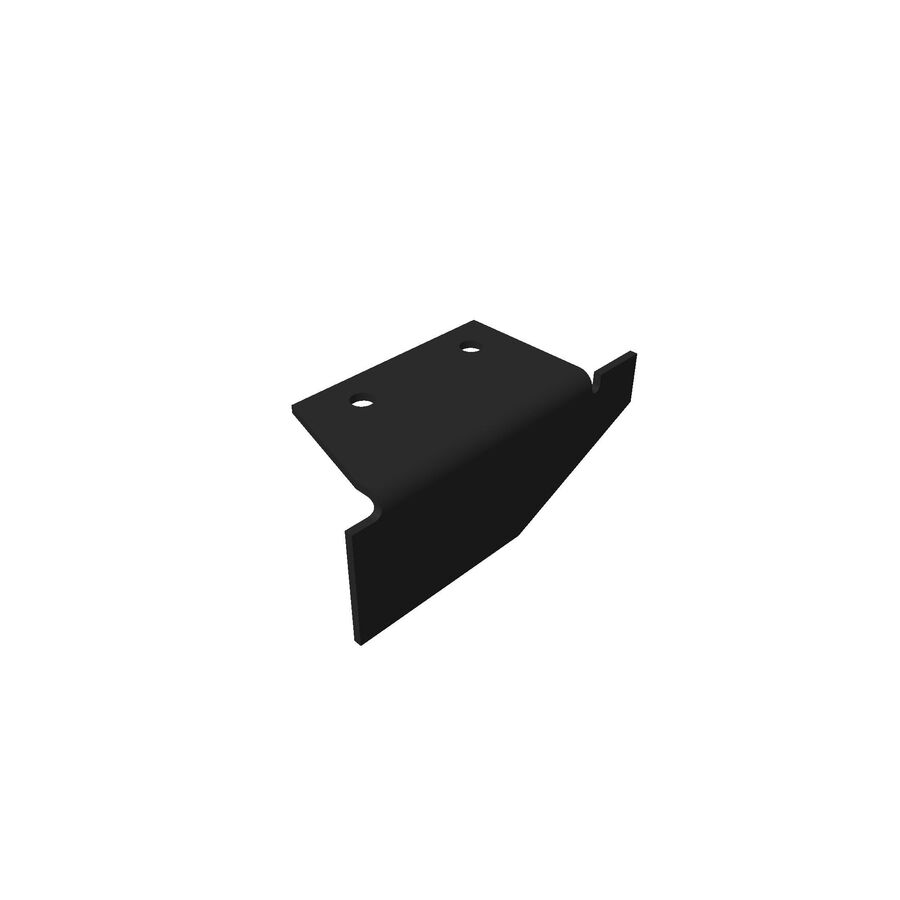

Toro OEM 115-9653-03 Discharge Baffle Fits Late 54" Timecutter HD Model - Late 54" Titan ZX, MX, X, XS 5400, Standard, MyRide Models (Tube Style Framing) - Current 54" TITAN Standard, MyRide (I-Beam Framing) - Late/Current 54" Proline Models.

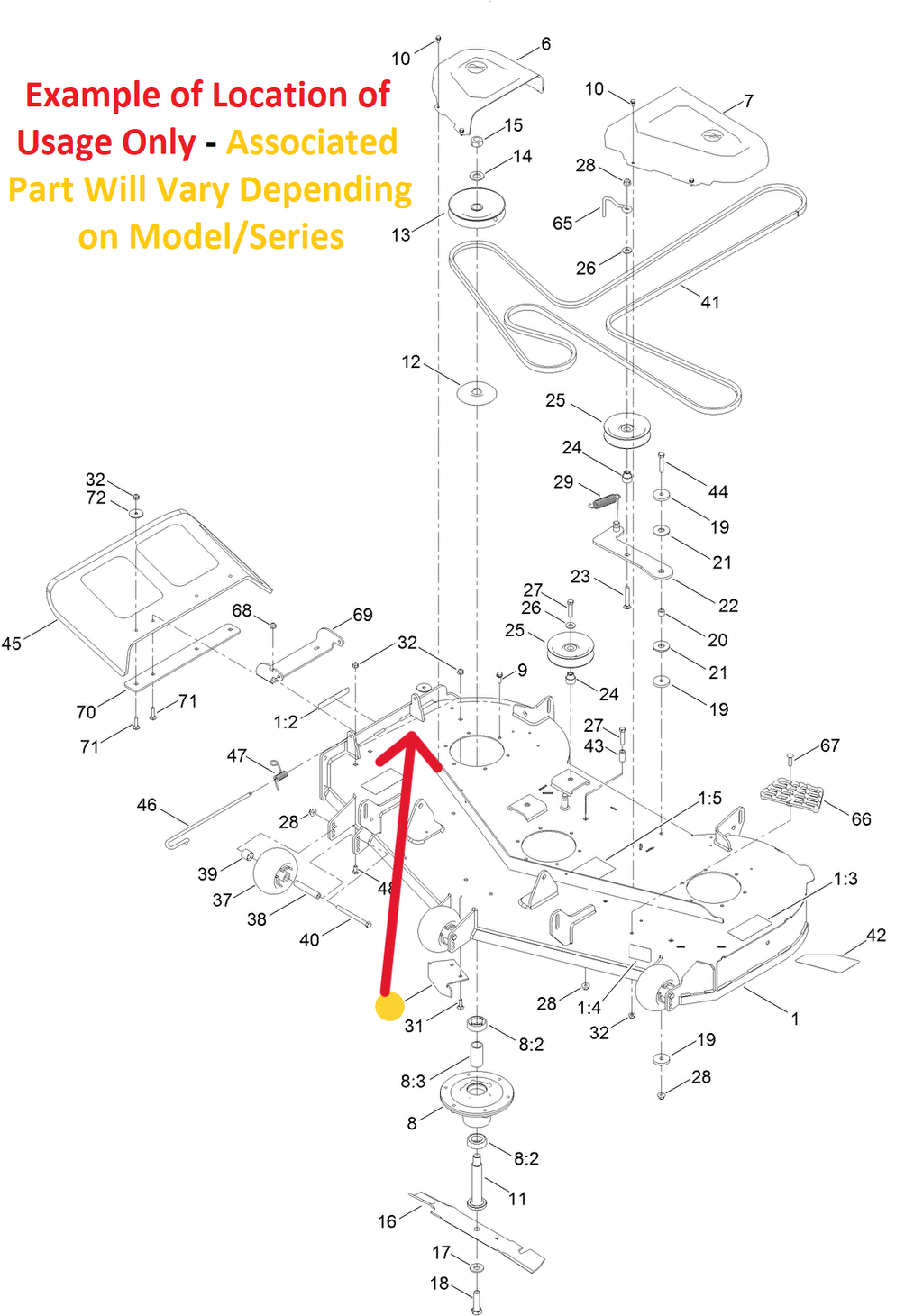

Toro OEM 115 9653 03 Mower Deck Discharge Baffle is used under or inside the Mower Deck by the Discharge Opening. Toro 115 9653 03 Discharge Baffle is used for the Purpose of Redirecting or Interrupting Air Flow and Grass, Stemming Circular Air Flow Toward the Discharge Opening. Toro OEM 115-9653-03 is Designed to fit Toro Late 54" Timecutter HD Models - Late 54" TITAN ZX, MX, X, XS, 5400, Standard, My-Ride Models (Models with Tube Framing) - Current 54" TITAN Standard and My-Ride Models (Models With I-Beam Framing) - Current/Late 54" Proline Models. Due to Variation Within Model Numbers/Series, please refer to the Images above; Product Specifications and to the Model Fit Chart below to ensure a correct fit and for an Accurate Break down of Specific Model Number Usage.



ASSOCIATED IDLER ARM PARTS FOR PART NUMBER 115-9653-03 ONLY

CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED



Note: *Toro May Have Numerous Part Numbers for the Same Size Bolt and Nuts in Oder to Avoiding Confusion we Try to Limit Part Number Suggestions to the Most Common Part Numbers Within the Same Size/Part Number Variation.





1. 3230-20 - CARRIAGE BOLT (Timecutter HD & TITAN Models Only) - (Retains the Mower Deck Discharge Baffle to the Mower Deck) x2 Per Mower Deck Discharge Baffle
2. 3230-23 - CARRIAGE BOLT (PROLINE Models Only) - (Retains the Mower Deck Discharge Baffle to the Mower Deck) x2 Per Mower Deck Discharge Baffle
3. 104-8300 - NYLON LOCK NUT - (Retains the Mower Deck Discharge Baffle to the Mower Deck) x2 Per Mower Deck Discharge Baffle








Specification

Product Number:	115965303
Brand:	Toro
Length:	NA
Width:	NA
Height:	NA
Weight:	0.768 LB (0.348 KG)





Model Fit:



TIMECUTTER



54” TIMECUTTER HD Series – Model Numbers – (* Model Numbers 74865, 74867, 74876, 74888, 75202, 75212)



TITAN



54” TITAN Standard, My-Ride (54” Newer/Current Models I-Beam Frame) – 54” Late/Current Models Only - (* Model Numbers 76501, 76511, 76530, 76554)

54” TITAN 5400, TITAN Standard, TITAN My-Ride (PRE - Current IBEAM – Framing – Tube Framing Models Only) – 54” Early / Late Models Only - (* Model Numbers 75302, 75305, 75310, 75312, 75315)

54” Titan X, XS Series (PRE - Current IBEAM – Framing – Tube Framing Models Only) – 54” Early Models Only - (* Model Numbers 74877, 74889, 74898)

54” TITAN ZX and MX Series (PRE - Current IBEAM – Framing – Tube Framing Models Only) – 54” Early Models Only - (* Model Numbers 74822, 74832, 74842, 74848, 74852, 74862, 74872, 74882, 74892, 74914, 74924)



PROLINE



54” Proline Series – 54” Current/Late Models Only - (* Model Numbers 44427, 44454)
