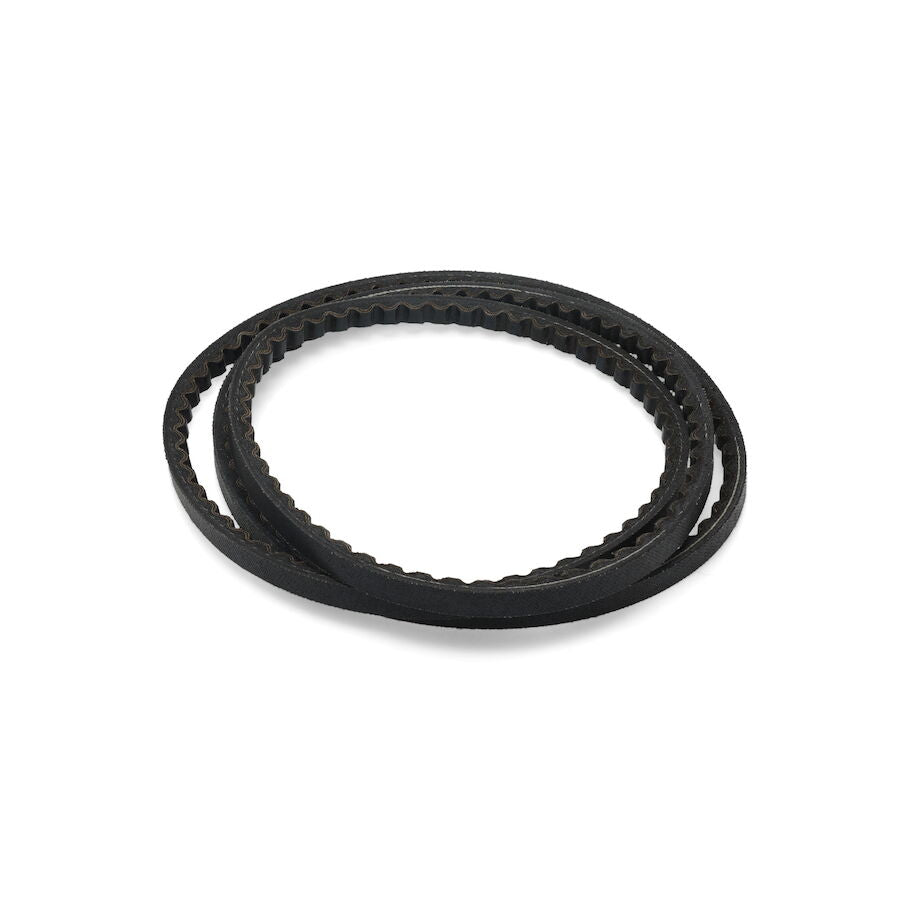

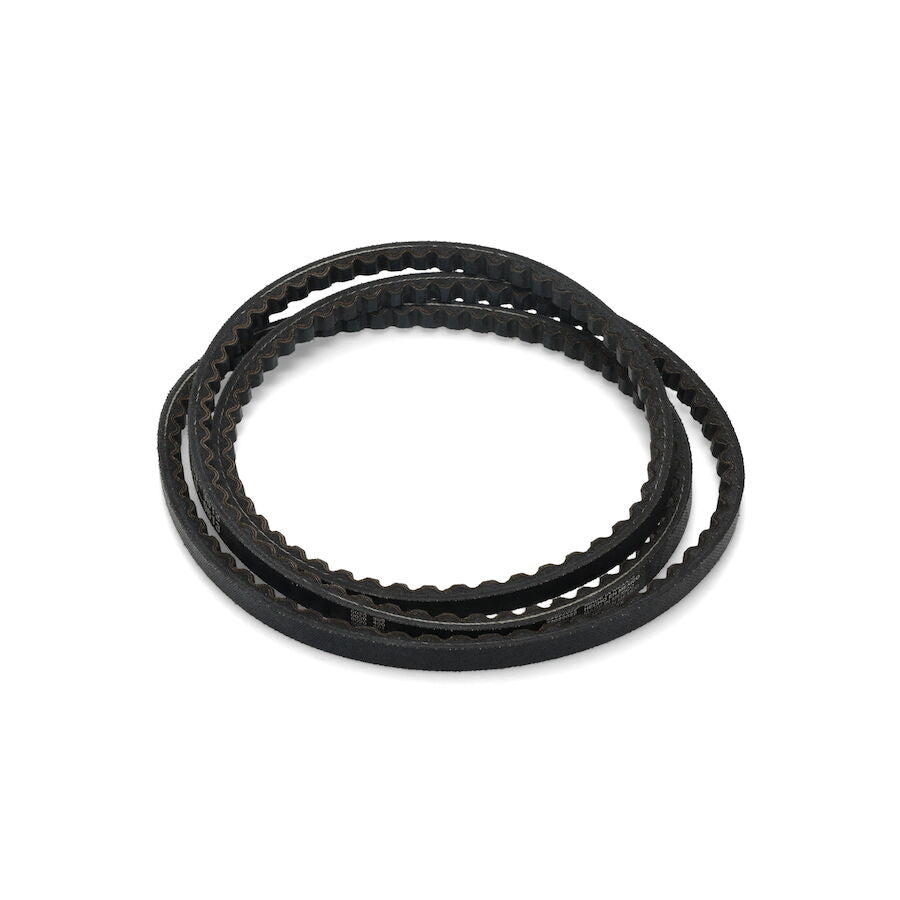

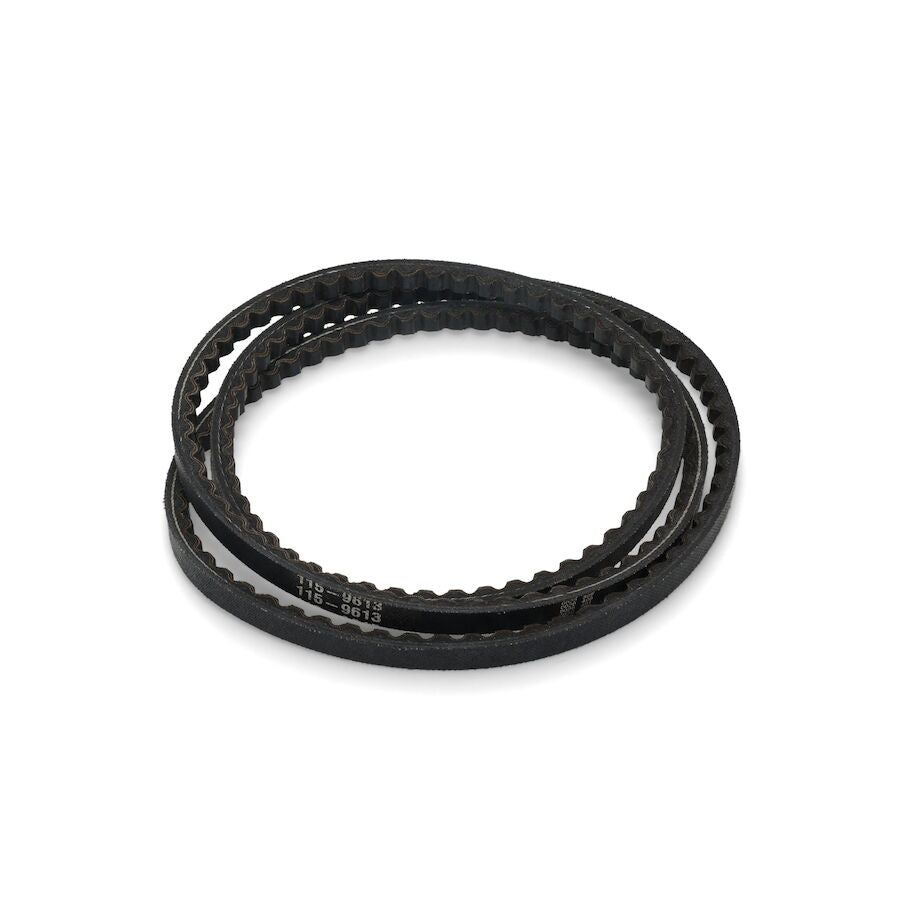

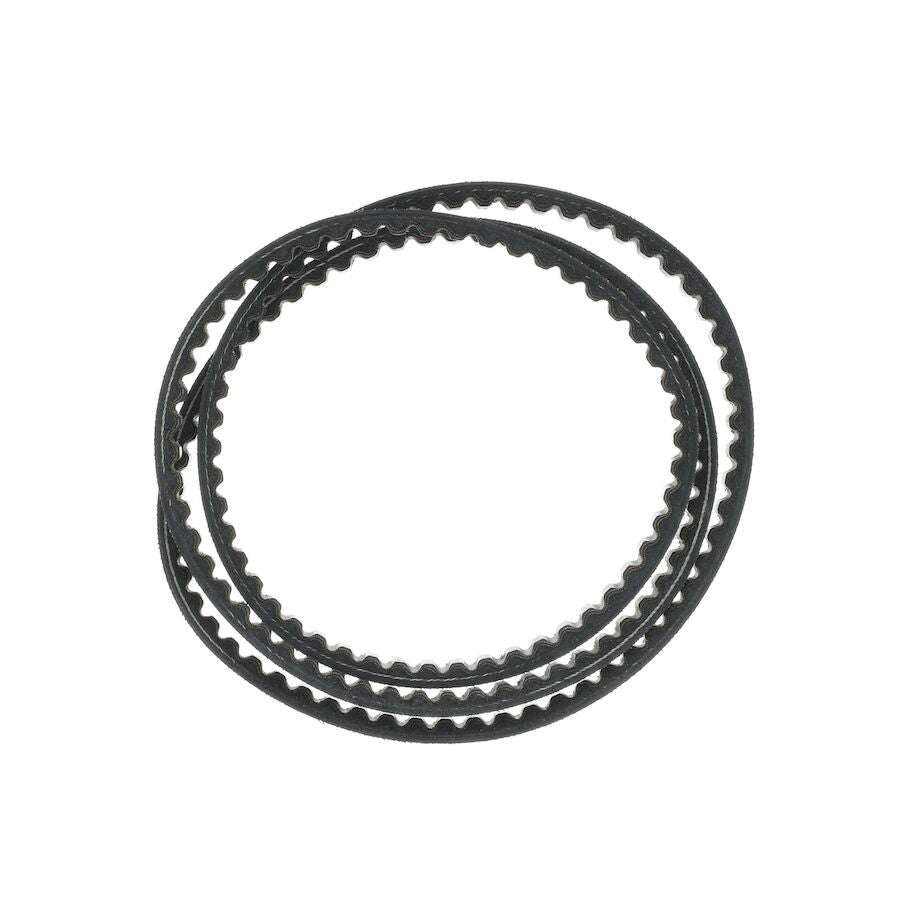

Toro OEM 115-9613 Cogged Hydraulic Drive Belt Fits Early/Late Model Titan MX and ZX Models.

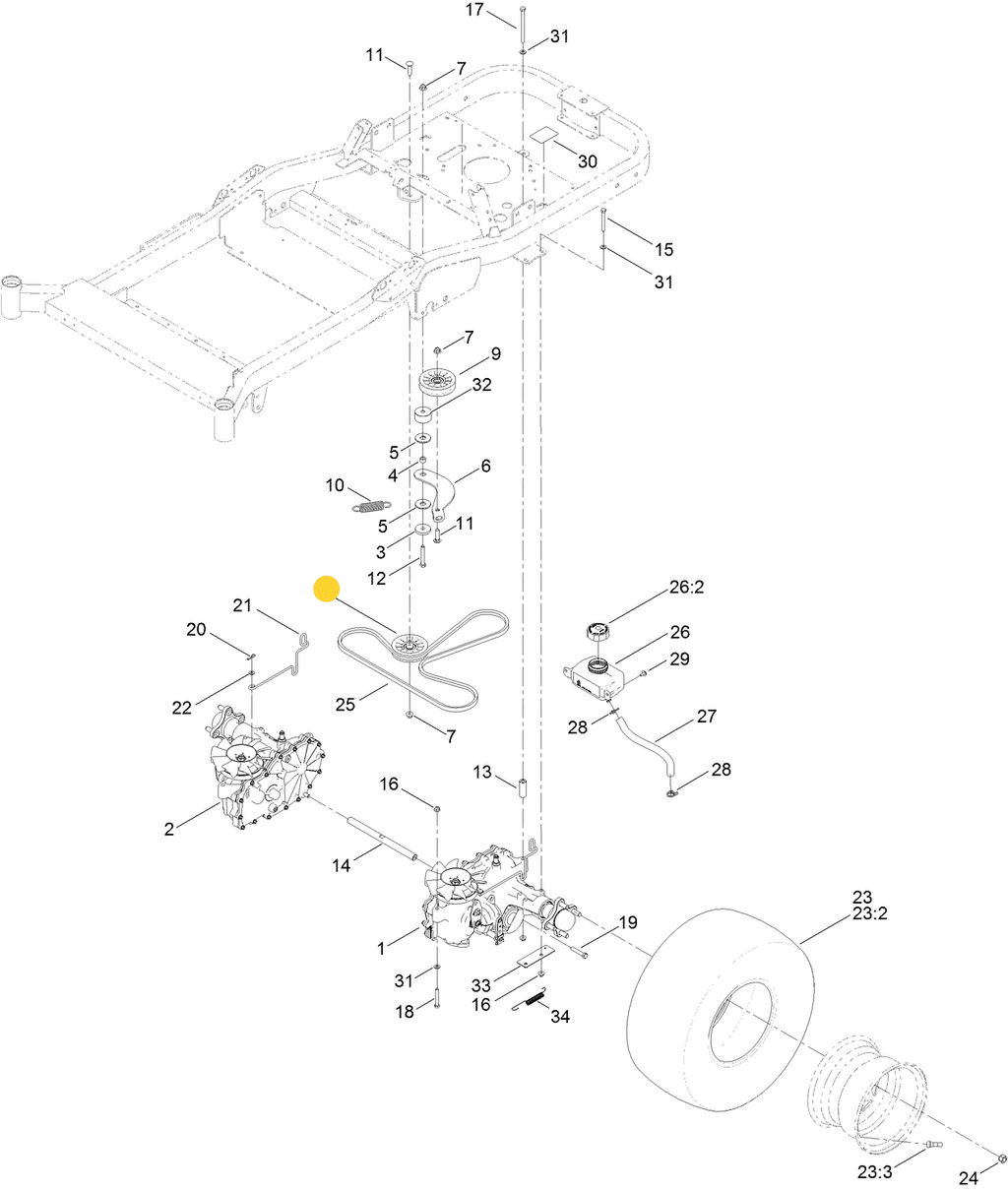

Toro OEM 115 9613 Cogged Hydraulic Drive Belt is made with the best of Materials Aramid/Kevlar/Rubber and is rigorously tested to ensure they have the Correct Combination of Materials, Made to Engineering Specifications and Superior Quality to Eliminate Disappointment in the functionality of Toro Equipment. So, with an Attitude (That No Hill is too Big) replace Those Worn-Out Hydraulic Drive Belt with the Confidence and the Peace of Mind that you have recreated your Machines Functionality with Toro OEM (Original Equipment Manufacturer). Toro OEM 115-9613 Cogged Hydraulic Drive Belt is a Made to Fit on Toro Early/Late Model TITAN ZX and MX Models (* Used with Plastic Idler Only - Refer to Model Fit Chart, Images, Associated Parts Chart and Special Notes). Please refer to the Images above; Product Specifications, Special Notes and the Model Fit guide below to ensure proper fit.

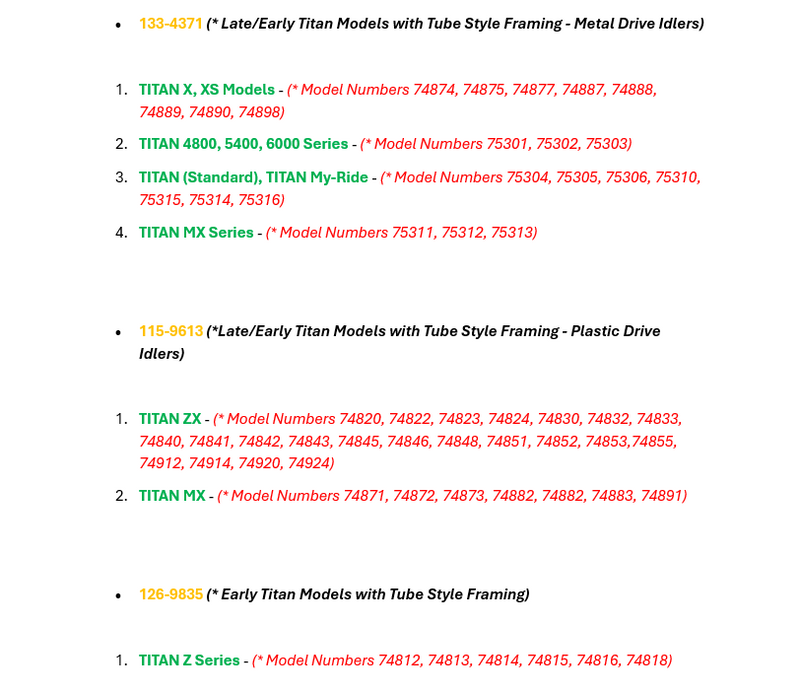

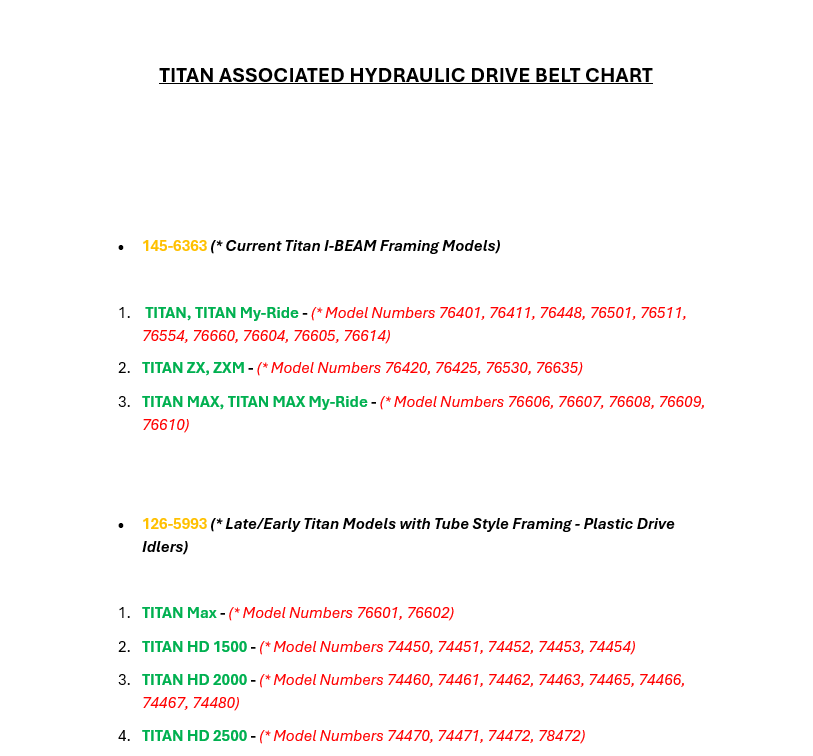

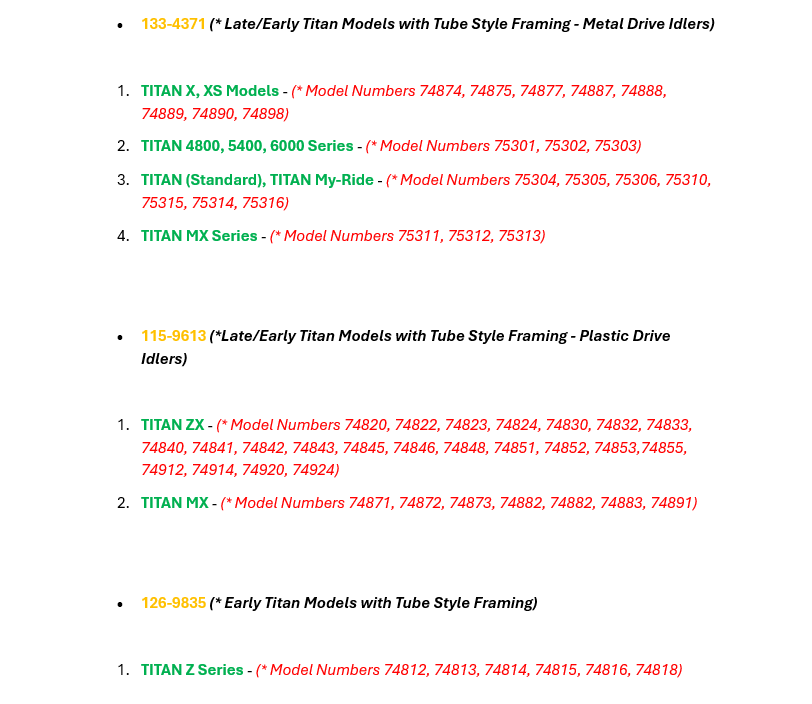

NOTE 1: Due to Serial Number and/or Model Design changes it is always Beneficial to Eliminate Confusion by Searching your Belt Type and Model Number at the Top of our Website Page in the Search Tab. That in return will search the Model Fit Chart at the Bottom of the Page to Find the correct Model/Belt Part Number Combo. Second Method is to refer to the Part Numbers under the TITAN Hydraulic Drive Belt Associated Part Number Reference Chart and Visually Match the correct Part Number with the Correct Series/Model Combo. If this does not prove helpful and you still need assistance with finding the correct part number feel free to text us, email or give us a call and we can try to help you. Remember if further assistance is needed you will need to provide Models and Serial Number of the Unit you are wishing to receive Help with.







Note 2: Due to a SERIAL Number break some Titan MX Model numbers might overlap with Hydro Drive Belt 115-9613 (* Uses Plastic Idler Pulley) and 133-4371 (* Uses Metal Idler Pulley). This is a difference between a metal versus plastic Drive Idler Pulley on the tensioner arms. For additional reference and part numbers, refer to the part numbers bellow.











ASSOCIATED IDLER PULLEYS FOR TITAN MODELS ONLY

CLICK ON THE ASSOCIATED PART NUMBER TO BE RE-DIRECTED





• PLASTIC IDLER PULLEY (ZX Series and Select MX Series)



1. HYDRO DRIVE BELT - 115-9613
2. PLASTIC FLAT IDLER PULLEY - 109-3397



• METAL IDLER PULLEY (Select MX Series)



1. HYDRO DRIVE BELT - 133-4371
2. METAL FLAT IDLER PULLEY - 138-7597
3. METAL V-IDLER PULLEY - 119-8822







Specification

Product Number:	1159613
Brand:	Toro
Length:	NA
Width:	NA
Height:	NA
Weight:	0.458 LB (0.208 KG)





Model Fit:

74820, 74822, 74823, 74824, 74914, 74830, 74832, 74833, 74912, 74840, 74841, 74842, 74843, 74845, 74920, 74924, 74871, 74872, 74873, 74851, 74852, 74853, 74855, 74882, 74883, 74846, 74848, 74891, 74892, 74893, 74861, 74862, 74863
