Description
Please refer to the Images above; Product Specifications, Associate Part Chart and the Model Fit Guide below to Ensure a proper fit.
Part Number 107-3830 Supersede to Part Number 115-5685
Model Number 38640 Does Contain a Serial Number Break in Requiring Correct Part Number Usage - Review the Model Fit Chart to Ensure Correct Part Number. if it is the Incorrect Part Number Refer to Part Number 120-3086
- PRODUCT NUMBER AND VARIATIONS: 115-5685, 115 5685, 1155685

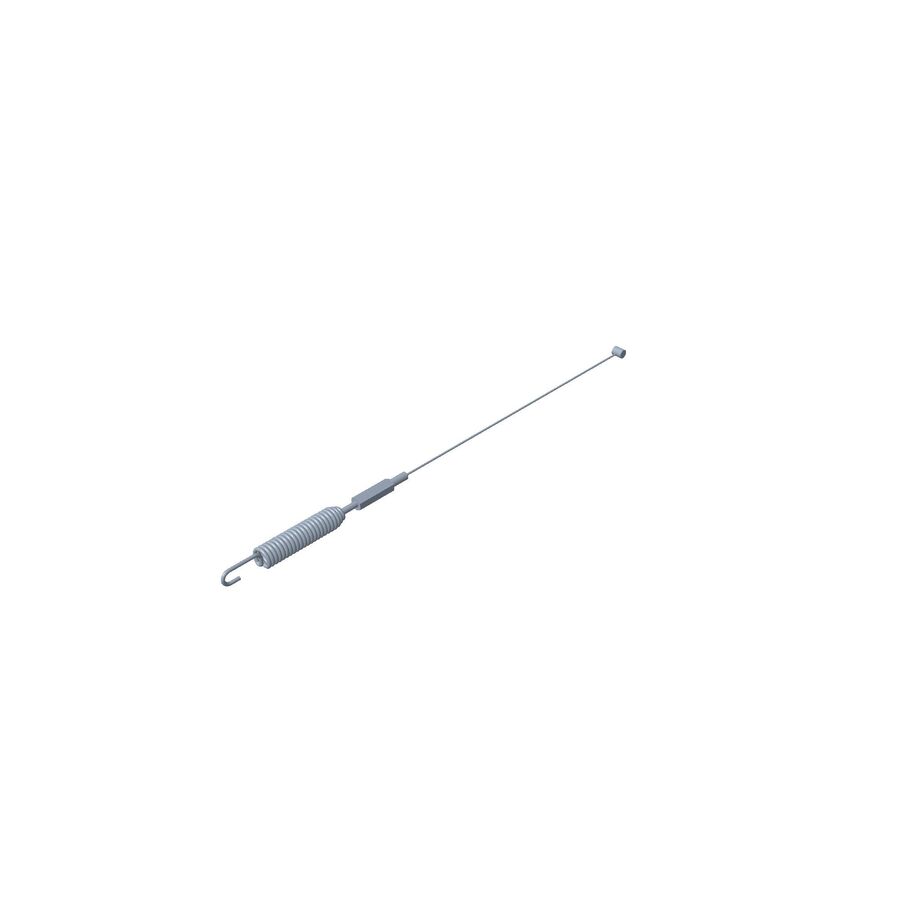

- PRODUCT TYPE: Auger/Rotor Clutch Cable
- SIZE: Length N /A - Width 0.060 in. - Height 0.060 in. - Weight 0.170 lbs.
- NOTES & DETAILS: Toro OEM 115-5685 IS COMMINLY USED - 115-5685 Cable End Inserts into the Operator's Control Lever - 115-5685 Cable's Spring End Hooks into the Impeller Clutch Rod Assembly - 115-5685 Cable Enables Tightening/Engaging the Belt when the Operator Engages the Auger/Rotor Control Handle/Lever - The Tightening Action of the Cable and Belt Engages the Auger/Rotors.
- COMMON SERIES APPLICATIONS: Toro Select Power MAX & Power MAX HD Snow Blower Models - Power Broom Models.

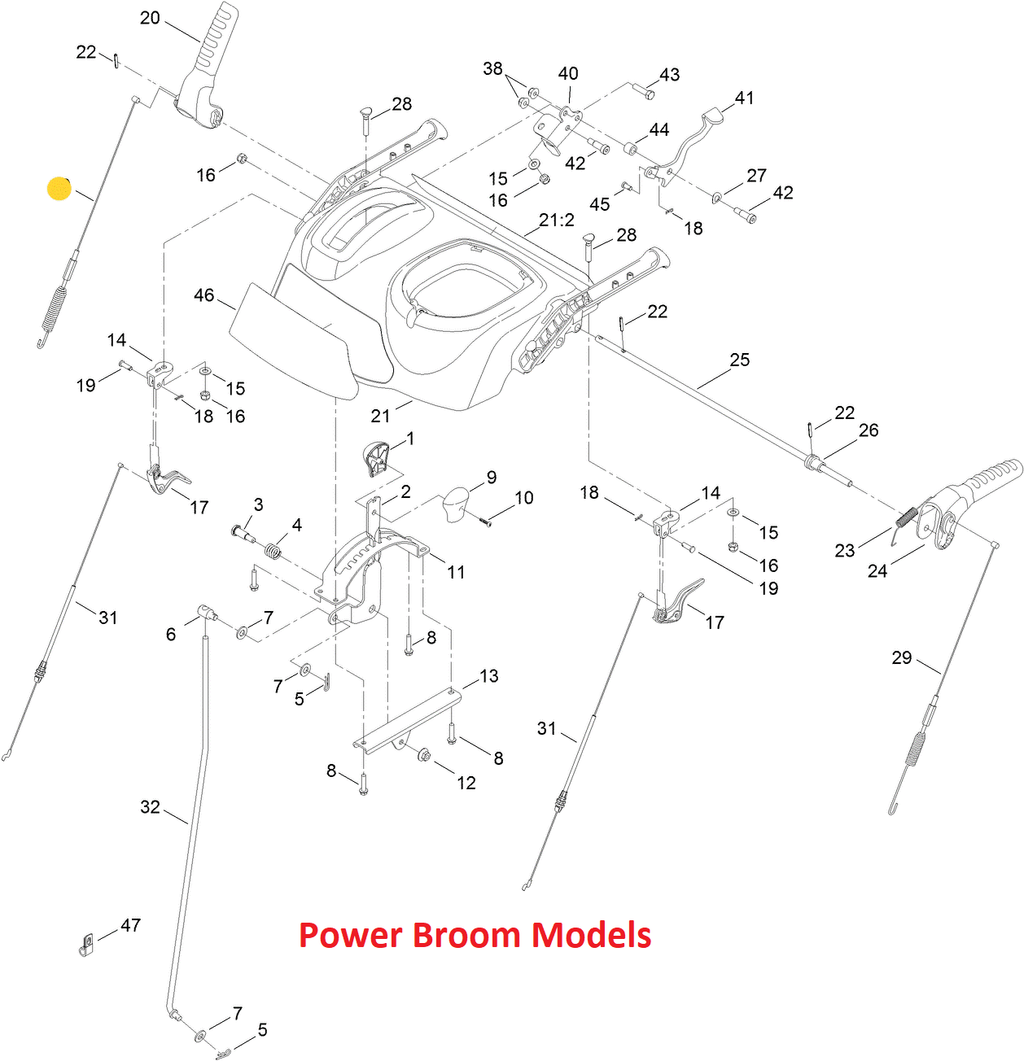

- MODEL FIT CHART:
SNOWBLOWER’S & POWER BROOMS
POWER MAX Series – Model Numbers – (* Model Numbers 38640 Serial Number 250999999 and Lower, 38650, 38651, 38652, 38654, 38657, 38680, 38803, 38828)
Power Broom Series – Model Numbers – (* Model Numbers 23740, 38700)
