Description

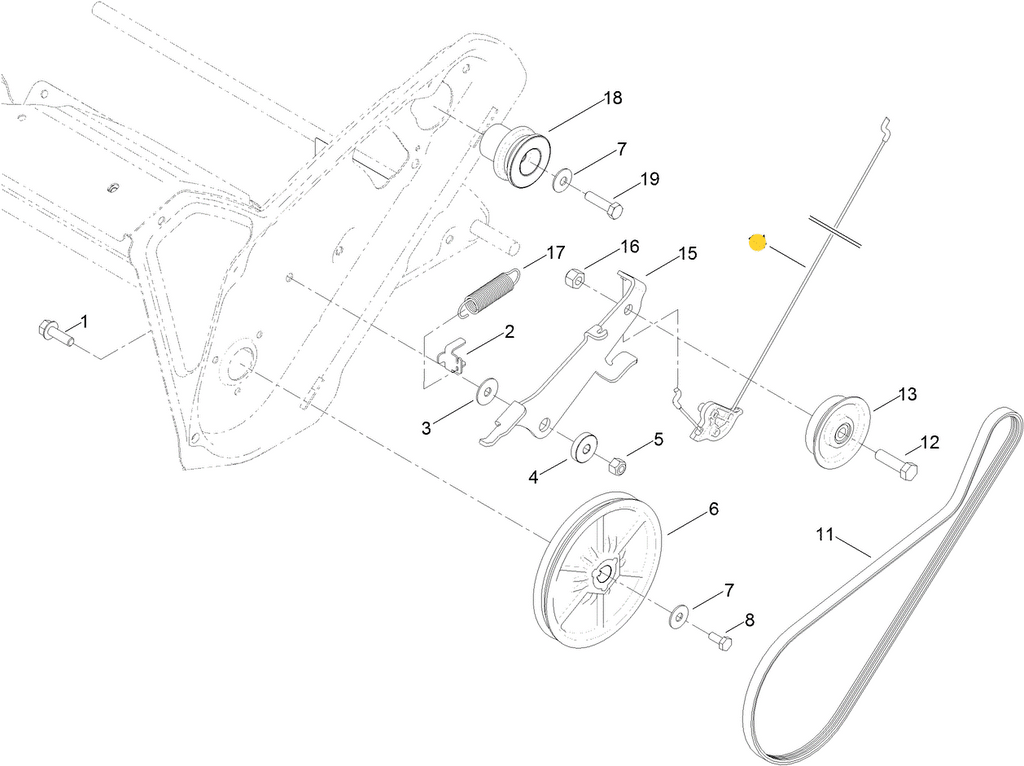

Please refer to the Images above; Product Specifications, Associate Part Chart and the Model Fit Guide below to Ensure a proper fit.
Part Number 94-9949 Supersedes to Part Number 115-5682.
- PRODUCT NUMBER AND VARIATIONS: 115-5682, 115 5682, 1155682, 94-9949, 94 9949, 949949

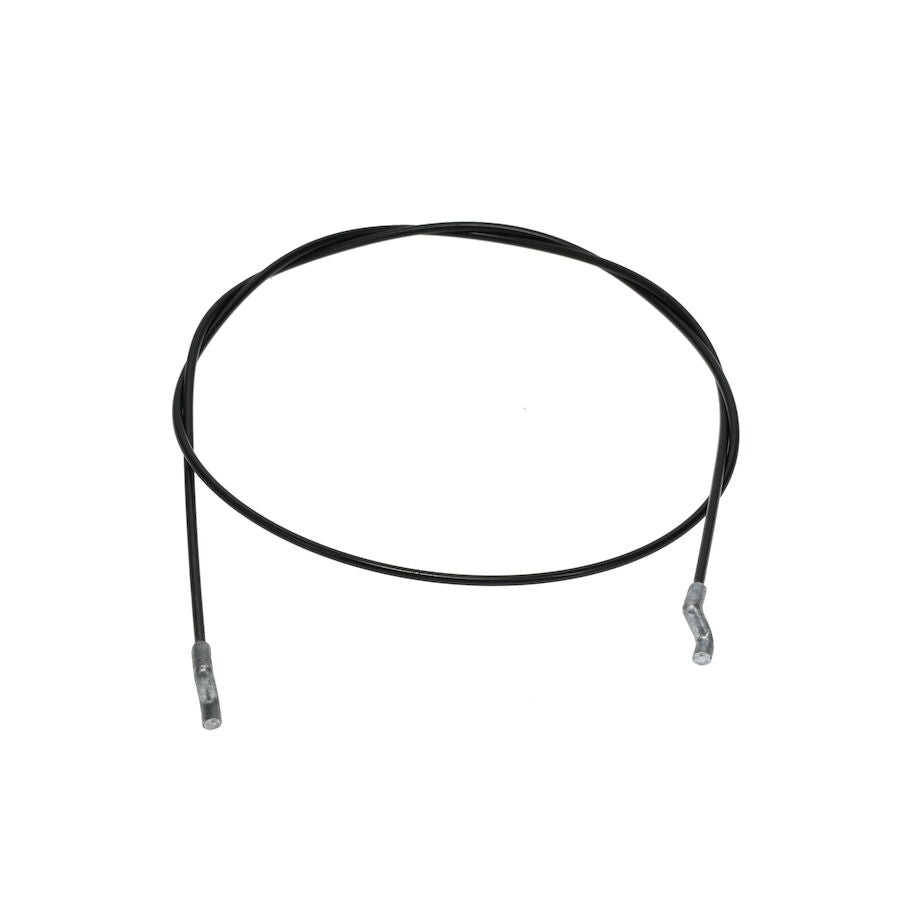

- PRODUCT TYPE: Auger/Rotor Clutch Cable
- SIZE: Length 5.500 in. - Width 5.500 in. - Height 0.200 in. - Weight 0.028 lbs.
- NOTES & DETAILS: Toro OEM 115-5682 IS COMMINLY USED - Inserts into the Idler Pulley Tensioner Arm as well as the Clutch Spring/Cable Adjuster Plate and Tightens the Belt when the Operator Engages the Auger/Rotor Bail Handle or Upper Handle Clutch Bail - The Tightening Action of the Cable and Belt Engages the Auger/Rotors.
- COMMON SERIES APPLICATIONS: Toro Select 21" Powerlite, Power Clear & Quick Clear Snow Blower Models.
- MODEL FIT CHART:
SNOWBLOWER’S
POWERLITE Series – Model Numbers – (* Model Numbers 38170, 38173, 38175, 38177, 38178, 38183)
QUICK CLEAR Series – Model Numbers – (* Model Numbers 38563 Serial Number 400000000 - 405011999, 38567, 38568 Serial Number 400000000 - 405011999, 38569, 38571, 38575, 38576, 38577)
POWER CLEAR Series – Model Numbers – (* Model Numbers 38453, 38454, 38458, 38459, 38578, 38581, 38582, 38583, 38584, 38585, 38586, 38588, 38589, 38743, 38744, 38751)
- ASSOCIATED PARTS CHART:
ASSOCIATED PARTS REFERENCES FOR PART NUMBER 115-5682 ONLY
CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED
- 136-7138 - AUGER/ROTOR TENSIONER IDLER ARM (Connects to the Auger/Rotor Clutch Cable and Contain an Idlers Pulley That Rest Against the Auger Belt when tightened - 136-7138 Pivots when pulled by the cable as the Operator Engages the Auger/Rotor Clutch Handle) x1 Per Auger/Rotor Clutch Cable
- 136-7126 - CLUTCH SPRING/CABLE ADJUSTMENT PLATE (Serves as the link between the Clutch Cable and the Clutch Cable Spring to which both would Hook Into - 136-7126 Contains Numerous Whole for Adjustment Purposes) x1 Per Clutch Cable and Spring
- 140-3660 - COMPLETE CABLE GUIDE KIT (* Contains Screw, Nylon Lock Nut, Cable Guide, Cable Guide Cap - Installed on the Frame of the Snow Blower - Aguer/Rotor Clutch Cable Feeds through the Cable Guide and Enables the Cable to be Redirected into and Operated in a 90 Degree Angle without Rubbing Against anything that is Sharp or Rough that would Prematurely Wear the Cable - Cable Guides are Made of a Softer Plastic or Aluminum Material and May Wear Over Time Causing them to obtain Rough Edges - Important to Check the Cable Guide when Replacing the Auger Clutch Cable) x1 Per Auger/Rotor Clutch Cable
