Description

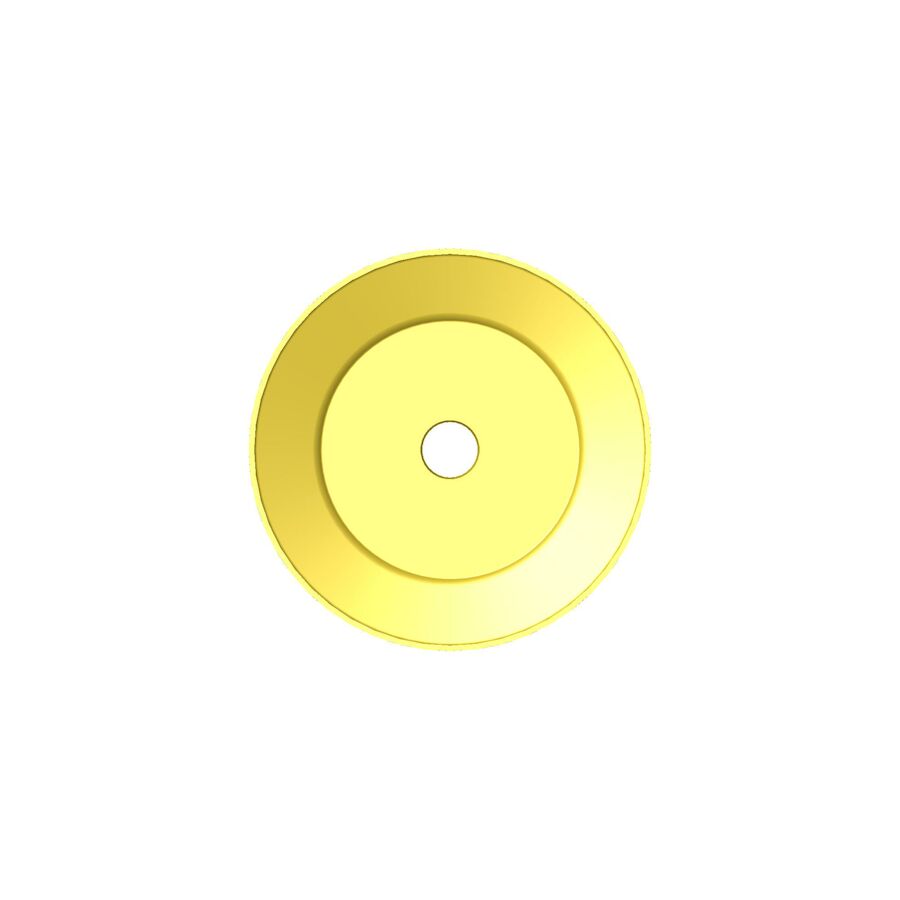

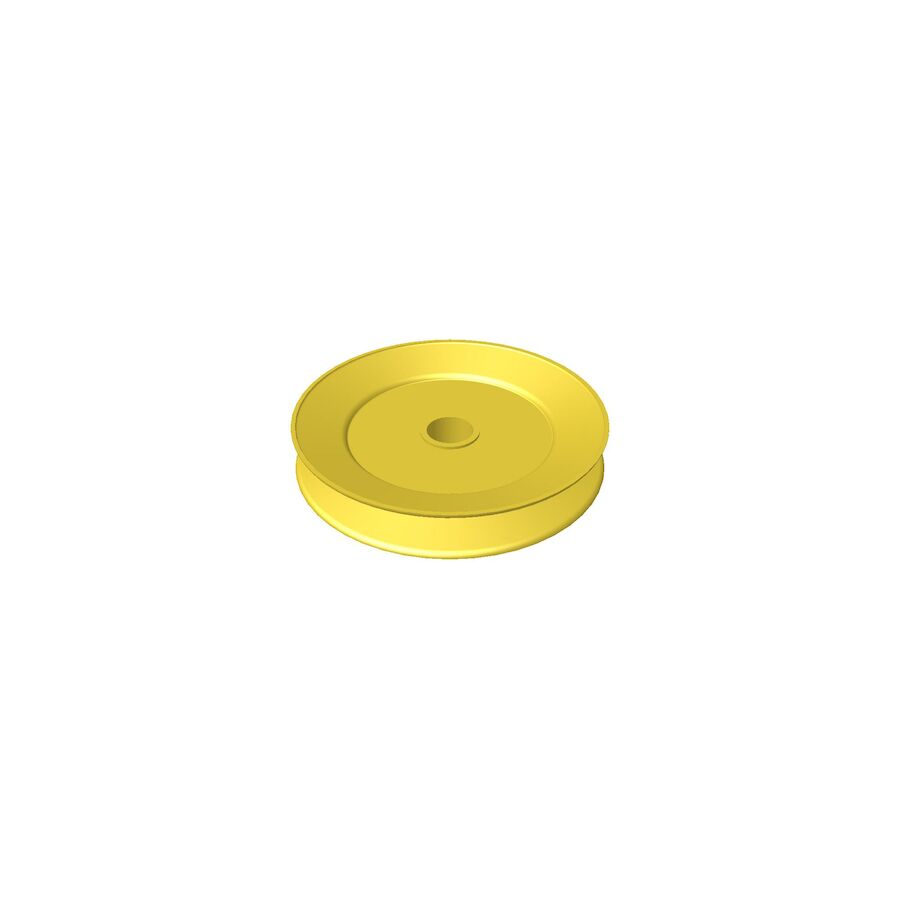

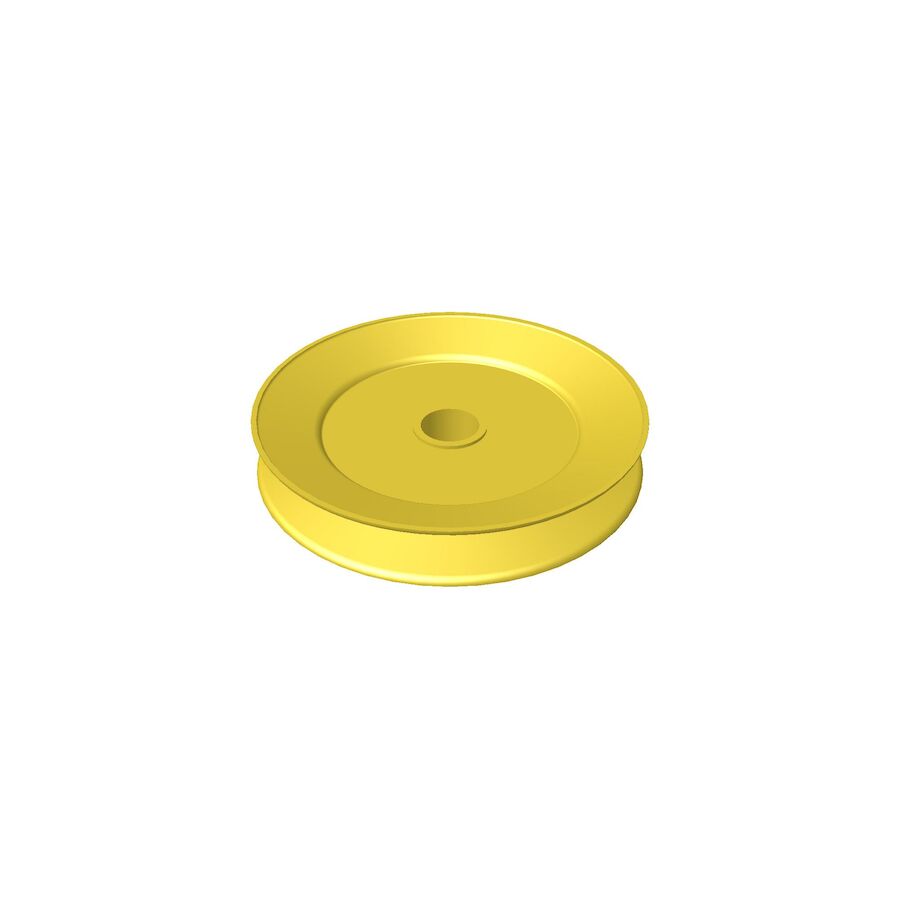

Expertly crafted from durable metal, the Toro OEM 115 4975 Spindle Assembly Pulley is designed for precision and efficiency. Specifically made to fit Toro Spindle Assemblies on all Toro 60" Timecutter HD (Model 75213 Only) - 60" TITAN HD 1500 (Model 74452 Only Between Serial Number Range 400000000 - 402099999) - 60" TITAN HD 2000 (Model 74462 Only) - Early/Tube Framing TITAN ZX and MX Models. The Toro 115 4975 high-quality pulley ensures accurate blade speed for optimal performance. Please refer to the Images above; Product Specifications, Special Notes and the Model Fit guide below to ensure proper fit.

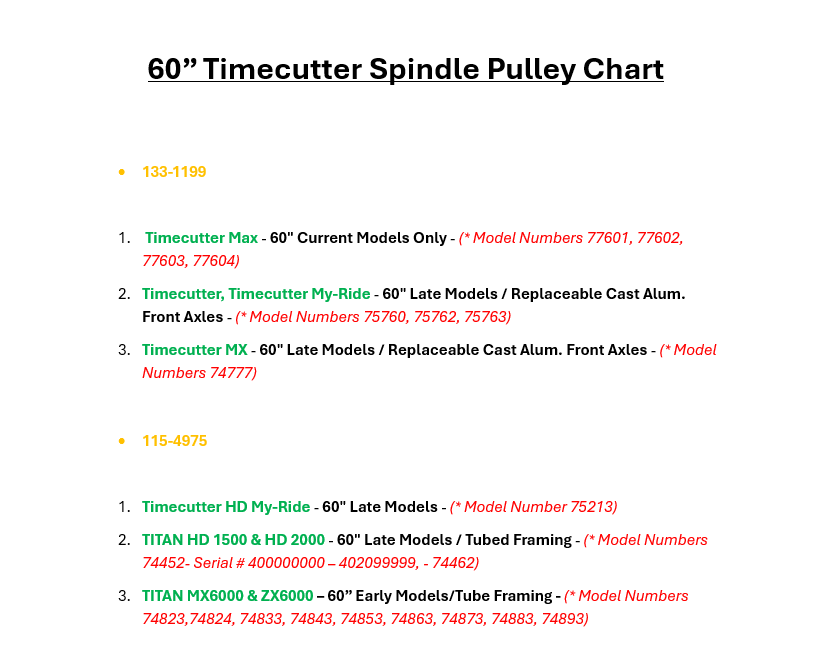

NOTE: To Gain a better understanding of part number variations for Timecutter & TITAN Models Refer to the 54" Spindle Pulley Chart and the 48", 52", 54", 60" TITAN Spindle Pulley Chart below. The chart also includes Models/Series not listed within the Timecutter & TITAN Model/Series to clarify their corresponding part numbers.

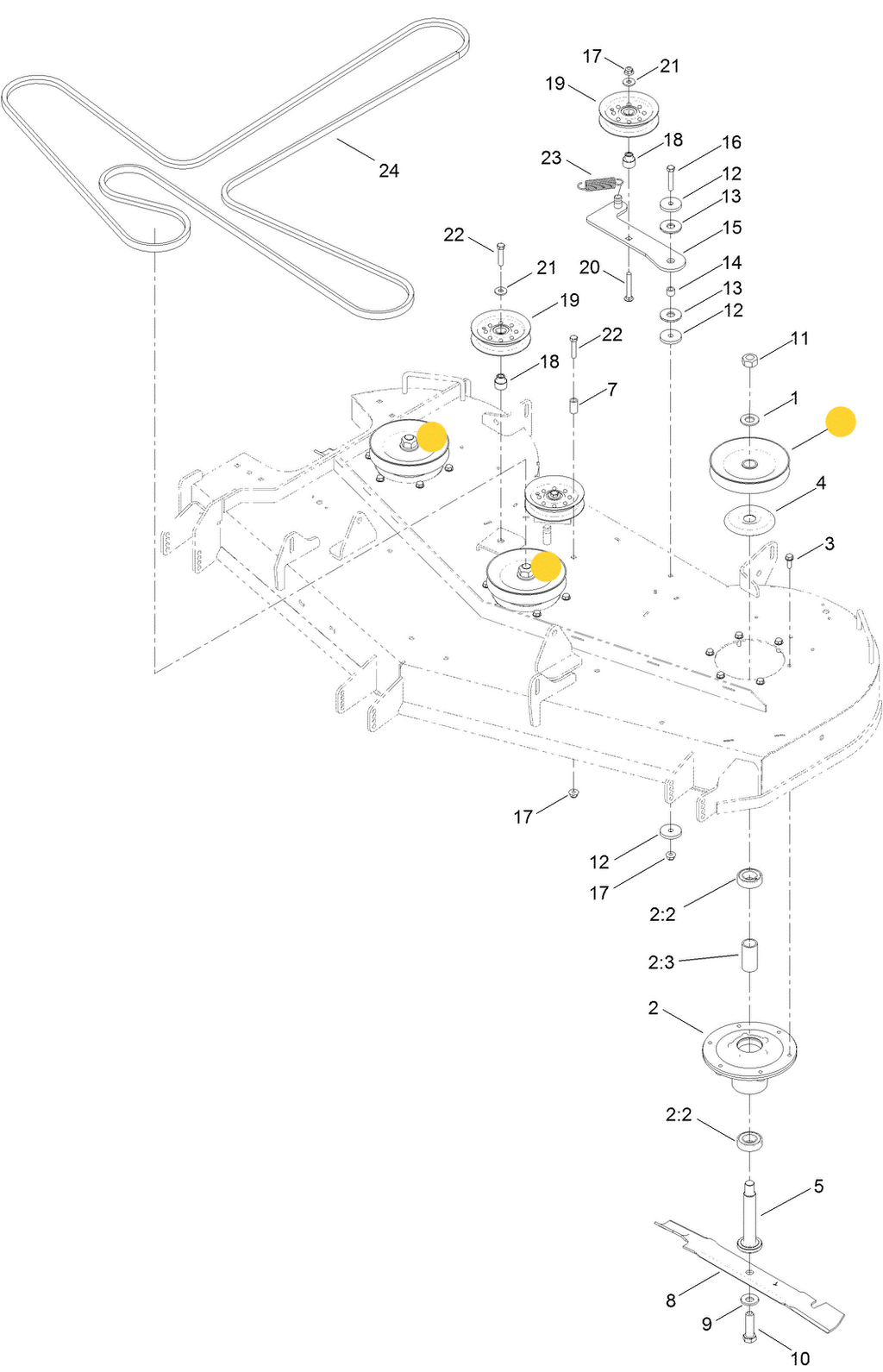

ASSOCIATED MOWER DECK SPINDLE ASSEMBLY FOR PART NUMBER 115-4975
CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED
* MODELS ASSOCIATED TO PART NUMBER 115-4975 ONLY
139-2357 - SPINDLE ASSEMBLY - REQUIRES THREE PER MOWER DECK
|
Product Number: |
1154975 |
|
Brand: |
Toro |
|
Length: |
6.600 IN (16.764 CM) |
|
Width: |
6.600 IN (16.764 CM) |
|
Height: |
1.600 IN (4.064 CM) |
|
Weight: |
2.080 LB (0.943 KG) |
Model Fit:
Timecutter HD My-Ride - 60" Late Models - (* Model Number 75213)
TITAN HD 1500 & HD 2000 - 60" Late Models / Tubed Framing - (* Model Numbers 74452- Serial # 400000000 – 402099999, - 74462)
TITAN MX6000 & ZX6000 – 60” Early Models/Tube Framing - (* Model Numbers 74823,74824, 74833, 74843, 74853, 74863, 74873, 74883, 74893)
