Description

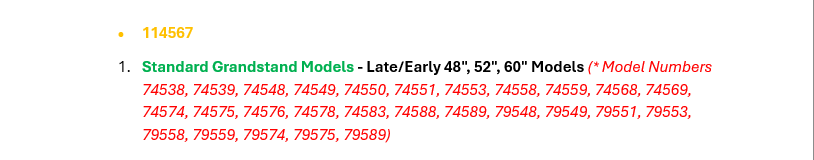

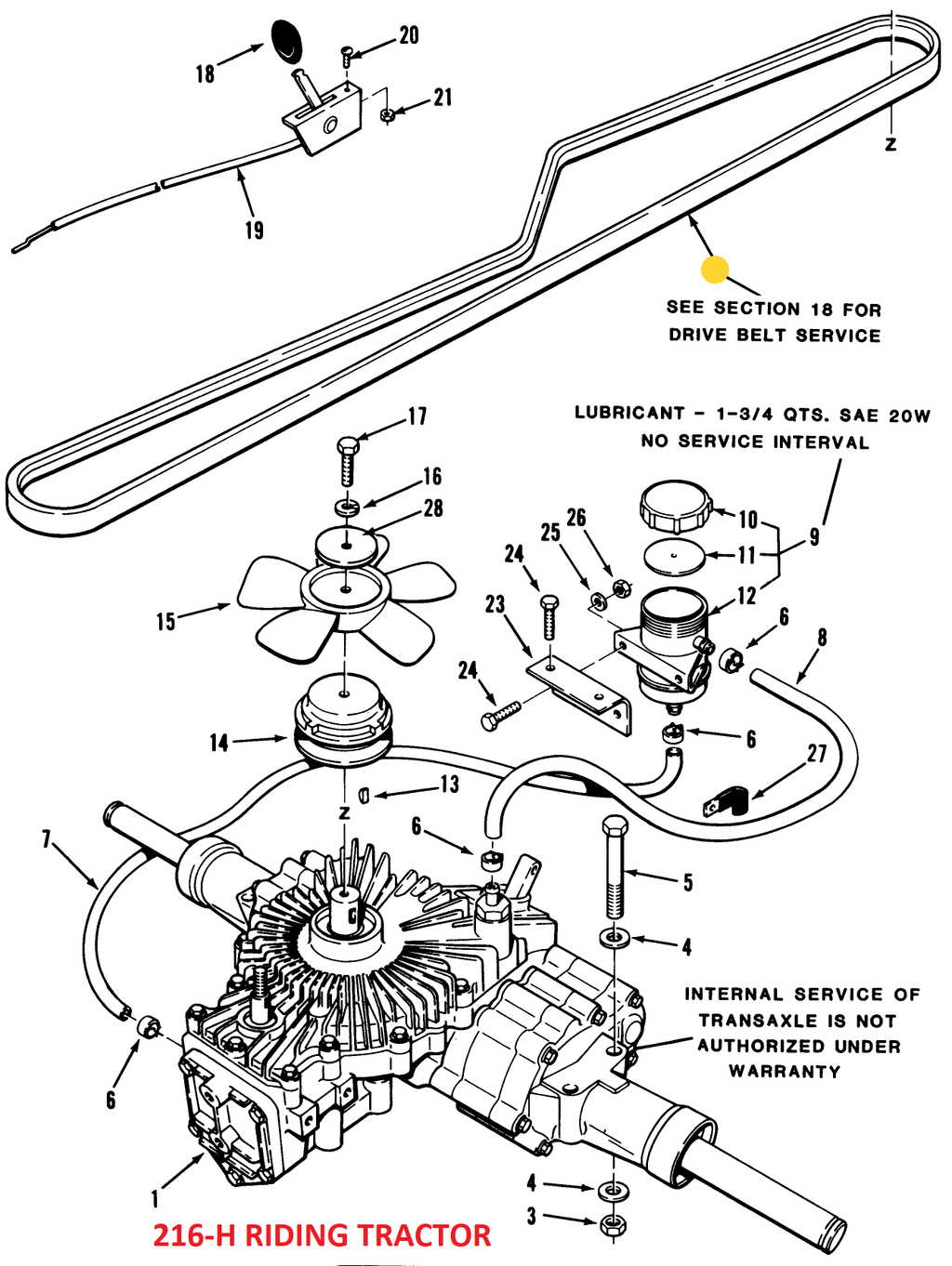

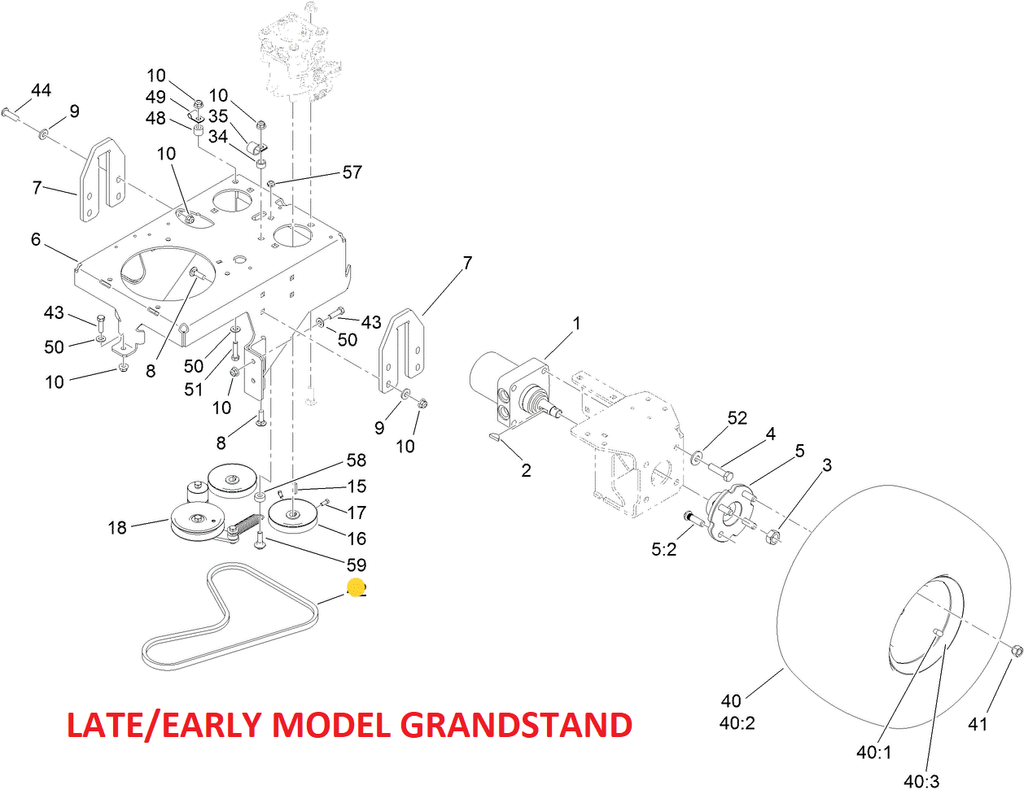

Toro OEM 114567 Hydraulic Drive Belt is made with the best of Materials Aramid/Kevlar/Rubber and is rigorously tested to ensure they have the Correct Combination of Materials, Made to Engineering Specifications and Superior Quality to Eliminate Disappointment in the functionality of Toro Equipment. So, with an Attitude (That No Hill is too Big) replace Those Worn-Out Hydraulic Drive Belt with the Confidence and the Peace of Mind that you have recreated your Machines Functionality with Toro OEM (Original Equipment Manufacturer). Toro OEM 114567 Hydraulic Drive Belt is a Made to Fit on Toro Older 216-H as A Drive Belt, as a Mower Deck Belt on 100 Series Riding Tractors and as a Hydrostatic Drive Belt on Late/Early 48", 52" and 60" Grandstand Standard Models (* Refer to Model Fit Chart, Images, Associated Parts Chart and Special Notes). Please refer to the Images above; Product Specifications, Special Notes and the Model Fit guide below to ensure proper fit. Part Number 110420 Supersedes to Part Number 114567.
NOTE 1: Due to Serial Number and/or Model Design changes it is always Beneficial to Eliminate Confusion by Searching your Belt Type and Model Number at the Top of our Website Page in the Search Tab. That in return will search the Model Fit Chart at the Bottom of the Page to Find the correct Model/Belt Part Number Combo. Second Method is to refer to the Images as well as refer to the Part Numbers under the Grandstand Hydraulic Drive Belt Associated Part Number Reference Chart and Visually Match the correct Part Number with the Correct Series/Model Combo. If this does not prove helpful and you still need assistance with finding the correct part number feel free to text us, email or give us a call and we can try to help you. Remember if further assistance is needed you will need to provide Models and Serial Number of the Unit you are wishing to receive Help with.
ASSOCIATED IDLER PULLEYS FOR MODELS USING HYDRAULIC DRIVE BELT 114567
* GRANDSTAND ONLY
CLICK ON THE ASSOCIATED PART NUMBER TO BE RE-DIRECTED
METAL FLAT IDLER PULLEY - 93-1622
Specification
|
Product Number: |
110420, 114567 |
|
Brand: |
Toro |
|
Length: |
48 IN |
|
Width: |
1/2 IN |
|
Height: |
NA |
|
Weight: |
0.300 LB (0.136 KG) |
Model Fit:
32-16BE01, 78300, R3-10B404, R3-12B602, E3-10B401, E3-12K602, R3-10B401, R3-12B601, R3-12K601, R3-10B402, 74558, 74559, 74568, 74569, 79558, 79559, 74538, 74539, 74548, 74549, 74550, 79548, 79549, 79551, 74551, 74553, 79553, 74583, 74578, 74589, 79589, 74588, 74574, 74575, 74576, 79574, 79575
