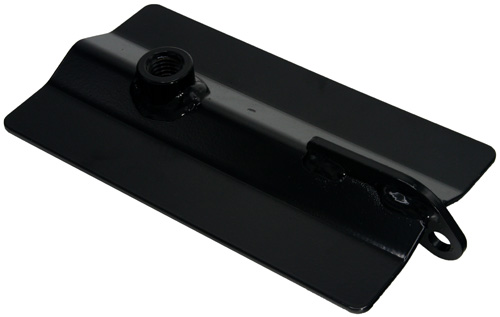

Hustler OEM 114105 Deck Idler Guide Slide



The Hustler 114105 Deck Idler Guide Slide serves as the guide, tensioner and mount for the Idler Pulley and Secondary OR Upper Mower Deck Belt on your Mower’s Cutting Deck. Its purpose is to maintain correct belt tension and allow smooth idler movement as the Deck Belt Cycles through Operation. Proper belt tension prevents slippage, reduces wear on Pulleys and Belts, and Preserves cutting quality. This slide works with the Mower Deck Idler Spring and Pulley assembly allowing movement which enables load and tension forgiveness and ensure long, trouble-free life of the drive belt system.





Note: Rear Discharge Super Z, Super Z HD, Diesel Z Models Will Use Two Idler Pulley Tensioner Systems - Mower Deck Idler Slide Arm 114133 will Be Used on the Primary Belt (Which Travels from the Engine to Select Lower Mower Deck Pulleys) Whereas its Partner 114105 Idler Guide Slide Will Be Used on the Secondary Mower Deck Which Will Travel on Between the Upper Pulleys on the Mower Deck. Need to Find the Other Pulley Tensioner System Refer to 114105.





• OEM Part Number: 114105
• Part Name: Deck Idler Guide Slide
• Brand: Hustler OEM
• Category: Deck Parts – Idler & Tension Components





Fits These Hustler Models

* Verify your model number in the Model Fit Chart Below before ordering - variations may occur depending within Model and Families. If your Model is not List Feel Free to Contact us with your Model Number to Verify Correct Usage for you Model Number.



X-ONE (Select Early Models Only), Super Z, Super Z HD, Super ATZ, Diesel Z - Rear Discharge Models





Installation Directions



1. Park mower on a **flat, level surface**. Engage parking brake and shut off engine.
2. Disconnect spark plug wire to prevent accidental start.
3. Lower the Mower Deck to access the idler assembly
4. Locate the existing Idler Guide Slide on the Mower Deck where the idler pulley and spring mount.
5. Remove belt from the idler pulley by relieving tension between the Idler Pulley and the Mower Deck Belt Via the Chain Used to Retain Tension.
6. Remove worn or damaged Mower Deck Idler Guide Slide (114105). Retain hardware if re-using.
7. Inspect associated components - Idler Pulley, Spring and UHMW Wear Pads/Rails (UHMW Wear Pad/Rails are the Wearable Component of the Slide and are Recommended to be Replaced if Replacing the Slide) - replacing as needed.
8. Install the new 114105 Guide Slide in original orientation. Torque fasteners per factory spec (see service manual for torque values).
9. Reposition idler pulley and spring onto the slide.
10. Reinstall belt over the Pulley or Pulleys and verify proper belt seating on all pulleys.
11. Tension Belt Via the spring and chain using the recommended Spring Measurements.
12. Raise deck and reconnect spark plug wire.
13. Perform a test run - verify smooth idler travel and correct deck belt operation - Visually Recheck Mower Deck Belt to Unsure that it Remained in Correct Alignment after Operation.





Spring Measurement & Belt Tension Notes



For correct deck belt tension, many Hustler deck assemblies use a **spring measurement from outside hook to outside hook** spring measurement from hook to hook on models that use 781302 Spring should be 9.3 in. - 10.0 in. Review the Image Below for example of Measurement. (For Additional Spring Measurement Length Refer to manufacturer notes in Mower Deck Belt routing section of Service Manual).







Installation Tips & Best Practices



• Always route the deck belt as shown in your mower’s owner or service manual before installing the idler slide (For Additional Mower Deck Belt References on Correct Mower Deck Belt Routing, refer to the Images under Correct Mower Deck Belt Part Number for your Particular Model on Hilly Ridge Website - Correct Part Number Can be Found on Hilly Ridge Website by Typing Part Number in the Search tab or Typing Mower Deck Belt for Model ----- in the Search Tab).
• Inspect all pulleys for smooth rotation and replace if they Wobble Excessively or the Bearings Seem Rough.
• Use proper belt tension measurement (spring length and pulley travel) to avoid belt slip under load.
• Apply Small Amount of Grease or Lubricant to the Idler Guide Slide and UHMW Rail While Re-assembling.



Related & Wear-Item Parts

These parts are commonly serviced or recommended at the same time:



Note: Super Z, Super Z HD, Diesel Z (Rear Discharge Models) will use an Additional Arm Tensioner Guide 114133 and Rotation Tensioner Arm Wear Pads 601779. For these Idler Slide Wear Pads - Refer to Part Numbers if you Wish or Need to be redirected.



• 781302 - Idler/Slide Tension Spring (Standard for all Models).
• ?????? - Idler Pulley (6″ or 5″ – Depending on Mower Deck Width/Model/Family -  to Find Correct Mower Idler Part Number for your Particular Model on Hilly Ridge Website - Correct Part Number Can be Found on Hilly Ridge Website by Typing Part Number in the Search tab or Typing Mower Deck Idler for Model ----- in the Search Tab - Review the Idler Usage Charts and always to Make Sure your Model Number is listed in the Model in the Model Fit Chart).
• 601619 OR 601619 KIT (Complete Assembly) - UHMW Wear Slides / Wear Pads (Replaceable Components that Contain and Allow the Mower Deck Idler Guide Slide to Travel without Creating Wear on The Mower Deck Shell).
• ?????? - Deck Belt (Specific to Mower Deck Width/Model/Family -  to Find Correct Mower Deck Belt Part Number for your Particular Model on Hilly Ridge Website - Correct Part Number Can be Found on Hilly Ridge Website by Typing Part Number in the Search tab or Typing Mower Deck Belt for Model ----- in the Search Tab - always to Make Sure your Model Number is listed in the Model in the Model Fit Chart).







Specification

Product Number:	114105
Brand:	Hustler
Length:	8.20 IN
Width:	4.25 IN
Height:	1.35 IN
Weight:	1.395 LB





Model Fit:



* 114105 May Be Used on Additional Models/Families like Deisel Z & X-One Models - Due to Lack of Information and Details - Hilly Ridge Will Continue to MANUELLY Improve the Model Fit Chart with Time - If you Have any Questions on Exact Fit Feel free to Message or Call us.

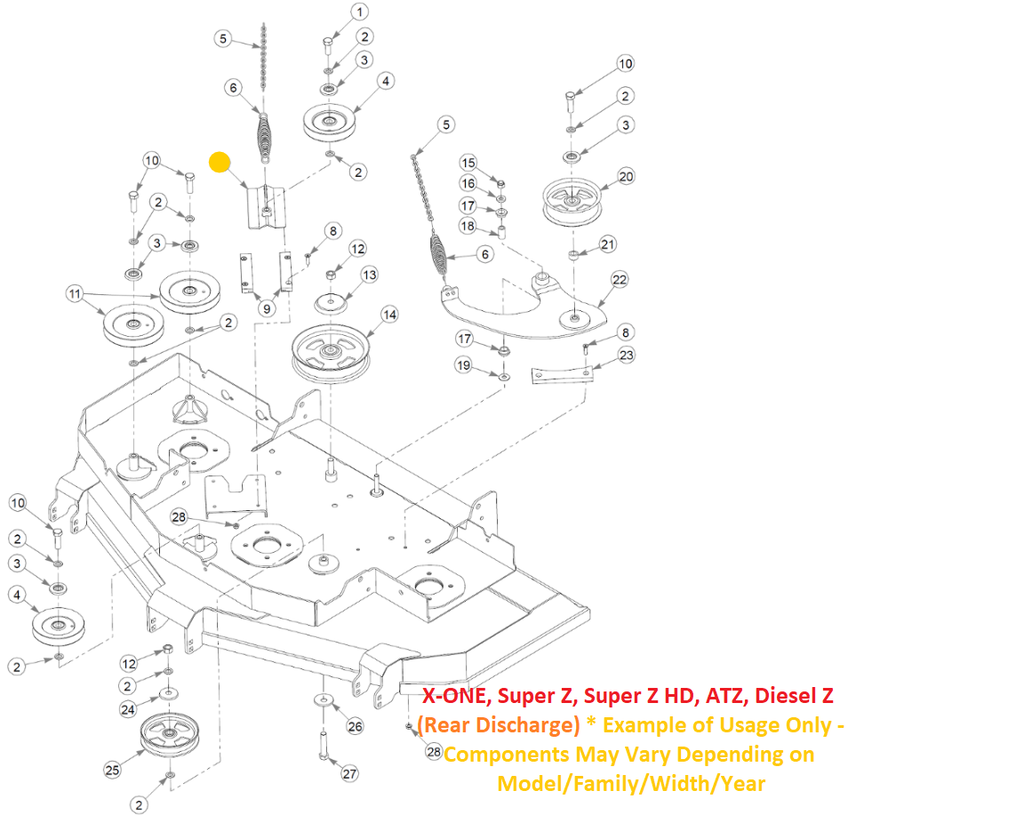

Select Early Models - X-ONE Models - Same as Super Z Images



Models are Currently Not Listed



2011 - Current Rear Discharge - Super Z Models



930024, 930065, 932053, 932061, 934216, 934224, 935023, 935064, 936914, 936955, 940031, 940049, 941195, 941203, 942862, 942912, 943910, 943944



2013 - 2022 Rear Discharge - Super Z HD Models



932178, 932186, 934307, 934315, 934935, 934976, 937011, 937052, 941245, 941286, 941559, 941567, 943035, 943043, 944025, 944033



2018 - 2025 Rear Discharge - Diesel Z Models



Models are Currently Not Listed Will Be Eventually





Super ATZ (Rear Discharge Models)

(Models 2011 and Later are Listed - Models Listed Prior To 2011 Will Not Be Listed If Applicable)



No Listed Model Numbers





Not sure if this is the correct part?

Contact us with your Hustler model and serial number and our parts team will verify fitment before you order.
