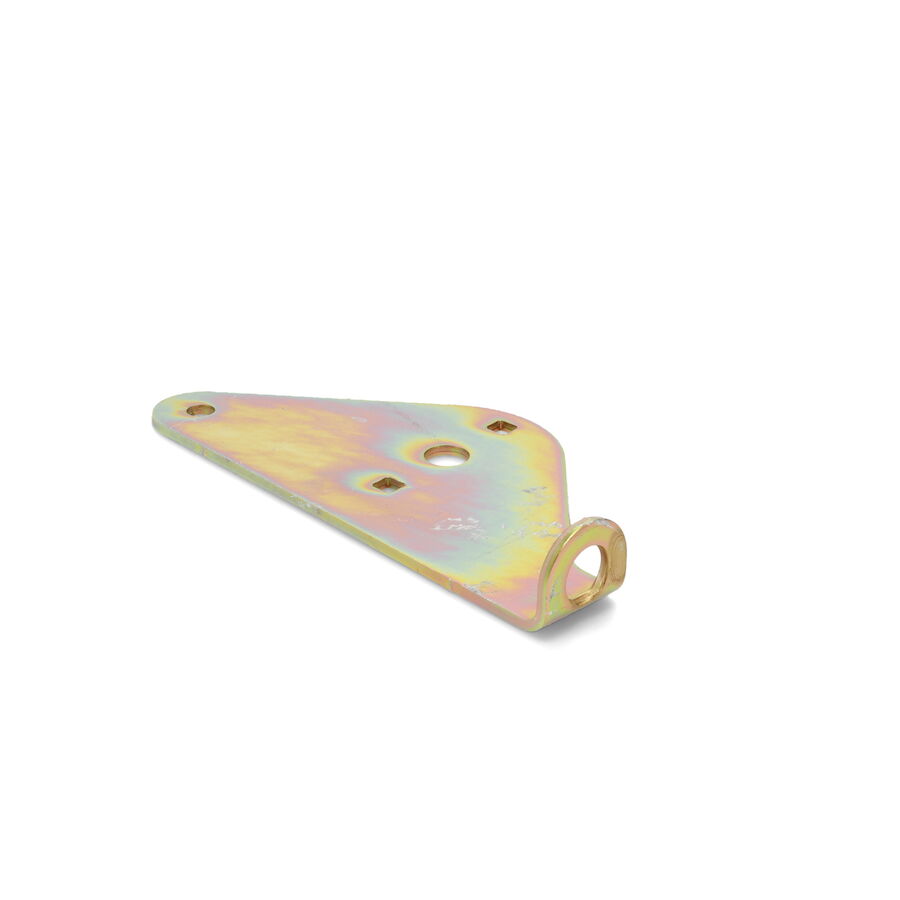

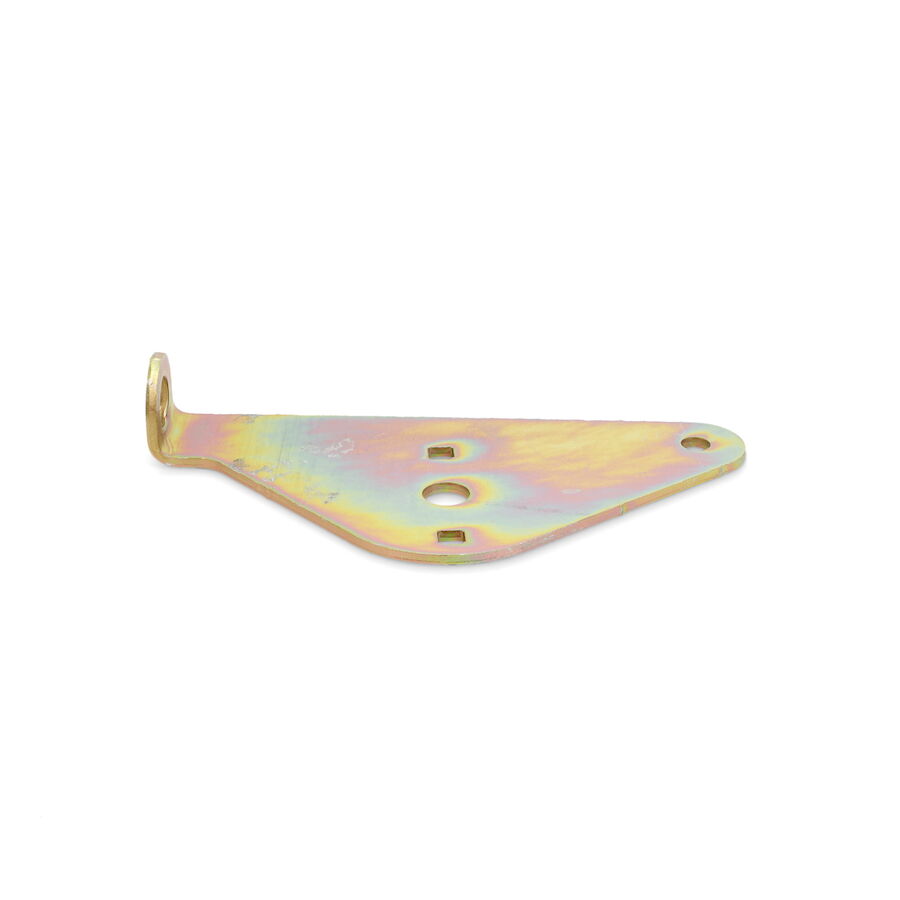

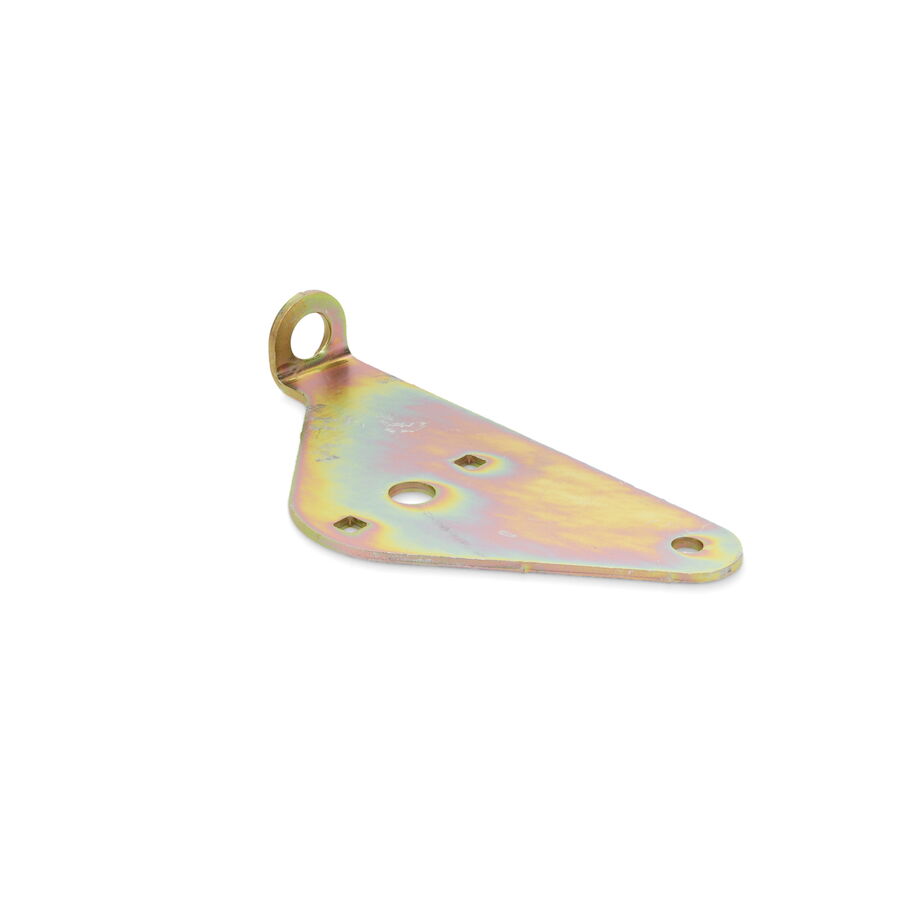

Toro OEM 114-8540 Mower Deck Idler Arm Fits Early/Late 34", 42", 50", 54", 60" Timecutter MX, SS, SWX, Z, ZS, Models, 50" TITAN ZX Models and G4000 Models.

Toro OEM 114 8540 Mower Deck Idler Arm is an Essential Toro OEM Part that Enables "THE PROPER AMOUNT OF TENSION" to be Applied. Having Issues with Mower Deck Slapping on Start-Up or Slipping - Not Saying this is the Cause but Look No Further and Evaluate the wear on your Idler Arm. Toro OEM Idler Pulley Tension Arm 114 8540 Fit a Large Selection of Early - Late Model Toro Timecutter 34", 42", 50", 54", 60" MX, SS, SWX, Z, ZS Models as well as 50" TITAN ZX Models and G4000 Series Mowers. Please refer to the Images above; Product Specifications and the Model Fit guide below to ensure proper fit.

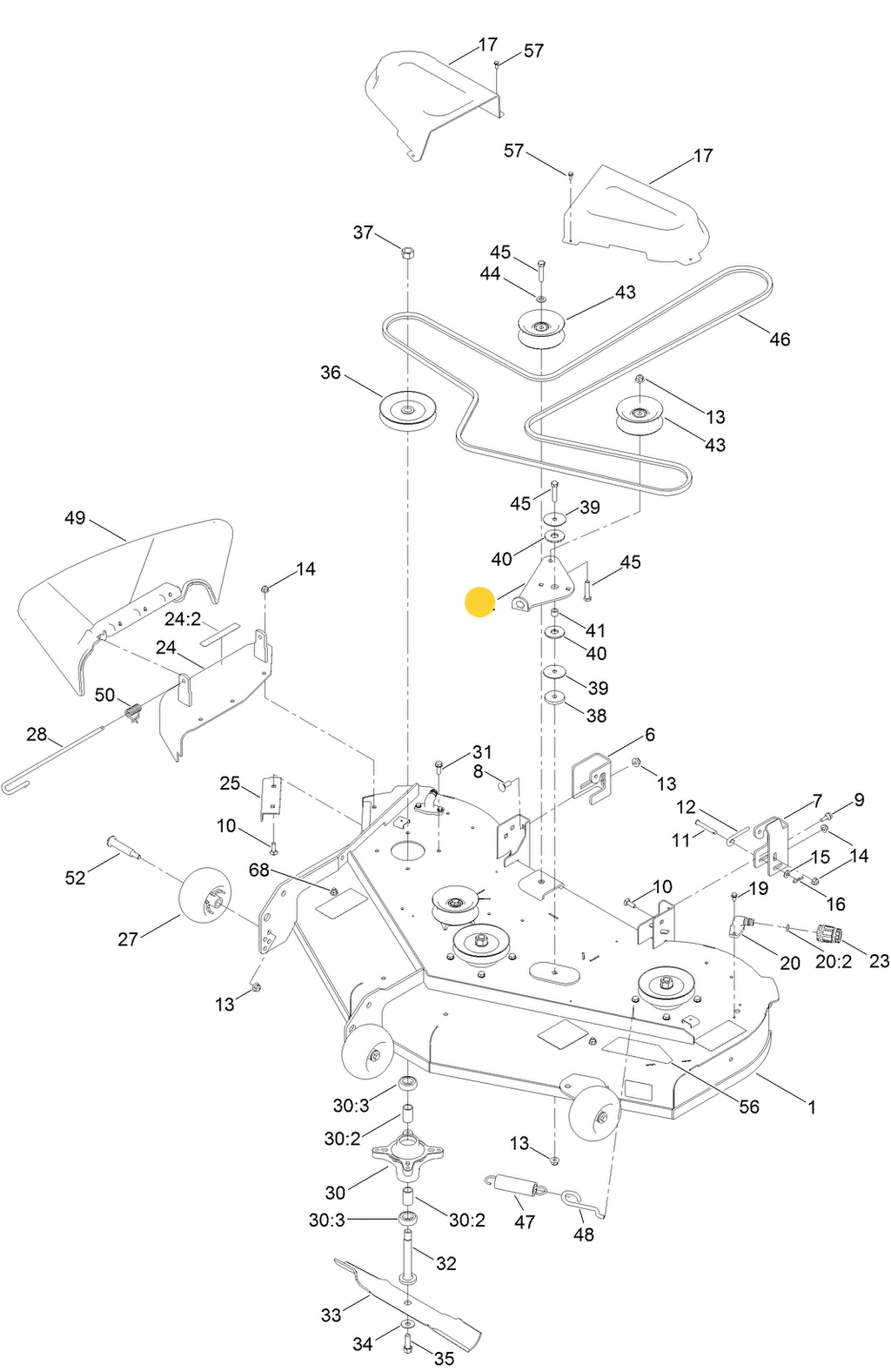

ASSOCIATED IDLER ARM PARTS FOR PART NUMBER 114-8540 ONLY

CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED





1. 323-9 - HEX HEAD BOLT (Retains Idler Arm 114-8540 & Components) x1
2. 120-2229 - FLAT WASHER (Supports 114-0463) x2
3. 114-0463 - RUBBER/COMPOSITE WASHER (Applies Pressure to Idler Arm) x2
4. 115-4986 - SPACER (Inserts into Idler Arm) x1
5. 110-9981 - SPACER WASHER (Supports Idler Arm Spacer 115-4986) x1
6. 104-8301 - FLANGE NUT (Retains Idler Arm 114-8540 & Components) x1
7. 1-603414 - TENSION SPRING (Attaches to Idler Arm & Mower Deck) x1







Specification

Product Number:	1148540
Brand:	Toro
Length:	8.750 IN (22.225 CM)
Width:	4.200 IN (10.668 CM)
Height:	1.300 IN (3.302 CM)
Weight:	1.210 LB (0.549 KG)





Model Fit:



TIMECUTTER 34” MX Series – Model Numbers – 74750



TIMECUTTER 42” MX Series – Model Numbers – 74640, 74642, 74760, 74765, 74766



TIMECUTTER 42” Z Series – Model Numbers – 74360, 74380, 74363, 74381, 74365, 74366, 74655, 74656, 74657, 74665, 74667



TIMECUTTER 42” ZS Series – Model Numbers – 74386, 74387, 74389, 74390, 74655, 74656, 74657



TIMECUTTER 42” SS Series – Model Numbers – 74622, 74624, 74625, 74626, 74623, 74627, 74628, 74633, 74616, 74636, 74705, 74706, 74711, 74720, 74721, 74722, 74723, 74725, 74726



TIMECUTTER 42” SW Series – Model Numbers – 74675, 74676, 74680, 74784, 74785, 74788



TIMECUTTER 42” SWX Series – Model Numbers – 74787



TIMECUTTER 50” MX Series – Model Numbers – 74641, 74643, 74770, 74771, 74775, 74776, 74778, 74727, 74768, 74772, 74773, 74774



TIMECUTTER 50” Z Series – Model Numbers – 74370, 74391, 74399, 74374, 74375, 74373, 74376, 74398, 74387



TIMECUTTER 50” ZS Series – Model Numbers – 74660, 74661, 74395



TIMECUTTER 50” SS Series – Model Numbers – 74630, 74632, 74631, 74635, 74637, 74638, 74730, 74731, 74732



TIMECUTTER 50” SW Series – Model Numbers – 74793, 74680, 74790



TIMECUTTER 50” SWX Series – Model Numbers – 74797, 74798, 74795



TIMECUTTER 54” SS Series – Model Numbers – 74740, 74741



TIMECUTTER 54” SW Series – Model Numbers – 74793



TIMECUTTER 60” MX Series – Model Numbers – 74777



TITAN 50” ZX Series – Model Numbers - 74820, 74840



G4000 Series – 94360, 94370, 94372, 94375, 725058046, 725058056, 725058066, 725058086
