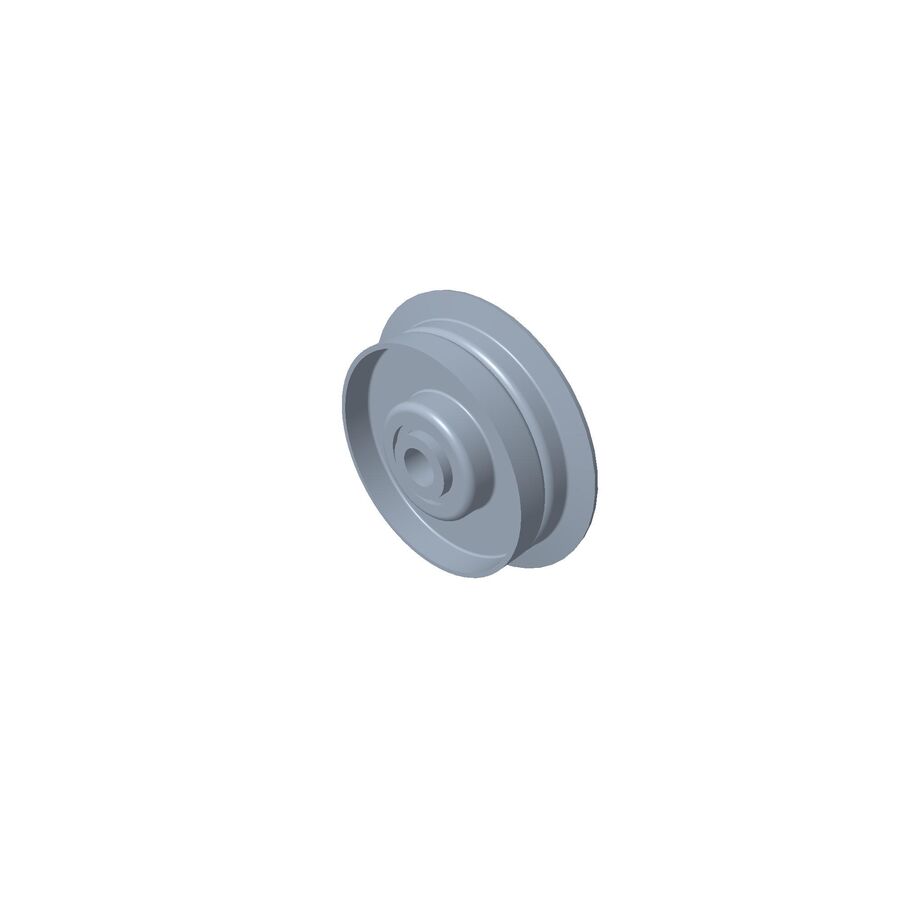

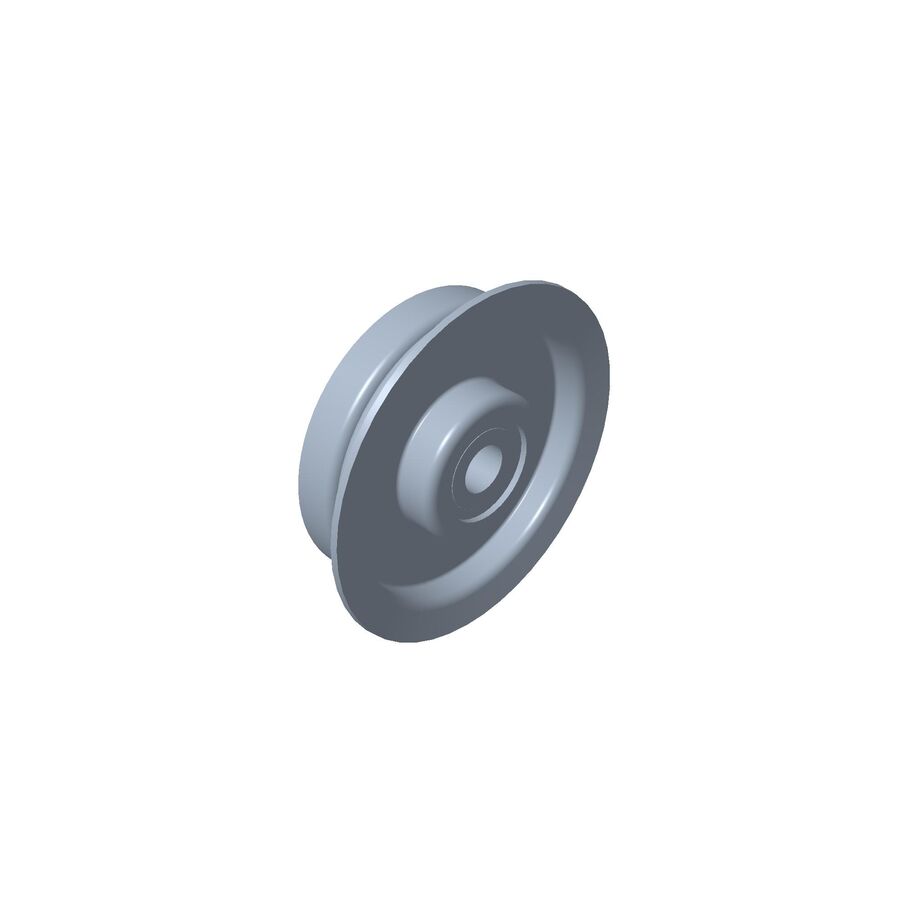

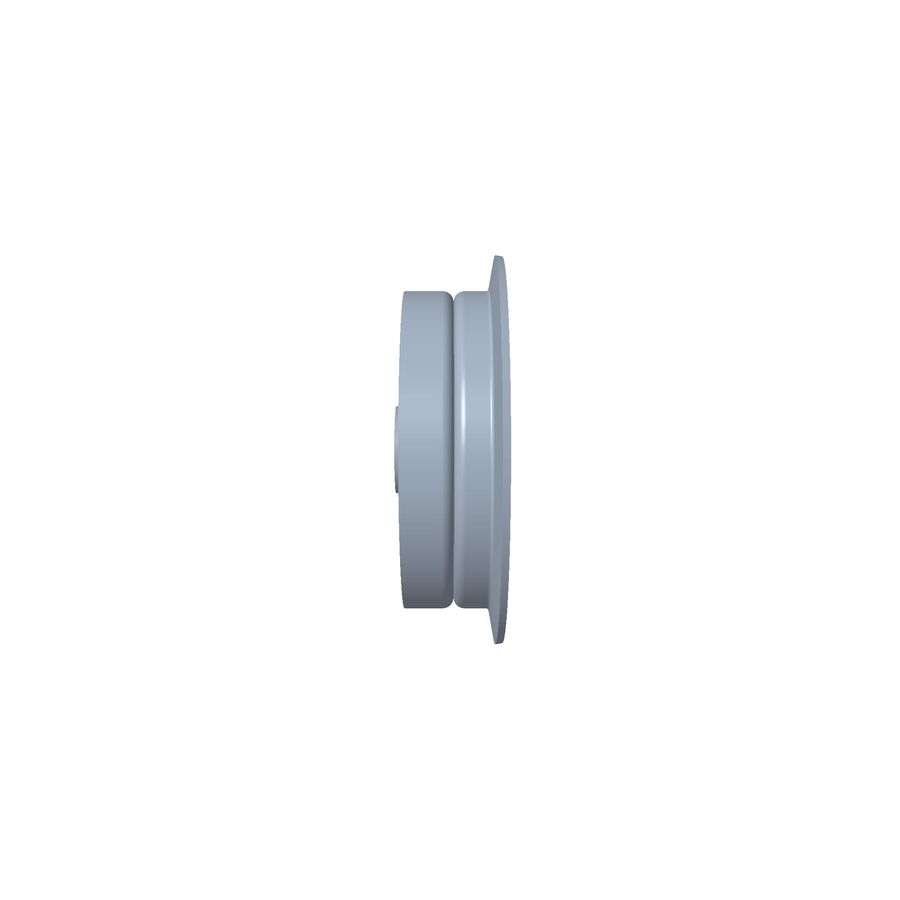

Toro OEM 114-3785 Auger Tensioner Idler Pulley Fits Select 21" Single Stage Power Clear and Quick Clear Snowblower Models.

Please refer to the Images above; Product Specifications, Associate Part Chart and the Model Fit Guide below to Ensure a proper fit.



• PRODUCT NUMBER AND VARIATIONS: 114-3785, 114 3785, 1143785
• SIZE: Length 2.400 in. - Width 2.400 in. - Height 0.400 in. - Weight 0.260 lbs.
• NOTES & DETAILS: Toro OEM  114-3785 IS COMMINLY USED - 114-3785 Contains Steel Alloy Roller Bearing that Allow the Pulley to Match the Speed of the Engine RPM's as the Operator Applies Direct Tension Between the Belt and Idler Pulley while Engaging the Auger or Rotor - Fastens Directly on the Outside side of the Idler Pulley Tensioner Arm
• COMMON SERIES APPLICATIONS: Toro Select 21" Power Clear & Quick Clear Snow Blower Models.





• MODEL FIT CHART:

SNOWBLOWER’S



QUICK CLEAR Series – Model Numbers – (* Model Numbers 38563, 38564, 38567, 38568, 38569, 38571, 38575, 38576, 38577)



POWER CLEAR Series – Model Numbers – (* Model Numbers 38451,38452, 38453, 38454, 38458, 38459, 38578, 38581, 38582, 38583, 38584, 38585, 38586, 38587, 38588, 38589, 38593, 38741, 38742, 38743, 38744, 38751)



Misc. Lawn Boy Models – Model Numbers – (* Model Numbers 34001, 34002)

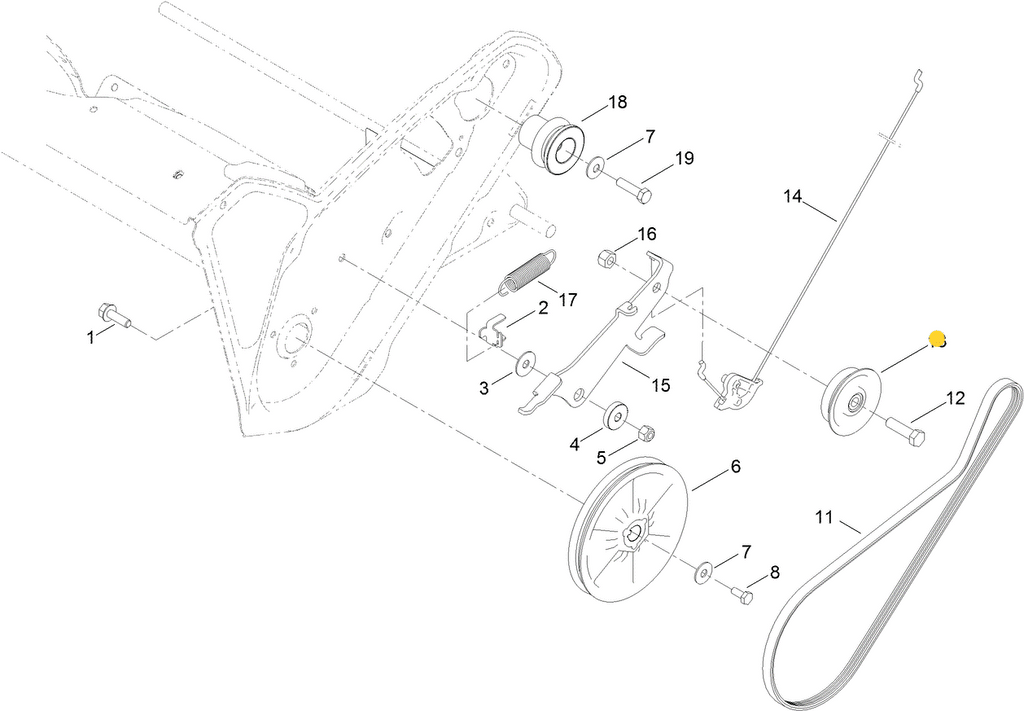

• ASSOCIATED PARTS CHART:



ASSOCIATED PARTS REFERENCES FOR PART NUMBER 114-3785 ONLY

CLICK ON THE ASSOCIATED PART NUMBER TO BE REDIRECTED



1. 136-7138 - IDLER PULLEY TENSIONER ARM (Fastens to the Snowblower main Frame using a Pivot Bushing which allow the Idler Arm to Pivot when the Operator engages The Auger/Rotor Bail Handle. The Auger/Rotor Bail Handle uses a cable to Attach to the Idler Pulley Tensioner Arm and engages it by Tensioning the Idler Pulley against the Belt and Disengages it by allow the Return Spring to Return it when the Tension on the Auger/Rotor Cable and Auger /Rotor Idler Pulley Tensioner Arm is Released) x1 Per Snow Blower Unit
2. 323-29 - HEX HEAD BOLT (Installed from the Flange Side of the Idler Pulley and travels through the Idler Arm - Retains the Idler Pulley to the Idler Pulley Tensioner Arm) x1 Per Idler Pulley
3. 32152-2 - CONE LOCK NUT (Installed on the Engine side of the Idler Pulley Tensioner Arm and Retains the Idler Pulley to the Idler Pulley Tensioner Arm) x1 Per Idler Pulley
